Tektronix Phaser 200E Manual

1995 b

Tektronix, Inc.. All ri

hts reserved. 063-1865-AA

Instruction Sheet

Phaser

200e

Phaser

200i

Phaser

220e

Upgrading a Phaser

200e, 200i or 220e printer

to a Phaser

240

This kit contains the components necessary to upgrade a Phaser 200e, 200i or 220e to a Phaser 240 Color

Printer. Generally, this involves replacing the printerÕs old image processor board with a new image

processor board. In the case of the Phaser 200e and 200i, the printerÕs engine control board must also be

replaced with a new engine control board included in this kit. In all cases, the unused or replaced

components must be returned to Tektronix. This upgrade should only be installed by qualiÞed service

personnel.

Kit contents

■

Phaser 240 image processor board

■

print engine controller board

■

8-Mbyte RAM SIMM

■

Ethernet card (Option P1)

Static electricity precautions

■

Plug in the ground adapter (003-1501-00) in an AC outlet. Connect the

anti-static mat (006-7056-00) to the adapterÕs groundplug.

■

Put on your anti-static wrist strap and connect it to the anti-static mat.

■

Leave the printer plugged into its power outlet; this preserves a

ground path for static discharges.

■

Touch the printer's bare metal frame often to discharge static

electricity from your body.

■

Handle the circuit board(s) by their edges only.

■

Do not lay the board(s) on a metal surface.

■

Avoid wearing nylon or polyester clothing; they generate static

electricity.

Upgrading a Phaser¨ 200e, 200i or 220e printer to a Phaser¨ 240

Removing the old boards

Power down the printer. Leave the power cord plugged in to provide

a ground path for static discharges. Remove the interface cables.

Remove the top-rear and rear cabinet panels.

Remove the screws securing the old I/O board to the card cage.

Disconnect the I/O boardÕs ribbon cable(s) from the image processor

board. The Phaser 220i and 200i I/O boards have two ribbon cables;

the Phaser 220e and 200e I/O boards have one ribbon cable. Remove

the I/O board.

Tools required

■

#1 POSIDRIV¨ screwdriver

8699-64

I/O board

Upgrading a Phaser¨ 200e, 200i or 220e printer to a Phaser¨ 240

Remove the card cage top (3 screws).

Flip over the hinged card cage top.

Lift out the old image processor board.

Flip over

top

Lift out image

processor board

Remove screws

865

Note

In the next step, it is only necessary to remove the old engine control

board from a Phaser 200e or Phaser 200i Color Printer.

Disconnect the wiring harnesses leading to the engine controlÊboard.

Lift out the engine control board.

Card cage

Disconnect

harnesses

31865-02

Lift out 

engine board

31865-03

Upgrading a Phaser¨ 200e, 200i or 220e printer to a Phaser¨ 240

SIMM installation on the new image processor board

If installed, remove the font module by spreading the pawls at each

end of the font module connector securing the module in place.

2. Installing the RAM SIMM.

Insert the RAM SIMM in connector J7 (

), and

tilt the card upright until it locks in place (

). When properly inserted,

a tab on each end of the connector slips into a hole on each end of the

card. Also, a pawl on each end of the connector latches around each

end of the card to lock it in place.

3. Installing the Ethernet card.

Insert the Ethernet card in connector J30 (

and tilt the card upright until it locks in place (

). When properly

inserted, a tab on each end of the connector slips into a hole on each

end of the card. Also, a metal pawl on each end of the connector

latches around each end of the card to lock it in place.

Reinstall the font module, if removed. Like the RAM SIMM, when

properly inserted, a tab on each end of the connector slips into a hole

on each end of the card. Also, a pawl on each end of the connector

latches around each end of the card to lock it in place.

16-0 00-0

16-1 00-1

16-2 00-2

16-3 00-3

Standard

RAM SIMM

Optional

RAM SIMM

Font

module

Ethernet

card

I/O board

connector

31865-04

Upgrading a Phaser¨ 200e, 200i or 220e printer to a Phaser¨ 240

New image processor install

Slide the new image processor board into its card cage slot.

Close the card cage cover and secure it in place.

Reinstall the printer covers.

Insert image

processor board

Close

card cage

top

Upgrading a Phaser¨ 200e, 200i or 220e printer to a Phaser¨ 240

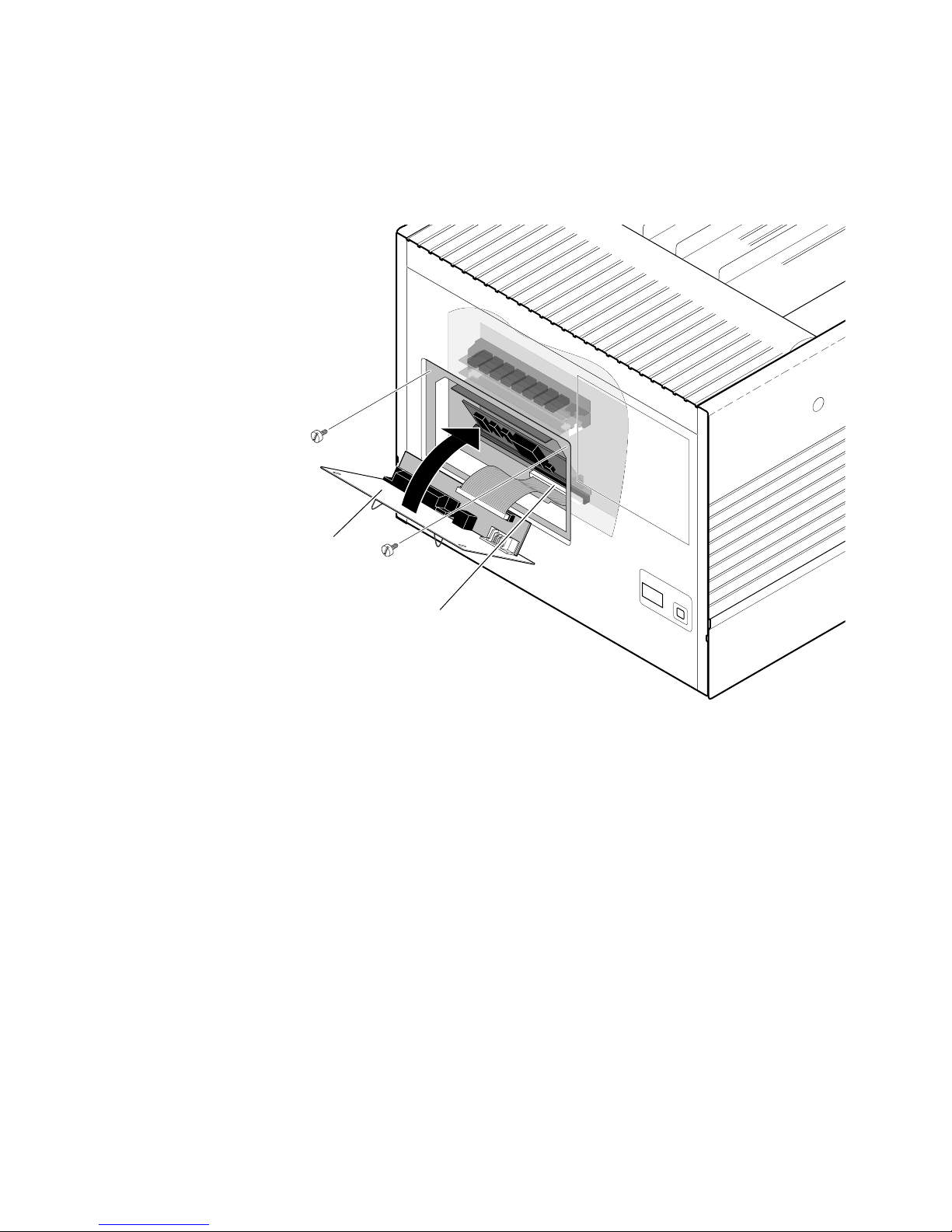

Connect the I/O boardÕs ribbon cable to the image processor boardÕs

I/O connector. Tilt the I/O board forward into place against the rear

of the printerÕs card cage. Secure the I/O board in place with the two

thumbscrews.

Reconnect the interface cables. Turn on the printer and examine the

startup page it should automatically print out. Refer to the

Phaser 240

Color Printer User Manual

for details on connecting interface cables and

making prints.

Install

I/O board

Install

ribbon cable

31865-06

Upgrading a Phaser¨ 200e, 200i or 220e printer to a Phaser¨ 240

Return the old boards to Tektronix

Repack the old image processor and engine board (new or old) in the

anti-static bags. Put the anti-static bags inside the shipping box.

In the U.S.A.:

Write the printerÕs original serial number on the shipping return

label. attach the shipping label to the box, covering the original

shipping label.

Securely tape the box closed and mail it to the pre-addresses

location. Postage is prepaid.

Outside the U.S.A.:

AfÞx the special international shipping return label, included with

this upgrade kit, to conceal the original U.S. shipping label.

Write the printerÕs serial number on the shipping return label.

Tape the box closed and ship the box to Tektronix, using you

respective countryÕs shipping method.
