Cleaning Instructions

iii

Contents

Introduction

..................1

Thermal Head

..................3

Paper-feed Rollers

................5

Paper-pick Rollers

................6

Transfer Roll Sensor Pad

............10

Drum

....................11

Exit Rollers

..................12

Cleaning Instructions

Keeping your printer a top performer

Introduction

By performing regular cleaning, you ensure that your printer produces the highest quality prints.

Regular cleaning also helps prevent paper jams, smudged or streaked prints and misregistration.

Cleaning the printer is easy; just follow the procedures given in the next few pages.

When to clean

Every time you replace the transfer roll, and whenever printing appears streaked, or media feeds

improperly, clean these parts:

Thermal head

Paper-feed rollers

Paper-pick rollers

Clean these printer parts every 5,000 prints:

Transfer roll sensor pad

Drum

Exit rollers

Troubleshooting

Problem Possible Solution

Vertical streaks on prints. Clean the thermal head.

Missing areas of primary colors (cyan,

magenta, yellow, black).

Clean the thermal head.

Smudges on one end of prints. Clean the paper-pick rollers.

Smudges throughout prints. Clean the paper-feed rollers and exit

rollers.

Phaser 200 Series

Important notes about cleaning

❑

Use isopropyl alcohol to clean your printer. It can be purchased at your local pharmacy. You

can also use cleaning wipes that are pre-saturated with isopropyl alcohol (Tektronix order

number 006-7824-00).

❑

90% isopropyl alcohol is recommended. If you use alcohol that is less than 90% pure, allow

extra time for the paper-feed, paper-pick and exit rollers to dry.

❑

Before cleaning any part except the paper-pick rollers: Dampen a lint-free wipe with isopropyl

alcohol.

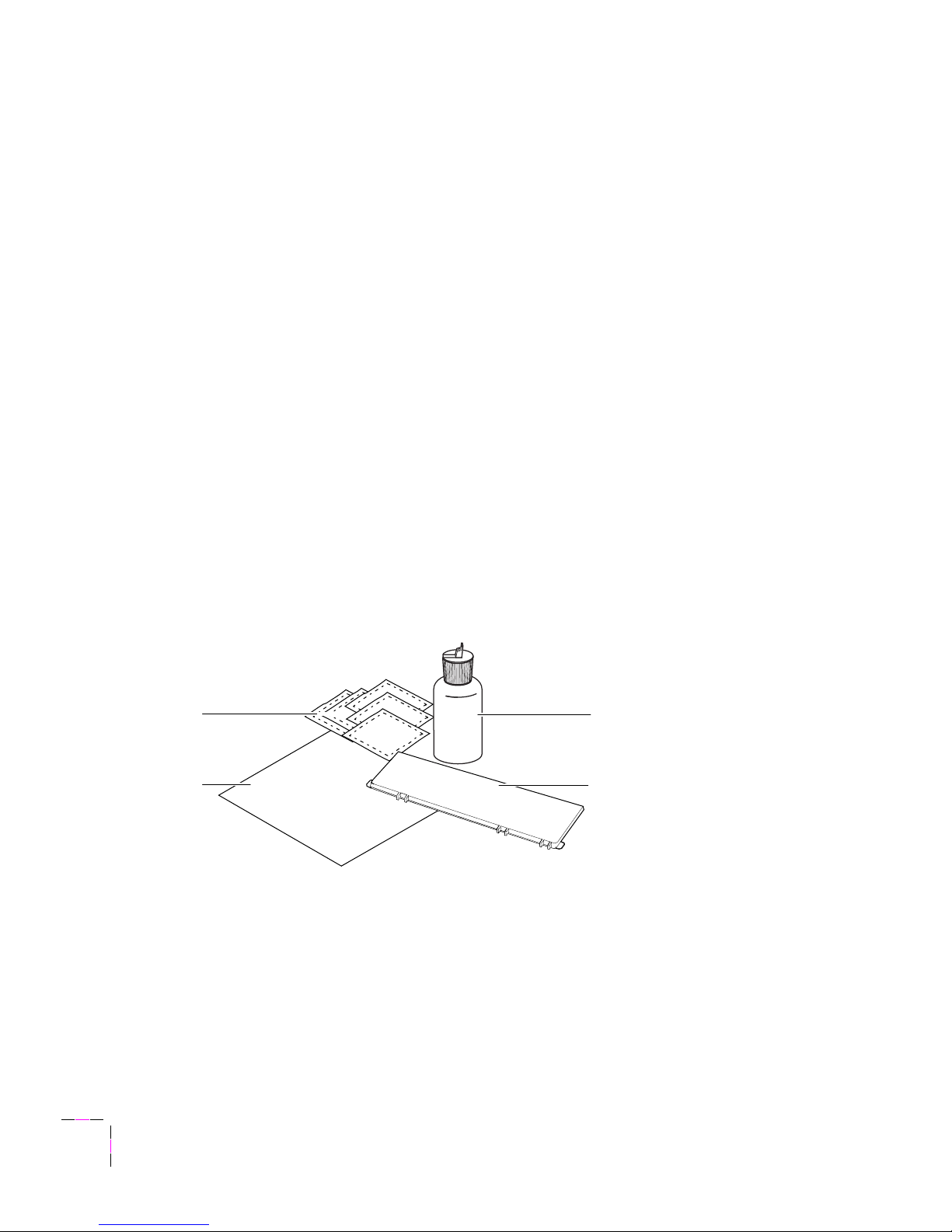

Cleaning kit

A cleaning kit is shipped with the printer (Tektronix order number 016-1233-00). You will need the

contents of the cleaning kit to perform the cleaning procedures on the next few pages:

Lint-free cleaning wipes

A plastic bottle for isopropyl alcohol

A cleaning tray for cleaning paper-pick rollers

Cleaning Instructions (this book)

Cleaning

Instructions



Isopropyl

Cleaning Instructions

Thermal Head Ð

Clean every transfer roll change.



123



Isoprop

Pre-saturated

isopropyl

alcohol

cleaning

wipe



❑

Turn off the printer using the

switch on the side.

❑

Open the top cover.

❑

Open a pre-saturated

cleaning wipe packet and

remove the wipe

dampen

a lint-free wipe with

isopropyl alcohol.

Phaser 200 Series



Caution

The thermal head may be hot.

To avoid possible injury, let it

cool before cleaning it.

❑

Use the wipe to gently clean

the entire surface of the

thermal head. Cleaning in

one direction only prevents

dirt from being re-introduced

to the thermal head.

❑

Close the top cover. Turn on

the printer using the switch

at the side.

Cleaning Instructions



Paper-feed Rollers Ð Clean every transfer roll change.



1

❑

Remove the front cover by

pulling forward, using the

Þngergrips at each side.

❑

Clean the three paper-feed

rollers; rotate them as you

wipe so that all surfaces are

cleaned.

❑

Replace the front cover,

tilting it slightly toward you

to align the guide-tabs in the

top slot.

Phaser 200 Series



aper-pick Rollers Ð Clean every transfer roll change.



1

For A4-size (metric) trays



❑

Turn off the printer.

❑

Remove the paper tray.

Remove the paper or

transparencies from the tray.

If your printer has two paper

trays, be sure to remove both

trays.

❑

When removing paper or

transparencies, do

not

push

the paper trayÕs metal plate

down. If the metal plate is

down, put the paper tray in

the printer and pull it out

again; this returns the metal

plate to the

position.

❑

Remove the cleaning tray

from your cleaning kit.

Note

If you are using an A-size

(U.S.) paper tray:

not

break the endtabs off the

cleaning tray. Proceed to

tep 4 on the following page.

❑

If you are using an A4-size

(

metric

) paper tray:

break

both endtabs (

and

) off

the cleaning tray.
