tekmarNet®4 Thermostat 545

- User Brochure

Table of Contents

Display.................................................................... 2

Symbols Description............................................... 2

User Interface......................................................... 3

Viewing Current Temperatures............................... 4

Viewing the Room Set Temperature....................... 4

Adjusting the Room Set Temp (No Schedule)........ 5

Adjusting the Room Set Temp (Schedule).............. 5

Temporary Room Set Adjustment (Schedule)........ 5

Adjusting the Temporary Zone Hold ....................... 6

Choosing the Mode of Operation............................ 6

Setting the Floor Warming Temperatures............... 6

Setting the Fan On Time......................................... 6

Resetting the Filter Timer ....................................... 7

Viewing the Current Time ....................................... 7

Setting the Time ..................................................... 7

Selecting a Scene................................................... 8

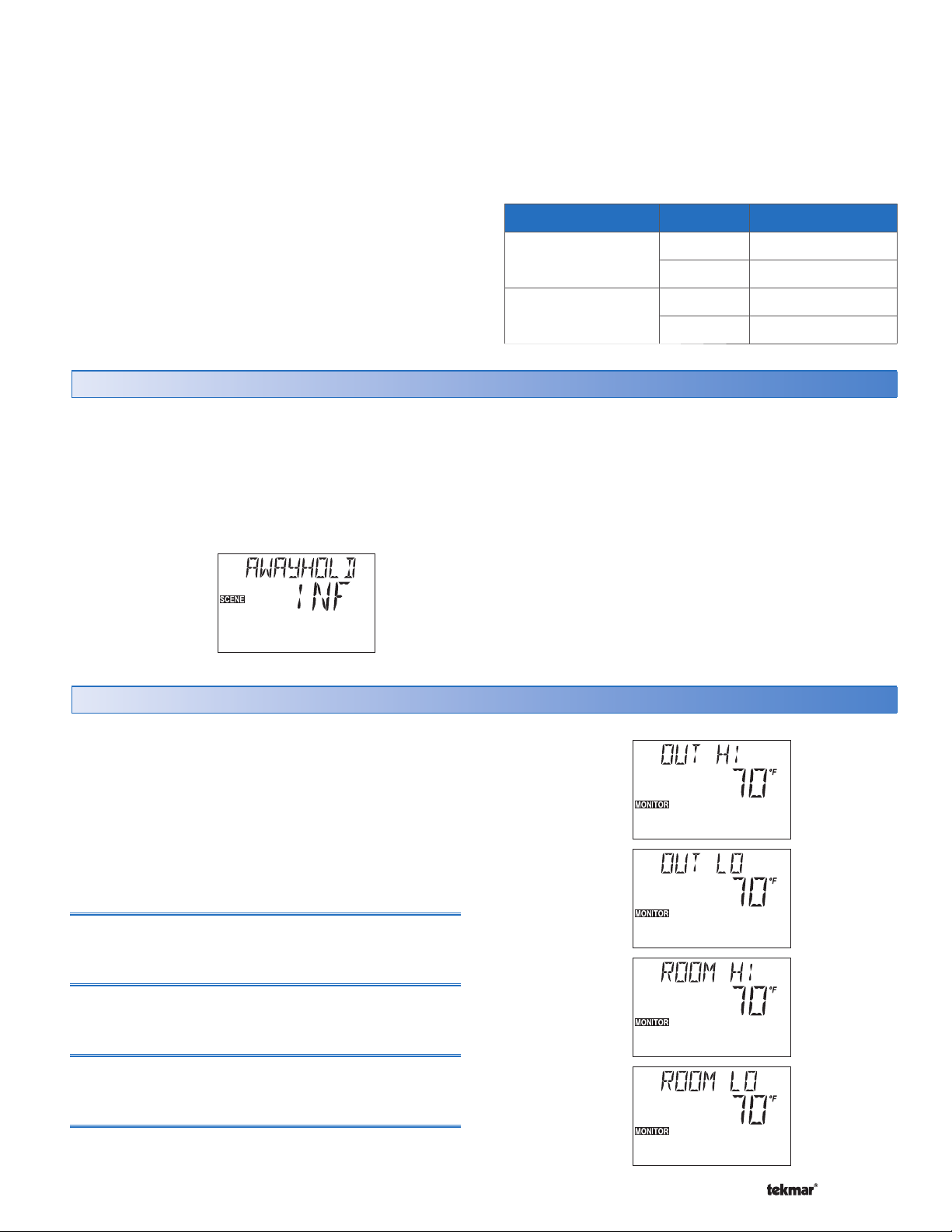

Extended Absences................................................ 9

Viewing the Recorded High & Low Temperatures .. 9

Selecting a Schedule.............................................10

Units of Temperature .............................................11

Backlight................................................................11

Cleaning the Thermostat ......................................11

Error Messages .....................................................11

Warranty................................................................12

Congratulations

on the purchase of

your tekmar programmable

thermostat with communication.

This thermostat combines

easy-to-use programming with

advanced features to increase

both comfort and energy

efficiency.

Your tekmar thermostat allows

you to :

•

• Set a single schedule for your

heating and cooling system that

all of your tekmar thermostats

can follow.

•

• Adjust the time and date on all

your tekmar thermostats from a

single thermostat

•

• Automatically adjust for

Daylight Saving Time

•

• View the outdoor temperature on

all of your tekmar thermostats.

•

• Easily set up custom “Scenes” to

match your home and lifestyle.

•

• Easily override your tekmar

thermostats if you are planning an

extended absence.

Display

MODE OF OPERATION

Displays whether in heating or cooling

mode.

FIRST STAGE OF HEAT

Indicates when the first stage of heat is

operating.

SECOND STAGE OF HEAT

Indicates when the second stage of heat

is operating.

FIRST STAGE OF COOLING

Indicates when the first stage of cooling

is operating.

FAN 1

Indicates when Fan 1 is operating.

FILTER

Indicates that the Filter requires

replacement.

SCHEDULE MASTER

Indicates this thermostat is a schedule

master. The number indicates the

schedule group number.

tN4 COMMUNICATION

Indicates when a communication network

is detected.

COOL GROUP MASTER

Indicates this thermostat is a cool group

master.

LOCK

Indicates that the access levels are

locked. Also indicates when an item is

visible but not adjustable.

OPTIMUM START / STOP

Indicates that Optimum Start or Optimum

Stop is active.

WARNING

Indicates an error is present.

TEMPORARY HOLD

Indicates that the temperature has been

temporarily adjusted from the scheduled

event temperature.

SCHEDULED EVENT

Indicates the current scheduled event.

Symbols Description

Item Field

Displays an abbreviated

name of the selected item

Number Field

Displays the current value

of the selected item

Status Field

Displays the current status

of the control’s inputs,

outputs and operation

Menu Field

Displays the

current menu

The control uses a Liquid Crystal Display (LCD) as the

method of supplying information on the operation of

the thermostat.

Access Levels

This thermostat has five access levels:

•

• SEC (Secure)

•

• LTD (Limited)

•

• USER (User)

•

• INST (Installer)

•

• ADV (Advanced).

This brochure only covers the features available in the SEC,

LTD and USER levels. Only qualified service people should

adjust the INST and ADV access levels.

All of the items displayed by the thermostat are organized

into seven menus:

Item

Each menu has several items. The abbreviated name of

the selected item will be displayed in the item field of the

display. To view the next available item, press and release

the Item button.

Adjustment

To make an adjustment to a setting in the thermostat:

1. Use the Menu button to select the appropriate menu.

2. Use the Item button to select the desired item.

3. Use the Up or Down button to adjust the setting.

Default Item

When you display an item in the View menu for more than

5 seconds it becomes the default item. After you navigate

other menus, the display reverts back to the default item

after 60 seconds of button inactivity.

The Time is the only exception. It can be displayed

indefinitely.

User Interface

Continue

to next Item

Continue to next Menu

Continue

to next Item

Continue

to next Item

•

• View

•

• Adjust

•

• Time

•

• Scene

•

• Schedule

•

• Monitor

•

• Miscellaneous

These menus are listed in the Menu Field on the top left

hand side of the display.

Use the Menu button to advance to the next menu.

Viewing Current Temperatures

Viewing the Room Set Temperature

Use the View menu to view the current temperatures being sensed by the thermostat. To view the available temperatures,

use the Menu button to go to the View menu. Use the Item button to view the temperatures.

The Room Set temperature is the temperature that the

thermostat is currently set to maintain.

To view the Room Set temperature:

1. Use the Menu button to select the View menu.

2. Use the Item button to select Room Set.

Room Temperature

This is the current air temperature of the room being

controlled.

Cooling Average Temperature

If the cooling feature is being used on this thermostat, this

is the average air temperature in the area being cooled by

the thermostat.

Outdoor Temperature

If an outdoor sensor is connected, this is the current outdoor

air temperature.

Floor Temperature

If a floor sensor is connected to the thermostat, this is the

current floor temperature.

Remote Temperature

If a remote sensor is connected to the thermostat, this is

the current temperature at the remote sensor.

Adjusting the Room Set Temperature (No Schedule)

To adjust the Room Set temperature when there is no

schedule in use:

1. Make sure you are in the VIEW menu. If not, press the

Menu button until VIEW displays in the top left corner.

2. Press the Item button to display the ‘Room’ or ‘Room

Set’ item.

3. Press the Up or Down button to enter the ‘Set Heat’

mode. Continue pressing the Up or Down button until

the desired temperature is displayed

4. Ten seconds after the adjustment has been made, the

display will return to the default item.

Adjusting the Room Set Temperature (Schedule)

If your thermostat is using a schedule, the current event of

Wake, UnOcc, Occ, Sleep or Away displays on the screen.

To change the temperature for a schedule event:

1. Use the Menu button to select the Adjust menu.

2. Use the Item button to select the Set Heat item for the

event you would like to change (Wake, UnOcc, Occ,

Sleep, or Away)

3. Use the Up or Down buttons to change the set

temperature for the event.

Temporary Room Set Adjustment (Schedule Only)

If your thermostat is using a schedule and you would like

to temporarily change the current heating temperature:

1. Make sure you are in the View menu. If not, press the

Menu button until VIEW displays in the top left corner.

2. Press the Item button to select either the ‘Room’ or

‘Room Set’ item.

3. Press the Up or Down button to enter the ‘Set Heat’

mode. The words ‘TMPY HOLD’ will appear indicating

that you are only making a temporary change. Continue

pressing the Up or Down button to adjust the desired

temperature.

4. Ten seconds after the adjustment has been made, the

display will return to the default item. The words ‘TMPY

HOLD’ will remain on the screen for the duration of the

temporary change.

5. To cancel the temporary hold before it expires, press

and hold the Up and Down buttons at the same time.

To adjust the temporary hold time, go to the Temporary

Zone Hold item in the Scene menu.

Wait 10

seconds

Press Up or Down

Button to adjust the

heating temperature.

Press Up or Down

Button to adjust the

cooling temperature.

Current schedule

status indicates a

schedule is in use

Press Up or Down Button

to adjust the heating

“Wake” temperature.

Press Up or Down Button

to adjust the heating

“UnOcc” temperature

Wait 10

seconds

Setting the Floor Warming Temperatures

If a floor sensor is installed, you can set the minimum floor

temperature.

Caution: Setting a high floor minimum temperature can

result in overheating the room.

To set the floor minimum temperature:

1. Use the Menu button to select the Adjust menu.

2. Use the Item button to select FLOORMIN.

3. Use the Up or Down button to adjust the temperature.

Note: If your thermostat is using the schedule feature,

you will have to set a FLOORMIN temperature for each

period.

There are up to four periods:

•

• Wake

•

• Occ (Occupied)

•

• Unocc (Unoccupied)

•

• Sleep

Setting the Fan On Time

If a fan is connected to the thermostat, the fan on time can

be adjusted:

•

• Auto: The fan operates with the heating or cooling

system.

•

• Off: The fan remains off.

•

• 10% to 90%: The fan operates for the set percentage

of time.

•

• On: The fan operates continuously.

To set the fan on time:

1. Use the Menu button to select the Adjust menu.

2. Use the Item button to select FAN.

3. Use the Up or Down button to set the fan on time.

Note: If your thermostat is using the schedule feature, you

will have to set a fan on time for each period. There are

up to four periods:

•

• Wake

•

• Occ (Occupied)

•

• Unocc (Unoccupied)

•

• Sleep

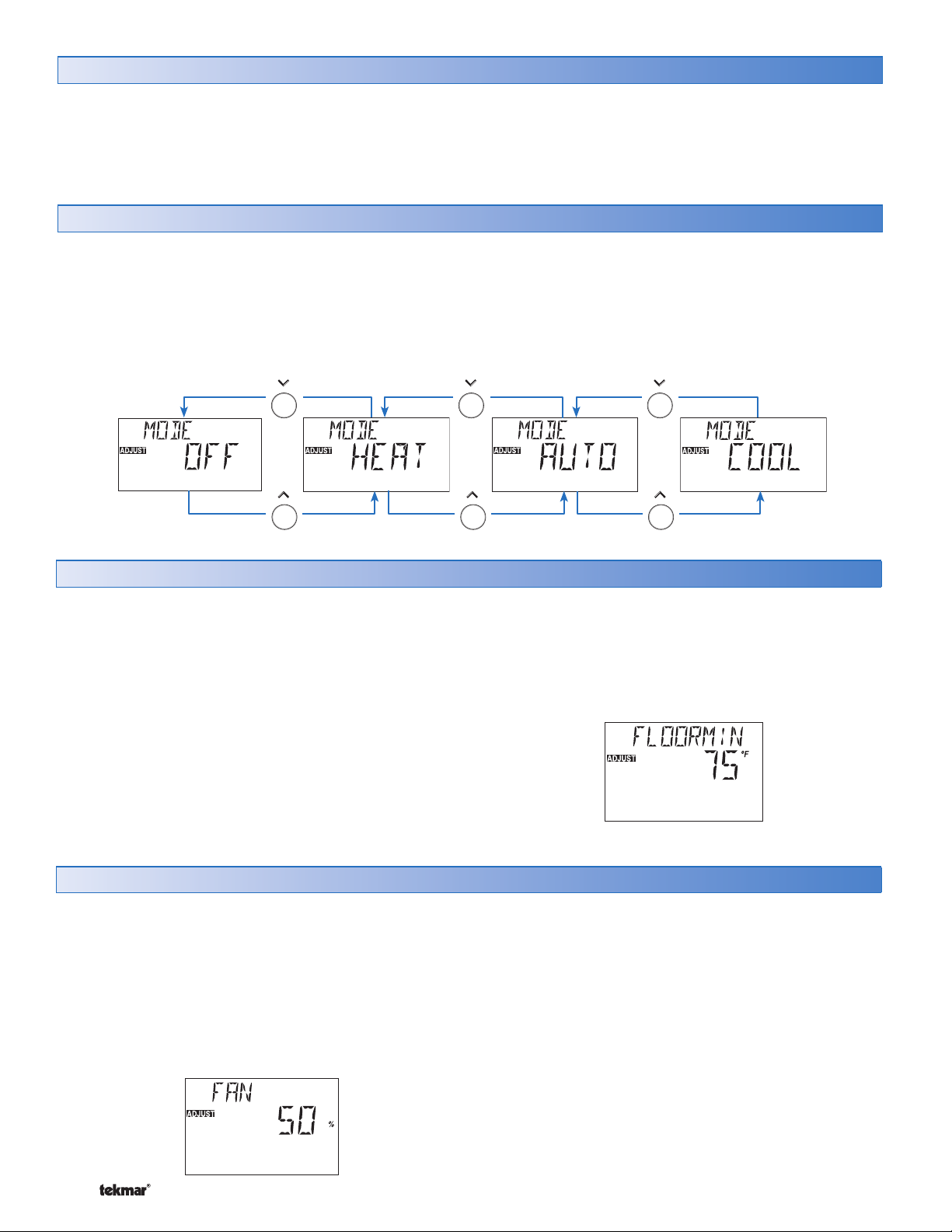

Choosing the Mode of Operation

Adjusting the Temporary Zone Hold

You can adjust the length of the Temporary Zone Hold.

To adjust the length of the Temporary Zone Hold:

1. Use the Menu button to select the Scene menu.

2. Use the item button to select Tmpy Zone Hold.

3. Use the Up or Down button to set the length of the Tmpy

Zone Hold.

The thermostat has four modes of operation:

•

• Heat: Provides heating only.

•

• Cool: Provides cooling only.

•

• Auto: Automatically changes between heating and

cooling.

•

• Off: Does not provide heating or cooling.

To choose the Mode of Operation:

1. Use the Menu button to select the Adjust menu.

2. Use the Item button to select the Mode item.

3. Use the Up or Down button to select either Off, Heat,

Cool or Auto.

Resetting the Filter Timer

Viewing the Current Time

Setting the Time

The thermostat keeps a record of the number of hours the

fan runs. Once the number of hours exceeds the Filter time,

a Filter symbol is displayed in the thermostat display.

To reset the Filter timer after you replace the filter:

1. Use the Menu button to select the Adjust menu.

2. Use the Item button to select CLR FLTR.

3. Use the Up button to select YES.

4. The Filter timer has now reset. To Clear

the filter

timer

Filter Symbol

To view the current time:

1. Use the Menu button to select the Time menu.

Step 1: Use the Menu button to select the Time menu. The

current time and day displays. If the clock has not been

set, the time will flash.

Step 2: Use the item button to advance through the Time

menu. If your installer has selected Daylight Savings Time,

the date is displayed. If the date has not been set, it will

flash. If your installer has not selected Daylight Savings

Time, the date will not be displayed.

Step 3: Use the Item button to advance to the next item.

The minutes begins to flash. Use the Up or Down button

to set the minutes.

Step 4: Use the Item button to advance to the next item.

The hours begins to flash. Use the Up or Down button to

set the hour.

Scene Description Thermostat Operation

1 Permanent 1 Scheduled event, Wake, Unoccupied, Occupied, Sleep, Away

2 Permanent Away 2 Away

DHW demands are ignored (applies to reset modules)

Setpoint demands operate (applies to reset modules)

3 Permanent Unoccupied 3 Unoccupied

4 Permanent 4 Scheduled event, Wake, Unoccupied, Occupied, Sleep, Away

5 Permanent 5 Scheduled event, Wake, Unoccupied, Occupied, Sleep, Away

6 Temporary Occupied 6 Occupied for 3 hours

7 Temporary 7 Scheduled event, Wake, Unoccupied, Occupied, Sleep, Away for 4 hours

8 Temporary 8 Scheduled event, Wake, Unoccupied, Occupied, Sleep, Away for 8 hours

Selecting a Scene

Scenes is a feature that your installer selects when he sets

up each thermostat in your system.

Please refer to the Job Record J545 for a record of how

your installer made these settings

Scenes allow you to change the temperature of all the

thermostats that use the Scene feature from a single

thermostat.

Several of the Scenes are preset from the factory. However,

your installer can customize several of the scenes based

on your needs.

Refer to the Scene table below for a description of each

scene.

Step 5: Use the Item button to advance to the next item.

The day begins to flash. Use the Up or Down button to set

the day.

If your installer has selected Daylight Savings Time,

continue with steps 6, 7 and 8.

Step 6: Use the Item button to advance to the next item.

The month begins to flash. Use the Up or Down button to

set the month.

Step 7: Use the Item button to advance to the next item.

The day of the month begins to flash. Use the Up or Down

button to set the date.

Step 8: Use the Item button to advance to the next item.

The year begins to flash. Use the Up or Down button to

set the year.

Location Scene Temperature

Master Bedroom 1 Schedule

4 Schedule

Guest Bedroom 1 UnOccupied

4 Schedule

To select a scene:

1. Use the Menu button to select the Scene menu.

2. Use the Item button to select the Select item.

3. Use the Up or Down button to select the desired

scene.

•

• Default Scene: The default scene is Permanent 1. In a

typical installation, the thermostat follows the schedule.

•

• Factory set scene: When you select a factory set scene

(2, 3, and 6), all of the thermostats using the scene

feature use the temperature specified by the scene.

•

• Custom scenes: When you select a custom scene,

your installer will have preset each thermostat using the

scene feature to either follow its regular schedule, or go

to the set wake, occupied, unoccupied, sleep or away

temperature.

Example:

A house is normally in scene Permanent 1. There is a

master bedroom that operates on a schedule and there is

a guest bedroom that is normally set to Unoccupied. When

a guest arrives, the scene is to change to Permanent 4.

Scene 4 changes the guest room to operate on the setback

schedule.

Extended Absences

If you are going away for an extended period of time, the

AWAYHOLD feature allows you to override the regular

schedule of the thermostat for a set number of days.

During the Away Hold, the thermostat operates at the Away

temperature set by your installer.

After the Away Hold has expired, the thermostat returns to

its normal operation.

If you have multiple tekmar thermostats installed, you need

only to do the following on one thermostat.

To set the number of days you will be away:

1. Use the Menu button to select the Scene menu.

2. Use the Item button to select Away Hold.

3. Use the Up or Down button to set the number of days

that you will be away.

To start the Away Hold:

1. Use the Menu button to select the Scene menu.

2. Use the Item button to select the SELECT item.

3. Use the Up or Down button to select Scene 2

Permanent Away.

Viewing the Recorded High & Low Temperatures

Use the Monitor Menu to view the high and low temperatures

sensed by your thermostat.

To view the temperatures:

1. Use the Menu button to select the Misc menu.

2. Use the Item button to view the temperatures.

3. Pressing the Up and Down buttons at the same time

while viewing the temperature resets the item.

Outdoor High

Highest recorded outdoor temperature.

Outdoor Low

Lowest recorded outdoor temperature.

Room High

Highest recorded indoor temperature.

Room Low

Lowest recorded room temperature

Selecting the Schedule Mode

The schedule allows for either 4 or 2 temperatures per day.

To select the schedule mode:

1. Use the Menu button to select the Schedule menu.

2. Use the Item button to select SCH MODE.

Schedule Type

Day 24 Hour 5-2 5-11 7 day

•

•• •

• •

•

Selecting the Schedule Type

The schedule type determines how frequently the schedule

repeats itself. This thermostat includes four schedule

types:

1. Use the Menu button to select the Schedule menu.

2. Use the Item button to select SCH TYPE.

3. Use the Up or Down button to select one of the following

four schedule types:

•

• 24 Hour: All days have the same schedule.

•

• 5-2: Monday to Friday follow the same schedule.

Saturday and Sunday follow the same schedule.

5-11: Monday to Friday follow the same schedule.

Saturday and Sunday have their own schedules

•

• 7 Day: All seven days of the week have their own

schedule.

3. Use the Up or Down button to select one of the following

two schedule modes:

•

• 4: Wake, Unoccupied, Occupied, Sleep

•

• 2: Occupied, Unoccupied

Selecting a Schedule

Schedule Description

None No schedule is used.

Zone

The schedule only applies to this

thermostat.

MST1, MST2,

MST3, MST4

This thermostat is a system schedule

master. There are four possible

system schedules.

MBR1, MBR2,

MBR3, MBR4

This thermostat is a system schedule

member. The number indicates which

of the four system schedules the

thermostat is following.

During installation, your installer will have selected a

schedule for your thermostat.

To view the schedule your installer has selected:

1. Use the Menu button to select the Schedule Menu

2. Use the Item button to select the Heat Schd or the Cool

Schd. You will see one of the following:

•

• None: This thermostat is not using a schedule and

operates at a single temperature.

•

• Zone: This thermostat is using its own schedule.

•

• MST1 to MST4: This thermostat is a schedule master.

The schedule on this thermostat is being used by

this thermostat as well as several other thermostats.

Changing the schedule will affect other thermostats.

•

• MBR1 to MBR4: This thermostat is a member of a

master schedule that has been set on a separate ther-

mostat. If the master schedule is changed, it affects

this thermostat.

Master

Schedule 1

Members of

Schedule 1 Members of

Schedule 2

Master

Schedule 2

None Zone

Schedule

Zone 1 2 3 4 5 6 7 8

Otros manuales para tekmarNet 4

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Termostato de Tekmar

Tekmar

Tekmar tekmarNet 4 537 Manual de usuario

Tekmar

Tekmar tekmarNet 2 528 Manual de usuario

Tekmar

Tekmar Invita Manual de usuario

Tekmar

Tekmar tekmarNet 552 Manual de usuario

Tekmar

Tekmar 510 Manual de usuario

Tekmar

Tekmar 541 Manual de usuario

Tekmar

Tekmar 541 Manual de usuario

Tekmar

Tekmar 561 Manual de usuario

Tekmar

Tekmar tekmarNet 532 Manual de usuario

Tekmar

Tekmar 543 Manual de usuario

Tekmar

Tekmar 537 Manual de usuario

Tekmar

Tekmar tekmarNet 554 Manual de usuario

Tekmar

Tekmar 511 Manual de usuario

Tekmar

Tekmar tekmarNet 4 Manual de usuario

Tekmar

Tekmar tNt 540 Manual de usuario

Tekmar

Tekmar 562 Manual de usuario

Tekmar

Tekmar tekmarNet 4 Manual de usuario

Tekmar

Tekmar tekmarNet 2 House Control 406 Manual de usuario

Tekmar

Tekmar 509 Manual de usuario

Tekmar

Tekmar Q 527 Manual de usuario

Tekmar

Tekmar Invita Manual de usuario

Tekmar

Tekmar tekmarNet 553 Manual de usuario

Tekmar

Tekmar 542 Manual de usuario

Tekmar

Tekmar tekmarNet 4 538 Manual de usuario

Manuales populares de Termostato de otras marcas

EWELLY

EWELLY EW-181 Manual de usuario

Prolon

Prolon T1100 Instrucciones de instalación

Computherm

Computherm Q20 Manual de usuario

Heatmiser

Heatmiser neoStat Manual de usuario

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manual de usuario

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manual de usuario

Saswell

Saswell SAS920XWHB-7-S-RF Guía

Aircalo

Aircalo TFP1-ET85P2 Manual de usuario

Honeywell

Honeywell CM721 Manual de usuario

Carrier

Carrier DEBONAIR 33CS Manual de usuario

Lennox

Lennox iHarmony Zone Thermostat Instrucciones de montaje

Gemtech

Gemtech GT7000 Manual de instrucciones

Rollei

Rollei Smartes 45000 Manual de usuario

Sinope

Sinope TH1300RF Manual de usuario

Honeywell

Honeywell RLV4305 Manual de usuario

Honeywell

Honeywell Prestige 2.0 THX9421 Manual de usuario

NuTone

NuTone NTBZ48 Instrucciones de funcionamiento originales

Stelpro

Stelpro MAESTRO ASMT402AD Manual de usuario
