1. Before You Begin
This guide provides basic guidelines to assist you in quickly getting started. Go to our website to download the
full User Guide for detailed installation, maintenance, troubleshooting and safety precautions.
The user must take note of the safety instructions in this operating instructions manual, the country
specic installation standards as well as all prevailing safety regulations and accident prevention rules.
The instrument must only be operated in a technically awless and reliable condition. The operator is
responsible for trouble-free operation of the instrument. During the entire duration of use, the user is
obliged to determine the compliance of the required occupational safety measures with the current valid
rules and regulations and also take note of new regulations.
2. Unpack
One Tek-Flex 4100A Explosion Proof Guided Wave Radar Level Transmitter
3. Dimensional Drawing
NEMA 4 (IP66) Enclosure
NEMA 7 Enclosure
1½ " NPT
MOUNTING THREAD
1½ " NPT
4.25" (0.35 ft) 4.25" (0.35 ft)
8.5" (0.70 ft)
½" NPT
Flange OptionStandard
1 2
1" NPT Mounting
Thread
4.3"
(0.35 ft) (0.35 ft)
4.3"
6"
(0.5 ft)
2
Technology Solutions
Tek-Bar 3100
Tek-Flex 4100A
4. Mounting
•
Minimum nozzle diameter should be 2” from the probe at initial installation.
•
Probes should not contact metallic tank walls, obstructions or structures.
•
If using cable probes, take into account the possibility of cable sway encroaching clearance requirements of
agitators and augers. If this possibility occurs, secure a ring or mounting connection to the cable weight and
to the vessel oor.
Note: The Tek-Flex 4100A will come factory set for mounting to a metallic ange or tting unless otherwise
instructed at time of order.
Tek-Flex 4100A with 1½" NPT mounting in liquids, slurries or solids applications.
Flange Mount
Nozzle Mount
Quick Start Guide
Quick Start Guide
796 Tek Drive, Crystal Lake, IL 60014 USA +1 847 857 6076 |+1 847 655 7428 +1 847 655 6147 www.tek-trol.com
To mount a anged transmitter, bolt the transmitter’s ange to the ange pipe on the wall of the tank.
The transmitter can be mounted to a tank nozzle using the appropriate ange.
Flange Mounting
Flanged Tank Connection
Threaded Mount

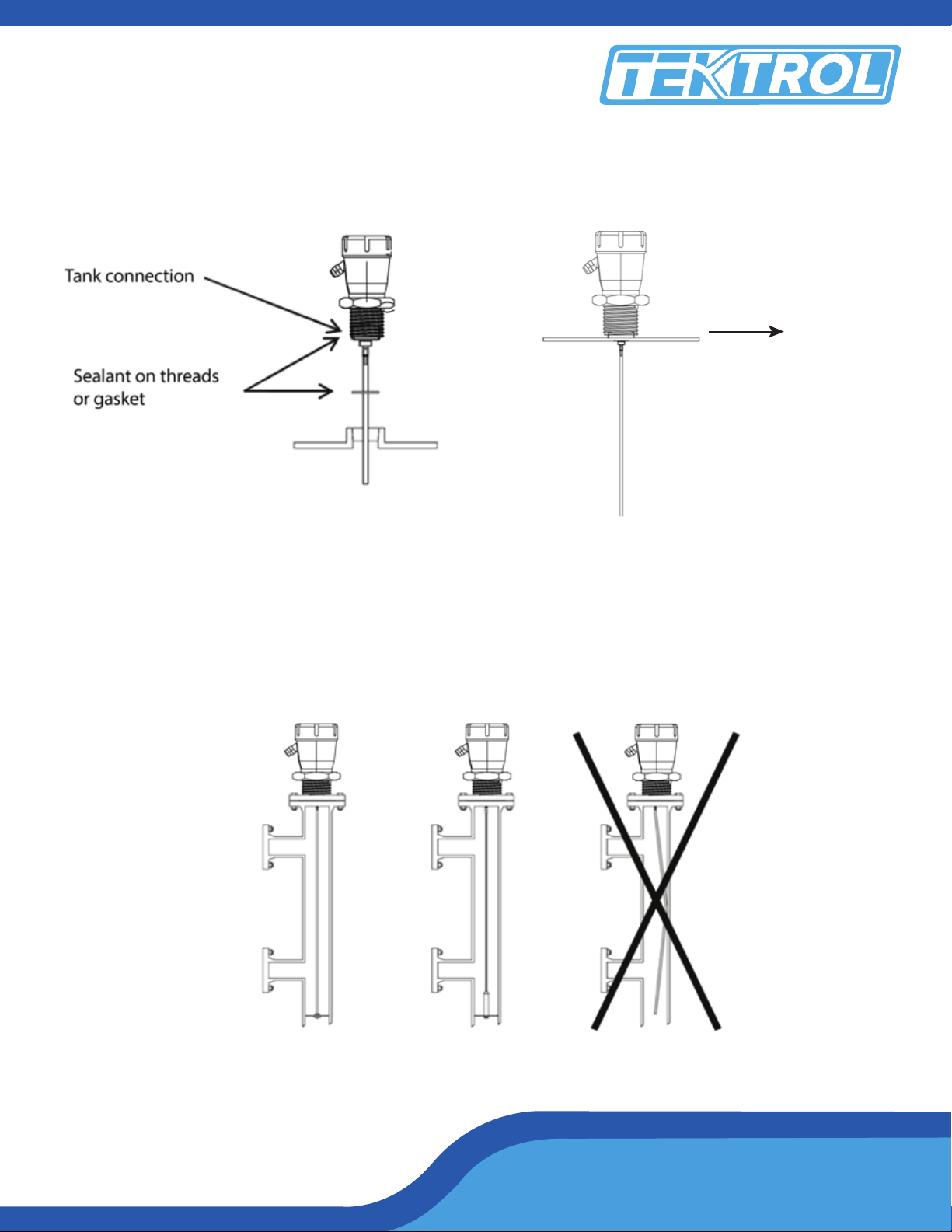

Mounting on a Bypass/Bridle
Technology Solutions
Tek-Bar 3100
Tek-Flex 4100A
Transmitters with threaded process connectors can be screwed to tanks or nozzles with threaded bosses.
Tek-Flex 4100A transmitter can be successfully installed in a new or existing bypass pipe, bridle, or a side
pipe as shown in the gure. This type of installation is often simple and allows the addition of radar level
measurement to an otherwise busy installation.
Threaded Tank Connection
Bypass Installation
Tank roof mounting using a Threaded Connection
Tank Roof
Mounting on a Non-Metallic Container
Mounting on a non-metallic vessel
Mounting in concrete silos
Quick Start Guide
Quick Start Guide
796 Tek Drive, Crystal Lake, IL 60014 USA +1 847 857 6076 |+1 847 655 7428 +1 847 655 6147 www.tek-trol.com
In case of non-metallic container, the Tek-Flex 4100A should be mounted with a metal plate of minimum 8”
(0.66 ft) diameter. Use metal shielding for the conduit connections.
Mounting in Concrete Silos
In case of concrete silos, the Tek-Flex 4100A should be mounted with a metal plate of minimum 8” (0.66 ft)
diameter.
Technology Solutions
Tek-Bar 3100
Tek-Flex 4100A
5. Power Supply
1 2 3 4 5 6 7 8 9 10
4-20mA-
4-20mA+
DC IN +
DC IN -
IS+
A
B
COMMS
Sinking 4-20mA from user
device (max 750ohm)
Sinking 4-20mA from
Tek-Flex 4100A (max 250 ohm)
OR
Power Supply DC In +
DC In -
A
B
4-20 mA -
4-20 mA -
4-20 mA +
IS+
Communication
Output (Sinking)
Output (Sourcing)
Quick Start Guide
Quick Start Guide
796 Tek Drive, Crystal Lake, IL 60014 USA +1 847 857 6076 |+1 847 655 7428 +1 847 655 6147 www.tek-trol.com
Before connecting power in an explosive atmosphere, ensure the instrument is installed in accordance
with intrinsically safe or non-incendive eld wiring practices.
Verify that the operating atmosphere of the transmitter is consistent with the appropriate hazardous
locations certications.
6. Communication
7. Conguration
The Tek-Flex 4100A Level Transmitter leaves Tek-Trol’s factory pre-congured to the customer's application
settings, but if adjustments need to be made in the eld the RS485 Communication Tool is recommended.
RS485 Communication can be connected in the A & B terminals (COMMS) as shown below:
For any conguration related queries, please contact Tek-Trol technical support.
1 2 3 4 5 6 7 8 9 10
4-20mA-
4-20mA+
DC IN +
DC IN -
IS+
A
B
COMMS
(RS485)
Note: For additional information for display, please contact Tek-Trol technical support.
Powering the Tek-Flex 4100A for the rst time:
•
Conrm if the Tek-Flex 4100A is mounted within the recommended specications.
•
Conrm the wiring is correct and all connections are as shown above
•
Apply power to the Tek-Flex 4100A.
•
The Tek-Flex 4100A will take up to 30 seconds to warm up and stabilize upon initial start-up. It will then
perform a scan to locate the level which will take approximately 1 sec or less. Once the load sequence is
complete and the Tek-Flex 4100A has taken the rst measurement, the analog output indicates the material
level (factory default) or distance measurement. If the proper analog output is not achieved, please contact
your Tek-Trol representative for further instructions.
Tek-Flex 4100A
Technology Solutions
796 Tek Drive
Crystal Lake, IL 60014
USA
Tel: +1 847 857 6076, +1 847 655 7428
Fax : +1 847 655 6147
Email: tektrol@tek-trol.com
www.tek-trol.com
