R-108

SYNTHESIZED RECEIVER

FM STEREO/MW/LW/SW/DSP/AIR BAND

OPERATION MANUAL

www.tecsunradios.com.au

TABLE OF CONTENTS

●CONTROL LOCATION

......................................

●LCD DISPLAY

...................................................

●Quick Operation Guide

..................................

►HOW TO TURN ON/OFF THE RADIO

..............

►TUNE INTO STATIONS

....................................

►WORKING WITH STATION MEMORIES

...........

►LISTENING TO STORED STATIONS

................

►DELETE MEMORY

.........................................

►SLEEP FUNCTION

..........................................

►CLOCK SETTING

............................................

►WORKING WITH ALARM

..............................

►HOW TO CHANGE THE DISPLAY MODE

........

►KEY-LOCK FUNCTION

...................................

►WORKING WITH INTELLIGENT LIGHT

...........

►FM ST. (FM STEREO)

....................................

►AM BW (BANDWIDTH)

.................................

►SYSTEM-SETTING

.........................................

►SWITCH SOUND MODE

................................

►SQUELCH FUNCTION

...................................

►TUNING SPEED SETTING

..............................

►INTELLIGENT CHARGING FUNCTION

............

www.tecsunradios.com.au

►HOW TO IMPROVE FM / SW RECEPTION

.....

►TROUBLE SHOOTING

....................................

►IMPORTANT NOTICE ABOUT USING BATTERY

.........................................................................

►RESET

...........................................................

►RADIO MAINTENANCE

.................................

►SPECIFICATIONS

...........................................

www.tecsunradios.com.au

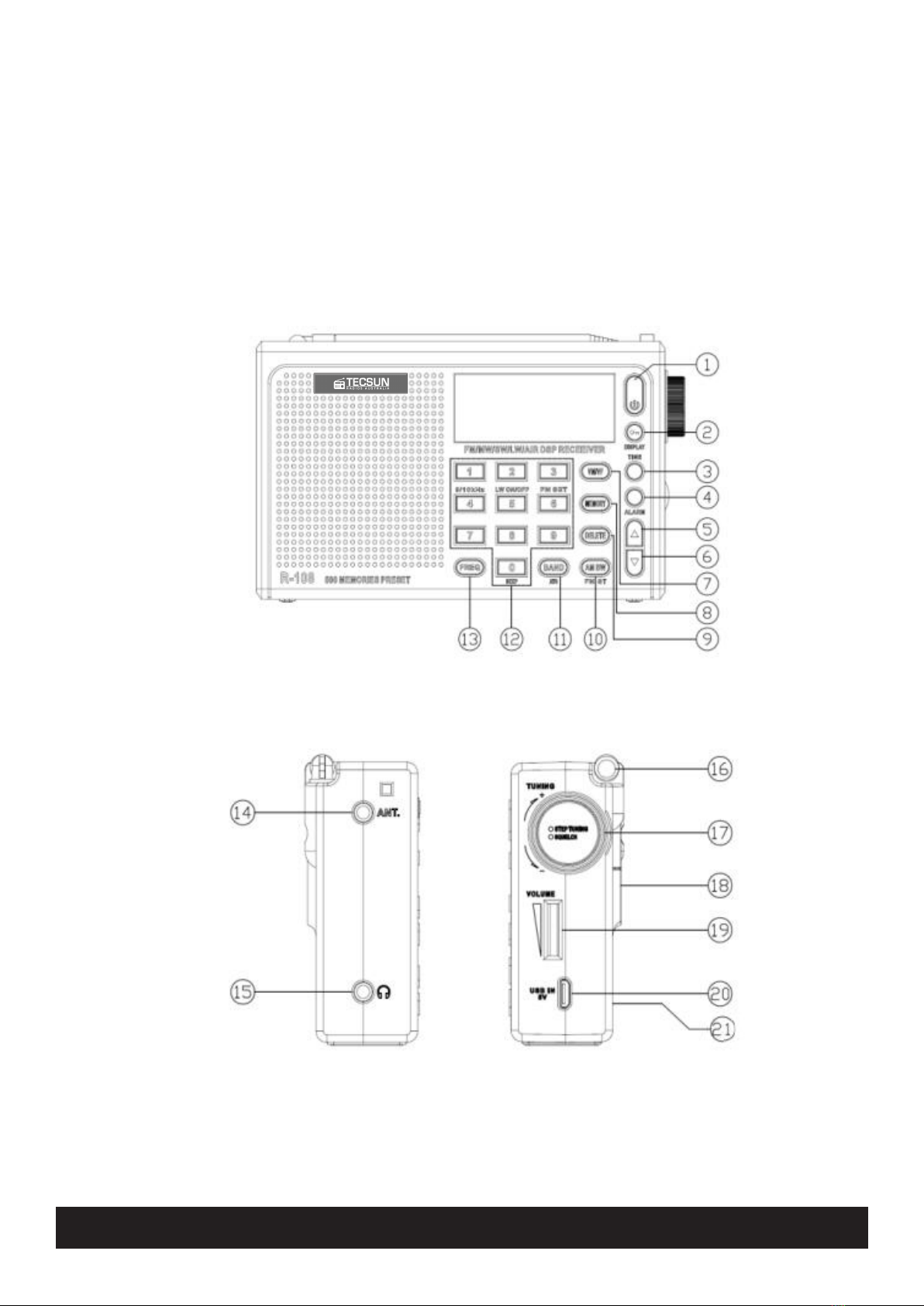

●CONTROL LOCATION

Power on/off

Display & Lock button

Time Set

Alarm Set

VM/VF Button

Memory button

Delete button

FM ST. / AM BW (Band width) button

ATS button (Auto Tuning Storage)

Numeric keypad

FM Band Selector

FM & SW Antenna Jack

Earphone Jack

FM & SW Telescopic Antenna

Multifunctional Tuning Knob / SQUELCH

Back Stand

Volume Knob

USB 5V DC-IN Jack

Battery Compartment

www.tecsunradios.com.au

●LCD DISPLAY

Battery consumption indicator

FM stereo status indicator

Sleep indicator

Alarm indicator

“” alarm by radio

“ ” alarm by buzzer

SQUELCH indicator

Temperature (Temp.)

Digital number display (4 Digits)

●With radio off: local time, alarm time, temperature

●With radio on: local time, signal strength / SNR, alarm time,

temperature, memory address, meter band.

Signal indicators

●dBμ: signal strength unit

●dB: Signal to Noise Ratio (S/N) unit

www.tecsunradios.com.au

Alarm indicator

10.

Meter band indicator

11.

Preset memory address indicator

12.

Sound Mode indicator

13. Tuning speed: FAST /SLOW / STOP

14.

KHz: frequency unit for MW, LW & SW

MHz: frequency unit for FM

15.

Master Digits

●With radio off: local time

●With radio on: frequency display, band display

16.

Band indicator

17.

Key-lock indicator

Signal strength (unit: dBμ): Refers to the received station signal strength.

The higher of the value, the better.

Signal to Noise Ratio (S/N) (unit: dB): Refers to the ratio of

useful signal strength to noise signal. The higher, the better.

www.tecsunradios.com.au

●Quick Operation Guide

CLOCK SETTING

(Refer to 12)

Press & hold the [TIME] button until hours flashing, then rotate

the [TUNING] knob to adjust the hour.

Press the [TIME] button, and then rotate the [TUNING] knob to

adjust minute while the minute is flashing.

Press the [TIME] button to confirm the setting.

※

If the [TIME] button has not been pressed again within 3 seconds,

the unit will automatically confirm the setting.

ALARM TIME SETTING

(Refer to 13)

)

The Setup method is basically the same as setting the normal time

method, but you also need to select the automatic shutdown time

after the alarm:

Press & hold the [ALARM] button until hours flashing in

the upper right corner, then rotate the [TUNING] knob to adjust

the hours；

Press the [ALARM] button, and then rotate the [TUNING]

knob to adjust the minute while minutes flashing.；

Press the [ALARM] button again and notice “30” shows on

display then rotate the [TUNING] knob to select 1 ~ 90 minutes

to set the auto alarm off timer；

Press the [ALARM] button again to confirm.

※

You can press the [ALARM] button repeatedly to

activate/deactivate the alarm by buzzer / radio respectively

TUNE INTO STATIONS

(Refer to 8 )

Press the [POWER] button to turn on the radio;

Select your desired band by pressing the [BAND] button;

Rotate the [TUNING] button to search for stations OR Press

the numeric keys [0] - [9] to enter the station frequency directly.

Notes: In case of receiving FM/ SW broadcasting, fully extend the

telescopic antenna for a better reception. When receiving MW (LW)

broadcasting, please rotate the radio or change it's location to

www.tecsunradios.com.au

achieve optimum reception. You can adjust the appropriate volume

by rotating the [VOLUME] button.

Auto Tuning Storage (ATS)

(Refer to 9 ）

）

FM ATS:

Fully extend the telescopic antenna and press the[BAND],

button to select FM band;

Press & hold the [BAND] button, The radio will automatically

search FM radio stations and store all available stations into

the memories;

When the frequency count stops, it means the ATS operation is

done completely. You can rotate the [TUNING] knob to search for

those stored stations.

Notes: The ATS operation in the MW, LW, SW and AIR bands are

basically the same as above;During ATS process in FM, MW / LW

or SW /AIR, pre-stored radio stations will be replaced automatically

by the new found stations.

STORING STATON MANUALLY

(Refer to 9)

Select band and tune to your desired station;

Press the [MEMORY] button,“PRESET ” will start flashing;

3.Rotate the [TUNING] button to select the storage location（1-

100

）;

Press the [MEMORY] button again to store the station into

memory.

LISTENING TO STORED STATIONS (Refer to 11)

Select your desired band by pressing [BAND] button;

Press the [VM/VF] button to switch into frequency mode, switch

to address status, with memory address number flashing;

Rotate the [TUNING] knob to tune into the stored station one

by one.

www.tecsunradios.com.au

DELETE MEMORY (Refer to 11)

Select your desired band by pressing [BAND] button;

Press the [VM/VF] button to switch into frequency mode, switch

to address status;

Press & hold the [DELETE] button until “DEL” and “memory

address” flashing;

Rotate the [TUNING] knob to select the memory that you want to

delete;

Press the [DELETE] button to remove the unwanted

memory address.

AUTO BROWSE MEMORY (Refer to 11)

1. Select your desired band by pressing [BAND] button;

2. Press the [VM/VF] button to switch into frequency mode, switch to

address status, with memory address number flashing;

3. Press & hold /

button, auto scan from one memory to

another, staying on each station for about 5 seconds.

4. To stop auto search memory, simply press the /

button.

SQUELCH SETTING (Refer to 17)

Press the [POWER] button to turn on the radio and select your

desired band by pressing [BAND] button；

Press & hold [SQUELCH] button，Switch to the signal strength

selection page；

Rotate the [TUNING] knob to select signal strength；

Press the [SQUELCH] button again to confirm

SWITCH SOUND MODE (Refer to 16)

1.Turn on the radio and select any band you desired ；

2. Press & hold number“4”button，and then switch the sound mode

MUSIC/VOICE.

TUNING SPEED SETTING

(Refer to 17 )

Turn on the radio and select any band you desired；

Press the [SQUELCH] button to select Fast/Slow speed or

select Stop to lock station.
