TECshow MINI-HIVE 10 Manual de usuario

P. 1

| Tecshow Mini-Hive 10

MINI-HIVE 10

Moving head Equipped with 7 x 4-in-1 15W

LEDs and a precise zoom function

USER MANUAL / MANUAL DE USUARIO

PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE USE

POR FAVOR LEA LAS INSTRUCCIÓNES ANTES DE USAR

P. 2

Tecshow Mini-Hive 10 |

Mini Hive-10

Moving head Equipped with 7 x 4-in-1 15W LEDs and a

precise zoom function

Mini Hive-10 is a moving head that, thanks to its

versatility, comes to change the game. Equipped

with 7 x 4-in-1 15W LEDs and a precise zoom func-

tion, this xture gives you the possibility of going

from beam to wash in a snap by changing its beam

angle between 4º and 60º. As a highlight, this inno-

vative equipment has an innite rotation lens to

both sides, making it able to achieve an awesome

honeycomb visual eect. Mini Hive-10 also sports a

color mix without multicolor shadows, pixel by pixel

control, 65 color macros and CTO.

Specications

Source & Optics

• Light Source: 7 x 4-in-1 OSRAM® 15W LEDs

• LEDs life: 60,000 hours

• Zoom: 4° to 60° linear zoom

Eects and functions

• Pixel mapping: Pixel by pixel control

• Bi-directional rotating lens

• Honeycomb eect

• Quad-color LED technology: Smooth RGBW mix

with no multi colored shadows

• Vivid, saturated and uniform colors

• 65 color macros

• Dimmer: Full range 0-100%

• Strobe eect

• CTO color temperature linear change from

2500-8000K

Control

• DMX Channels: 25/55

• Operational modes: Sound active, DMX &

Master/Slave

Movement

• Pan: 540º

• Tilt: 210º

• 16-bit resolution

• Auto repositioning

Physical

• DMX Connectors: 2 XLR connectors (XLR-3

input & output)

• Power supply connectors: PowerCON™ In/Out

• LCD display

• Dimensions: 346x200x167 mm. / 13.6x7.9x6.5 in.

• Weight: 8.2 Kg. / 18 Lb.

1. OVERVIEW

English version

P. 3

| Tecshow Mini-Hive 10

English version

2. BEFORE USING

What is included

• Equipment x 1

• Power cable with Plug x 1

• User manual x 1

• Iron holder x 2

Open Instructions

Please open the equipment carefully, and check

all the spare parts are included or not. If any part

cause failure due to improper transportation or car-

ton, please keep the packing materials and immedi-

ately inform the shipper to check. If the equipment

must be returned to the factory, the equipment

should be in the original carton and packaging.

AC Power Supply

The equipment power supply is able to adapt to

the wide input voltage. Please conrm the input

voltage is in the scale of rated voltage. The equip-

ment can adapt to100V-240V AC voltage. Frequency

50-60HZ. It can not run a rheostat (variable resistor)

or dimmer circuits.

Safety Instruction

This product is I level protection equipment, so it

is must be connected well and connected by the

professional people.

• Make sure the voltage don’t be above or below

which the user manual rated values.

• Conrm the power cord is not a sword cut or

damaged.

• Must be cut o the power supply in the condi-

tion of no using or cleaning.

• Only allowed with the power cord plug con-

nection. Please do not force when unplug the

power cord to pull the plug.

• Be careful in the process of installation of

equipment. Avoid touching the bare wire, oth-

erwise it will suer fatal shocks.

• Don’t look the light source directly, otherwise it

will hurts the eyes.

• The front lens may be innited rotation in for-

ward and reverse.

• 0-20HZ strobe.

• Zoom anger: 4°-60°.

• When choosing installation position of equip-

ment and the equipment must be more than

0.5m distance between objects.

• Please use the equipment wires appropriate.

• Without the manufacturer’s authorization or

laypeople don’t remove, repair and modica-

tion of equipment.

• The maximum operating temperature is 40°C

don’t operate the equipment when it is over

40°C.

• Do not connect the equipment to the dimmer

equipment.

• Under 120V voltage,output power don’t series

more than 10 pcs equipment, voltage 230V.

Output power don’t series more than 15 pcs.

P. 4

Tecshow Mini-Hive 10 |

3. PRODUCT INTRODUCTION

English version

1. Lens

2. Head

3. Arm

4. Botton

5. Menu-button

6. Enter-button

7. Down.button

8. UP-button

9. LCD display

10. Power in

11. Fuse

12. Poser switch

13. DMX in

14. DMX out

P. 5

| Tecshow Mini-Hive 10

4. INSTALLATION

English version

Installation Requirements

This equipment can be used in many places, it can

hang and put on the ground.

• Choosing a suitable place to put or hang the

equipment when installation. Must be use the

special screws and hook to make sure the lamp’s

weight is in the weight range.

• When installing the equipment, ensure no inam-

mable and explosive goods at 0.5 meter distance.

• Please ask the professionals to install the equip-

ment, any improper installation will cause person-

al injury or material damage.

• To prevent others entering the working ares be-

low, the installation or maintenance of equipment

with suitable and stable platform.

• The equipment must be placed in ventilated place,

at least 50 cm from the ground, please ensure that

the vent without clogging.

Power Supply connection

The equipment can be used in the wide voltage

input. Please make sure the voltage is the scale

of rated voltage when connecting the power. The

equipment can adapt to 100V to 240 V AC voltage

and 50-60 Hz.

DMX Signal Connection

1. Use DMX512 controller, use the DMX signal

(male) to plug into the rst lamp (female) 3 pin.

2. Put out of the equipment of the rst signal wire

(head), connected to the equipment of the next

3 pin plug (female), so on. See belowed pictures:

Colors Connection Pin

Brown AC Live 1

Blue AC Neutral 2

Green/Yellow AC Ground 3

P. 6

Tecshow Mini-Hive 10 |

English version

5. OPERATING INSTRUCTIONS

Operating Instructions

Control Panel Functions

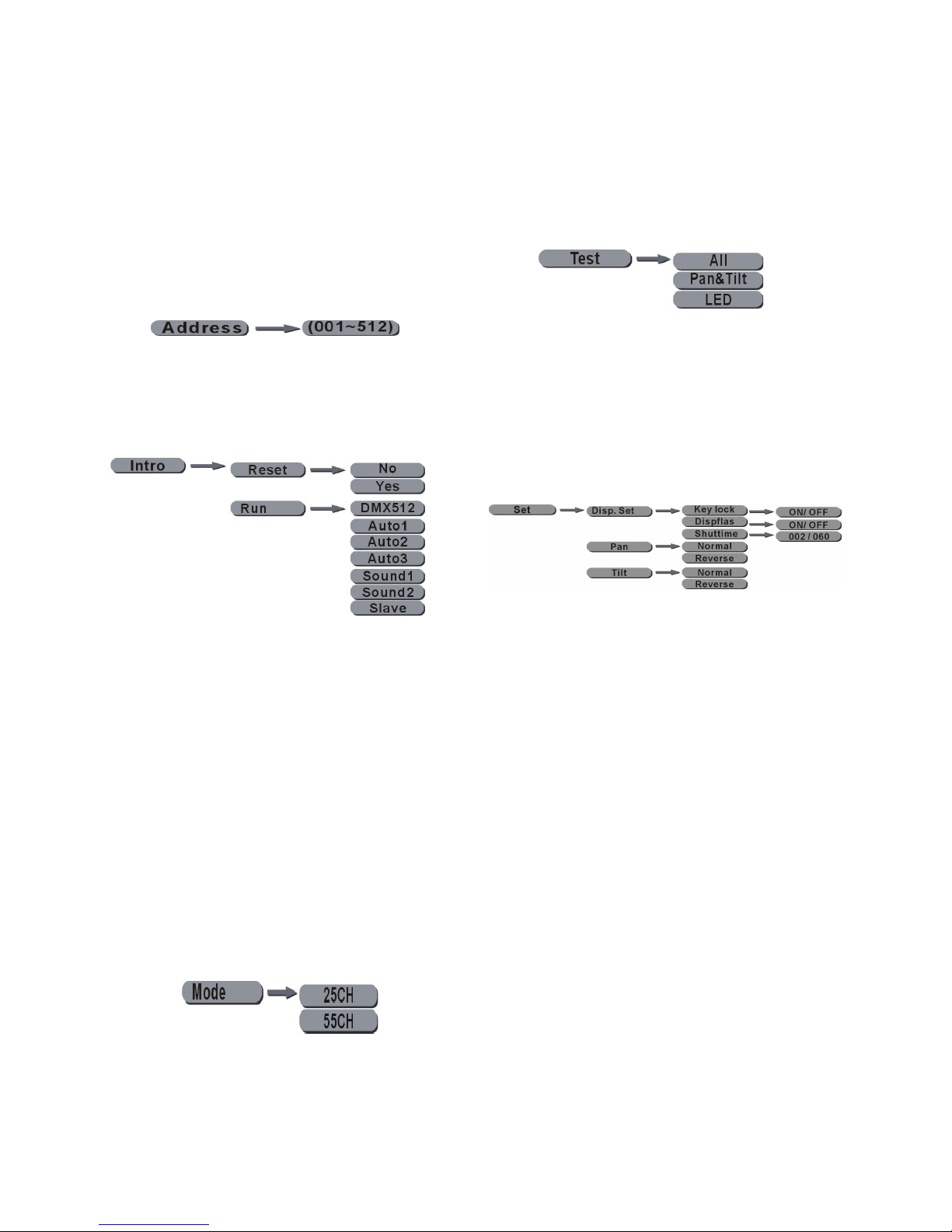

Menu map

Button Function

MENU Choose Menu or function exit

ENTER Current show menu or enter into the current selected function

UP Increase the value

DOWN Decrease the value

P. 7

| Tecshow Mini-Hive 10

English version

Menu Instruction

DMX address setting

• Press MENU when it shows Address, then press

ENTER.

• Change the DMX address by UP or DOWN.

Function selection

• Press MENU until it shows Intro, press ENTER

• Press UP or DOWN to choose Reset, Run.

• When choosing Reset, press ENTER and press UP

or DOWN to choose YES or NO. When choosing

YES, press ENTER the equipment reset, restore

factory sett.

• When choosing Run, press ENTER press UP or

DOWN to choose DMX512, Auto1, Auto2, Auto3,

Sound1, Sound2, Slave. When choosing DMX512

the DMX controller sending the signal (3 pin signal

is valid).

• When choosing Auto1, Auto2, Auto3, Sound1 or

Sound2, Auto1, Auto2, Auto3, Sound1, Sound2

choose Auto or Sound mode, it can be used as

the master. When choosing Slave it is Slave receive

the Master signal. Choose the Slave need to quit

to the main menu can be controlled.

DMX Mode selection

• Press MENU until it shows Users mode press

ENTER.

• Choose Channel mode by pressing UP or

DOWN: 25CH, 55CH.

Test Procedure

• Press MENU until it shows Test and then press

ENTER.

• Press UP or DOWN to choose All Pan & Tilt and

LED. When selecting All it is testing the motor

and LED. When selecting Pan & Tilt to test the

motor choose LED; it is only LED operated.

Adaptive function setting

• Press MENU until it shows Set and then just

press ENTER.

• Press UP, DOWN to choose Disp.setting, Pan

Tilt.

• When selecting Disp.setting press ENTER, press

UP or DOWN to choose Shut o time, Flip dis-

play, Key lock, or Disp ash. If selecting Shut

o time press ENTER operate UP or DOWN it

can be set LCD backlight close from 2-60 mins.

• When selecting Key lock press ENTER and op-

erate UP or DOWN. Enter Option ON/OFF and

select option ON. When the backlight shuts o,

the button key is locked, it means the operation

is invalid at this time. It must be entered Up,

Down, Down, then press ENTER to conrm the

unlock. When selecting Disp ash, press EN-

TER, operate UP or DOWN, it can be choosed

ON/OFF, choose ON, the screen’s backlight

begin to blink when the equipment received

the DMX signal; that means it has received

the DMX signal. The screen’s backlight closed

when there is no signal. When selecting Pan or

P. 8

Tecshow Mini-Hive 10 |

English version

Tilt, press ENTER, operate UP or DOWN. Choose

Normal or Reverse to set the forward and reverse

operation.

Check equipment’information

• Press MENU until it shows Info, then press ENTER.

• Operate UP or DOWN to choose Time Info So-

ware Ver.

• When selecting Time Info press ENTER operate

UP or DOWN to choose Power on Ttl Life hrs or

Last Run Hrs. If choosing Power on press EN-

TER to enter into the equipment “XXXX” hours. If

selecting Ttl Life hrs press ENTER to enter into

the equipment total operation time “XXXX” hours.

If selecting Last Run Hrs press ENTER to show the

LED’s last operation“XXXX”hours.

• When selecting Soware Ver press ENTER, it will

show the equipment ’soware version.

Macro Colour

Bit Lee Reference Colour Bit value

R G B W

209-255 -White 255 235 66 255

208 - Dirty White 255 255 122 255

207 197 Alice Blue 128 255 143 0

191-206 181 Congo Blue 77 0255 0

184-190 174 Dark Steel Blue 181 255 95 0

180-183 170 Deep lavender 255 168 64 0

179 169 Lilac Tint 255 199 49 0

175-178 165 Daylight Blue 82 214 90 0

174 164 Flame Red 255 46 20

172-173 162 Bastard Amber 255 181 28 0

P. 9

| Tecshow Mini-Hive 10

English version

168-171 158 Deep Orange 222 84 0 0

162-167 152 Pale Gold 253 171 26 0

157-161 147 Apricot 255 143 13 0

151-156 141 Bright Blue 0255 87 0

149-150 139 Primary Green 77 255 0 0

147-148 137 Special lavender 219 197 79 0

146 136 Pale Lavender 255 197 61 0

145 135 Deep Golden Amber 255 58 0 0

142-144 132 Medium Blue 0 255 143 0

138-141 128 Bright Pink 255 53 36 0

136-137 126 Mauve 227 41 56 0

134-135 124 Dark Green 84 255 13 0

131-133 121 Leaf Green 206 255 0 0

129-130 119 Dark Blue 0186 255 0

128 118 Light Blue 74 255 82 0

127 117 Steel Blue 206 255 56 0

126 116 Med Blue Green 206 255 56 0

125 115 Peacock Blue 51 255 51 0

123-124 113 Magenta 255 20 15 0

121-122 111 Dark Pink 255 109 33 0

120 110 Middle Rose 217 130 28 0

119 109 Light Salmon 255 138 31 0

118 108 English Rose 255 148 23 0

117 107 Light Rose 255 141 31 0

115-116 105 Orange 255 122 0 0

114 104 Deep Amber 255 166 0 0

113 103 Straw 230 160 0 69

112 102 Light Amber 237 163 0 0

110-111 100 Spring Yellow 245 202 0 0

100-109 90 Dark yellow green 41 219 0 0

89-99 79 Just Blue 0194 130 0

78-88 68 Sky Blue 0255 135 0

68-77 58 Lavender 243 117 133 199

62-67 52 Light Lavender 243 117 39 197

49-61 39 Pink Carnation 255 107 0130

46-48 36 Medium Pink 255 87 0107

45 35 Light Pink 255 112 0141

35-44 25 Sunrise Red 255 83 20

P. 1 0

Tecshow Mini-Hive 10 |

32-34 22 Dark Amber 255 65 0 0

31 21 Gold Amber 255 100 0 0

30 20 Medium Amber 255 135 0 0

29 19 Fire 255 56 0 0

27-28 17 Surprise Peach 198 114 9 0

23-26 13 Straw Tint 152 115 9 0

20-22 10 Medium Yellow 156 126 0 0

19 -Black 0 0 0 0

18 -White 5000 K 255 137 0193

17 -White 3700 K 255 201 25 255

16 -White 7000 K 216 237 61 255

15 -Magenta 255 0255 0

14 -Yellow 255 255 0 0

13 -Cyan 0255 255 0

12 -Blue 0 0 255 0

11 -Green 0255 0 0

10 -Red 255 0 0 0

0-9 -Macro color OFF - - - -

English version

Tabla de contenidos

Idiomas:

Otros manuales de Luminaria de TECshow

TECshow

TECshow NEBULA FX 3-in-1 Manual de usuario

TECshow

TECshow nebula 18 Manual de usuario

TECshow

TECshow HALO 7R Manual de usuario

TECshow

TECshow octobeam Manual de usuario

TECshow

TECshow ION 740z Manual de usuario

TECshow

TECshow BEAMER 7R Manual de usuario

TECshow

TECshow BEAMER Manual de usuario

TECshow

TECshow Alfie Manual de usuario

TECshow

TECshow Ion 132B Manual de usuario

TECshow

TECshow RAZOR CUBE Manual de usuario

TECshow

TECshow COSMO QUAD 6 Manual de usuario

TECshow

TECshow ALFIE WASH Manual de usuario

Manuales populares de Luminaria de otras marcas

Emos

Emos CLASSIC ZY1431T Manual de usuario

Westinghouse

Westinghouse Outdoor Lighting Fixture Manual de usuario

Hedler

Hedler C 12 silent Manual de usuario

Blizzard Lighting

Blizzard Lighting Puck: CSI Manual de usuario

Energetic Lighting

Energetic Lighting ELYSL-5004 Series Manual de usuario

Lightmaxx

Lightmaxx Shaft 5R Manual de usuario

Triarch

Triarch 31083 Manual de usuario

Philips

Philips 32614 Series Manual de usuario

IKEA

IKEA TIVED Manual de usuario

Lightolier

Lightolier LP200 Manual de usuario

Chauvet Professional

Chauvet Professional ROGUE R1 BEAM WASH Manual de usuario

Martin

Martin MAC 250 Krypton Manual de usuario

Cooper Lighting

Cooper Lighting Halo L3232E Manual de usuario

Stageline

Stageline ODW-2410RGBW Manual de usuario

Light Sky

Light Sky Tornado Series Manual de usuario

Lightolier

Lightolier Paralyte 2424 PLA2G9LS26U Manual de usuario

Lightolier

Lightolier Lytespan 83ED17S Manual de usuario

Lightolier

Lightolier Calculite CS8226 Manual de usuario
