Technics SL-DZ1200PP Manual de usuario

ORDERNo.AD0404041C0

Direct Drive Digital Turntable

SL-DZ1200PP / SL-DZ1200EB / SL-DZ1200EG / SL-DZ1200EP

/ SL-DZ1200GN

Colours

(S)..................Silver Type

SPECIFICATIONS

Specification

Playablemedia

CD (12 cm) (5”): CD-Audio(CD-DA) / CD-R/CD-

RW(CD-DA, MP3)

SD MemoryCard

CD-MP3player format

Compatiblecompression rate: between32 kbpsand 192 kbps

/ (Recommended: 128 kbps)

Compatiblesampling rate: 48 kHz/44.1kHz/32 kHz

SD Audioplayformat

Audioextension format: MPEG2-AAC/MP3

Compatiblesampling rate: 48 kHz/44.1kHz/32 kHz

Audio

No. of channels: 2 (stereo)

Frequencyresponse*: 4Hz-20 kHz

Output voltage: 2 Vrms (0dB) (JEITA)

Output terminal: Pinjack

Digital audiooutput

Coaxial digital output: Pinjack

Headphone

Output level: 20 mWmax. 32 (adjustable)

Pickup

Wavelength: 790 nm

Laser Power: Nohazardousradiation is

emitted

General

Power supply: PP ; AC 120 V, 60Hz /

EB,EG,EP,GN; AC 220-240 V,

50 Hz

Power consumption: 20 W

Dimensions(W×H×D): 320×111×330 mm / (1239 /64 ”×

43/8”×13”)

Mass: 5.8kg/ (12.8lb.)

Note:

Specificationsare subject tochangewithout notice. / Mss and

dimensionsare approximate. / *Specificationsare thevalues

whenplaying CD audiointheCD PLAYER modewithtemporeset.

Unauthorized copying and distribution isaviolation of law.

1. Safety Precaution

(This “SafetyPrecaution” is appliedonlyinU.S.A.)

1. Before servicing, unplug the power cord to prevent an electric

shock.

2. When replacing parts, use onlymanufacturer’srecommended

components for safety.

3. Check the condition of the power cord. Replace ifwear or damage

isevident.

4. After servicing, be sure to restore the lead dress, insulation

barriers, insulation papers, shields, etc.

5. Before returning the serviced equipment to the customer, be sure

to make the following insulation resistance test to prevent the

customer from being exposed to ashock hazard.

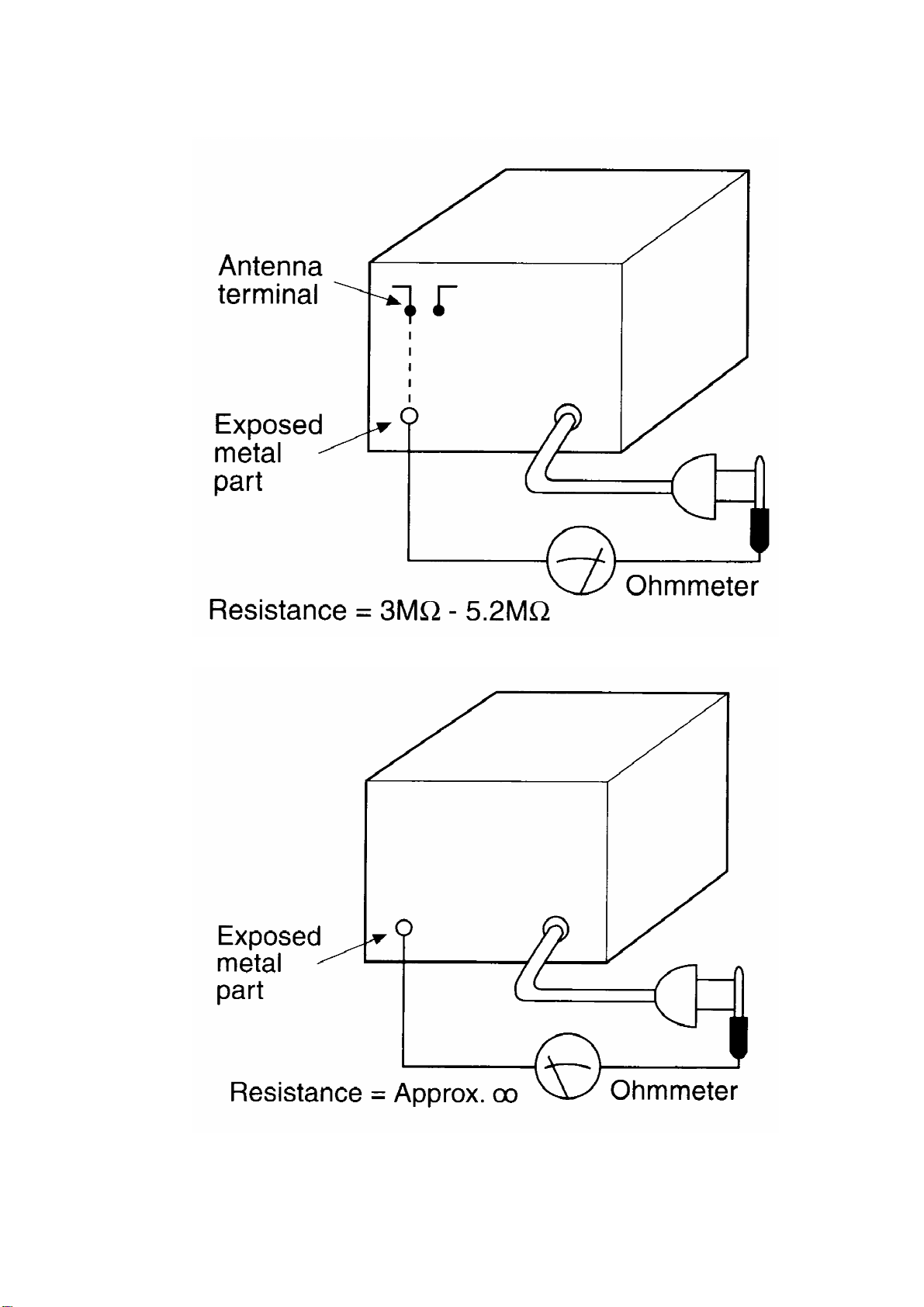

Insulation Resistance Test

1. Unplug the power cord and short the twoprongs of the plug with

ajumper wire.

2. Turn on the power switch.

3. Measure the resistance value with ohmmeter between the jumper

AC plug and each exposed metal cabinet part, such as screw

heads, control shafts, handlebrackets, etc. Equipment with

antenna terminalsshouldread between 3M and 5.2M to

allexposedparts. (Fig. A) Equipment without antenna terminals

shouldread approximatelyinfinityto all exposed parts. (Fig. B) / *

Note: Some exposed partsmaybeisolated from the chassisby

design. These will read infinity.

(Fig. A)

(Fig. B)

4. Ifthe measurement isoutside the specified limits, there isa

possibilityof ashock hazard. The equipment shouldbe repaired

and rechecked before itisreturned to the customer.

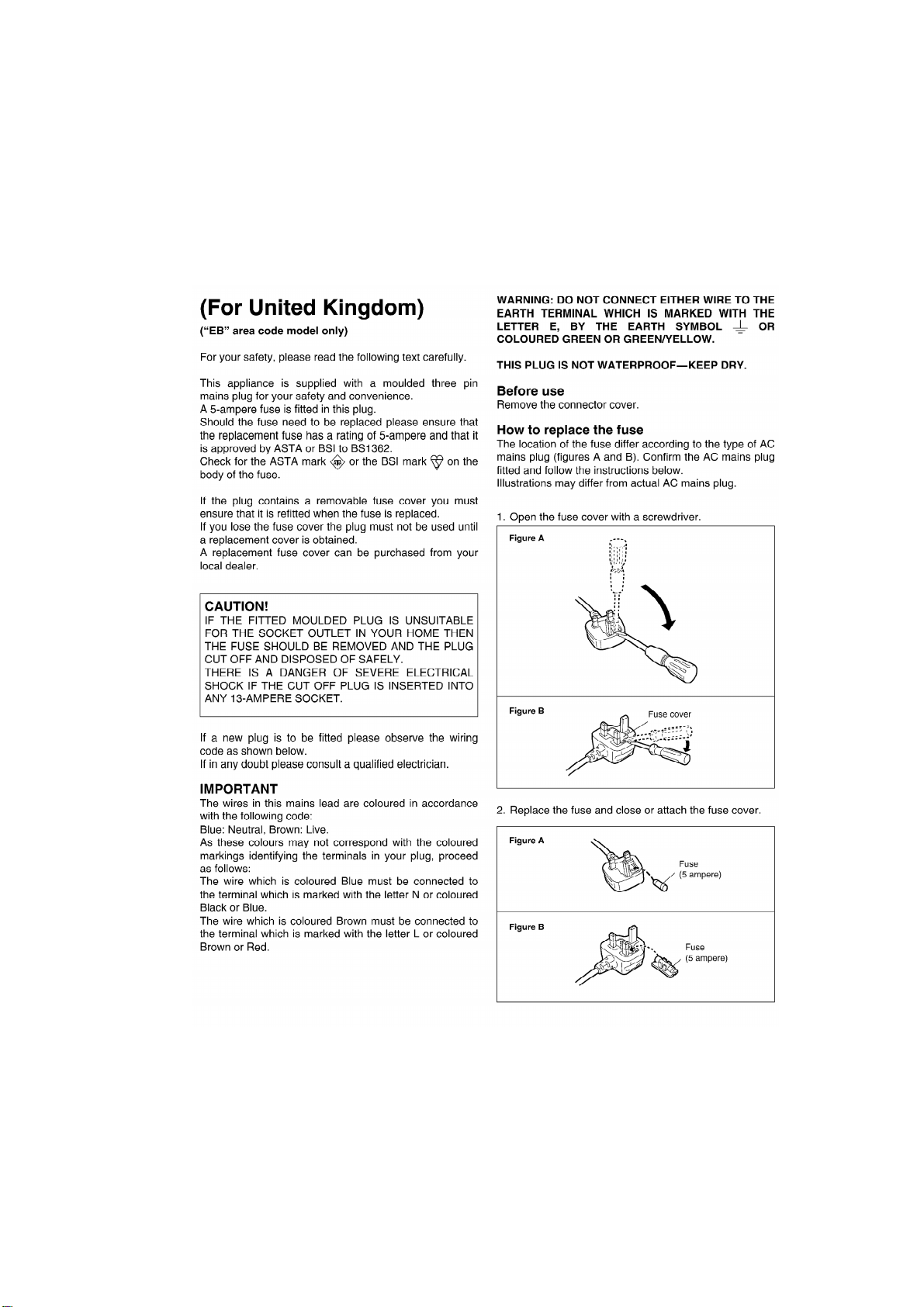

2. Caution for AC Mains Lead

3. Handling Precautions for Optical pick-up

The laserdiode inthe optical pick-up maybreak downdue topotential difference causedby

static electricityof clothes orhumanbody.

Sobe careful of electrostatic breakdownduring repairof the optical pick-up.

3.1. Handling of traverse deck optical pick-up

1. Donot subject the optical pick-up to staticelectricityas itis

extremelysensitive to electrical shock.

2. To protect the laser diode against electrostaticbreakdown, short

the flexibleboard (FFCboard) with aclipor similar object. Refer

to Fig. 2-1.

3. Take care not to applyexcessive stress to the flexibleboard (FFC

board).

4. Donot turn the variableresistor (laser power adjustment). Ithas

alreadybeen adjusted. Refer to Fig. 2-1.

Fig. 2-1.

3.2. Grounding for electrostaticbreakdownprevention

3.2.1. Human bodygrounding

Use the anti-static wrist straptodischarge the static electricityfromyourbody. RefertoFig. 2-2.

Fig. 2-2.

3.2.2. Worktablegrounding

Put a conductive material (sheet) orsteel sheet on the area where the optical pick-up is placed,

and ground the sheet. Referto Fig. 2-3.

Fig. 2-3.

Caution:

The staticelectricityof your clothes will not be grounded through

the wrist strap.

So take care not to let your clothes touch the optical pick-up.

4. Precaution of Laser Diode

5. Accessories

-AC power supplycord for (PP) area / (REZ1619)....................1pc.

-AC mains lead for (EB)area / (REZ1496)....................1pc.

-AC mains lead for (EG),(EP) areas / (REZ1495)....................1pc.

-AC mains lead for (GN)areas / (REZ1620)....................1pc.

-Stereo connection cablefor all areas / (SFDHBD2N01)....................1

pc.

-Slipsurface for all areas / (RGK1704-S2)....................1pc.

6. Main features

7. Component part names

8. Operation Checks and Component Replacement

Procedures

-Thissection describes procedures for checking the operation of

the major printed circuitboards and replacing the main

components.

-For reassemblyafter operation checks or replacement, reverse the

respective procedures. Special reassemblyprocedures are

described onlywhen required.

8.1. Checking for the control panel (1) P.C.B. and control panel (2)

P.C.B..

-Check the control panel (1) P.C.B. and control panel (2) P.C.B. as

shownbelow.

8.2. Checking for the mainP.C.B.

-Follow the (Step 1) -(Step 3) of item 8.1.

-Check the mainP.C.B. (Aside) as shownbelow.

-Check the mainP.C.B. (Bside) as shownbelow.

8.3. Checking for the jack P.C.B.

-Follow the (Step 1) -(Step 3) of item 8.1.
