Techly EXT-EF3000 Manual de usuario

P/N: IDATA EXT-EF3000

8059018368338

EN User's Manual

IT Manuale d’istruzione

WWW.TECHLY.COM

HDMI OPTICAL

FIBER EXTENDER

HDMI OPTICAL FIBER EXTENDER

Dear Customer

Thank you for purchasing this product. For optimum performance

and safety, please read these instructions carefully before connecting,

operating or adjusting this product. Please keep this manual for future

reference.

IMPORTANT SAFETY INSTRUCTION

INTENDED USE

We do not permit using the device in other ways like

described in this user’s manual. Use the product only

in dry interior rooms. Not attending to these regulations

and safety instruction might cause fatal accidents,

injuries, and damages to persons and property. The manufacturer/

supplier assumes no liability for damages caused by failure to

comply with the intended use.

To reduce risk of electric

shock, this product should

ONLY be opened by an

authorized technician when

service is required. Disconnect the product from mains and other

equipment if a problem should occur. Do not expose the product

to water or moisture.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

• Your product is not a toy and is not meant for children, because it

contains small parts which can be swallowed and can injure when

used inappropriately!

• Please install the system and devices attached to it in a way that

persons cannot be injured, or objects not be damaged for example

by dropping or stumbling.

• Please remove the packing materials, because children may cut

themselves on them while playing.

Furthermore, there is a risk of swallowing and inhalation of

incidentals and insulating material.

• Avoid places with high temperatures, or humidity, or places which

might come into contact with water. Do not install the product close

to openings of air conditioners, or at places with an excessive

amount of dust or smoke.

• Do not install the product at places subject to vibration, or

oscillation

• Do not modify and alter the product and any accessories! Do not

use any damaged parts.

EN - 2

WWW.TECHLY.COM

IT - 2

HDMI OPTICAL

FIBER EXTENDER

• Keep enough space around all devices for a good ventilation and

free motion and to avoid damages.

• Do not unplug the deive when it is in using, keep distance from

flammable and explosive devices.

• Power supply: DC 5V/2A, usage only the supplied power unit. Make

sure the specification marched if using 3rd party DC adapters. Do

not use the power supply if it is damaged.

INTRODUCTION

This is an HDMI over IP Optical fibe extender kit, including a transmitter

and a receiver. With this device, the 1080p@60Hz HDMI signal can be

extended up to 40 km through single-mode optical fiber. This HDMI

extender kit supports HDMI loop out, uni-directional IR passback,

RS-232 passthrough, and audio extraction through S/PDIF output

on the receiver. It supports point-to-point connection or one-to-many

connection through gigabit switch, and cascading of switches is

also supported. This extender kit is a reliable video transmission and

distribution solution which can be widely used in security monitoring,

rail transit, broadcasting, smart cities, home theatre and other fields.

FEATURES

• Adopting ipcolor PIXEL technology can realize uncompressed and

low-latency transmission.

• Support up to 1080p@60Hz resolution, including 1920x1200/1920x

1080, backward compatible.

• Support optical fiber transmission, the maximum transmission

distance of 40 kilometers.

• Support one-to-many connection through the gigabit switch, or

switch cascading.

• Support HDR10

• Support EDID Passback.

• Support RS-232 passthrough.

• With HDMI loop out on the trnasmitter.

• Support uni-directional IR passback.

• The transmitter has a 3.5 mm audio input for sound embedding, the

receiver has an independent 3.5 mm and S/PDIF audio output.

• Lightning protection, surge protection, ESD protection.

• Support steady 24-hour operation

EN - 3

WWW.TECHLY.COM

IT - 3

HDMI OPTICAL

FIBER EXTENDER

PACKAGE CONTENTS

Make sure your package includes the following items:

• Transmitter *1

• Receiver *1

• DC 5V 2A Power Adapter *2

• IR Blaster extension cable *1

• IR receiver extension cable *1

• SFP optical transceiver (T1310/R1550nm) * 1

• SFP optical transceiver (T1550/R1310nm) * 1

• Terminal block *2

• Mounting ear * 4

• Screws *10

• Terminal screws *2

• User Manual *1

INSTALLATION REQUIREMENTS

EN - 4

WWW.TECHLY.COM

IT - 4

HDMI OPTICAL

FIBER EXTENDER

ITEM DESCRIPTION REQUIREMENT

Signal source

device

PC, DVD, NVR, etc.

with HDMI port HDMI cable≤5m

Cable

LC single-mode

(default Config)

fiber optic

cable≤40km

LC multimode fiber fiber optic

cable≤300m

Display device

TV, projector, LED

screen, etc. with

HDMI port

HDMI cable≤5m

Fiber switch

Switch with SFP

ports (only required

for one-to-many and

switch cascading

connections)

Gigabit switch

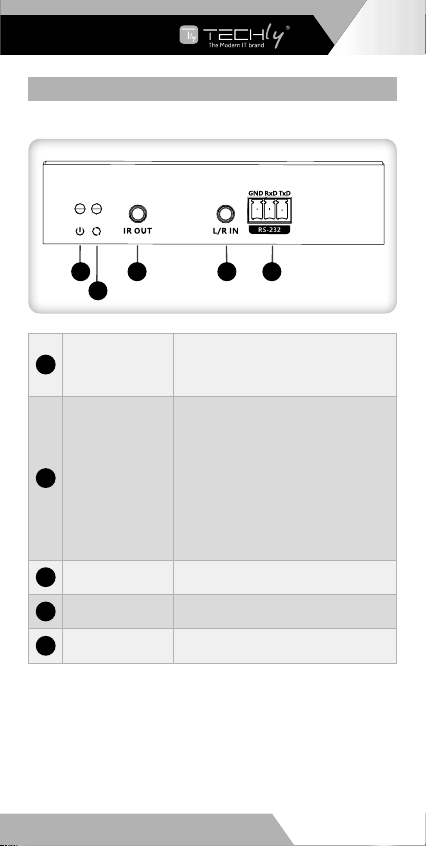

PANEL DESCRIPTION

Transmitter

IR receiverIR blaster

HDMI IN

HDMI OUT

Speaker

TX RX

HDMI Display

HDMI D isplay

Video Source

Optical Fiber

1.2 One-to-many connection (through gigabit switch):

Video Source

Optical Fiber

HDMI OUT

HDMI IN

HDMI Display

HDMI D isplay

Gigabit

Fiber Switch

Gigabit

Fiber Switch

Gigabit

Fiber Switch * N

HDMI OUT

HDMI IN

HDMI Display

HDMI OUT

HDMI Display

Video Source

Optical Fiber

EN - 5

WWW.TECHLY.COM

IT - 5

3 4 5

1Power indicator

(blue)

1) Light off: No power supply

2) Steady on: The power is on

3) Flash: The factory settings have

been restored

Data

transmission

indicator

(orange)

1) Light off: The transmitter and the

receiver have not established a

connection

2) Slow flash (every 1 second):

The transmitter and the receiver

are connected but no video data

transmission

3) Quick flash (every 200ms): The

video signal is connecting

4) Steady on: The video data is

transmitting

3IR OUT Connect with IR blaster extension

cable

4L/R IN Connect to the audio source device

with 3.5mm stereo audio cable

5RS-232

(GND/RxD/TxD)

Used for RS-232 passthrough and

command

HDMI OPTICAL

FIBER EXTENDER

IR receiverIR blaster

HDMI IN

HDMI OUT

Speaker

TX RX

HDMI Display

HDMI D isplay

Video Source

Optical Fiber

1.2 One-to-many connection (through gigabit switch):

Video Source

Optical Fiber

HDMI OUT

HDMI IN

HDMI Display

HDMI D isplay

Gigabit

Fiber Switch

Gigabit

Fiber Switch

Gigabit

Fiber Switch * N

HDMI OUT

HDMI IN

HDMI Display

HDMI OUT

HDMI Display

Video Source

Optical Fiber

EN - 6

WWW.TECHLY.COM

IT - 6

6 7 8 9 10

6RESET

1) Press to restart

2) Press and hold for 5 seconds to

restore the factory settings, and

then let go when the power indicator

flashes

7SFP signal out Insert the SFP optical module

(T1310nm/R1550nm)

8HDMI IN Connect with HDMI source device

9HDMI OUT Connect with local HDMI display

device

10 DC5V Connect with DC 5V/2A power adapter

HDMI OPTICAL

FIBER EXTENDER

IR receiverIR blaster

HDMI IN

HDMI OUT

Speaker

TX RX

HDMI Display

HDMI D isplay

Video Source

Optical Fiber

1.2 One-to-many connection (through gigabit switch):

Video Source

Optical Fiber

HDMI OUT

HDMI IN

HDMI Display

HDMI D isplay

Gigabit

Fiber Switch

Gigabit

Fiber Switch

Gigabit

Fiber Switch * N

HDMI OUT

HDMI IN

HDMI Display

HDMI OUT

HDMI Display

Video Source

Optical Fiber

Receiver

EN - 7

WWW.TECHLY.COM

1 6

3 4 5

Power indicator

(blue)

1) Light off: No power supply

2) Steady on: The power is on

3) Flash: The factory settings have

been restored

Data

transmission

indicator

(orange)

1) Light off: The transmitter and the

receiver have not established a

connection

2) Slow flash (every 1 second):

The transmitter and the receiver

are connected but no video data

transmission

3) Steady on: The video data is

transmitting

3IR OUT Connect with IR blaster extension

cable

4S/PDIF OUT Connect to the audio device with

digital optical audio cable

5L/R OUT Connect to the audio device with

3.5mm stereo audio cable

6RS-232

(GND/RxD/TxD)

Used for RS-232 passthrough and

command control

IT - 7

HDMI OPTICAL

FIBER EXTENDER

IR receiverIR blaster

HDMI IN

HDMI OUT

Speaker

TX RX

HDMI Display

HDMI D isplay

Video Source

Optical Fiber

1.2 One-to-many connection (through gigabit switch):

Video Source

Optical Fiber

HDMI OUT

HDMI IN

HDMI Display

HDMI D isplay

Gigabit

Fiber Switch

Gigabit

Fiber Switch

Gigabit

Fiber Switch * N

HDMI OUT

HDMI IN

HDMI Display

HDMI OUT

HDMI Display

Video Source

Optical Fiber

INSTALLATION PROCEDURES

CONNECTION DIAGRAMS

1.1 One-to-one connection

IR receiverIR blaster

HDMI IN

HDMI OUT

Speaker

TX RX

HDMI Dis pla y

HDMI Display

Vid eo So urc e

Optical Fiber

1.2 One-to-many connection (through gigabit switch):

Vid eo So urc e

Optical Fiber

HDMI OUT

HDMI IN

HDMI Dis pla y

HDMI Display

Gigabit

Fiber Switch

Gigabit

Fiber Switch

Gigabit

Fiber Switch * N

HDMI OUT

HDMI IN

HDMI Dis pla y

HDMI OUT

HDMI Dis pla y

Vid eo So urc e

Optical Fiber

EN - 8

WWW.TECHLY.COM

7 8 9 10

7RESET

1) Press to restart

2) Press and hold for 5 seconds

to restore the factory settings,

and then let go when the power

indicator flashes

8SFP signal input Insert the SFP optical module

(T1550nm/R1310nm)

9HDMI OUT Connect with HDMI display device

10 DC5V Connect with DC 5V/2A power adapter

IT - 8

HDMI OPTICAL

FIBER EXTENDER

1.2 One-to-many connection (through gigabit switch):

IR receiverIR blaster

HDMI IN

HDMI OUT

Speaker

TX RX

HDMI Dis pla y

HDMI Display

Vid eo So urc e

Optical Fiber

1.2 One-to-many connection (through gigabit switch):

Vid eo So urc e

Optical Fiber

HDMI OUT

HDMI IN

HDMI Dis pla y

HDMI Display

Gigabit

Fiber Switch

Gigabit

Fiber Switch

Gigabit

Fiber Switch * N

HDMI OUT

HDMI IN

HDMI Dis pla y

HDMI OUT

HDMI Dis pla y

Vid eo So urc e

Optical Fiber

IR receiverIR blaster

HDMI IN

HDMI OUT

Speaker

TX RX

HDMI Dis pla y

HDMI Display

Vid eo So urc e

Optical Fiber

1.2 One-to-many connection (through gigabit switch):

Vid eo So urc e

Optical Fiber

HDMI OUT

HDMI IN

HDMI Dis pla y

HDMI Display

Gigabit

Fiber Switch

Gigabit

Fiber Switch

Gigabit

Fiber Switch * N

HDMI OUT

HDMI IN

HDMI Dis pla y

HDMI OUT

HDMI Dis pla y

Vid eo So urc e

Optical Fiber

1.3 One-to-many connection (gigabit switch cascading):

2. Connection istruction

1) Connect the source device to the HDMI IN port of the transmitter

with an HDMI cable, and connect the HDMI OUT port of the

receiver to the display device with another HDMI cable.

2) If it's one-to-one connection, then use a LC fiber optic cable to

connect the SFP port of the transmitter and receiver. If it is one-

to-many connection, then use the gigabit switch as a bridge to

connect the transmitter and the receivers with the LC fiber optic

cables respectively.

3) If using HDMI loop out, connect the display device to the HDMI

OUT port of the transmitter.

EN - 9

WWW.TECHLY.COM

IT - 9

HDMI OPTICAL

FIBER EXTENDER

4) If you need another audio source instead of the HDMI audio source,

connect the audio source to the L/R IN port of the transmitter with

a 3.5mm stereo audio cable.

5) If you need to output additional audio sources from the receiver

or extend the L/R stereo audio only, connect the S/PDIF OUT

port of the receiver to the audio device with a digital optical audio

cable and/or connect the L/R OUT port of the receiver to the audio

device with a 3.5mm stereo audio cable.*

6) Plug the power supply into the devices to get started.

a) When the HDMI IN port of the transmitter is connected and the L/R

IN port is not connected, the HDMI audio source can output from

the HDMI OUT, S/PDIF OUT, and L/R OUT ports of the receiver

simultaneously.

b) When the HDMI IN port and the L/R IN port of the transmitter is

both connected, the L/R stereo audio source can output from

the HDMI OUT, S/PDIF OUT, and L/R OUT ports of the receiver

simultaneously.

c) When the L/R IN port of the transmitter is connected and the HDMI

IN is not connected, it can be used as an audio extender, the L/R

stereo audio source can only output from the L/R OUT port of the

receiver.

3. IR User Guide

IR receiverIR blaster

HDMI IN

HDMI OUT

Speaker

TX RX

HDMI Displa y

HDMI Display

Video Source

Optical Fiber

1.2 One-to-many connection (through gigabit switch):

Video Sourc e

Optical Fiber

HDMI OUT

HDMI IN

HDMI Displa y

HDMI Display

Gigabit

Fiber Switch

Gigabit

Fiber Switch

Gigabit

Fiber Switch * N

HDMI OUT

HDMI IN

HDMI Displa y

HDMI OUT

HDMI Displa y

Video Source

Optical Fiber

IR receiverIR blaster

HDMI IN

HDMI OUT

Speaker

TX RX

HDMI Displa y

HDMI Display

Video Source

Optical Fiber

1.2 One-to-many connection (through gigabit switch):

Video Sourc e

Optical Fiber

HDMI OUT

HDMI IN

HDMI Displa y

HDMI Display

Gigabit

Fiber Switch

Gigabit

Fiber Switch

Gigabit

Fiber Switch * N

HDMI OUT

HDMI IN

HDMI Displa y

HDMI OUT

HDMI Displa y

Video Source

Optical Fiber

1. Power

2. IR Signal

3. Null

1. Power

2. IR Signal

3. Grounding

1) IR blaster extension cable should plug in the IR OUT port of the

transmitter or receiver, IR receiver extension cable should plug in

the IR IN port of the transmitter or receiver.

2) The emitter of the IR blaster extension cable should be as close as

possible to the IR receiving window of the source device.

3)Point the remote control at the receiving head of the IR receiver

extension cable to operate.

EN - 10

WWW.TECHLY.COM

IT - 10

HDMI OPTICAL

FIBER EXTENDER

Tabla de contenidos

Idiomas:

Otros manuales de Extensor de Techly

Techly

Techly IDATA EXTIP-373A2 Manual de usuario

Techly

Techly IDATA MSV-AU8B Manual de usuario

Techly

Techly IDATA EXT-E40 Manual de usuario

Techly

Techly IDATA HDMI2-WL200 Manual de usuario

Techly

Techly IDATA HDMI-WL53 Manual de usuario

Techly

Techly IDATA EXT-465P Manual de usuario

Techly

Techly IDATA EXT-565 Manual de usuario

Techly

Techly IDATA EXTip-383V Manual de usuario

Techly

Techly IDATA EXT-E70W Manual de usuario

Techly

Techly IDATA EX-DL344 Manual de usuario

Techly

Techly IDATA EXTIP-373IR Manual de usuario

Techly

Techly IDATA HDMI-KVM67 Manual de usuario

Techly

Techly IDATA EXTIP-3834KV4 Manual de usuario

Techly

Techly IDATA EXT-E70POED Manual de usuario

Techly

Techly IDATA HDMI-EX60-H2 Manual de usuario

Techly

Techly IDATA EXTip-3834K Manual de usuario

Techly

Techly IDATA EXTip-383POE Manual de usuario

Techly

Techly IDATA HDMI-KVM60 Manual de usuario

Techly

Techly IDATA HDMI-KVM3 Manual de usuario

Techly

Techly IDATA EXTip-3834KP Manual de usuario

Techly

Techly IDATA EXTIP-383 Manual de usuario

Techly

Techly IDATA EXT-E70MI Manual de usuario

Techly

Techly IDATA EXTip-373A Manual de usuario

Techly

Techly IDATA EXTIP-3834KP6 Manual de usuario

Manuales populares de Extensor de otras marcas

SY HDBT-60T Manual de usuario

Appsys ProAudio

Appsys ProAudio ADX-16 Manual de usuario

Atlona

Atlona RS232 Manual de usuario

IDK

IDK OPF-TH1000-A Manual de usuario

Enable-IT

Enable-IT 824WP Manual de usuario

Worx

Worx Landroid RadioLink WA0864 Hoja de especificaciones

TP-Link

TP-Link TL-WA730RE Manual de usuario

Camplex

Camplex CMX-HDMI-SFPL Manual de usuario

SC&T

SC&T HE03-4K Manual de usuario

Marmitek

Marmitek MegaView70 Manual de usuario

Samsung

Samsung SCS-26UC4 Manual de usuario

Foxun

Foxun SX-GES24 Manual de usuario

MuxLab

MuxLab 500771 Manual de usuario

foxunhd

foxunhd SX-AEX01 Manual de usuario

TERK Technologies

TERK Technologies LFIRX2 Manual de usuario

Devolo

Devolo Audio Extender Manual

Edimax

Edimax EW-7438RPn V2 Manual de usuario

Shinybow USA

Shinybow USA SB-6335T5 Manual de usuario
