Techlogix TL-SM3C-HDV Manual de usuario

Installation Guide

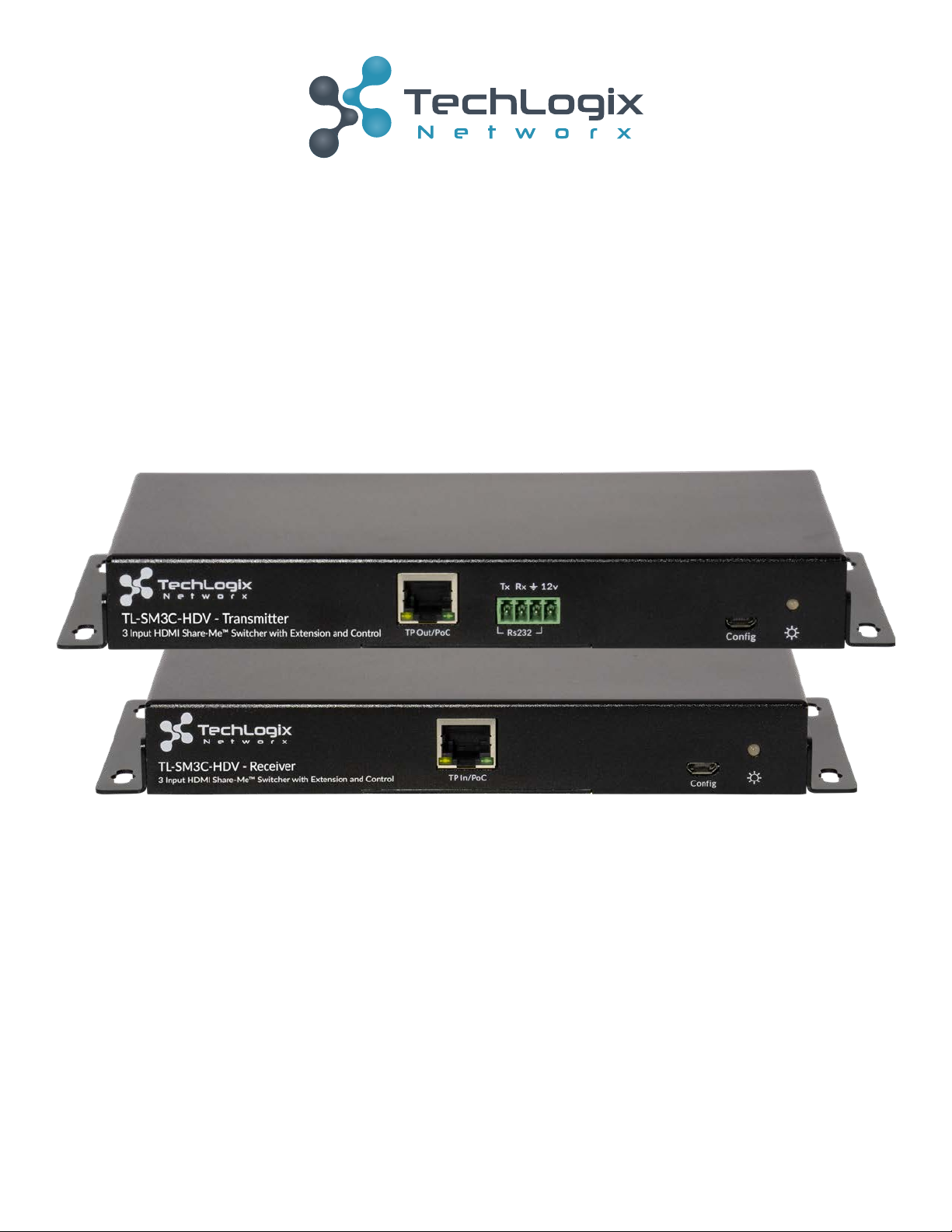

Three Input HDMI Share-Me™ Switcher with Extension and Control

TL-SM3C-HDV

www.tlnetworx.com | +1-608-960-7242

Version: 190219

190219 TL-SM3C-HDV Installation Guide

Preface

Trademarks

FCC Statement

Read this user manual carefully before using this product. Pictures shown in this manual are for reference only;

the actual product may vary.

This manual is only for operation instructions and not for any maintenance or repair.

Product model and logo are trademarked. Any other trademarks mentioned in this manual are acknowledged as

the properties of the trademark owner. No part of this publication may be copied or reproduced without prior

written consent.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. It has been tested

and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference in a commercial installation.

Operation of this equipment in a residential area is likely to cause interference, in which case the user at their

own expense will be required to take whatever measures may be necessary to correct the interference.

Any changes or modications not expressly approved by the manufacture would void the user’s authority to

operate the equipment.

190219 TL-SM3C-HDV Installation Guide

Safety Precautions

• To insure proper operation, please read all instructions carefully before using the device. Save this manual

for further reference.

• Unpack the equipment carefully and save the original box and packing material for possible future shipment.

• Follow basic safety precautions to redce the risk of re, electrical shock and injury to persons.

• Do not dismantle the housing or modify the module. It may result in electrical shock or burn.

• Using supplies or parts not meeting the products’ specications may cause damage, deterioration or

malfunction.

• Refer all servicing to qualied service personnel.

• To prevent re or shock hazard, do not expose the unit to rain, moisture or install this product near water.

• Do not remove the housing of the device, as opening or removing housing may expose you to dangerous

voltage or other hazards.

• Install the device in a place with adequate ventilation to avoid damage caused by overheating.

• Keep the device away from liquids.

• Spillage into the housing may result in re, electrical shock, or equipment damage. If an object or liquid falls

or spills on to the housing, unplug the device immediately.

• Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before

cleaning.

• Unplug the power cord when left unused for a long period of time.

• If disposing of the unit, do not burn or mix with general household waste. The device must be disposed of per

local regulations for electronic recycling.

190219 TL-SM3C-HDV Installation Guide

iii

Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i

Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i

FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .i

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ii

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Product Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Included in Each Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Input/Output Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

TL-SM3C-HDV Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

TL-SM3C-HDV Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

System Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Usage Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Connection Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Example System Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Web-based Conguration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Logging into the Web Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

AV Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Source Select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

VGA Output Res. (Resolution) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

VGA Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

EDID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Display Control - CEC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Display Control - RS232 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Display Control - IR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

General Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

RS232 and Telnet Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Switching and Display Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

AV Conguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Control Conguration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

RS232 Output Conguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Delay Timing Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Firmware Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Transmitter Update Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Receiver Update Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Web GUI Update Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Technical Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Table of Contents

190219 TL-SM3C-HDV Installation Guide

Introduction

Product Overview

Features

The TechLogix Networx TL-SM3C series of Share-Me™ products build upon the core functions of the popular,

easy-to-use functionality of the TL-SM3X1 series Share-Me™ products and add video signal extension plus a

wider breadth of control for the display. With up to 70m (229 ft) of video extension for 1080p content, or 40m

(131 ft) of 4K content, and the ability to power the extender set from the receiver end, the TL-SM3C series of

Share-Me™ products allow for automatic power on/off commands to be transmitted from the unit (as well as

connected table inserts) to the display, thereby providing a complete room connectivity and control solution.

The TL-SM3C-HDV transmitter features two HDMI inputs and one VGA input with video support up to 4K/30

plus multichannel audio, three control inputs for the TL-SMG series Share-Me™ grommet inserts, and auto-switch

mode and manual switch mode. There is also an RS232 with 12V DC support connector to interface with the TL-

TI-4C or any third-party controller that can operate within 12V DC at 0.5 A.

The TL-SM3C-HDV receiver features an HDMI output with CEC control to adjust volume and power states of

the display. Additional display control capabilities are IR and RS232; relay outputs allow raising and lowering

projector screens with momentary and latching congurations. The TL-SM3C-HDV receiver can de-embed

stereo audio to the 3.5mm stereo analog port and RCA-style digital output port. There is also an Ethernet port to

congure the entire TL-SM3C system.

• Two HDMI inputs

• One VGA with analog audio input

• One HDMI output

• Digital and analog audio de-embedding

• EDID pass-through and built-in EDID

• HDMI video resolution up to 4K@30Hz 4:4:4

• HDCP 2.2 compliant

• 4K over Cat 5e/6 up to 40m

• 1080p over Cat 5e/6 up to 70m

• IR, RS232, CEC control of display

• Relay outputs for projector screens

• Integration with TechLogix table inserts for signal pass-through & remote control

• Micro USB rmware port

• Hot-plug support

Note: Shielded twisted pair cable with shielded connectors are recommended.

190219 TL-SM3C-HDV Installation Guide

Included in Each Set

• 1 ea TL-SM3C-HDV Transmitter

• 1 ea TL-SM3C-HDV Receiver

• 2 ea 3.5mm audio cable (2m)

• 1 ea 3-pin to DE-9 RS232 Cable

• 1 ea 4-pin Removable Terminal Block

• 3 ea 3-pin Removable Terminal Blocks

• 1 ea Power Adapter (DC 24V 2.71A) with US EIC Power Cable

• 4 ea Mounting rails (with 8 screws)

• 8 ea Rubber feet

• 1 ea User Manual QR Card

190219 TL-SM3C-HDV Installation Guide

Input/Output Overview

TL-SM3C-HDV Transmitter

1 - HDMI In 2 - HDMI In 3 - VGA In Audio In C1 C2

Share-Me™ Control Inputs

IR Learn

RS232

Tx Rx 12v

TP Out/PoC Service

Share-Me™ Serial

1 2 3 4

5 6 7 8 9 10 11 12

Number Name Description

1 TP Out/PoC Connect to the TP In port on the receiver via a twisted pair cable. Supports PoC (Power over Cable) from receiver.

Yellow LED indicates link with receiver. Green LED indicates HDCP status.

2 Share-Me™ Serial RS232 transmit (TX), receive (RX, and ground plus 12V DC power for TL-SMG-4C or third party control system.

3 Service Micro USB type B port for drag and drop rmware updates.

4 Power Indicator Red LED indicates power between the transmitter and receiver. Green LED indicates video transmitting from transmitter to

receiver.

5 1 - HDMI In Connect to an HDMI source.

6 2 - HDMI In Connect to an HDMI source.

7 3 - VGA In Connect to a VGA source.

8 Audio In Connect to analog audio source.

9 Share-Me™ Control 1 Dry contact closure control port for use with compatible TechLogix table inserts.

10 Share-Me™ Control 2 Dry contact closure control port for use with compatible TechLogix table inserts.

11 Share-Me™ Control 3 Dry contact closure control port for use with compatible TechLogix table inserts.

12 IR Learn IR receiver to capture IR commands for display.

190219 TL-SM3C-HDV Installation Guide

TL-SM3C-HDV Receiver

TL-SM3C-HDV - Receiver

3 Input HDMI Share-Me™ Switcher with Extension and Control

DC 24v

LAN RS232

Relay 1 Relay 2

NO NC NO NC Tx Rx

IR Out Audio Out HDMI / CEC Out

Display Control

A B C

D E F G H I J K L

Letter Name Description

A TP In/PoC Connect to the TP Out port on the receiver via a twisted pair cable. Supports PoC (Power over Cable) from receiver.

Yellow LED indicates link with receiver. Green LED indicates HDCP status.

B Service Micro USB type B port for drag and drop rmware updates.

C Power Indicator Red LED indicates power between the transmitter and receiver. Green LED indicates video transmitting from transmitter to

receiver.

D DC 24V 24V DC power port.

E LAN 100 Gbps Ethernet port for web GUI setup and Telnet control

F Relay 1 Latching or momentary with NO and NC connections.

G Relay 2 Latching or momentary with NO and NC connections.

H RS232 RS232 output for display control.

I IR Out IR output for display control.

J Analog Audio Out 3.5 mm TRS analog audio output port.

K Digital Audio Out RCA-style digital audio output port.

L HDMI / CEC Out Connect to an HDMI display. CEC control with compatible display devices.

190219 TL-SM3C-HDV Installation Guide

System Connection

Usage Precautions

• System should be installed in a clean environment that has a proper temperature and humidity.

• All of the power switches, plugs, sockets and power cords should be installed properly.

• All devices should be connected before powering on the devices.

• The twisted pair terminations for the devices should be a straight-thru conforming to the

TIA/EIA T568B standard.

• Use shielded solid core straight-thru Cat5e or greater with TIA/EIA T568B terminations to connect the TP

ports.

• If mounting the unit, the included mounting hardware must be used.

Connection Procedure

1. Verify all components included with the TL-SM3C-HDV are present before installation.

2. If the TL-SM3C-HDV will be permanently mounted to a surface, attach the included mounting rails with the

supplied screws.

3. If the TL-SM3C-HDV will be sitting on a shelf, attach the included rubber feet to the bottom of the unit.

4. Turn off power and disconnect the audio/video equipment by following the manufacturer’s instructions.

5. If the TL-SM3C-HDV will be controlled via TechLogix table inserts:

a. Separately connect HDMI signal cables between the HDMI sources and HDMI ports of the table inserts

and VGA signal cables between the VGA source and VGA port of the table insert.

b. Separately connect HDMI signal cables between the HDMI sources (or table inserts if used) and the

1 - HDMI In and 2 - HDMI In ports. Connect a VGA signal cable between the VGA source (or table insert

if used) and the 3 - VGA In portof the TL-SM3C-HDV.

c. Separately connect three table inserts to the C1, C2, and C3 ports of the TL-SM3C-HDV.

6. If the TL-SM3C-HDV will be controlled via the TL-SMG-4C, connect the 4-wire power and control cable

included with the table insert into the Share-Me™ Serial port on the transmitter.

7. Connect HDMI signal cables between the HDMI sources (or table inserts if used) and the 1 - HDMI In and

2 - HDMI In ports. Connect a VGA signal cable between the VGA source (or table insert if used) and the 3 -

VGA In port.

8. Connect TP Out/PoC port of Transmitter and TP In/PoC port of Receiver with a single shielded solid core

straight-through Cat 5e or greater cable with TIA/EIA T568B terminations.

9. Connect a display to the HDMI / CEC Out port of Receiver.

10. If using RS232 to control the display, connect the included RS232 cable from the RS232 port of the receiver

to the RS232 input of the display.

11. If using IR to control the display, connect the IR Emitter to the IR Out port of Receiver, and then put it over

the IR receiver port of the display.

12. If using external audio, connect audio amplier device to the appropriate Audio Out port of Receiver.

13. Connect a PC to the TCP/IP port of Receiver for web-based system setup and Ethernet-based Telnet control.

14. Connect the 24V DC 2.71A power adaptor to the power port of Receiver.

Note: Connect TP ports via single shielded solid core straight-through Cat 5e or greater cable with shielded

TIA/EIA T568B terminations at both ends.

190219 TL-SM3C-HDV Installation Guide

Example System Diagram

Apple

TL-SM3C-HDV

(RX)

TL-SM3C-HDV

(TX)

TL-SMG-HD

TL-SMG-4C

HDMI

VGA

Relay 1 & 2

Power

Screen

Up, Down

Shielded

Cat 6

(Power,

Video, &

Control)

Power & Control

HDMI

RS232

Tabla de contenidos

Otros manuales de Cambiar de Techlogix

Techlogix

Techlogix TL-4X1-HD2 Manual de usuario

Techlogix

Techlogix TL-NS24R2S-POE Manual de usuario

Techlogix

Techlogix TL-5X1-HDV Manual de usuario

Techlogix

Techlogix TL-SM3X1-HD Manual de usuario

Techlogix

Techlogix TL-SMP-HDV Manual de usuario

Techlogix

Techlogix TL-6X1-HDV Manual de usuario

Techlogix

Techlogix TL-SM3X1-HDV Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
