Team C TS2 Manual de usuario

Length …………………………………………………………………………………………550mm

Width …………………………………………………………………………………………296mm

Height

……………………………………………………………………………………190~200mm

长度

宽度

高度

1:10 Scale Radio 2WD Electric

short-course

TS2

Wheel distance ………………………………………………………………………………328mm

轮距

Dimensions 尺寸：

电池盖

调整遥控器

刹车

更换晶片可以改变频率

注意︰你也必须改变接收机晶片﹗

标准的电池

低电的电池(电灯闪烁)

电池标准指示灯

天线

天线拉的越长性能越好

发射机晶片接收机晶片

DIGITAL

PROPORTIONAL

RADIO CONTROL

SYSTEM

DIGITAL

PROPORTIONAL

RADIO CONTROL

SYSTEM

在遥控器的底部打开电池盖子，安装电池。

跟随电池的指示在电池盒里面指定

AA 碱性电池

这个开关用于选择部分

用来调整转向伺服

用于调整油门中立点

油门/后退(刹车)调整

用于调整转向中立点

方向调整

用於操作油门

竖直(中立)

向左旋转向右旋转

遥控器电池安装

油门启动

反向开关

工厂安装(当转向/油门反向时调整用)

转向舵角量

第三动作开关

电源

27MHz 发射机晶片(TX)

Transmitter Preparation

27MHzTransmitter Crystal （TX）

Transmitter crystal(TX)

Power Switch

OFF

Antenna

Extend the antenna to the maximum

Length for best performance

The crystal can be replaced to change frequencies.

Note : You must also change receiver crystals!

Do not use AM crystals

Receiver crystal(RX)

Steering Trim

To be used for trimming the steering

operation

Throttle Trim

Steering Dual Rate

To be used to adjust steering servo throw

AA Alkaling Batteries

Open battery cover at the bottom of transmitter.

Install batteries. Follow the direction of batteries

designated in the inside of battery box.

Transmitter Battery Installation

This switch is used for optional parts.

3ch Switch

Reverse Switch

Low Batteries(Light Blinks)

Good Batteries

Battery Level Indicator

Left turn Straight (neutral)

Right turn

Brake

Forward Stop(Neutral)

前进停止位置

To be used for throttle operation

Throttle Trigger

Battery Cover

Servo Factory Settings

To be used for trimming the throttle

operation

调整遥控器

Transmitter Preparation

在使用之前，一个新电池必须先充电。详情请参考充电器说明书。

如下图所示安装接收机控制系统。

电池

马达

电子加速控制器

发送机

伺服机

接收机

开关

Battery

A new Ni-MH battery must be charged before it is used.Refer to the charger instruction manual for charging.

Set up the radio control system as indicated below.

Servo

Receiver

Transmitter

Switch

Electronic Speed

Controller

Motor

DIGITAL

PROPORTIONAL

RADIO CONTROL

SYSTEM

OFF

开始

结束

安装电池(发送机)

拉出天线(发送机)

连接电池

拉出天线(接收机)

中心对整齐

开关(发送机)

开关(接收机)

确定控制伺服机

关闭开关(接收机)

关闭开关(发送机)

收回天线(发送机)

组裝需要的工具

Tools required

Needie Nose Pllers Awi Grease

润滑油

Screw Cement

螺丝胶水

Hex Wrench

六角扳手

Differential Grease

差速油

Molybdenum Grease(Black)

钼油(黑)

锥

尖嘴钳

Hex Wrench

十字套筒

Wire Cutters

钢丝钳

Sharp Hobby knife

美工刀

Start

Finish

Install batteries.(Transmitter)

Extend the antenna.(Transmitter)

Connect the battery

Extend the antenna.(Reveiver)

Center the trims.

Switch on.(Transmitter)

Switch on.(Reveiver)

Make sure the servos are in command.

Switch off.(Reveiver)

Switch off.(Transmitter)

Retract the antenna(Transmitter)

瞬间胶水

Instant Glue

Body Reamer

车壳绞刀

No need to pre-drill precise holes

(1mm to 15mm)can be drilled

可以对预钻的孔准确的钻1mm-15mm

ROUND CUTTER

剪刀

For trimming bodies!

用于修剪車壳！

H154

H162

H096

1Front Suspension

前悬吊系统

T02014

T02056 3x34.5

T02056 2.3

T02056 3x34.5 Hinge pin front inner

………………………4

……2

T02056 2.3 E-ring

2.3 E扣

3x34.5前摆臂轴-内

…………4

T02083 M3x15 Screw

T02092 Ball stud-Long

…………………2

M3x15螺丝

球头-长

TG2003

T02056 2.3

T02037

T02092

T02083 M3x15

TS2023

T02008

T02015

LR组装左和右

Assemble Both Left And Right

2Front Suspension

前悬吊系统

4.0mm

T02043 4.0 E-ring

……………………1

…………………4

T02080 3x6x2.5 Ball Bearing

T02044 Block Carrier

T02044 M3x10 Screw

…………………………2

……………2

T02093 Ball stud-Short

……………………2

T02061 Ball stud-Silvery

…………………1

……………………2

T02044 3x7x0.8 Washer

4.0 E扣

3x6x2.5轴承

球头-银色

轴套

M3x10螺丝

球头-短

3x7x0.8垫片

T02043

T02080

T02061

T02080

T02023

T02044

T02093

T02024

T02044 3x7x0.8

3Buffer

缓冲

4Buffer

缓冲

…………8

T02054 2.3 E-ring

T02093 Ball stud-Short

……………………………4

…………2

T02100 5x10x4 all bearing

………………………4

T02054 3x27.5 Hinge pin front outer

…………4

T02042 2x9.8 Shaft

…………2

球头-短

5x10x4轴承

2x9.8钢针

3x27.5前摆臂轴-外

2.3 E扣

T02042 4.0 E-ring

4.0 E扣

T02082 M3x10 Screw

……………2

M3x10螺丝

T02082 M3x10

T02019

LR组装左和右

Assemble Both Left And Right

5Front Suspension

前悬吊系统

6Front Suspension

前悬吊系统

T02054 3x27.5

T02054 2.3

T02042 4.0

T02100 5x10x4

T02042

T02042 2x9.8

T02100 5x10x4

T02012

T02093

T02034

T02093

T02011

T02054 2.3

Ture-to -scale diagram

图形比例

T02029 4.8mm Ball End-Long TG2024 3x68 Turnbuckle

…………8 ……4

4.8mm球头座-长 3x68拉杆

Front Upper-Right

Front Upper-Left

Steering Tip

前上拉杆-右

前上拉杆-左

转向拉杆

需组装次数

Assemble as many times as specified

……4

T02082 M3x10 Screw

…2

T02082 M3x22 Screw T02063 5mm Ball stud

……………………2

M3x10螺丝 M3x22螺丝 5mm球头

T02063

T02082 M3x10

T02082 M3x22

TG2005

Turnbuckle

拉杆

Front Suspension

前悬吊系统

Front Suspension

前悬吊系统

Projection.Note direction

注意方向

Projection.Note direction

注意方向

Projection.Note direction

注意方向

大约51mm

approx.51mm

大约51mm

approx.51mm

大约46mm

approx.46mm

TG2024

T02029

1:1

T02092

T02093

Ball stud sponge

球头海绵

Ball stud sponge

球头海绵

Ball stud sponge

球头海绵

Ball stud sponge

球头海绵

Ball stud sponge

球头海绵

Ball stud sponge

球头海绵

Ball stud sponge

球头海绵

Screw

Cement

Screw

Cement

Screw

Cement

Apply threadlocker(screw cement)

打螺丝胶水

…………4

TS2022/TS2024 M3x10 Screw

M3x10螺丝

…………4

TS2024 M3x12 Screw

M3x12螺丝

…………4

TS2023 M3x8 Screw

M3x8螺丝

TS2024 M3x12 Screw

M3x12螺丝

………2

TS2024 M3x15 Screw

M3x15螺丝

……2

TS2023 M3x10 Screw

M3x10螺丝

………2

Front Suspension

前悬吊系统

Front Suspension

前悬吊系统

TS2024 M3x10

TS2022 M3x10

TS2024 M3x12

TS2022

TS2024

TS2023 M3x8

TS2024 M3x12

TS2023

TS2024 M3x15

TS2024

TS2023

TS2023 M3x10

TS2023 M3x8

TS2024

…………6

T02082 M3x10 Screw

M3x10螺丝

T02092 Ball stud-Long

…………………2

球头-长

…………4

T02082 M3x10 Screw

M3x10螺丝 T02092

T02082 M3x10 T02018

………………2

T02083 M3x8 Screw

M3x8螺丝

…………2

T02055 3x48 Hinge Pin Rear Inner

3x48后摆臂轴-内

T02083 M3x8

T02055

TG2004

T02009

T02014

Front Suspension

前悬吊系统

Rear Suspension

后悬吊系统

组装左和右

Assemble Both Left And Right

Rear Suspension

后悬吊系统

T02082 M3x10

TS2020

T02007 M2.5x25 Screw

…1

T02048 2.37mm Ball

……………………12

T02098 5x8x2.5 ball bearing

T02007 M2.5 Nylon Nut

……………2

……………1

T02099 10x15x4 ball bearing

………2

M2.5x25螺丝

2.37钢珠

M2.5尼龙螺母 5x8x2.5轴承

T02049 17x23x1 Washer

17x23x1垫片

……2

T02007 2.5x25

T02098 5x8x2.5

T02099 10x15x4

T02007

T02007 M2.5

T02047

T02046

T02098 5x8x2.5

T02049 17x23x1

T02048 2.37

T02004

10x15x4轴承

T02050 2.6x6x3

……………4

T02083 M3x10 Screw

M3x10螺丝 T02083 M3x10

15 Rear Suspension

后悬吊系统

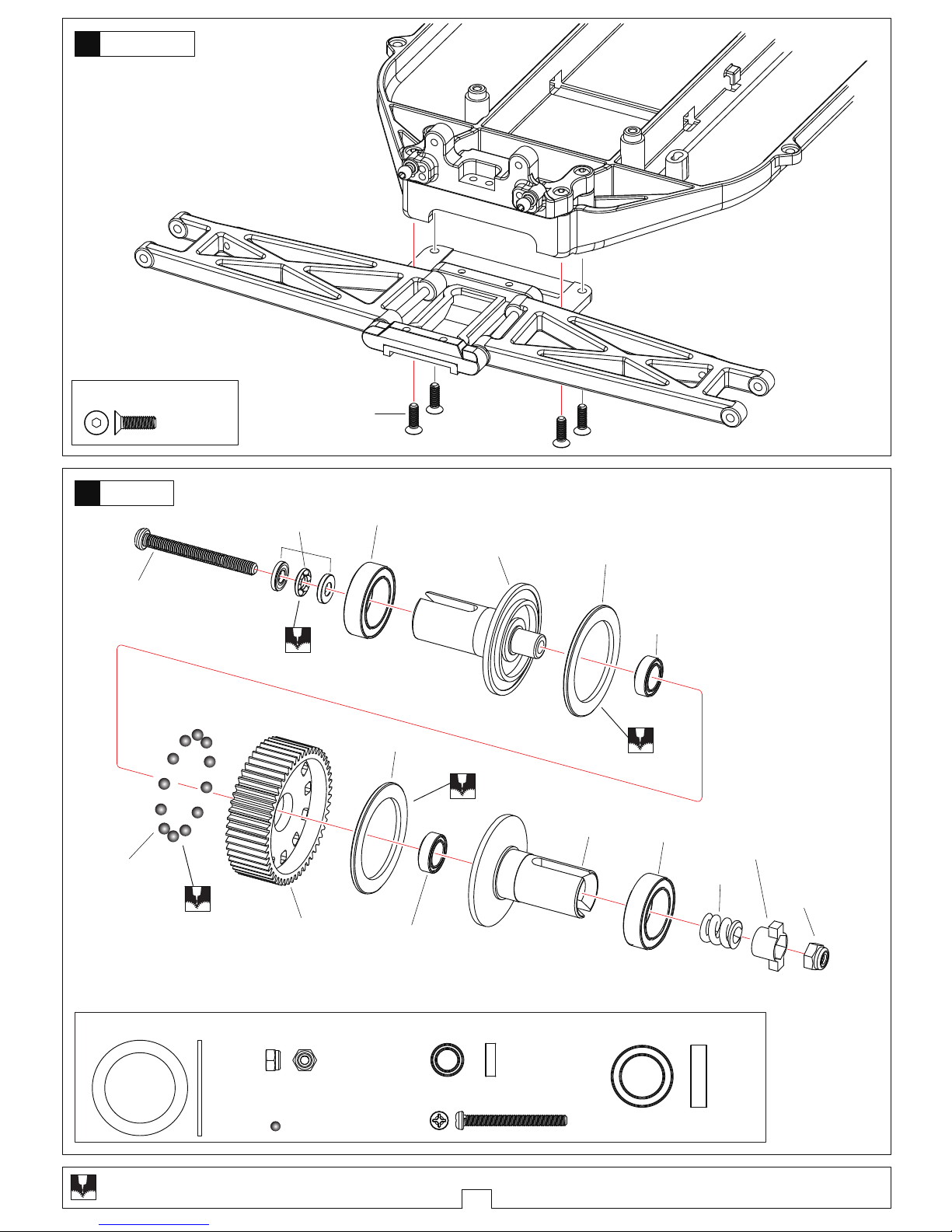

16 Differential

差速器

涂油脂

Apply Grease
