Team C TM4 Manual de usuario

尺寸：

TM4

Length …………………………………………………………………………400mm

Width …………………………………………………………………………250mm

Height …………………………………………………………………………145mm

長度

寬度

高度

Dimensions

Instruction manual

www.teamcracing.net

1:10 SCALE RADIO CONTROLLED ELECTRIC

POWERED 4wd RACING BUGGY

610

電池蓋

調整遙控器

在遙控器的底部打開電池蓋子,安裝電池。

跟隨電池的指示在電池盒裡面指定。

AA 堿性電池

遙控器電池安裝

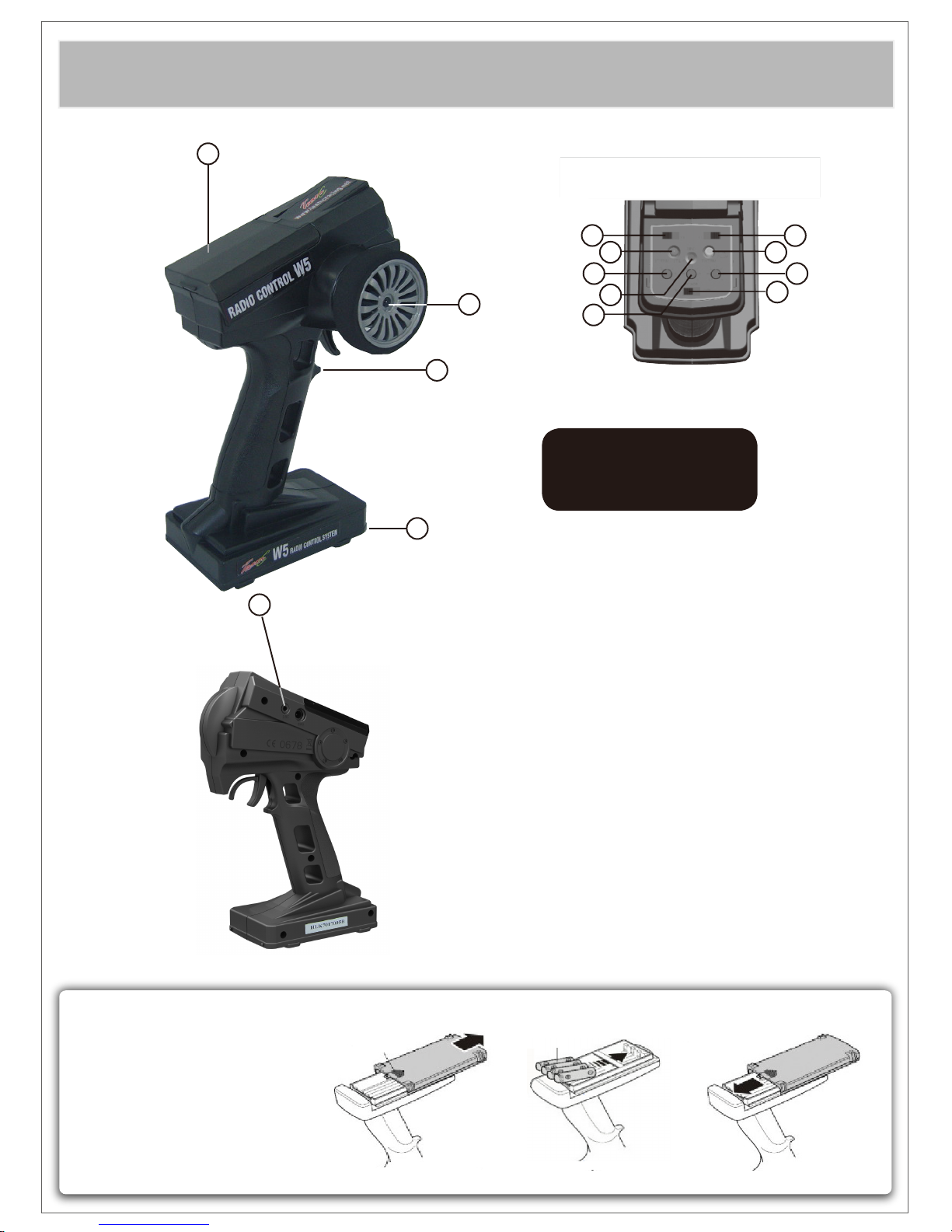

Transmitter Preparation

Alkaling Batteries

Open battery cover at the bottom of transmitter.

Install batteries. Follow the direction of batteries

designated in the inside of battery box.

Transmitter Battery Installation

Battery Cover

1 Control Panel

Steering Wheel

Throttle Trigger

Battery Compartment

Charging Jack

Sterring Servo Reverse

Power LED

Steering Trim

9 Bind Button

Throttle Servo Reverse

Battery Voltage

Steering Dual Rate

Power Switch

Throttle Trim

GLG20

2.4GHz

控制面板

轉向輪

油門板扣

電池盒

充電接口

轉向正逆轉開關

電源指示燈

轉向调節

設定按扭

油門正逆轉開關

電池電壓

轉向大小微調

電源開關

油門微調

調整遙控器

Transmitter Preparation

組裝需要的工具

Tools required

Needie Nose Pllers Awl Grease

潤滑油

Screw Cement

螺絲膠水

瞬間膠水

Instant Glue

Hex Wrench

六角扳手

Differential Grease

差速油

Molybdenum Grease(Black)

鉬油(黑)

錐

尖嘴鉗

Hex Wrench

十字套筒

Body Reamer

車殼絞刀

No need to pre-drill precise holes

(1mm to 15mm)can be drilled

可以對預鑽的孔準確地鑽1mm-15mm

Wire Cutters

鋼絲鉗

Sharp Hobby knife

美工刀

ROUND CUTTER

剪刀

For trimming bodies!

用于修剪車殼！

H154

H162

H096

Battery Charger

(Not Included)

Battery

Servo

Motor

Electronic Speed

Controller / Switch

Receiver

Note: When done driving Turn Off the

ESC and THEN Transmitter

Install Transmitter Batteries1.

Connect Battery to ESC2.

Switch on Transmitter First3.

Switch on ESC Second4.

安裝發射電池

連接電池到電調

首先接通發射機

其次接通電調

其次再關掉發射機

電池馬達

伺服

接收機

電子變速器

2Diff

1Motor Mount/Side Panel

马达座/侧板

差速器

Bag-B

M3x8螺丝

M3x8 Screw

FS308

齿轮-16T

Gear-16T

TS4039

齿轮-16T

Gear-16T

TS4039

齿轮-40T

Gear-40T

T04041

3.0 E扣

3.0 E-ing

TS4040

3.0 E扣

3.0 E-ing

TS4040

主底盘

Main Chassis

T04100

侧板-左

Side Panel-Left

T04137

侧板-右

Side Panel-Right

T04137

马达座

Motor Mount

T04103

中央补强条

Central Reinforcing Bar

T04149

马达座-F

Motor Mount-F

T04104

..............18

M3x8螺丝

FS308 M3x8 Screw

.....................................4

..............................4

...................4

..........................6

10x15x4轴承

B101504 10x15x4 Ball Bearing

4.8x1.6 O环

T04040 4.8x1.6 O-Ring

10x12x0.2垫片

T04041 10x12x0.2 Washer

..........................4

5.1x13x0.2垫片

T04039 5.1x13x0.2 Washer

3.0 E扣

TS4040 3.0 E-ing

5.1x13x0.2垫片

5.1x13x0.2 Washer

TS4039

10x12x0.2垫片

10x12x0.2 Washer

T04041

10x12x0.2垫片

10x12x0.2 Washer

T04041

5.1x13x0.2垫片

5.1x13x0.2 Washer

TS4039

4.8x1.6 O环

4.8x1.6 O-ring

T04040

4.8x1.6 O环

4.8x1.6 O-ring

T04040

差速壳

Diff Housing

T04040

差速垫片

Diff Pads

T04040

10x15x4轴承

10x15x4 Ball Bearing

B101504

10x15x4轴承

10x15x4 Ball Bearing

B101504

差速接杯

Diff Connecting Cup

TS4040

差速接杯

Diff Connecting Cup

TS4040

4Front Gear-box

3Diff

差速器

前齿轮箱

Bag-B

......................8

M3x8螺丝

M3x8 Screw

FS308

M3x12螺丝

M3x12 Screw

曲面

Surface

FS312

齿轮-16T

Gear-16T

T04041

5x8x0.2垫片

5x8x0.2 Washer

W5802

5x10x4轴承

5x10x4 Ball Bearing

B051004

前齿轮箱-上盖

Front Gear-box-Cover

T04138

前齿轮箱-底座

Front Gear-box-Lower

T04138

M3x10螺丝

M3x10 Screw

BS310

M2.5x6螺丝

M2.5x6 Screw

T04040

差速轴

Diff Shaft

TS4039

齿轮-10T

Gear-10T

TS4039

摆臂固定座-FR

Arm Mount-FR

T04128

85中CVD

85mm Center CVD

T04116

.........................1

M3x8螺丝

FS308 M3x8 Screw

.....................2

M3x12螺丝

FS312 M3x12 Screw

.....................2

M3x10螺丝

BS310 M3x10 Screw

5x8x0.2垫片

W5802 5x8x0.2 Washer

..................................2

5x10x4轴承

B051004 5x10x4 Ball Bearing

........…………..2

Oil

5000#用於前差速器，2000#

用於後差速器。

高抓地力：

前面建議使用7000#差速油，

後面建議使用3000#差速油；

低抓地力：

前面建議使用3000#差速油，

後面建議使用1000#差速油。

5000# for Front diff，

2000# for Rear diff．

High grip:

Suggest using 7000#

differential oil for front,

Suggest using 3000#

differential oil for rear;

Low grip:

Suggest using 3000#

differential oil for front,

Suggest using 1000#

differential oil for rear.

.....................4

差速轴

TS4039 Diff Shaft

M2.5x6螺丝

T04040 M2.5x6 Screw

Front Gear-box

前齿轮箱

Bag-A

Rear Gear-box

后齿轮箱

M3x8螺丝

M3x8 Screw

FS308

M3x12螺丝

M3x12 Screw

FS312

齿轮-16T

Gear-16T

T04041

5x8x0.2垫片

5x8x0.2 Washer

W5802

5x10x4轴承

5x10x4 Ball Bearing

B051004

后齿轮箱-上盖

Rear Gear-box-Cover

T04140

后齿轮箱-底座

Rear Gear-box-Lower

T04140

M3x10螺丝

M3x10 Screw

BS310

摆臂固定座-RF

Arm Mount-RF

T04129

95中CVD

95mm Center CVD

T04117

M3x8螺丝

M3x8 Screw

FS308

M3x15螺丝

M3x15 Screw

FS315

................4

M3x8螺丝

FS308 M3x8 Screw

......2

M3x15螺丝

FS315 M3x15 Screw

直面

Face to face with

.........................1

M3x8螺丝

FS308 M3x8 Screw

.....................2

M3x12螺丝

FS312 M3x12 Screw

.....................2

M3x10螺丝

BS310 M3x10 Screw

5x8x0.2垫片

W5802 5x8x0.2 Washer

..................................2

5x10x4轴承

B051004 5x10x4 Ball Bearing

........…………..2

Bag-A

Rear Gear-box

后齿轮箱

Slipper Set

扭限组

Aften first run, re-adjust to around 3.5mm

运行后再调整到3.5mm Tighten for less slippage when traction grip

当容易抓地的時候，请按此方向调整螺母。

Loosen for more slippage

当不易抓地的時候，请按此方向调整螺母。

3.5mm

10x15x4轴承

B101504 10x15x4 Ball Bearing

........….......2

........…..............1

........….............2

M3x5螺丝

BS305 M3x5 Screw

2x9.8钢针

P210 2x9.8 Pin

........….............1

2x7.8钢针

P208 2x7.8 Pin

....................................1

M3x3螺丝

T04125 M3x3 Screw

M3x5螺丝

M3x3 Screw

BS305

M3x8螺丝

M3x8 Screw

FS308

M3x15螺丝

M3x15 Screw

FS315

M3x3螺丝

M3x3 Screw

T04125

扭限调整环

Twist The Limit Of Adjusting Ring

T04125

扭限弹簧

Torsion Spring Limited

T04121

八角扭限摩擦片

Anise Torsion Limit Friction Plate

T04131

扭限盤-B

Torque Limit Set-B

T04132

齿轮-80T

Spur Gear-80T

T04126

扭限盤-A

Torque Limit Set-A

T04132

扭限轴

Torque Limit Shaft

T04120

中差接杯

Center Diff Cinenecting Cup

T04123

2x7.8钢针

2x7.8 Pin

P208

2x9.8钢针

2x9.8 Pin

P210

10x15x4轴承

10x15x4 Ball Bearing

B101504

................4

M3x8螺丝

FS308 M3x8 Screw

......2

M3x15螺丝

FS315 M3x15 Screw

10 Steering Servo

9Center Gear

中齿轮

转向伺服系统

Bag-B

M3x8螺丝

M3x8 Screw

BS308

......................5

M3x8螺丝

BS308 M3x8 Screw

伺服机

Servo

3x7x0.8垫片

3x7x0.8 Washer

T02081

伺服机座

Servo Mount

T04005

...............................4

3x7x0.8垫片

W3708 3x7x0.8 Washer

Futaba - 25t Hitec - 24t Sanwa / JR / KO - 23t

Select the servo horn matching the servo being used.

根据舵机选择伺服臂。

12 Buffer

11 Steering Servo

转向伺服系统

缓冲

Bag-B

M3螺丝

M3 Screw

T04038

缓冲筒身

Servo Saver Body

T04124

缓冲座上

Servo Saver Top

T04148

缓冲座下

Servo Saver Bottom

T04148

缓冲座左

Servo Saver Left

T04148

转向缓冲弹簧

Steering Buffer Spring

T04124

缓冲连接板

Buffer Connection Plate

T04147

缓冲支柱调整螺帽

Buffer Prop Adjusting Nut

T04124

M3x8螺丝

M3x8 Screw

FS308

3x5.5x1垫片

3x5.5x1 Washer

W3551

...........…..2

...........…....................2

M3螺丝

T04038 M3 Screw

3x5.5x1垫片

W3551 3x5.5x1 Washer

......................2

M3x8螺丝

FS308 M3x8 Screw

Screw

Cement

Apply threadlocker(screw cement)

打螺絲膠水

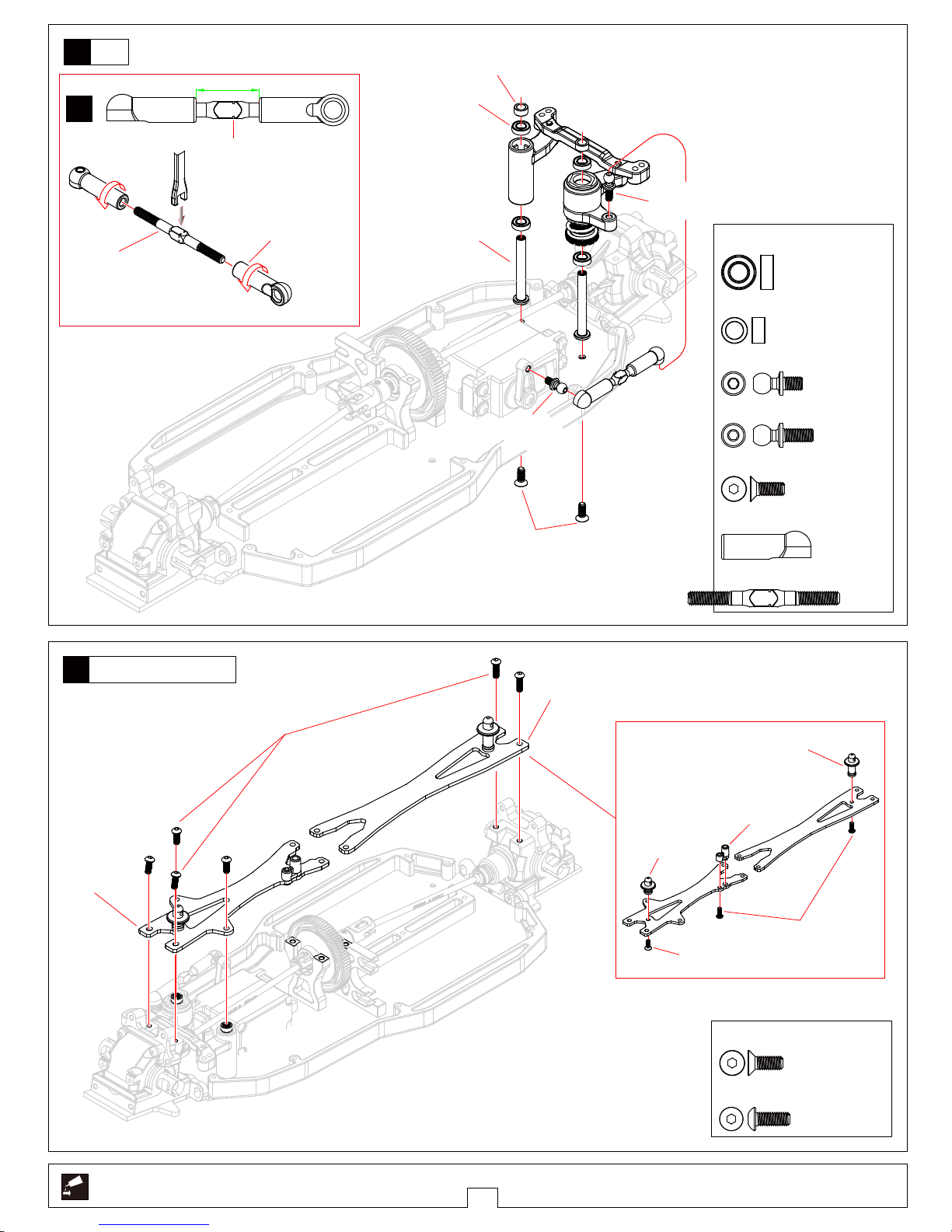

Buffer

缓冲

Top Deck/Car Shell Column

二楼板/车壳柱

Bag-B

M3x8螺丝

M3x8 Screw

BS308

M3x8螺丝

M3x8 Screw

BS308

前车壳柱

Front Car Shell Column

T04146

后车壳柱

Rear Car Shell Column

T04146

前二楼板

Front Top Deck

T04101

M3x8螺丝

M3x8 Screw

FS308

后二楼板

Rear Top Deck

T04102

天线管座

Antenna Pipe Mount

T04055

M3x8螺丝

M3x8 Screw

FS308

......................8

M3x8螺丝

BS308 M3x8 Screw

......................1

M3x8螺丝

FS308 M3x8 Screw

......................2

.............................2

............................4

................2

.........1

M3x8螺丝

FS308 M3x8 Screw

4x6x3垫片

4x6x3 Washer

W463

4x8x3轴承

4x8x3 Ball Bearing

B040803

缓冲柱

Servo Saver Post

T04157 球头-长

Ball Stud-Long

T02092

球头-短

Ball Stud-Short

T02093

1:1

▲Projection.Note direction

注意方向

3x35拉杆

3x35 Turnbuckle

T04108

4.8mm球头座

4.8mm Ball End

T02029

4mm

14.6mm

3x35拉杆

T04108 3x35 Turnbuckle

4.8mm球头座

T02029 4.8mm Ball End

球头-长

T02092 Ball Stud-Long

………….1

球头-短

T02093 Ball Stud-Short

………….1

4x6x3垫片

W463 4x6x3 Washer

4x8x3轴承

B040803 4x8x3 Ball Bearing

Otros manuales para TM4

Tabla de contenidos

Otros manuales de Coche de juguete motorizado de Team C

Team C

Team C TRO4 Pro Manual de usuario

Team C

Team C T8 V3 Manual de usuario

Team C

Team C t4 u2 Manual de usuario

Team C

Team C Stroke E Offroad Buggy Manual de usuario

Team C

Team C TC10 Manual de usuario

Team C

Team C GT8LE Manual de usuario

Team C

Team C TS2 Manual de usuario

Team C

Team C Jekyll TR02EVO Manual de usuario

Team C

Team C T2 EVO Manual de usuario

Team C

Team C MINION Manual de usuario

Team C

Team C TC02C Manual de usuario

Team C

Team C Jekyll TR02EVO Manual de usuario

Team C

Team C Stoke E Offroad Buggy Manual de usuario

Team C

Team C T8E Manual de usuario

Team C

Team C T8E Manual de usuario

Team C

Team C T8 Manual de usuario

Team C

Team C TC02C Manual de usuario

Team C

Team C TC02 EVO Competition Buggy Manual de usuario

Team C

Team C T8 Manual de usuario

Team C

Team C GT8L Manual de usuario

Team C

Team C T8TE V2 Manual de usuario

Team C

Team C TC10 Manual de usuario

Team C

Team C Metron Offroad Truckby Manual de usuario

Team C

Team C TS2 Manual de usuario

Manuales populares de Coche de juguete motorizado de otras marcas

Eduard

Eduard Humber Scout Car Mk.I exterior Manual de usuario

Traxxas

Traxxas 4995X Manual de usuario

Jamara

Jamara VW T1 Bus Manual de usuario

REVELL

REVELL 68 CHEVY CHEVELLE SS 396 Manual de usuario

Schumacher

Schumacher Pro Cat Manual de usuario

Tamiya

Tamiya TT-01 TYPE E Manual de usuario

Eduard

Eduard Krupp Protze 6x4 1/48 Manual de usuario

New Bright

New Bright 61072UEP Manual de usuario

Team Durango

Team Durango DEX410v5 Manual de usuario

Jamara

Jamara Mercedes Actros Muldenkipper 2,4 GHz Manual de usuario

PLAYMOBIL

PLAYMOBIL 9536 Manual de usuario

Atomic

Atomic BZ3 Manual de usuario

Aiyaplay

Aiyaplay 370-290V00 Manual de usuario

Power Wheels

Power Wheels GRJ53 Manual de usuario

ZEROTRIBE

ZEROTRIBE Zetricks ZT1144 Manual de usuario

INJUSA

INJUSA 412 Manual de usuario

Maverick

Maverick MSC-30BR-WP Manual de usuario

Land of B.

Land of B. Rollin' Riders Manual de usuario
