Quick Start Guide
ODU12DE
CJB1VW0LCAAA
1 2 3 4 5 6 7
1. SIM card slot Insert a nano SIM card in the slot.
2. Reset button Press for 3 seconds to reset the device.
3. Signal indicator
Solid blue: excellent signal strength.
Solid green: good signal strength.
Solid red: weak signal strength.
Blinking blue: scanning.
Blinking green: registering.
Off: no signal.
4. Network indicator On: connected to the network and obtained WAN IP address.
Off: no WAN IP address.
5. SIM card indicator
Solid blue: SIM card is inserted.
Blinking blue: PUK or PIN code is required.
Off: no SIM card or SIM card error.
6. Power indicator On: the device is on.
Off: the device is off.
7. PoE port Connect to the PoE power adapter using an Ethernet cable.
Nano SIM
123
1
2
3
4
1
2
3
44
5
6
1
2
3
4
5
6
7
8
To configure your ODU, follow these steps:
1. Open a web browser on the device connected to the router wiredly or
wirelessly.
2. Enter 192.168.10.1 in the address bar, then press Enter.
3. Enter the username and password. You can find the default login information
on the back label of the ODU.
4. Log in to the web user interface (UI) of the ODU and configure the settings as
desired.
Note: To check the signal strength (RSRP) in the web UI, go to Status > Modem
Status. (Excellent signal strength: RSRP ≥ -85 dBm; good signal strength: -105
dBm ≤ RSRP < -85 dBm; weak signal strength: RSRP < -105 dBm.)
Tip: You can also connect your device to the ODU network via the LAN port on
the PoE power adapter.
Pole-mounted
2
4—10 cm
1
Installation position

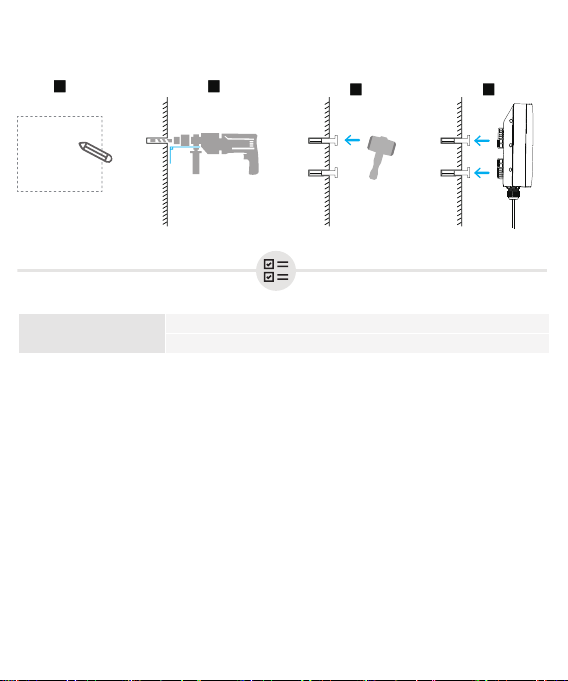

Wall-mounted
X
X
X
X
90°
1 2
34
PoE power adapter Input: 100—240 V~50/60 Hz, 0.7 A
Output: 56 V, 0.27 A
© 2021 TCL Communicaon Ltd. All rights reserved.
