TC Electronic D-TWO Manual de usuario

DTWO

MULTITAP RHYTHM DELAY

USERS MANUAL

TABLE OF CONTENTS

INTRODUCTION

Table of Contents . . . . . . . . . . . . . . . . .3

Introduction . . . . . . . . . . . . . . . . . . . . . .5

Front Panel . . . . . . . . . . . . . . . . . . . . . .6

Rear Panel . . . . . . . . . . . . . . . . . . . . . .8

Signal Flow Diagram . . . . . . . . . . . . . . .

DTWO Setup . . . . . . . . . . . . . . . . . . .10

BASIC OPERATION

The DTWO Display . . . . . . . . . . . . . . .11

Setup . . . . . . . . . . . . . . . . . . . . . . . . . .13

Recall . . . . . . . . . . . . . . . . . . . . . . . . .15

Edit . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Store . . . . . . . . . . . . . . . . . . . . . . . . . .15

ALGORITHMS

Delay Modes

Traditional Delay Mode . . . . . . . . . . . .16

Straight Delay Mode . . . . . . . . . . . . . .17

Rhythm Mode . . . . . . . . . . . . . . . . . . .1

Rhythm Tap Edit . . . . . . . . . . . . . . . . .20

PingPong . . . . . . . . . . . . . . . . . . . . . . .21

Dynamic . . . . . . . . . . . . . . . . . . . . . . .22

Reverse . . . . . . . . . . . . . . . . . . . . . . . .22

Shortcuts . . . . . . . . . . . . . . . . . . . . . . .23

Additional Algorithms

Spatial . . . . . . . . . . . . . . . . . . . . . . . . .24

Filter . . . . . . . . . . . . . . . . . . . . . . . . . .24

Chorus . . . . . . . . . . . . . . . . . . . . . . . .24

APPENDIX

Important Safety Instructions . . . . . . . .26

MIDI Implementation . . . . . . . . . . . . . .28

Technical Specifications . . . . . . . . . . .2

Preset List . . . . . . . . . . . . . . . . . . . . . .30

TC Electronic, Sindalsvej 34, DK-8240 Risskov - [email protected] English version Rev 5 - SW - V 1.01

Prod. No: E60500302

MULTI SPECTRAL LCD DISPL

POWER

LEVELS

INPUT

MIX

EDITED FACTORY USER MIDI IN

User Preset

MULTITAP RHYTHM DELAY

TWOD

INPUT

-dB

Rhythm

BPM

FB FB

SUBDIV DYN

FB FILTER

FILTER PING PONG

1/2 T

1/4 T

1/8 T

1/16 T

INTRODUCTION

Congratulat ons on the purchase of your new DTWO Mult -tap Rhythm Delay.

The DTWO Multi-tap Rhythm Delay is an easy to use, hi h quality di ital Delay unit.

When it comes to Delay effects we are convinced that with this unit you are well

covered. This applies for live-sound production as well as in the studio. The DTWO

covers not only all the traditional Delay functions, but also a few brand new ones.

With traditional Delay units it is enerally only possible to control Feedback and

Level on a specified fixed Delay time. With the DTWO you are now able to tap

actual rhythm patterns consistin of up to 10 taps directly into the unit. Many will

reco nize the TC 2290 studio Delay unit as the Delay unit that introduced the

Dynamic Delay function. A function that allows the Delay Output level to be actively

altered by the dynamics of the Input level. A function that can be used to leave the

source material clear and undisturbed while played and delicately accompanied by

the Delay between phrases. Yes, this feature is also available in the DTWO.

We hope you will have as much pleasure usin the DTWO as we had makin it.

FRONT PANEL

MULTI SPECTRAL LCD DISPLAY

POWER

LEVELS

INPUT

MIX

EDITED FACTORY USER MIDI IN

User Preset

MULTITAP RHYTHM DELAY

TWOD

INPUT

-dB

Rhythm

BPM

FB FB

SUBDIV DYN

FB FILTER

FILTER PING PONG

1/2 T

1/4 T

1/8 T

1/16 T

POWER button

Power on/off.

IN LEVEL knob

Adjusts the Input level.

At center position a relay will

switch the Input circuit between

consumer and pro level. This will

insure optimal Input ain ran e

and superb si nal to noise ratio

is achieved.

MIX knob

Adjusts the lobal mix between

dry and wet si nal. Fully clock-

wise position is 100% effect.

IN meters

The IN Peak meter shows the

Input level of left and ri ht

channels. The meter ran e is:

0, -3, -6 ,-12, -18, -24, -40dB.

OVERLOAD LEDS

The OVERLOAD LEDs indicate

one of two situations:

- The Input level is too hot and

therefore overloadin .

- There is an internal DSP

overflow.

The Overload LED is lit when

1 sample is @ 0dBFS.

DELAY TIME nd cator

The DELAY TIME indicator can

display Delay time in either

ms (milliseconds) or BPM

(Beats Per Minute). This is

selected in Setup. The ms or

the BPM icon next to the Delay

time will be lit accordin ly.

The tempo is also indicated via

the blinkin TEMPO /RHYTHM

indicator.

SUBDIVISION nd cator

The selected subdivision

determines the recalculation of

the tapped tempo. Example:

At 120BPM you tap 1/4 notes.

The tapped time equals 500ms.

If the Subdivision is set to 1/8,

the DTWO now recalculates

the Delay time to 250ms.

DYNAMIC meter

Indicates the ain reduction on

the Delay Output when usin

the Dynamic Delay al orithm.

EDITED con

This icon will be lit as soon as

the current recalled preset has

been modified.

FACTORY/USER con

Shows whether you are

operatin in the Factory or the

User bank.

MIDI IN con

Indicates the presence of

incomin MIDI information.

SAMPLE RATE nd cator

The SAMPLE RATE indicator

shows the clock source and the

incomin master clock.

The DI icon will be blinkin if

no clock or unacceptable clock

is found.

FEEDBACK %

The amount of level fed back to

the Delay line. Indicates the

Decay time of the Delay

repeats.

FEEDBACK #

The exact number of repeats.

FB FILTER LEDS

Indicates the Feedback Hi h

and Low Cut filter settin .

FILTER LEDS

Indicates the overall Hi h and

Low Cut filter settin .

PINGPONG LEDS

Indicates the pannin carried

out.

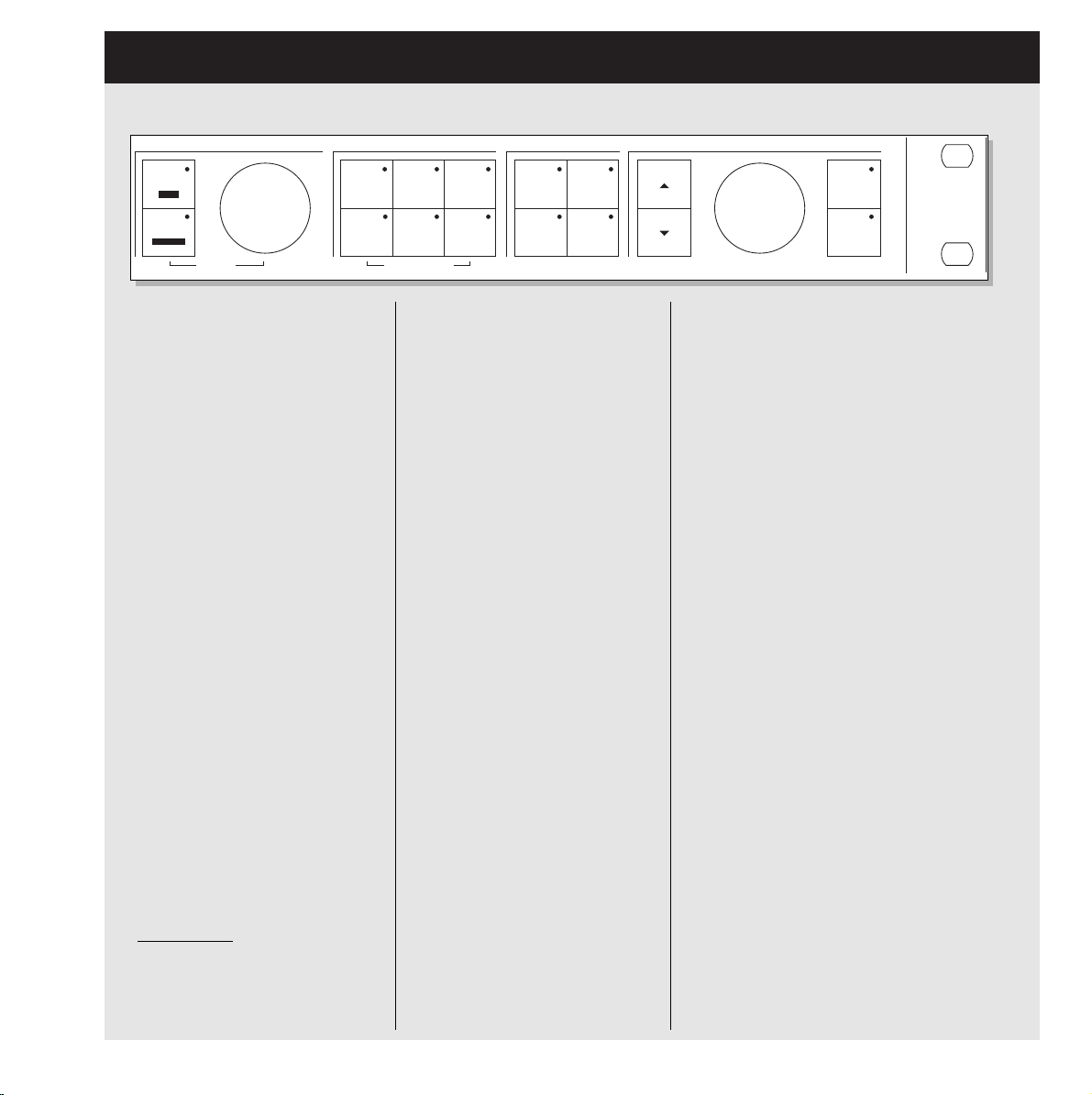

FRONT PANEL

FILTER CHORUS RECALLEDIT

FEEDBACK REVERSE DYNAMIC PINGPONG STORESETUP BYPASS

DELAY & FEEDBACK FUNCTIONSEFFECTS CONTROL

ENTER

DELAY SPATIAL

TAP

RHYTHM

DOUBLE CLICK TO EDITSET REPEATS

DELAY/TAP key

This key has two main functions:

- When the DELAY key LED is

lit, the DELAY wheel chan es

the Delay time when dialed.

- When the key is tapped the

DTWO measures the time

between the last two taps and

the Delay time is calculated

accordin to the selected

subdivision.

FEEDBACK/RHYTHM key

This key has three main functions:

- When the LED is lit the

DELAY wheel is chan in

the Feedback level or %.

- When the key is pressed and

held, the DELAY wheel chan es

the number of repeats.

- Tap a rhythm pattern of up to

10 taps.

DELAY & FEEDBACK wheel

Sets the Delay time or Feedback

dependin on what is selected.

SPATIAL key

Enables/disables the Spatial

function. Double click shortcuts to

the Spatial parameters.

Options are:

- Left channel offset +/-200ms.

- Phase reverse any channel.

RECALL key

Selects the Recall menu.

SETUP key

Enters the Setup menu.

This is where all I/O and

lobal parameters are located.

STORE key

Selects the Store menu. Presets can

be stored in the User bank only.

Location is selected usin the

CONTROL wheel. Operation is

confirmed usin ENTER.

ARROW UP/DOWN keys

Are used to move the cursor around

in the display.

CONTROL wheel

Is used to chan e values.

ENTER key

Confirms operations.

BYPASS key

Bypasses the unit. There are three

different Bypass modes.

- 0% Mix: Input si nal is passed

directly to the Output.

- FX Input: Input bypass allowin

the effects to rin out.

- FX Output: Kills the effect

but keeps the direct si nal level.

The Bypass mode is selected in

the Setup menu.

FILTER key

Enables/disables the Filter

functions. Double click shortcuts

to the Hi h and Low Cut filter

parameters.

CHORUS key

Enables/disables the Chorus.

Double click shortcuts to the

Chorus parameters.

REVERSE key

Enables/disables the Reverse

Delay. Double click shortcuts to

the Reverse Delay parameters.

DYNAMIC key

Enables/disables the Dynamic

Delay. Double click shortcuts to

the Dynamic Delay parameters.

PING PONG key

Enables/disables the Pin Pon

functions. Double click shortcuts

to the Pin Pon parameters.

EDIT key

Enters the eneral Edit list. This

is where all preset processin

parameters are located. Use the

ARROW keys to select parame-

ters.

REAR PANEL

UL6500

EN/IEC 60065

PROFESSIONAL AUDIO EQUIPMENT

THRU

INLEFT LEFTRIGHT RIGHT OUT

MIDIBALANCED INPUTS BALANCED OUTPUTS DIGITAL I/O PEDAL

S/PDIF

SERIAL NO.

TYPE: MAN001

TC ELECTRONIC

MADE IN THAILAND

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK DO NOT EXPOSE THIS EQUIPMENT TO

RAIN OR MOISTURE

AVIS :

RISQUE DE CHOC ELECTRIQUE-NE PAS

OUVRIR.

100-240VAC

50-60Hz, 15W

CAUTION

CUS

THIS CLASS B DIGITAL DEVICE MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-

CAUSING EQUIPMENT REGULATIONS AND COMPLIES WITH PART 15 OF THE FCC RULES.

OPERATION SUBJECT TO CONDITIONS STATED IN THE MANUAL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Balanced

Jack

Analog

Inputs

Balanced

Jack

Analog

Outputs

Pedal InputMIDI

In, Out , Thru

Digital

S/PDI

Input/

Output

Sleeve - Pin 1 (Ground)

Tip - Pin 2 (Hot)

Ring - Pin 3 (Cold)

Sleeve - Pin 1 (Ground)

Tip - Pin 2 (Hot)

Sleeve - Pin 3 (Cold)

Jack (unbalanced) - XLR Jack (balanced) - XLR

TIP

RING

GND

TIP

GND

MIDI Cable

DIN CONNECTOR

5POLE - MALE

45 de rees

DIN CONNECTOR

5POLE - MALE

45 de rees

max. 10m

SHIELDED CABLE (3 or 5 wires + screen)

Serial no.Power

Input

(Use Left Input

for Mono)

SIGNAL FLOW

ANALOG

INPUTS

[balanced]

ANALOG IN

LEVEL OUT LEVEL

ANALOG

OUTPUTS

[balanced]

A/D

INPUT PPM

Left Left

Left

Right

Bypass

Fx Out

S-Rate

Right Right

Input

Selector

Digital Output

[S/PDIF]

Digital Input

[S/PDIF]

44.1kHz

48kHz

D/A

Dither

Delay Chorus MIX

Bypass

Digi

DIGITAL IN

ANALOG

OUT RANGE

DTWO - SETUP

Sett ng up the DTWO

MIXER

STEREO R

RETURNSSEND

D•TWO

MULTITAPRHYTHM DELAY

TWOD

Mode select on

The DTWO has three Delay modes: Traditional, Strai ht and Rhythm.

Trad t onal mode

The standard setup used by any Delay unit, includin the traditional

feedback strate y.

Stra ght mode

The DTWO default mode, includin the ability to control the exact

number of repeats.

Rhythm mode

A unique feature allowin you to tap a specific rhythm of your choice.

The DTWO automatically enters the Rhythm mode when FEED-

BACK/RHYTHM is tapped.

Please note that the Mono/Stereo mode is selected in

the Setup menu.

Connect the DTWO as illustrated usin balanced 1/4 jack cables.

MIXER

RETURNSSEND

D•TWO

MULTITAPRHYTHM DELAY

TWOD

Stereo Mode Mono Mode

- use Left Input

THE DTWO DISPLAY

Delay T me

The DELAY TIME indicator displays the main Delay time in

either ms or BPM (beats per Minute= 60/ms*1000). When

in Rhythm mode, the DELAY TIME indicator, displays the

total time of the full pattern, or the total number of subdivi-

sions in the current Rhythm pattern.

Tempo Ind cator

The Tempo indicator is blinkin at the current tempo

(BPM/ms).

Rhythm Icon

The Rhythm icon is lit when the DTWO is in Rhythm mode.

Subd v

Shows the current Subdivision bein used.

Tap the beat in 1/4 notes and the DTWO will recalculate

the Delay time in accordance to the Subdivision. In Rhythm

mode the Subdivision sets the Quantization rid.

Example

Tap 500ms (120 BPM measured in 1/4notes) with the

Subdivision set to 1/8. The DTWO recalculates the Delay

time to 250ms. To set the recalculated Delay time press

EDIT and use the CURSOR keys to select the Delay time

parameter.

Dyn

The Dynamics meter indicates the amount of ain

reduction on the Output of the DTWO, when the Dynamic

Delay time is active.

Preset Number

These three seven se ments will display the current

preset. The icons below will indicate whether it is Factory

or User presets.

Ed ted

This icon will be lit as soon as the current preset has been

modified but not yet stored.

Factory/User

Shows whether you are operatin in the Factory or User

bank.

MIDI In

Shows incomin MIDI information.

Text L ne

This 20 character text line is used to display preset names,

parameter names etc.

MIDI Act v ty

LED

P ngPong

Ind cat on

Feedback F lter F lter Ed ted

LED

Delay T me BPM

or ms.

Subd v s onTempo

Ind cat on

Dynam c Meter

Text L ne

Input

Meters

Preset Number

Preset Bank Ind cator

Overload LEDs

THE DTWO DISPLAY

DI 44.1/48 Icon

Indicates whether the DTWO is locked to an external clock

or not. When locked to an external clock the incomin

Sample Rate is displayed by either the 44.1 or 48 icon.

If the clock is unacceptable or no clock is available, the

"DI" indicator will be blinkin .

ms Icon

The ms icon is lit when the 4 di its show the Delay time

in milliseconds.

BPM Icon

The BPM icon is lit when the 4 di its show the Delay time

in Beats per Minute.

Feedback %

Indicates the amount of level fed back to the Delay line,

thus controllin the Decay of the Delay repeats.

Feedback #

Indicates the number of repeats allowed. Unlike the

Feedback parameter in most other Delay units this para-

meter lets you decide exactly how many repeats you want.

The maximum number of controlled taps is 10.

FB F lter

Indicates the Feedback Hi h Cut and Low Cut filter settin .

At times a too precise/clear Delay can disturb the music

instead of complementin it. Try reducin the hi hs of the

Delay by addin a Hi h Cut filter. This will simulate a more

analo /softer feelin .

F lter

Indicates the overall Hi h Cut and Low Cut filter settin .

P ngPong

Indicates the currently selected type of pannin . The Pin

Pon effect occurs when the Pannin Speed is synced to

the Delay time.

MIDI Act v ty

LED

P ngPong

Ind cat on

Feedback F lter F lter Ed ted

LED

Delay T me BPM

or ms.

Tempo

Ind cator

Subd v s on Dynam c Meter

Text L ne

Input

Meters

Preset Number

Preset Bank Ind cator

Overload LEDs

Otros manuales para D-TWO

Tabla de contenidos

Otros manuales de Equipo de grabación de TC Electronic

TC Electronic

TC Electronic Desktop Konnekt 6 Manual de usuario

TC Electronic

TC Electronic M3000 Manual de usuario

TC Electronic

TC Electronic FirewarX Manual de usuario

TC Electronic

TC Electronic SYSTEM 6000 MKII Manual de usuario

TC Electronic

TC Electronic DRIP SPRING REVERB Manual de usuario

TC Electronic

TC Electronic Rusty Fuzz Manual de usuario

TC Electronic

TC Electronic VIBRACLONE ROTARY Manual de usuario

TC Electronic

TC Electronic Konnekt 24D Manual de usuario

TC Electronic

TC Electronic D22 Instrucciones de instalación y funcionamiento

TC Electronic

TC Electronic D22 Manual de usuario

TC Electronic

TC Electronic Nova Dynamics NDY-1 Manual de usuario

TC Electronic

TC Electronic NOVA System Manual de usuario

TC Electronic

TC Electronic FireworX Manual de usuario

TC Electronic

TC Electronic FireworX Manual de usuario

TC Electronic

TC Electronic P2 Level Pilot Manual de uso y cuidado

TC Electronic

TC Electronic TC2290 Manual de usuario

TC Electronic

TC Electronic TC 1280 Manual de usuario

TC Electronic

TC Electronic G-Major Manual de usuario

TC Electronic

TC Electronic D-TWO Manual de usuario

TC Electronic

TC Electronic G-MAJOR 2 Manual de usuario

TC Electronic

TC Electronic 2290 P DYNAMIC DIGITAL DELAY Manual de usuario

TC Electronic

TC Electronic Multi-effects Processor G-Natural Manual de usuario

TC Electronic

TC Electronic Konnekt 24D Manual de usuario

TC Electronic

TC Electronic Impact Twin Manual de usuario

Manuales populares de Equipo de grabación de otras marcas

KV2 Audio

KV2 Audio 500 Series Manual de usuario

Robotics Technologies

Robotics Technologies microBus-Cam II Manual de usuario

Seca

Seca 460 Manual de usuario

Cognex

Cognex MVS-8000 Series Manual de usuario

Mect

Mect MPNC006 Series Manual de usuario

Bad Caf

Bad Caf THE LEASH Manual de usuario

Strymon

Strymon NIGHTSKY Manual de usuario

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manual de usuario

Tews Technologies

Tews Technologies TPMC465 Manual de usuario

Honeywell

Honeywell Excel 50 Manual de usuario

SeaLevel

SeaLevel COMM+8.LPCI Manual de usuario

Arturia

Arturia AUDIOFUSE STUDIO Manual de usuario

Rukra

Rukra RK-1240 Manual de usuario

Samson

Samson SCOM Manual de usuario

Dynacord

Dynacord DPS260 Manual de usuario

Nice

Nice Core Manual de usuario

Pyle Pro

Pyle Pro PSS8 Manual de usuario

RF-System

RF-System TinyGate Manual de uso y cuidado
