Taurus Cable pull WS7 Manual de usuario

Cable pull WS7

TF-WS7-PULL

TFWS7PULL03.01

Assembly and operating instructions

CablepullWS7

Dear Customer,

Thank you for deciding for a high-quality training equipment of the brand Taurus,

the brand that makes athlete‘s hearts beat faster. Taurus oers a wide range of home

tness equipment like elliptical cross trainers, ergometers, treadmills and rowing

machines. Taurus equipment is the optimal equipment for all those who want to train

at home independent of goals and tness level. For further information please visit

www.sport-tiedje.com or www.taurus-tness.de.

SAFETY NOTICE

Please read all of the instructions carefully before assembly and rst

use. These instructions are intended to ensure speedy assembly and

explain safe usage. Make sure that all people exercising with the

equipment (in particular children and persons with limited physical, sensory, mental or

motor capabilities) are informed about these instructions and its content in advance.

In case of doubt, a responsible person must supervise the use of the equipment.

This equipment has been manufactured according to the latest safety knowledge. As

far as possible, potential safety hazards which could cause injury have been eliminated.

Make sure to follow the instructions carefully and that all parts are securely in place. If

required, read through the instructions again to correct any mistakes.

Please pay close attention to the safety and maintenance instructions given here. The

contract partner cannot be held liable for damage to health, accidents or damage to

the equipment when it is not used in accordance with these instructions.

The equipment is only suitable for use at home. The equipment is not suitable for

semi-professional (e. g., hospitals, clubs, hotels, schools, etc.) and commercial or

professional use (e. g., health clubs).

Retain these instructions in a safe place for future reference, maintenance or when

ordering replacement parts.

CablepullWS7

CONTENTS

1 GENERAL INFORMATION 6

1.1 Technical data 6

2 ASSEMBLY 7

3 ORDERING SPARE PARTS 23

3.1 Service hotline 23

3.2 Serial number and model name 23

3.3 Parts list 24

3.4 Exploded drawing 26

CablepullWS7

1 GENERAL INFORMATION

1.1 Technical data

Weight and dimensions:

Item weight (gross, incl. packaging): 40 kg

Item weight (net, without packaging): 35 kg

Packed dimensions (length x width x height):

approx. 1935 mm x 420 mm x 215 mm

Set-up dimensions with Multi-gym WS7 (length x width x height):

approx. 225 cm x 172 cm x 213 cm

Maximum user weight: 150 kg/330 lbs

CablepullWS7

 





  

  

       FP









2 ASSEMBLY

We recommend that you do not completely tighten the screws and bolts at rst

in order to make the assembly of the training machine easier. However, please

make sure that all screws and bolts are tightened once the assembly is done.

Screws and cables overview

CablepullWS7

 

 

   





 

 











CablepullWS7







 





















 

Step 1: Exploded drawing

No. Description Note Qty.

20 washer Φ12 14

21 lock nut M12 6

128 connection plate 3

130 spring washer Φ12 2

131 hexagon bolt M12*30 2

132 hexagon bolt M12*80 6

164 connection tube 1

165 pull cable tower back connection tube 1

166 side ground frame 1

CablepullWS7

Step 1: Assembly

1.Mount the front connecting tube (164) with two screws M12*30 (131), M12 spring

washers (130), and M12 washers (20) on the main frame.

2. Mount the rear connecting tube (164) with two screws M12*80 (132), M12 washers

(20), M12 lock nuts (21), and the connecting plate (128) on the main frame.

3. Mount the lateral main frame (166) with four screws M12*80 (132), M12 washers

(20), M12 lock nuts (21), and connecting plates (128) on the front and rear connecting

tube.

Tabla de contenidos

Otros manuales de Equipo de fitness de Taurus

Taurus

Taurus B450 Manual de usuario

Taurus

Taurus LAT PULLDOWN IT95 Manual de usuario

Taurus

Taurus Elite TF-PTT0205 Manual de usuario

Taurus

Taurus LEG EXTENSION IT95 Manual de usuario

Taurus

Taurus Vibration Plate VT9 Pro Manual de usuario

Taurus

Taurus VT3 Manual de usuario

Taurus

Taurus TB-1100 Manual de usuario

Taurus

Taurus Abs Trainer Exercise Wheel Manual de usuario

Taurus

Taurus TF-PS-90 Manual de usuario

Taurus

Taurus B990 Manual de usuario

Taurus

Taurus TF-6006 Manual de usuario

Taurus

Taurus TF-PTT0251 Manual de usuario

Taurus

Taurus Dual Pro SESS7138 Manual de usuario

Taurus

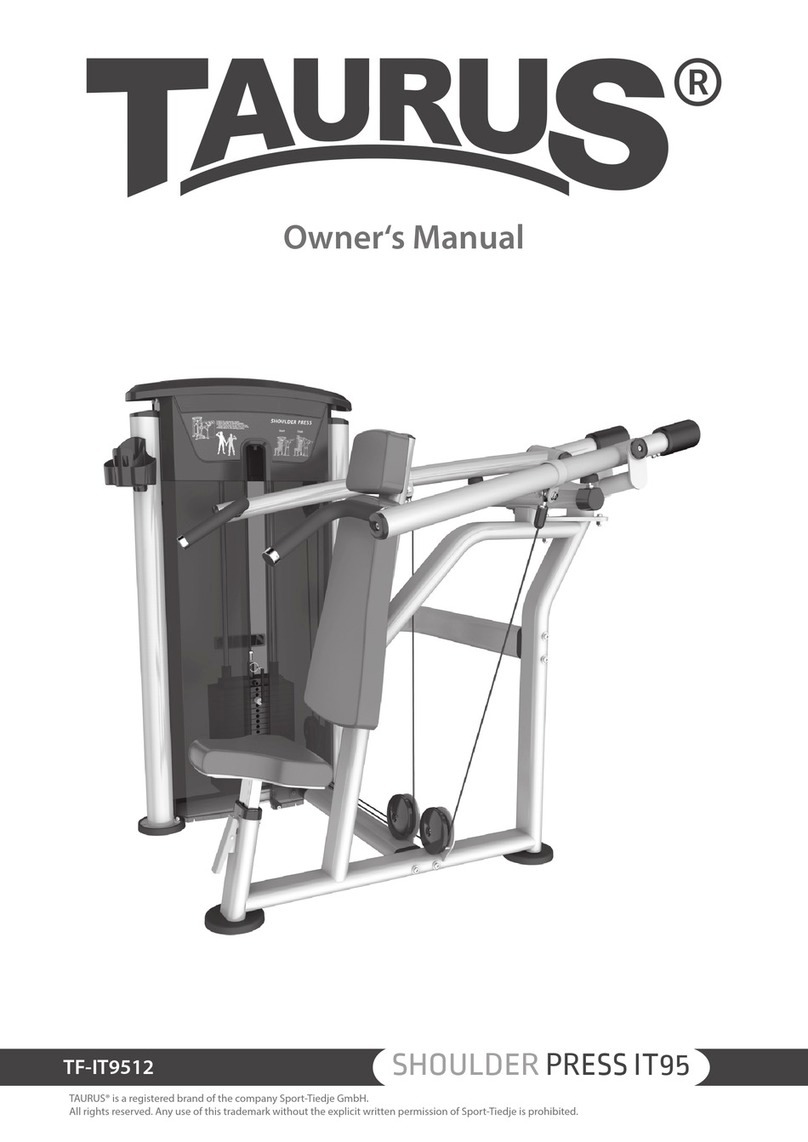

Taurus SHOULDER PRESS IT95 Manual de usuario
