Target Hamilton Manual de usuario

hamilton

desk

assembly instructions

style # DSHAMDSKBK (ebony)

dpci # 249-14-1416

tcin # 17315137

style # HTDESKXXWH (white)

dpci # 249-14-0251

tcin # 13906360

style # HTDESKXXBR (sienna)

dpci # 249-14-0187

tcin # 13821566

Congratulations on your latest Target purchase.

Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you.

All you need to do is follow our simple instructions and you’ll be on your way to transforming your

room in no time. Good luck—though we’re condent you won’t need it.

before you begin

1. Check for damaged or missing parts. Call 1-855-MYTGTHOME (855-698-4846) to order missing supplies.

2. Use the carton as a working surface to prevent product damage during assembly.

3. Read through and review assembly steps.

4. Gather all tools prior to assembly.

tools needed

table of contents

introduction 2

hardware 4

parts list 5

how to use the cam lock system 6

assembly 7-16

QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.

hardware

(H1) x 30

wooden dowel

(H2) x 22

cam bolt

(H3) x 22

cam

(H4) x 8

at head screw

(H5) x 2

knob bolt

(H6) x 2

knob

(H7) x 2

small cam

(H8) x 2

small cam bolt

(H9) x 1

mini screwdriver

(H10) x 2

pan head screw

(H11) x 1

19mm pan head screw

(H12) x 1

wall strap

(H13) x 1

wall anchor

(H14) x 1

38mm wall screw

(H15) x 2

5/8” washer

exploded diagram

ITEM DESCRIPTION QUANTITY

A top panel 1

B left side frame 1

C right side frame 1

D left drawer side support 1

E right drawer side support 1

F front left panel 1

G front right panel 1

H back panel 1

I lower back rail 1

J drawer back 1

K left drawer side 1

L right drawer side 1

M drawer bottom 1

N drawer support 1

O drawer face 1

how to use the cam lock system

Screw cam bolt into panel

Align cam bolt(s) with cam(s)

and insert all the way into

cross-bored hole(s)

Push cam into panel - arrow feature

on cam top points to panel edge

Rotate cam(s) clockwise 180° to

lock panels together

Panels should be tight against each

other and connection should be rigid

1. 2. 3.

4. 5.

step 1: attach front panels and drawer side supports to back panel

(H1) x 8

wooden dowel

(H2) x 4

cam bolt

(H3) x 4

cam

(H9) x 1

mini screwdriver

1.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out.

1.2. Screw-In cam bolts must be screwed down ush.

1.3. Refer to page 6 for instructions on how to use the cam lock system.

1.4. Do not over tighten bolts.

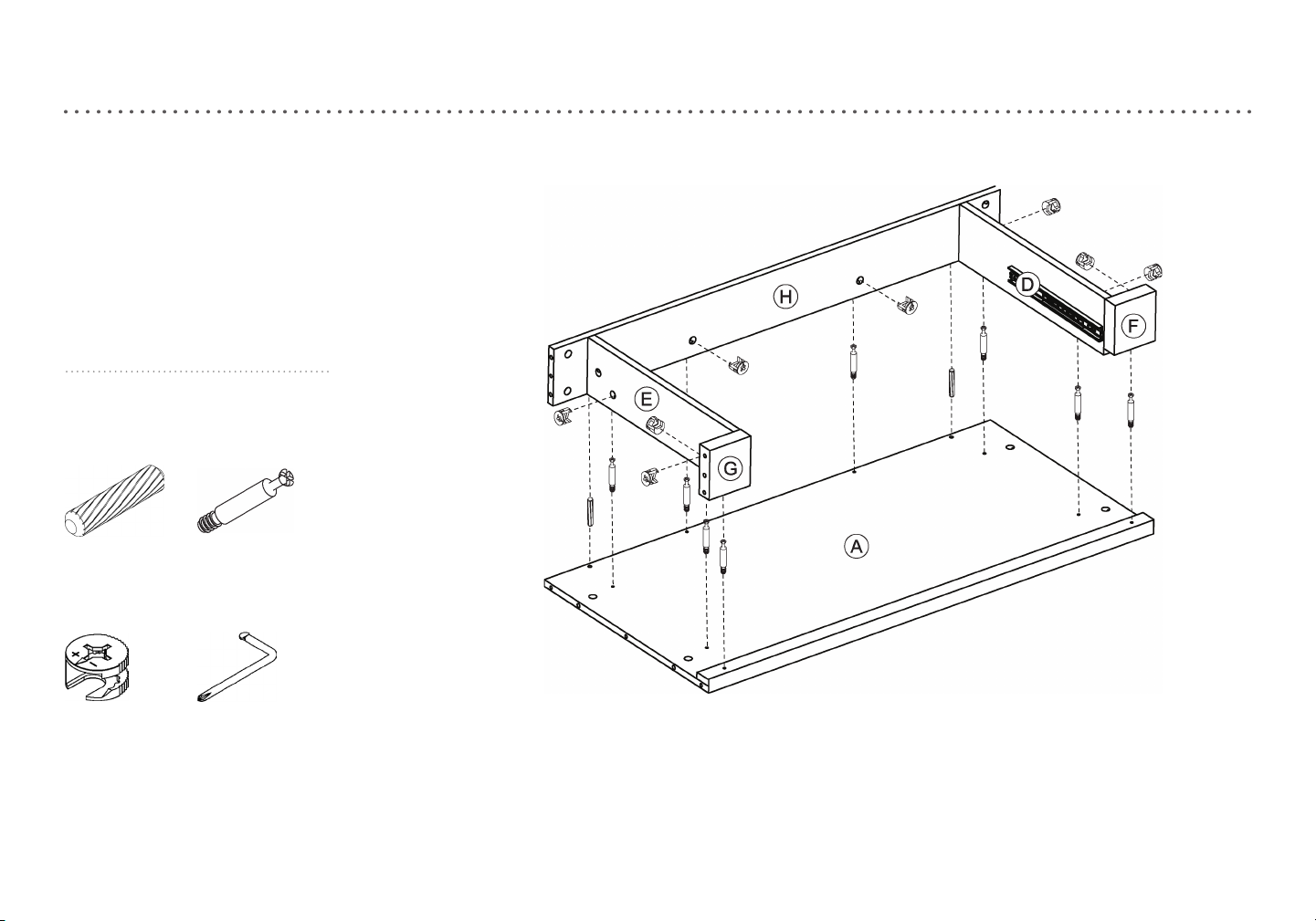

step 2: attach top panel

(H1) x 2

wooden dowel

(H2) x 8

cam bolt

(H3) x 8

cam

(H9) x 1

mini screwdriver

2.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out.

2.2. Screw-In cam bolts must be screwed down ush.

2.3. Refer to page 6 for instructions on how to use the cam lock system.

2.4. Do not over tighten bolts.

step 3: attach left side frame and lower back rail

(H1) x 8

wooden dowel

(H2) x 5

cam bolt

(H3) x 5

cam

(H9) x 1

mini screwdriver

3.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out.

3.2. Screw-In cam bolts must be screwed down ush.

3.3. Refer to page 6 for instructions on how to use the cam lock system.

3.4. Do not over tighten bolts.

step 4: attach right side frame

(H1) x 8

wooden dowel

(H2) x 5

cam bolt

(H3) x 5

cam

(H9) x 1

mini screwdriver

(H10) x 2

pan head screw

4.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out.

4.2. Screw-In cam bolts must be screwed down ush.

4.3. Refer to page 6 for instructions on how to use the cam lock system.

4.4. Do not over tighten bolts.

4.5. Do not over tighten screws.
