M500FP Firephone Control Module

INSTALLATION AND MAINTENANCE INSTRUCTIONS

Before Installing

This information is included as a quick reference installation

guide. If the modules will be installed in an existing operational

system, inform the operator and local authority that the system

will be temporarily out of service. Disconnect power to the control

panel before installing the modules.

NOTICE: This manual should be left with the owner/user of this

equipment.

General Description

M500FP Firephone Control Modules are intended for use in in-

telligent, two-wire systems, where the individual address of each

module is selected using the built-in rotary switches. This module

is used to connect a remote ﬁreﬁghter telephone to a centralized

telephone console. A ringing sound is provided at each off-hook

handset until it is connected to the console. Wiring to individual

telephone jacks and handsets is supervised, and status is re-

ported to the panel as NORMAL, TROUBLE, or TELEPHONE. The

M500FP has two pairs of output termination points available for

fault-tolerant wiring, and includes a panel-controlled LED indica-

tor.

Compatibility Requirements

o ensure proper operation, this module shall be connected to

Listed compatible system control panels only.

Mounting

This module mounts directly to 4″square electrical boxes (see

Figure 2A). The box must have a minimum depth of 21

/8″. Flush

mounted electrical boxes (SMB500) are available.

Wiring

NOTE: All wiring must conform to applicable local codes, ordi-

nances and regulations. When using control modules in

nonpower limited applications, the CB500 Module Barrier

must be used to meet UL requirements for the separation

of power-limited and nonpower-limited terminals and

wiring. The barrier must be inserted into a 4″ × 4″ × 21

/8″

junction box, and the control module must be placed into

the barrier and attached to the junction box (Figure 2A).

The power-limited wiring must be placed into the isolated

quadrant of the module barrier (Figure 2B).

Figure 1. Controls

and Indicators

Figure 2A. Module mounting with barrier:

C0219-01

Figure 2B:

C0217-01

C0218-01

Speciﬁcations

Normal Operating Voltage: 15 to 32 VDC

Maximum Current Draw: 7.5mA (LED on).

Average Operating Current: 2.4mA (LED ﬂashing).

Handset Offhook Resistance: 400 to 1,500 Ohms

External Supply Voltage (between Terminals T3 and T4)

Regulated 24VDC

Temperature Range: 32˚F to 120˚F (0˚C to 49˚C)

Humidity: 10% to 93% Non-condensing

Dimensions: 41

/2″H x 4″W x 1

/4″D (Mounts to a 4″square by 21

/8″deep box.)

Accessories: SMB500 Electrical Box; CB500 Barrier

1. Install module wiring in accordance with the job drawings and

appropriate wiring diagrams (Figures 3-4).

2. Set the address on the module per job drawings.

3. Secure module to electrical box (supplied by installer), as

shown in Figure 2A.

3825 Ohio Avenue, St. Charles, Illinois 60174

1-800-SENSOR2, FAX: 630-377-6495

www.systemsensor.com

56789

TENS

ONES

ADDRESS

LOOP

ISOLATED

QUADRANT

TENS

ONES ADDRESS

LOOP

I56-1392-005

firealarmresources.com

FROM PANEL OR

(+)

(-)

TO NEXT

(+)

(-)

DEVICE

(+)

(-)

(+)

3.9K EOL

RESISTOR

A2143-10

MODULE POLARITIES ARE

SHOWN IN ALARM

32 VDC MAX.

IS RECOMMENDED

BRANCH CIRCUITS

BREAK ALL WIRE TO ENSURE

SUPERVISION OF CONNECTIONS.

DO NOT LOOP WIRE AROUND TERMINALS.

(-)

(+)

TWISTED PAIR

SIGNAL LINE CIRCUIT (SLC)

PREVIOUS DEVICE

(-)

(+)

TELEPHONE CONSOLE

24 VOLTS DC POWER LIMITED

456789

TENS

ONES

ADDRESS

LOOP

TELEPHONE CONSOLE MUST

PROVIDE ITS OWN

WIRING SUPERVISION

ALL WIRING SHOWN IS SUPERVISED

AND POWER LIMITED CONNECT MODULES TO LISTED COMPATIBLE

CONTROL PANELS ONLY

FROM PANEL OR

(+)

(-)

TO NEXT

(+)

(-)

DEVICE

(+)

(-)

(+)

3.9K EOL

RESISTOR

A2143-10

MODULE POLARITIES ARE

SHOWN IN ALARM

CONNECT MODULES TO LISTED COMPATIBLE

32 VDC MAX.

IS RECOMMENDED

BRANCH CIRCUITS

BREAK ALL WIRE TO ENSURE

SUPERVISION OF CONNECTIONS.

DO NOT LOOP WIRE AROUND TERMINALS.

ALL WIRING SHOWN IS SUPERVISED AND POWER LIMITED

(-)

(+)

TWISTED PAIR

NOTIFIER CONTROL PANELS ONLY

SIGNAL LINE CIRCUIT (SLC)

PREVIOUS DEVICE

(-)

(+)

TELEPHONE CONSOLE

24 VOLTS DC POWER LIMITED

456789

TENS

ONES

ADDRESS

LOOP

TELEPHONE CONSOLE MUST

PROVIDE ITS OWN

WIRING SUPERVISION

D500-39-00 2 I56-1392-005

©System Sensor 2006

WARNING

All relay switch contacts are shipped in the standby state (open) state, but may have transferred to the activated (closed) state during

shipping. To ensure that the switch contacts are in their correct state, modules must be made to communicate with the panel before

connecting circuits controlled by the module.

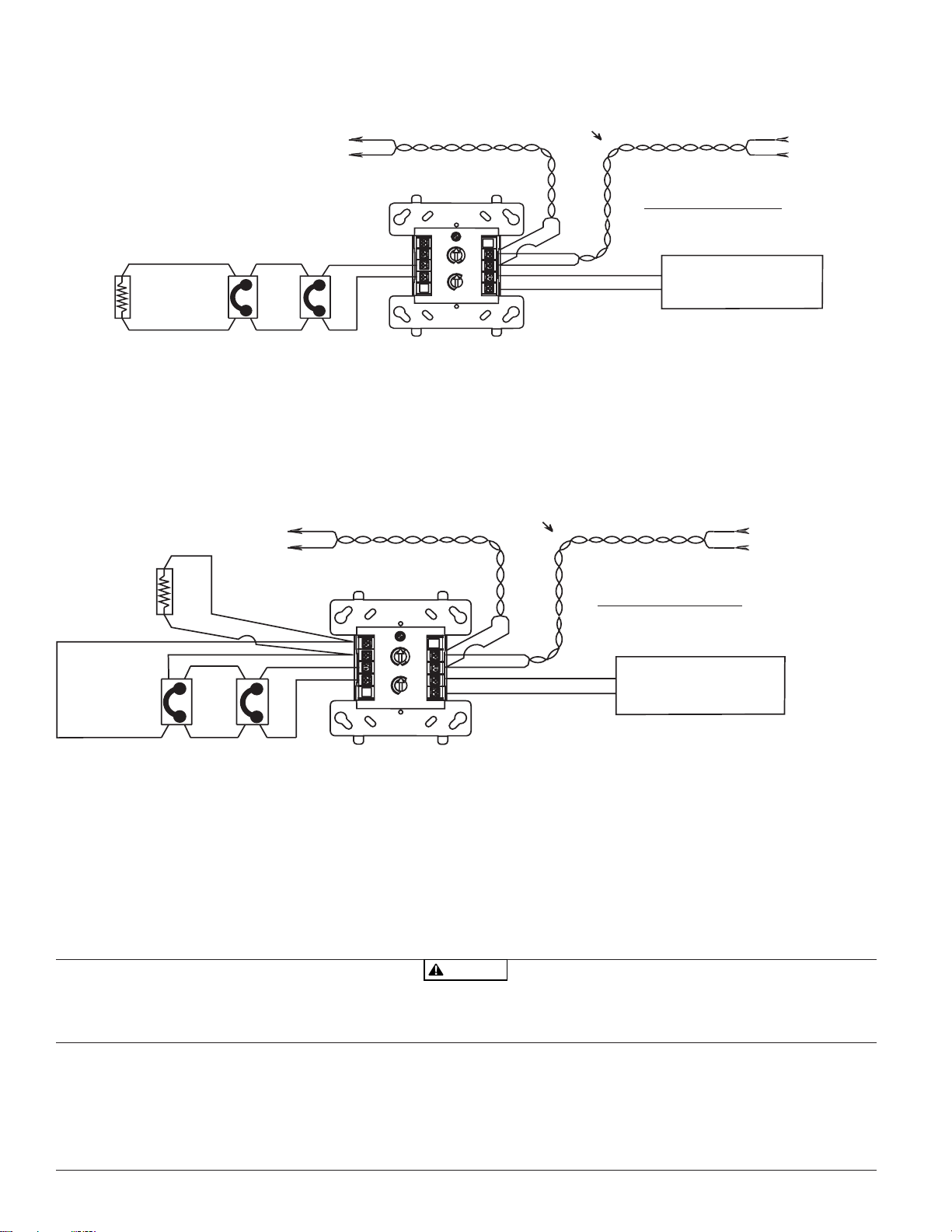

Figure 3. Typical circuit conﬁguration, NFPA Style Y, Class B style wiring:

Figure 4. Typical fault tolerant circuit conﬁguration, NFPA Style Z, Class A style wiring:

Relay Contact Rating: 24 VDC, 3 Amperes Maximum

C0220-02

C0221-02

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC

rules. These limits are designed to provide reasonable protection against harmful interference. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful inter-

ference to radio communications. Operation is subject to the following two conditions: (1) This device may not cause harmful radiation,

and (2) this device must accept any interference received, including interference that may cause undesired operation.

firealarmresources.com
