Synology M2D18 Manual
Synology Adapter Card M2D18
Hardware Installation Guide
Thank you for purchasing this Synology product! Before setting up your new Adapter Card, please check the
package contents to verify that you have received the items below. Also, make sure to read the safety instructions
carefully to avoid harming yourself or damaging your Adapter Card.
Note: All images below are for illustrative purposes only, and may dier from the actual product.

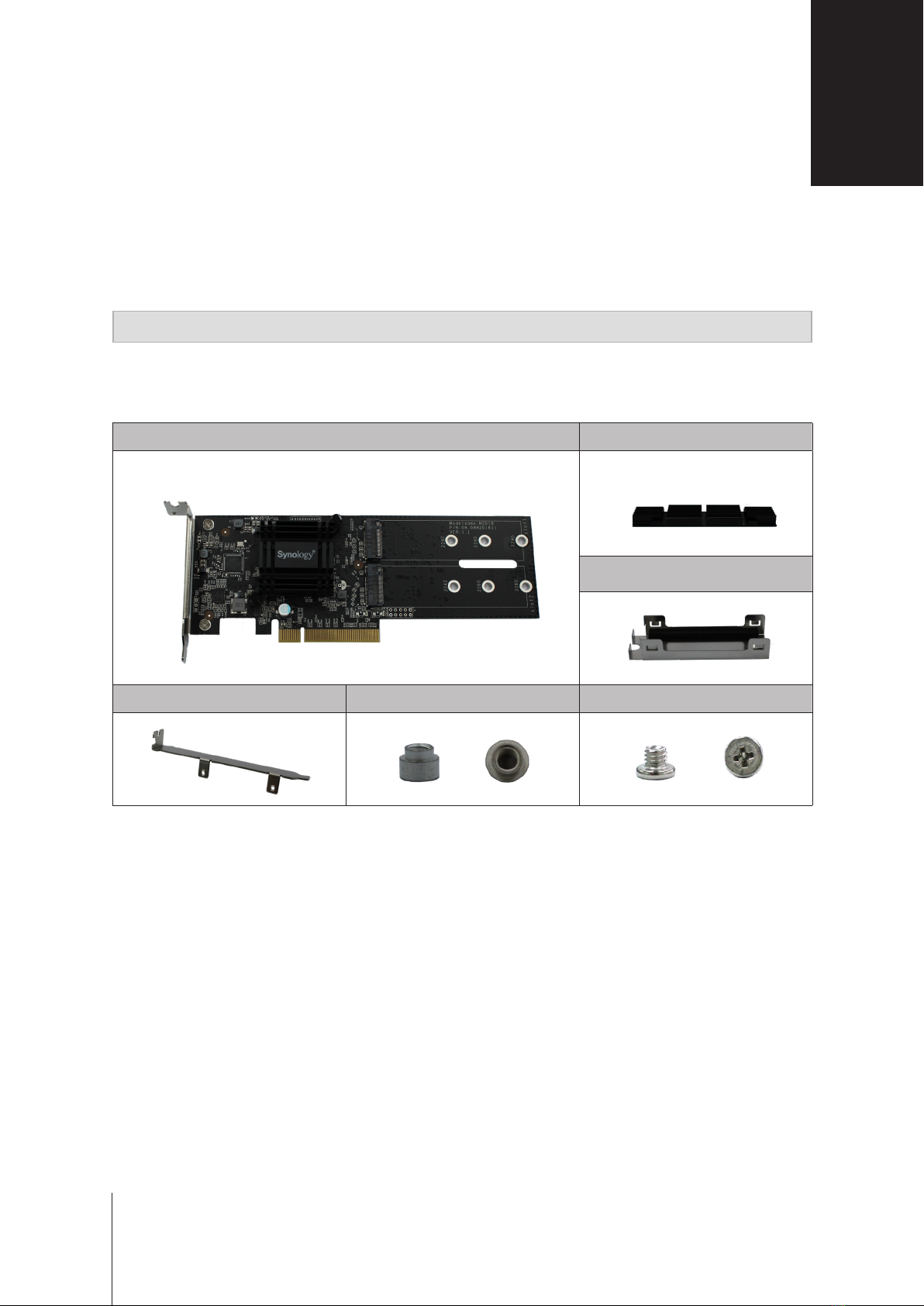

Package Contents
Adapter card x 1 Heatsink x 2
Shielding bracket x 2
Standard full height bracket x 1 Nut x 3 Screws x 6
1
Chapter
3
3
Before You Start
4Chapter 1: Before You Start
Safety Instructions
Keep away from direct sunlight and away from chemicals. Make sure the environment does not
experience abrupt changes in temperature or humidity.
Place the product right side up at all times.
Do not place near any liquids.
Before cleaning, unplug the power cord. Wipe with damp paper towels. Do not use chemical or
aerosol cleaners.
To prevent the unit from falling over, do not place on carts or any unstable surfaces.
The power cord must plug in to the correct supply voltage. Make sure that the supplied AC voltage is
correct and stable.
To remove all electrical current from the device, ensure that all power cords are disconnected from
the power source.
Risk of explosion if battery is replaced with an incorrect type. Dispose of used batteries appropriately.
Tools and Parts for Drive Installation
• A screwdriver (for removing the casing of your target installed DiskStation)
Attach M2D18 Adapter Card to Synology NAS
Please refer to Synology Hardware Compatibility List to make sure your Synology NAS supports M2D18 adapter
card before attaching it.
To install the M2D18 adapter card:
1 Press and hold the power button until you hear a beep sound to shut down your Synology NAS. Disconnect all
cables from your Synology NAS to prevent any possible damage.

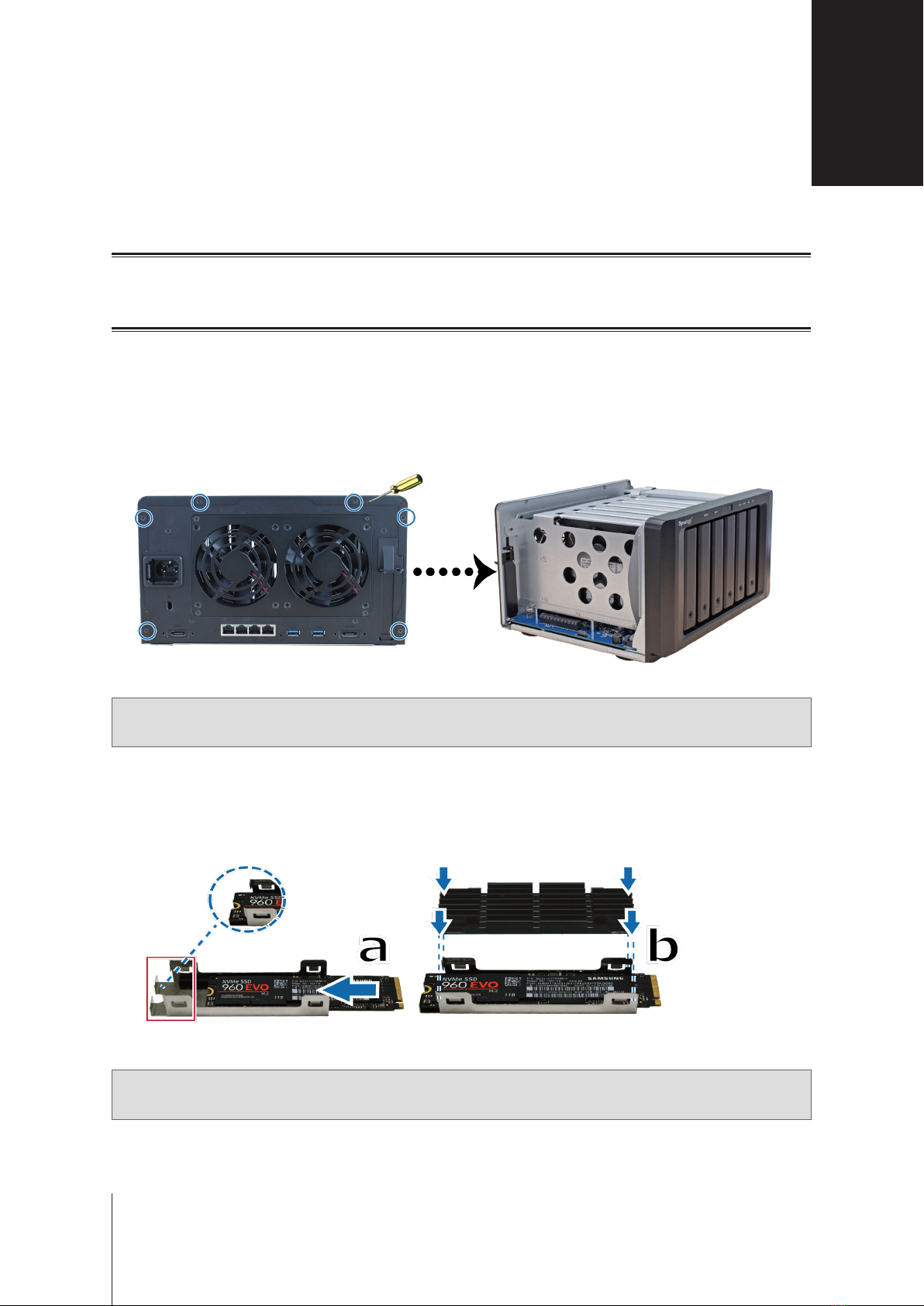

2 Open the top cover of Synology NAS by removing the 6 screws that secure the main unit.
Note: Here we use DS1618+ as an example. Please refer your Synology NAS Hardware Installation Guide for the
proper casing removal process.
3 Assemble M.2 SSD:
a Push the SSD all the way into the xed bracket until it is rmly seated.
b Align the heatsink with the clips of the bracket and press the four corners down. Please make sure the
heatsink is rmly attached to the clips to ensure the smooth running of the SSD.
Note: Please remove the stretch wrap at the bottom of the heatsink before step 3-b.
Hardware Setup
5
2
Chapter
6Chapter 2: Hardware Setup
4 Add M.2 SSD to M2D18 adapter card:
a Place a nut (1) and fasten a screw (2) to secure it.
b Insert M.2 SSD into the slot. Make sure the card is fully inserted.
c Tighten the SSD with a screw.
d Repeat previous two steps if installing another optional SSD is needed. Slot numbers are shown as below.
5 Install the M2D18 adapter card:
a Remove the screw that secures the adapter slot’s cover.
b Remove the adapter slot’s cover.
7Chapter 2: Hardware Setup
c Align the card’s connector with the adapter slot and insert the card.
d Fasten the removed screw in step 5-a so as to secure the newly inserted card.
6 Place back the removed top cover in step 2 and tighten the screws.
Note: Make sure the connector is fully inserted or the adapter card may not function properly.
7 To disassemble the heatsink module:
a Pull the metal clips of a shielding bracket outwards while pushing the heatsink upwards.
b Rotate the bracket and repeat the step above to free the heatsink.
c Slide out the detached heatsink and SSD.
d Gently lift the heatsink to detach it from the SSD.
Item M2D18
PCIe Interface PCIe 2.0 x 8
Driver Interface PCIe NVMe/SATA
Connector Type and Quantity M.2 M-Key x 2
Supported Form Factor 2280/ 2260/ 2242
Bracket Height 80 mm (half height), 120 mm (full height)
Size (H x W x D) 70 mm x 180 mm x 18 mm
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative humidity 5% to 95% RH
Note:
• The supported NVMe/ SATA SSD will vary from dierent Synology NAS devices, please visit www.synology.
com to get more information.
• The heatsink is only suited for M.2 2280 SSD.
Specications A
8
Appendix
