Figure 1: SG-S200, SG-S400, SG-S500 Deployments

ProxySG Quick Start Guide

SG-S200, SG-S400, SG-S500 Appliances

SG-S200, SG-S400, SG-S500

ProxySG

Quick Start Guide

1 — Unpack the Appliance

Unpack the shipping package for the appliance and verify it

includes the following:

2 — Connect Cables

It is recommended that you plug in cables, verify LEDs, and

configure and license the appliance before mounting it in an

equipment rack. Make sure the appliance is on a flat, level

surface when performing the initial configuration. If you would

rather mount the appliance before performing configuration

tasks, skip to Mount the Appliance.

The following procedure describes a typical

in-line

deploy-

ment for

SG-

S200,

SG-

S400, and

SG-

S500 appliances (as

shown in Figure 1). For information on other deployments,

see the

ProxySG

software documentation, available at:

techdocs.broadcom.com

NOTE: Network cables are not included with the appliance.

Make sure to use only straight-through Ethernet cables.

Category 5E cables or better are recommended for

1000Base-T operation. Category 6A cables are

recommended for 10GBase-T operation.

To deploy the appliance and connect cables:

1. Disconnect the Ethernet cable (if there is one) between

the LAN switch and WAN router.

2. Connect the appliance to the LAN switch:

For SG-S200 and SG-S400 appliances, connect an

Ethernet cable to the appliance’s LAN 2:0 port and con-

nect the other end of the cable to the LAN switch.

For SG-S500 appliances, connect an Ethernet cable to

the appliance’s LAN 1:0 port and connect the other end

of the cable to the LAN switch.

The appliance auto-negotiates 10/100/1000 Base-T

speed and duplex settings.

3. Connect the appliance to the WAN router:

For SG-S200 and SG-S400 appliances, connect an

Ethernet cable to the appliance’s LAN 2:1 port and con-

nect the other end of the cable to the WAN router.

For SG-S500 appliances, connect an Ethernet cable to

the appliance’s LAN 1:1 port and connect the other end

of the cable to the WAN router.

4. Connect an Ethernet cable to the appliance’s MGMT 0:0

port and connect the other end of the cable to the man-

agement network switch.

5. Connect the included null-modem cable to the appli-

ance’s DB9 Serial port and connect the other end of the

cable to a serial terminal or workstation with terminal

emulation software. The serial connection is used to per-

form the appliance’s initial configuration.

6. For SG-S500 appliances, attach the lug-equipped end of

the included grounding wire (10 AWG) to both grounding

studs on the appliance, securing it with the star washers

and M5 nuts. Attach the other end of the grounding wire

to a proper earth-ground.

7. Connect the appliance to a power source:

For SG-S200 appliances, connect the included power

cord to the appliance’s power inlet and connect the

other end of the power cord to a power source.

For SG-S400 and SG-S500 appliances, connect the

included power cords to the appliance’s power inlets

and connect the other ends of the power cords to a

power source.

Appliance SG-S200 SG-S400 SG-S500

AC power cords

(number included)

122

Null-modem serial cable √ √

Grounding hardware √

2- and 4-post slide-rail kit optional √ √

2-post fixed rail √

Accessing Appliance

Documentation

√√√

Software License Agreement

√√√

Hardware Warranty

Information

√√√

SG-S200, SG-S400, SG-S500

ProxySG

Quick Start Guide

3 — Power On the Appliance and

Verify LEDs

To verify the appliance is operational:

1. Confirm the appliance’s power cords are securely

connected to a power source.

2. If the appliance does not automatically power on, press

the rear soft power switch.

NOTE: The state of the appliance’s soft power switch (on

or off) is retained when power is removed. This may ne-

cessitate pressing the power switch when reapplying

power to the appliance.

3. As the appliance boots, verify the following:

The power LED turns amber.

Near the end of the boot cycle, the Power LED alter-

nates between amber and green, indicating an uncon-

figured state.

After the boot cycle has completed, the LCD panel dis-

plays information about the appliance, such as model,

serial number, and IP address, which can be scrolled

through with the Right and Left Arrows.

Following the initial configuration and licensing, the

Power LED turns green.

During operation, the front-panel status LEDs indicate the

following states:

4 — Perform the Initial Configuration

NOTE: To initialize the appliance, you need the following:

appliance IP address; primary DNS server IP address;

default gateway IP address; subnet mask; link settings

(speed and duplex)

, admin username and password,

Director IP address and password (if using Director)

To perform the initial configuration for the appliance:

1. Confirm the appliance’s DB9 Serial port is connected to

a serial terminal or workstation with terminal emulation

software.

2. Open a terminal emulation program, such as Microsoft

HyperTerminal®, PuTTY, Tera Term, or ProComm™,

and configure it to use the following settings:

3. Power on the appliance (if it is not already powered on)

and, when prompted, press Enter three times.

4. Choose Manual Setup to launch the Initial Configura-

tion Wizard.

5. Select how the appliance will be licensed:

Forward Proxy: Filters traffic inside the network, allow-

ing users to browse the Internet through the proxy.

Reverse Proxy: Directs traffic to web application serv-

ers inside the network, while protecting them from

threats.

Caching Proxy: The appliance will be deployed with a

Mach5 license, which enables the Sky Management

Console, a simplified web interface that provides WAN

acceleration and reporting. This option requires that

you specify one of the following deployments:

– Physically in-path

– Virtually in-path with WCCP

6. When prompted, enter network configuration parame-

ters. If the appliance is connected to a network, the Con-

figuration Wizard attempts to verify the DNS server

address and auto-detect link settings.

WARNING! It is recommended that you assign a unique

Username and Password for each administrator and that

you store them in a secure location.

LED Color Description

Power

Status

Off Powered off or no power present

Amber Booting

Amber/green

alternating

Not yet initialized

Green Powered on and configured

System

Status

Off Powered off or no power present

Green Normal

Amber System fault or not yet licensed

Amber blinking Critical fault

Baud rate: 9600 bps Data bits: 8

Parity: none Stop bits: 1

Flow control: none

SG-S200, SG-S400, SG-S500

ProxySG

Quick Start Guide

5 — License the Appliance

The ProxySG appliance requires a base license for its

primary components. Add-on licenses provide access to

optional components, such as GeoLocation, Web

Application Firewall, and WebFilter.

To license the appliance:

1. Open a browser and enter the appliance’s IP address and

port number. For example, an IP address of 192.168.2.42

with a port number of 8082 (the default) would be:

https://192.168.2.42:8082

2. When prompted, enter the admin Username and Pass-

word specified during the initial configuration. The Man-

agement Console window opens.

3. Activate the base license:



Navigate to the Maintenance > Licensing > Install tab.

Click Retrieve. The appliance downloads the base

license from the licensing server and installs it.

4. Activate any add-on licenses that were purchased:

Go to support.broadcom.com/security and click My

Entitlements. When prompted, enter the admin

Username and Password.

Search for the appliance you want to license by enter-

ing its Serial Number, Site ID, or Email.

When the appliance appears, click the Download icon

in the License column.

Repeat the previous steps to install any additional add-

on licenses.

5. If any add-on licenses were installed, download and in-

stall the updated base license:

In the Management Console window, navigate to the

Maintenance > Licensing > Install tab.

Click Retrieve. The appliance downloads the updated

base license from the license server and installs it.

6 — Mount the Appliance

The slide-rail kit included with

SG-S400

and

SG-S500

appli-

ances (available as an option for

SG-S200

appliances) al-

lows the appliance to be mounted in a 4- or 2-post equipment

rack. The slide-rail kit includes the following parts:

NOTE: Installation of the slide rails requires an M4 nut driver

or adjustable wrench and a #2 Phillips head screwdriver. If

you are working alone, a mechanical lift is also required.

NOTE: The following procedure documents installation for 4-

post equipment racks (as shown in Figure 2). For 2-post instal-

lation, see the S-Series WebGuide, available at:

techdocs.broadcom.com/sseries

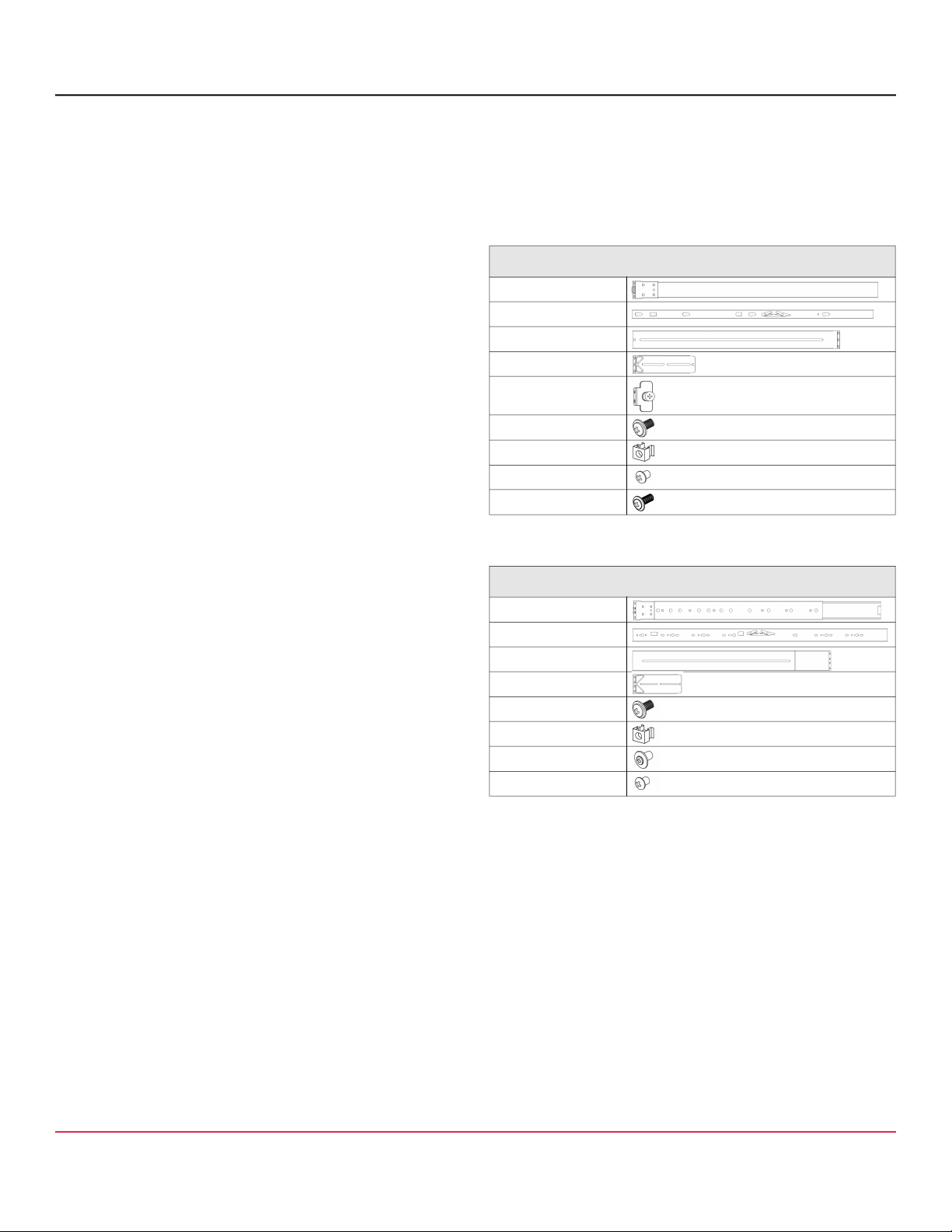

Item

(2) Front brackets

(2) Inner rails

(2) Rear brackets

(2) Center brackets

(2) Rack ears

(8) M6x13 screws

(8) M6 cage nuts

(10) M4x4L screws

(4) M3L4 screws

SG-S200 (Optional) and SG-S400 Rail Kit

Item

(2) Front brackets

(2) Inner rails

(2) Rear brackets

(4) Middle brackets

(8) M6x13 screws

(8) M6 cage nuts

(10) M4x5L screws

(4) M4x4L screws

SG-S500 Rail Kit

SG-S200, SG-S400, SG-S500

ProxySG

Quick Start Guide

Rack Warnings and Precautions

CAUTION! Before mounting the appliance:

Power off the appliance and disconnect all cables.

Verify that the weight of the system does not exceed the

rack’s fully populated weight limit. For more information,

refer to the manufacturer’s instructions included with

the rack.

For weight stability, load the rack from the bottom up.

Read the “Rack Mount Warnings” section of the Safety

and Compliance Guide.

Take adequate safety and grounding measures to avoid

creating an electrical shock hazard and to prevent

bodily injury.

The appliance is heavy. A two-person lift or mechanical

aid is recommended to lift the appliance from the carton

and install it in the rack.

Do not place objects on the appliance or use it as a

work surface. Its mounting hardware does not support

additional weight.

Install the Appliance into the Rack

To install the appliance into a 4-post equipment rack:

1. Disassemble the two slide-rail assemblies. Extend the

inner rails while pressing the center release tabs, then

fully remove them (a).

2. Attach the two inner rails to the chassis sides, aligning

the rails with the mounting posts on the chassis, then

slide the rails forward (SG-S200, SG-S400) or rearward

(SG-S500) until they snap into place. Secure each rail

with one (SG-S200, SG-S400) or two (SG-S500) M4x4L

screws (b).

3. For SG-S200 and SG-S400 appliances, attach the two

rack ears to the chassis, aligning them with the raised

screw holes and orienting them with the captive screw

heads toward the front of the appliance. Secure each

rack ear with two M3L4 screws.

4. Install the two outer rails into the 4-post equipment rack (

Secure the rear brackets to the front brackets with six

M4x4L (SG-S200, SG-S400) or M4x5L (SG-S500)

screws, three per side, placed equidistantly. Do not yet

fully tighten the side-mounting screws.

Figure 2: SG-S500 Slide-Rail Installation

SG-S200, SG-S400, SG-S500

ProxySG

Quick Start Guide

Broadcom reserves the right to make changes without further notice to any products or data herein to improve reliability, function, or design. Information furnished by Broadcom is believed to be accurate and reliable. However, Broadcom does not assume

any liability arising out of the application or use of this information, nor the application or use of any product or circuit described herein, neither does it convey any license under its patent rights nor the rights of others. (2021.08.24, 13:06:14)

Attach the two outer rails to the rack, extending the rails

as necessary to fit the rack. Secure the front and rear

brackets with two M6 rack screws each. Do not yet fully

tighten the rack screws.

Fully tighten the side-mounting screws, three per side,

securing the rear brackets to the front brackets.

Inspect the outer rails, making sure they are installed at

the same level in the rack and free of defects, damage,

and debris. Verify the rails extend and retract smoothly

and stop at the slide-stop.

5. Install the chassis into the 4-post equipment rack (d):

Align the inner rails attached to the appliance with the

outer rails in the rack and slide the appliance half-way

into the rack.

Fully tighten the M6 rack screws securing the outer rails

to the rack.

Press the release tabs on the inner rails and gently

slide the appliance all the way into the rack.



Tighten the captive thumbscrews on the appliance’s rack

ears to prevent the appliance from sliding out of the rack.

6. Reconnect the cables as documented in Connect Cables

and verify the appliance is functioning as in Power On the

Appliance and Verify LEDs.

See below for support and additional documentation.

Symantec Technical Support

For Symantec technical support, case management,

licenses, and product downloads, go to:

support.broadcom.com/security

ProxySG Software Documentation

Go to techdocs.broadcom.com and type “sg” in the

search field, then click ProxySG.

Appliance Documentation

S Series WebGuide (Maintenance and Upgrades)

techdocs.broadcom.com/sseries

S200 Series Safety and Compliance Guide

techdocs.broadcom.com/s200

S400 Series Safety and Compliance Guide

techdocs.broadcom.com/s400

S500 Series Safety and Compliance Guide

techdocs.broadcom.com/s500

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Hardware de red de Symantec

Symantec

Symantec SV1800 Series Manual de instalación y funcionamiento

Symantec

Symantec Shelf NetBackup 5220 Manual de funcionamiento

Symantec

Symantec SIEM 9700 Series Manual de usuario

Symantec

Symantec NetBackup 5200 Series Manual de usuario

Symantec

Symantec EDR S550 Manual de usuario

Symantec

Symantec CAS-S200 Manual de usuario

Symantec

Symantec Shelf NetBackup 5220 Manual de instalación y funcionamiento

Symantec

Symantec NetBackup 5000 Instrucciones de uso

Symantec

Symantec PacketShaper PS-S200 Manual de usuario

Symantec

Symantec RP-S500 Manual de usuario

Symantec

Symantec NetBackup 5200 Series Especificaciones técnicas

Symantec

Symantec S200 Series Manual de instalación y funcionamiento

Symantec

Symantec S450 Series Manual de instalación y funcionamiento

Symantec

Symantec S450 Series Manual de instalación y funcionamiento

Symantec

Symantec S550 Series Manual de instalación y funcionamiento

Symantec

Symantec SSL Visibility SV800 Manual de usuario

Symantec

Symantec SV2800 Manual de instalación y funcionamiento

Symantec

Symantec CAS S200 Manual de usuario

Symantec

Symantec NetBackup 5020 Instrucciones de uso

Symantec

Symantec SIEM 9700 Series Manual

Manuales populares de Hardware de red de otras marcas

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manual de usuario

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manual de usuario

Yudor

Yudor YDS-16 Manual de usuario

D-Link

D-Link ShareCenter DNS-320L Manual de usuario

Samsung

Samsung ES1642dc Instrucciones de uso

Honeywell Home

Honeywell Home LTEM-PV Instrucciones de montaje

evertz

evertz 7700 Series Manual de usuario

D-Link

D-Link ShareCenter DNS-343 Manual de usuario

Asante

Asante AsanteBridge 1012 Manual de usuario

FireBrick

FireBrick FB2700 Manual de usuario

Audiovox Electronics

Audiovox Electronics ARWH2T Manual de usuario

ADC

ADC DSX-1 Manual

NetComm

NetComm NF2 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 5620 Manual de usuario

Dell EMC

Dell EMC XC6420 Series Manual de usuario

Lanner

Lanner NCA-1020A Manual de usuario

Allied Telesis

Allied Telesis AT-TN121-A Manual de usuario

Arista

Arista CCA-ETM-Q12 Manual de usuario
