Sylvania SMPK3604 Manual de usuario
SMPK3604
User Manual
Sylvania is a registered trademark of OSRAM Sylvania Inc. Used under License
2
What’s in the box?
Operating Unit
User Manual
Quick Start Guide
USB Cable
Earphone
Battery Charger
3
Content
Buttons location and usages
Basic Operation
Operation of Music Mode ………………………..……..8-11
Operation of Video Mode ……………………..………13-14
Operation of Photo Mode…………………………......…..15
Operation of eBook Mode…………………………….16-17
Operation of Explorer Mode…………………………….17
Operation of Record Mode………………………...….17-18
Operation of Other Mode………………………….………18
Operation of Settings Mode………………………….19-20
Technical Specification
Trouble Shooting
Buttons location and usages
(1) Power Button/Enter
(2) Earphone Jack
(3) USB Port
(4) Earphone Jack
(5) Hold Button
(6) Micro SD Card Slot
(7) Reset
(8) Microphone
(9) Speaker
4
5
Basic Operation
Power on/off and Enter function
Press the Power button and hold for 3 seconds to switch
on the device and hold for 3 seconds to switch off.
When using this device, Power button also act as a
ENTER function for selecting options.
Lock
Slide the Lock button toward the Micro SD card slot
position to key-lock the player and slide for opposite
position for unlock.
Reset
If the player encounters dead halt during use, press
RESET button to restart the player.
How to insert and pull out Micro SD card
How to insert: with the front (the side with characters) of
the Micro SD card up (towards the screen of the player),
slightly push to insert into the card holder of the player to
connect. After the card is inserted, the player can play the
files in the Micro SD card.
How to pull out: slightly push the Micro SD card and the
Micro SD card will partly come out, and then pull the card
out.
Note: please insert or pull out the card when the player is
off, or the internal files of the player will be lost or
damaged.
Connection to PC and Data Exchange
Connect the player to PC with the USB cable, and the
player will enter “U disk” mode. Press MENU button or
safely remove U disk, and the player will be under USB
charging mode. In USB charging mode, touch the screen
or press MENU to enter the main applications interface.
6
7
The above screen would appear. (Apply only to Window
XP) Choose Take no action and click OK to close the
window. Double click My Computer on your desktop and
the above window would appear. Look for the Removable
Disk Icon.
Double click the Removable Disk icon. Note: Do not
disconnect the USB cable once you click into the
removable disk window. Such action may cause data loss
or problems to the player.
Drag and drop your media files into the removable disk.
You can create any folder or directory in the removable
disk. Close the removable disk window and disconnect the
player from your PC after the data transfer.
Charging
This player has high capacity lithium battery. For charging,
connect the player to the USB port of the PC or to a
charger. When the charger is used for charging, the
battery blue bar will keep moving; when battery is fully
charged, it will stop moving.
Low Power
When battery power is low, the player will prompt and
power off and enter Standby mode automatically. Do not
power on and charge the player instead.
Calibrate
Before using this product, initial touch screen adjustment is
required. Enter the Calibrate mode in system setting to
calibrate the touch screen position with centering of
calibrate sign +.
Main interface
Once you switch the player on you’ll reach to the main
interface as below..
Operation of Music Mode
Double click the Music icon on the main menu to enter the
music mode. Once you’ve entered the music mode, the
following screen would show up.
Current play
8
Double click the Current Play icon to resume playing the
9
current song.
All Music
Double Click the All Music icon to show your library of
music, double click any particular song to start playing.
Artist
Double Click the Artist icon to show all of your artists,
double click any particular artist to show the songs of that
artist. Double click a song to start playing.
Album
Double Click the Album icon to browse all of your albums,
double click any particular album to browse the songs of
that album. Double click a song to start playing.
Genre
Double Click the Genre icon to browse all of your genres,
double click any particular genres to browse the songs of
that album. Double click a song to start playing.
My Favorite
Double Click the My Favorite icon to browse all songs that
you’ve added to be your favorite. Double click a song to
start playing.
Record
Double Click the Record icon to browse all recorded files.
Double click a file to start playing.
Dir List
Double Click the Dir List icon to browse all folders of the
directory. Double click a folder for select file to open.
MediaLib Update
Double Click the MediaLib Update icon to update all
songs information and details.
Click to jump back to the main menu.

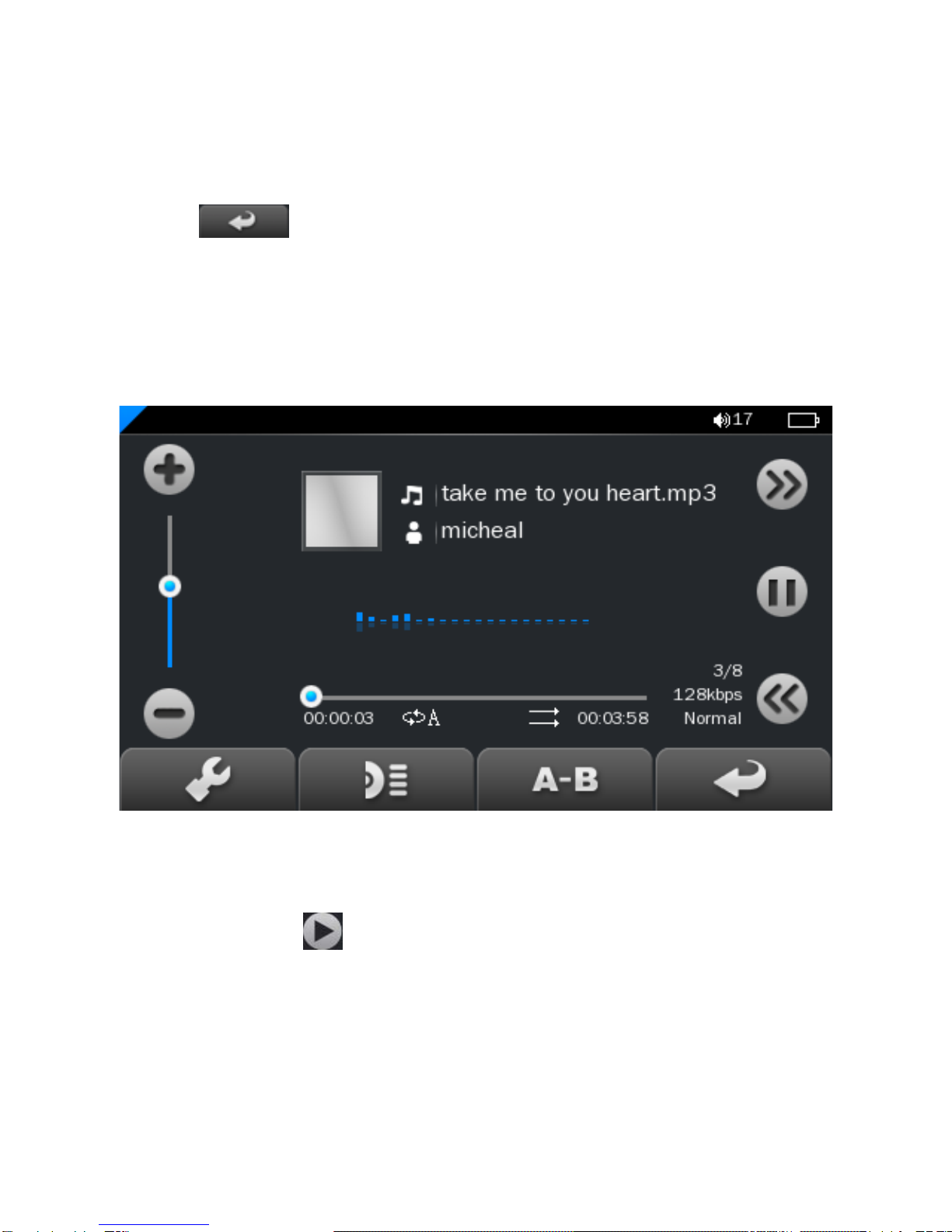

Music Player interface
Whenever you start playing a song you’ll reach the Music
Player Interface as below.
Play Music
Click the Play button to start playing, click again to
pause. Drag the horizontal bar to adjust playing progress
with specified time slot.
10
