Model:

M-1071H

7"×2 Rack Mount 3GSDI&HDMI LCD Monitor

User Manual

Please read this ser Manual

throughout before using.

Preface

Congratulations on your purchase of this product. Please read this user manual carefully.

．

All internal technologies of this product are protected, including device, software and trademark.

Reproduction in whole or in part without written permission is prohibited.

．

All brands and trademarks of SWIT Electronics Co., Ltd. are protected and other relative trademarks

in this user manual are the property of their respective owners.

．

Due to constant effort of product development, SWIT reserves the right to make changes and

improvements to the product described in this manual without prior notice.

．

The warranty period of this product is 2 years, and does not cover the following:

(1) Physical damage to the surface of the products, including scratches, cracks or other damage to

the LCD screen or other externally exposed parts;

(2) Misuse, abuse or negligent operation to the product;

(3) The product is disassembled by anyone other than an authorized service center.

It is considered normal that the LCD bright dot defects are not to exceed three.

．

For any suggestions and requirements on this product, please contact us through phone, fax, Email,

etc.

SWIT Electronics Co., Ltd.

Address: 10 Hengtong Road, Nanjing Economic and Technological Development Zone,

Nanjing 210038, P.R.China

Phone: +86-25-85805753

Fax: +86-25-85805296

Email: contact@swit.cc

Website: http://www.swit.cc

Maintenance

 T e Monitor

1. Please keep the signal terminals and the cooling vent away from knife-edge, metal or liquid in

order to avoid short-circuit and damage.

2. Please don't try to disassemble any parts of the monitor by yourself, which would probably

damage the monitor and do harm to human body, and it will cause the invalidation of product

warranty.

3. Please don't touch the screen with your fingers, which would probably deface the screen.

4. Please don't press the screen; the LCD is extremely exquisite and flimsy.

 T e power

Please use the power adapter provided or recommended by the manufacturer in order to avoid

damage. For a third party power adapter, please make sure the voltage range, supplied power, and

polarity of power lead are fit.

Please disconnect the power cable under the following situations:

1. If you do not operate this monitor for a period of time;

2. If the power cable or power adaptor is damaged;

3. If the monitor housing is broken.

 Working Environment

1. Please don't lay this product on the unstable place.

2. Please don't lay this product in hot, cold or wet location.

 Cleaning

1. Please clean the screen with dry and downy cloth or special LCD cleanser.

2. Please do not press hard when cleaning the screen.

3. Please do not use water or other chemical cleanser to clean the screen. The chemical may

damage the LCD.

4. For first time use, please tear off the factory LCD film. To protect the LCD screen, please post the

LCD protection film offered in the package.

1. Features

◆

◆◆

◆

Hig resolution LCD Panel

Consists of two 7-inch, 16:9, 1024×600 LCD panels, with 900:1 contrast, 500cd/m

brightness, H/V 160°

wide viewing angle, and 19-inch 3 rack mount,

◆

◆◆

◆

3Gbps SDI support

Accept 3G/HD/SD-SDI input

◆

◆◆

◆

Multi Input/Output

Support SDI, HDMI, CVBS input and loop through output

◆

◆◆

◆

SDI embedded audio output

Convert SDI embedded audio to analog and output via 3.5mm earphone jack.

◆

◆◆

◆

HDMI embedded audio output

Convert HDMI embedded audio to analog and output via 3.5mm earphone jack.

◆

Underscan and Overscan

Switch between underscan and overscan mode.

◆

◆◆

◆

Safe area

The safe area is offered to mark an area of picture that can be seen on the television screens.

◆

◆◆

◆

Pixel to pixel zoom-in

The real time zoom-in function is to enlarge to the input video as pixel to pixel from the center.

◆

◆◆

◆

Image flip

Rotate the image by 180°.

◆

◆◆

◆

User definable function keys

There are 2 function keys on the monitor front panel, and users could define the functions to the keys to

achieve shortcut.

◆

◆◆

◆

User editable video title

ser can edit a video title for the current camera, and the title will display on the top of screen.

2. Panel Instruction

Front view

⑴

POWER: Power on/off

Connect with power cable, press the “POWER” and the power indicator is turned on and the monitor will

be switched on and get into normal working status. Press the “POWER” again, the indicator is turned off

and monitor is switched off.

Disconnect with power cable if the monitor will not be used for a period of time.

⑵

PHONE: Earphone jack, for SDI embedded audio, HDMI embedded audio and analog audio monitoring

⑶

MENU: Press to enter Menu

⑷

OVERSCAN: Overscan / nderscan switch

⑸

SDI: Press to switch the input signal to SDI

⑹

HDMI: Press to switch the input signal to HDMI

⑺

CVBS: Press to switch the input signal to Composite video

⑻

F1: ser definable function key 1

⑼

F2: ser definable function key 2

⑽

RATIO: 16:9 and 4:3 switch

⑾

ZOOM: Picture Zoom-in

Press “ZOOM” to switch ZOOM1: Canon DSLR scale zoom-in, and ZOOM2: pixel to pixel zoom-in.

⑿

DISPLAY: Display current settings

Press “Display” to display safety mark, title and the current input signal information

⒀

OK: Select and Apply

nder menu system, revolve “OK” to adjust settings and press to apply; and out of menu system,

directly revolve “OK” to adjust volume.

⒁

TALLY Lig t: Red, Green and Yellow 3-color TALLY indicator

Rear view

⑴

DC 12V IN: Connect with DC12V 4-pin XLR power adapter. (Pin 1: Negative, Pin 4: Positive)

⑵

CVBS-IN: Composite video input (BNC connector)

⑶

SDI-LOOP: 3G/HD/SD-SDI loop through output (BNC connector)

⑷

SDI-IN: 3G/HD/SD-SDI input (BNC connector)

⑸

HDMI-LOOP: HDMI loop through output

⑹

HDMI-IN: HDMI input

⑺

TALLY controlling port (RS-232)

⑻

AUDIO L: Stereo audio left channel input (RCA connector)

⑼

AUDIO R: Stereo audio right channel input (RCA connector)

⑽

CVBS-LOOP: Composite video loop through output (BNC connector)

Input formats

Input Supported formats

CVBS PAL / NTSC

480I / 576I / 480P / 576P

1080i (60 / 59.94 / 50)

720p (60 / 59.94 / 50)

HDMI

1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

SMPTE-425M 1080p (60 / 59.94 / 50)

1080i (60 / 59.94 / 50)

SMPTE-274M 1080p (30 / 29.97 / 25 / 24 / 23.98)

SMPTE-296M 720p (60 / 59.94 / 50)

SMPTE-125M 480i (59.94)

SDI

IT -R BT.656 576i (50)

The 2 display units have the same input interfaces and input formats

3. Menu Operation

⑴

Press “MEN ” and it will display menu system

⑵

Revolve “OK” to select an item. The selected item will be highlighted display.

⑶

Press “OK” to enter the selected item.

⑷

nder menu system, press “MEN ” to back to previous menu.

*The menu will automatically save and quit if it remains idle.

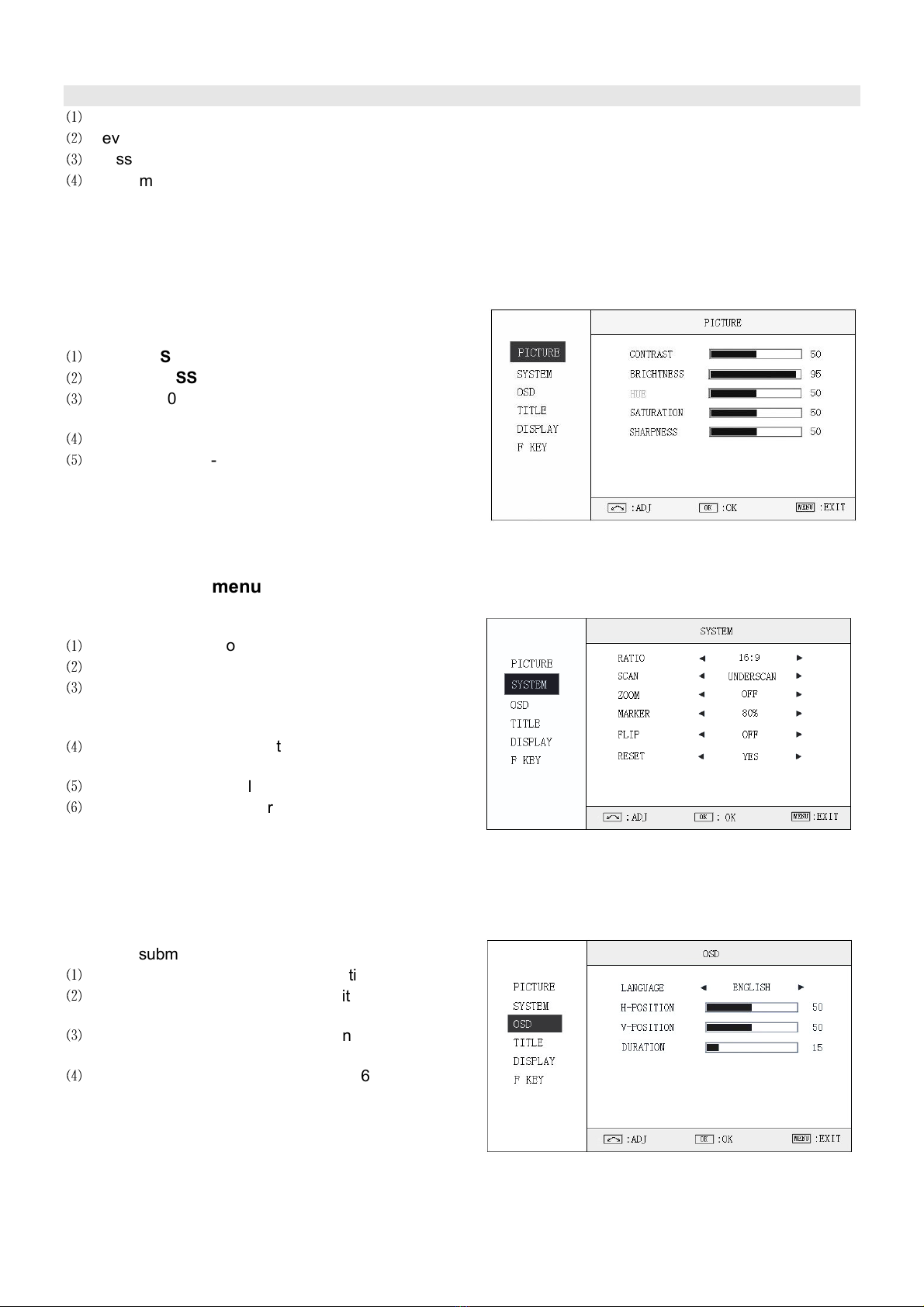

3.1 PICTURE submenu

The PICT RE submenu includes:

⑴

CONTRAST: 0-100 value adjustment

⑵

BRIGHTNESS: 0-100 value adjustment

⑶

HUE: 0-100 value adjustment

(Only available under CVBS NTSC input)

⑷

SATURATION: 0-100 value adjustment

⑸

SHARPNESS: 0-100 value adjustment

3.2 SYSTEM submenu

The SYSTEM submenu includes:

⑴

RATIO: Aspect ratio “16:9” / “4:3” selection

⑵

SCAN: “ NDERSCAN” / “OVERSCAN” selection

⑶

ZOOM: “OFF”, “ZOOM1” and “ZOOM2” selection

ZOOM1: Canon DSLR scale zoom-in

ZOOM2: Pixel to Pixel zoom-in

⑷

MARKER: Select and set the safe area scale from

80%, 85%, 90% and 95%.

⑸

FLIP: Select “ON” to flip the picture by 180°.

⑹

RESET: Select “YES” to recover all to factory setting.

3.3 OSD submenu

The OSD submenu includes:

⑴

LANGUAGE: Menu language selection

⑵

H-POSITION: Menu horizontal position (0-100)

adjustment, real-time preview and default value: 50.

⑶

V-POSITION: Menu vertical position (0-100)

adjustment, real-time preview and default value: 50.

⑷

DURATION: Menu timeout setting (5-60)

Set a time (in seconds) in which the menu will

automatically quit if remains idle. Default: 15.

3.4 TITLE submenu

Revolve "OK" button to select the letters, and press "OK"

to input. Select SPACE to input space and DEL to delete

the left letter. Max 10 letters are supported.

After setting, press "MEN ", the system will save data to

current user and quit menu. The menu will automatically

save and quit if it remains idle.

3.5 DISPLAY submenu

The DISPLAY submenu is to select the items to be

displayed on screen when ‘DISPLAY” button is pressed.

Revolve "OK" to turn on/off the items:

⑴

INFO: Including Input format, aspect ratio,

underscan/overscan, zoom status

⑵

MARKER: Safe area

⑶

TITLE: ser edited title

⑷

MARKER4:3: The 4:3 scale mark on 16:9 image.

(Only available under HD input)

3.6 F KEY submenu

The F KEY Settings Submenu is to define Function Key

F1 and F2. The available function items are:

01- RATIO: Aspect ratio switch

02- SCAN: nderscan / Overscan switch

03- ZOOM: Picture Zoom-in

04- B/W: Color / Black & white switch

05- FLIP: Image flip

4. TALLY Lig t Operation

There are front TALLY lights on each of the display units, which can display RED, GREEN and YELLOW

signals. The TALLY light controlling port is the RS232 socket at the rear panel, and terminal description is as

follows:

The RED light is on when connecting the terminal “R” with “GND”, and goes out when disconnecting.

The GREEN light is on when connecting the terminal “G” with “GND”, and goes out when disconnecting.

The YELLOW light is on when connecting the terminal “Y” with “GND”, and goes out when disconnecting.

Terminal 1 2 3 4 5 6 7 8 9

Description

Y G R GND

GND

5. Specifications

LCD Performance

Size 7.0 inches ×2

Display area 153.6×90mm

Resolution 1024×RGB×600

Aspect ratio 16:9/4:3

Brightness 400cd

Contrast 900:1

Color 16.77 million colors

Viewing angle Horizontal: 160

Vertical: 160

Video Format

CVBS NTSC

∕

PAL

SMPTE-425M 1080p (60 / 59.94 / 50)

1080i (60 / 59.94 / 50)

SMPTE-274M 1080p (30 / 29.97 / 25 / 24 / 23.98)

SMPTE-296M 720p (60 / 59.94 / 50)

SMPTE-125M 480i (59.94)

SDI

IT -R BT.656 576i (50)

480I / 576I / 480P / 576P

1080i (60 / 59.94 / 50)

720p (60 / 59.94 / 50)

HDMI

1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

General

Working voltage DC 12V

Power consumption ≤16W

Working temperature 0

℃～

+40

℃

Working humidity 10%

～

90%

Storage temperature -15

℃～

+60

℃

Storage humidity 10%

～

90%

Dimensions 487×130×80mm, Standard 19” rack, 3 height.

Net weight (main body) 2.5kg

Packing List

1. Monitor

2. ser Manual

3. Power adaptor

4. Power cable

5. LCD protection film

Tabla de contenidos

Otros manuales de Monitor de SWIT

SWIT

SWIT BM-H Series Manual de usuario

SWIT

SWIT S-1173F Manual de usuario

SWIT

SWIT S-1073H Manual de usuario

SWIT

SWIT S-1071H(EFP) Manual de usuario

SWIT

SWIT S-1073F Manual de usuario

SWIT

SWIT S-1071C Manual de usuario

SWIT

SWIT M-1093H Manual de usuario

SWIT

SWIT S-1071C Manual de usuario

SWIT

SWIT S-1273F Manual de usuario

SWIT

SWIT s-1222F Manual de usuario

SWIT

SWIT S-1161H Manual de usuario

SWIT

SWIT S-1071H Manual de usuario

SWIT

SWIT CM-S73H Manual de usuario

SWIT

SWIT M-1093F Manual de usuario

SWIT

SWIT S-1221H Manual de usuario

SWIT

SWIT S-1090H Manual de usuario

SWIT

SWIT ProHD DT-X91F Manual de usuario

SWIT

SWIT ProHD DT-X91F Manual de usuario

SWIT

SWIT S-1071F Manual de usuario

SWIT

SWIT S-1242H Manual de usuario

SWIT

SWIT S-1090F Manual de usuario

SWIT

SWIT S-1051C Manual de usuario

SWIT

SWIT FM-16B Manual de usuario

SWIT

SWIT ProHD DT-X71H Manual de usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Philips

Philips 107C64 Manual de usuario

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación
