Swegon PARASOL Z VAV c Guía

PARASOL Z VAV c

Installation – Commissioning – Maintenance 11/05/2021

Art. 942428067-NA

Symbol explanation

Symbols on the machine

This product complies with applicable EU directives

Symbols in this user manual

Warning/Caution!

Content

Symbol explanation..................................................... 1

Dimensions and weights.................................... 2

Dimensions ................................................................. 2

Weight ....................................................................... 2

Installation .......................................................... 3

Suspension bracket ..................................................... 3

Accessory - Quick bracket ........................................... 4

Accessory - Mounting in concealed T-bars................... 5

Accessory - Fold-out coil ............................................. 6

Water connection ....................................................... 7

Wiring diagram........................................................... 8

Air connection ............................................................ 9

Commissioning.................................................. 10

K-factor setting......................................................... 10

ADC ..........................................................................11

Maintenance...................................................... 12

PARASOL Zenith VAVc

2Swegon reserves the right to alter specications. 11/05/2021

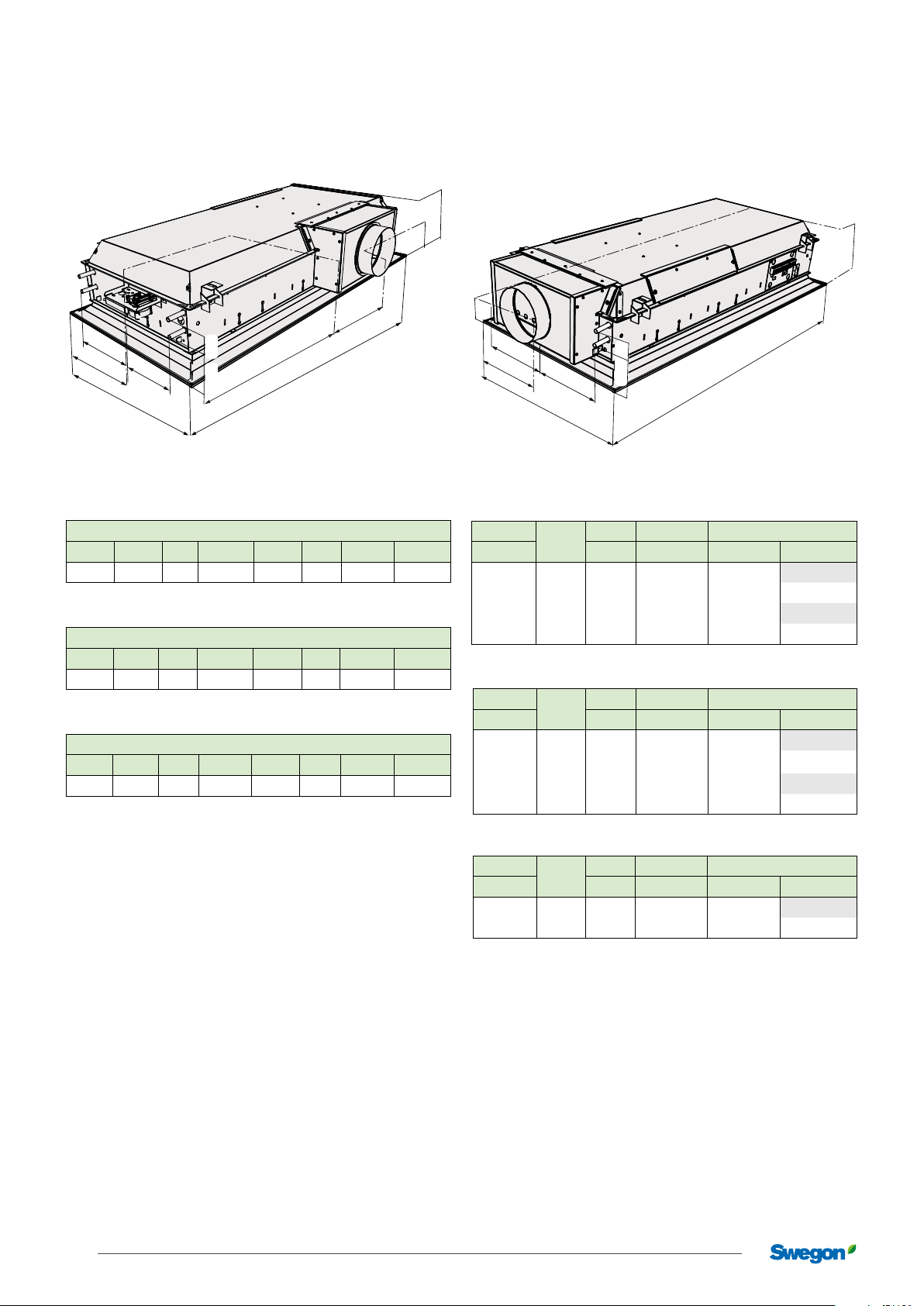

Dimensions and weights

E=C/2 F

B=A/2

8.3” 8.3”

4.1” 2”

Weight

Parasol Zenith VAV 600

Length Type (in) Dry weight Water volume (gal)

in Ø(lb) cooling heating

23.7 A4.9 28.9 0.29

23.7 B4.9 29.3 0.22 0.09

23.7 A6.3 30.2 0.29

23.7 B6.3 30.4 0.22 0.09

Parasol Zenith VAV 1800

Length Type (in) Dry weight Water volume (gal)

in Ø(lb) cooling heating

71.18 A7.9 79.1 1.0 -

71.18 B7.9 79.1 0.7 0.3

Weights above are excl.:

Control plate with terminal block (0.26 lbs).

Dimensions

Parasol Zenith VAV 600

Dimensions (in)

A B C ØD* E F G* H*

23.7 11.9 23.7 4.9/6.3 11.9 7.0 5.4/6.0 8.7/9.8

Parasol Zenith VAV 1200

Dimensions (in)

A B C ØD* E F G* H*

23.7 11.9 47.8 4.9/6.3 23.9 7.0 5.4/6.0 8.7/9.8

Parasol Zenith VAV 1800

Dimensions (in)

A B C ØD E F G H

23.7 11.9 71.8 7.9 35.9 18.8 6.8 11.4

* Dimensions refer to products with air connection 5" dia./6" dia.

Parasol Zenith VAV 1200

Length Type (in) Dry weight Water volume (gal)

in Ø(lb) cooling heating

47. 8 A4.9 52.4 0.63

47. 8 B4.9 52.4 0.47 0.18

47. 8 A6.3 54.2 0.63

47. 8 B6.3 54.2 0.47 0.18

4.1” 2”

B=A/2

8.3”

11/05/2021 Swegon reserves the right to alter specications

PARASOL Zenith VAVc

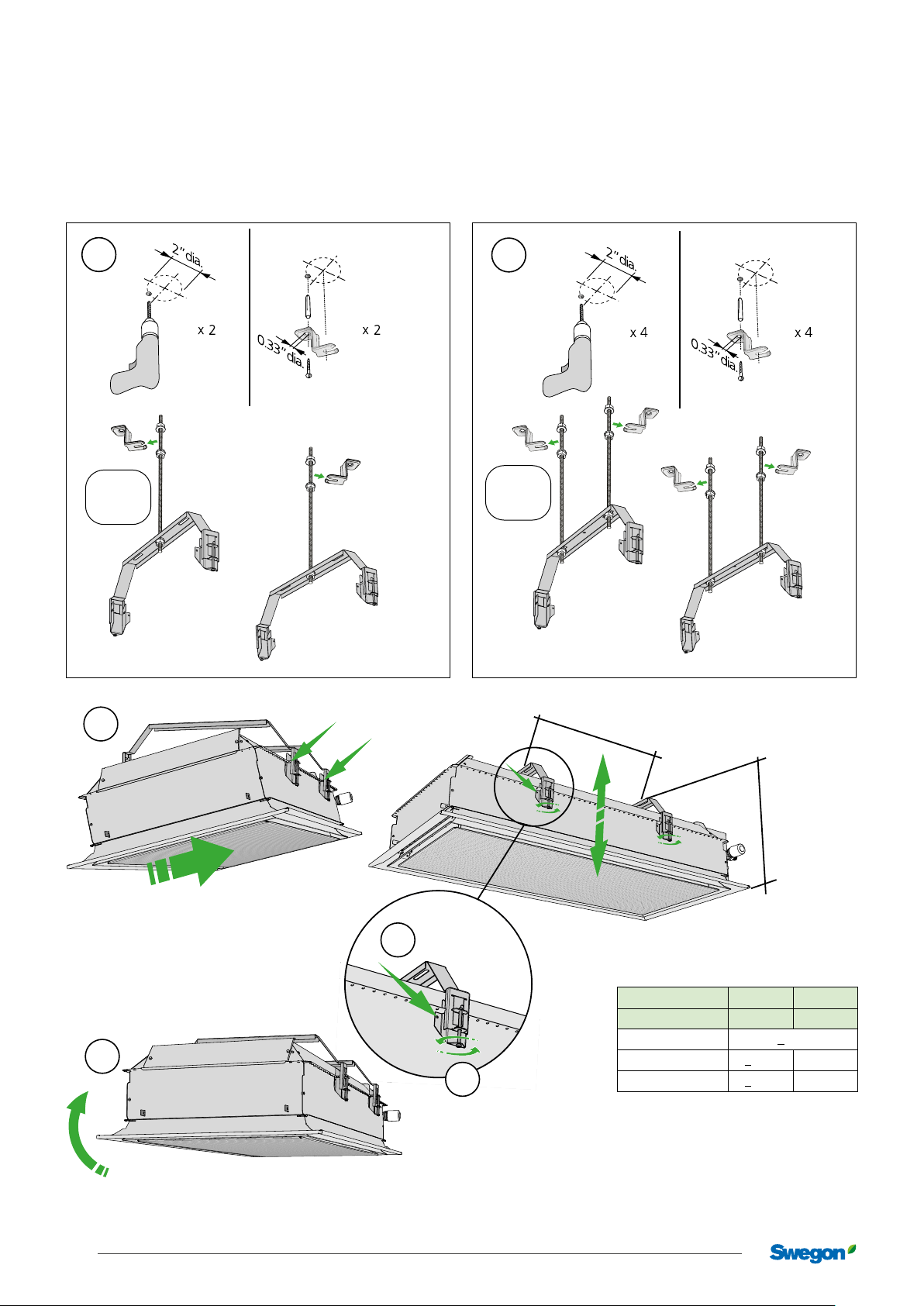

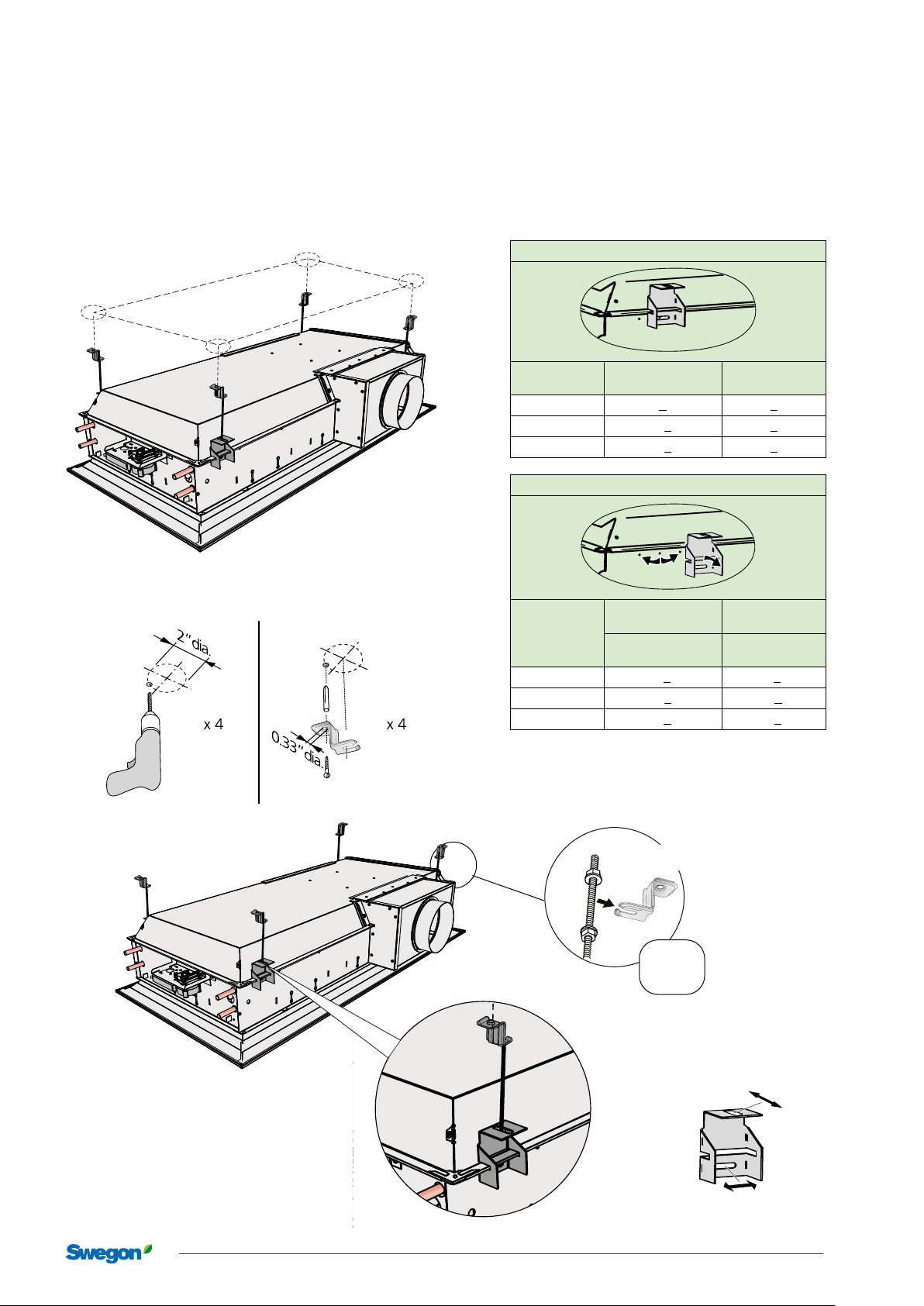

Suspension bracket

To mount the product on the ceiling using standard suspension bracket SYST MS

Installation

c - c measurement

Placement of the bracket on delivery

Unit model c - c (in)

c - c (in)

600 13 +0.4 20 +0.4

1200 36.6 +0.4 20 +0.4

1800 60.2 +0.4 20 +0.4

Alternative placement of the suspension bracket

A1 A2

Unit model Out towards the

corner

In towards the

centre

c - c (in)

X (A1)

c - c (in)

X (A2)

600 15.7 +0.4 10.3+0.4

1200 39.3 +0.4 33.9 +0.4

1800 62.9 +0.4 57.6 +0.4

0.79”

SYST MS

(1/4")

PARASOL Zenith VAVc

4Swegon reserves the right to alter specications. 11/05/2021

10.6 - 12.5

c - c

Accessory - Quick bracket

To mount the product on the ceiling with the accessory, quick bracket

c - c measurement

Air connection side Short side Long side

Unit model c - c (in) c - c (in)

600 <12.6

1200 <40.2 35.4-40.1

1800 <60.2 35.4-60.2

1A: Installation with one centred threaded rod per quick bracket.

1A 1B

1B: Installation with two threaded rods per quick bracket

(1/4")

11/05/2021 Swegon reserves the right to alter specications

PARASOL Zenith VAVc

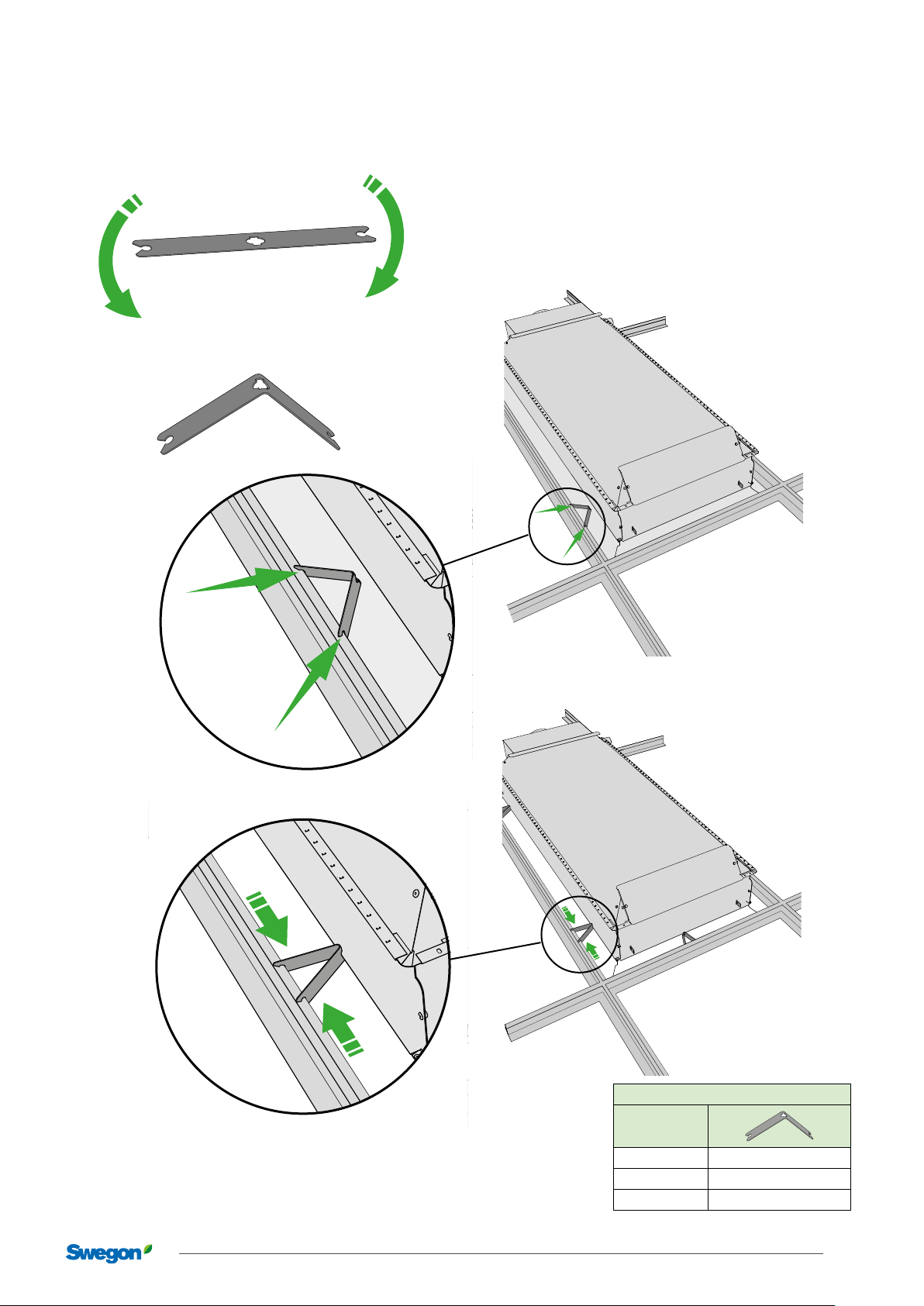

Accessory - Mounting in concealed T-bars

To centre the product when mounting in concealed T-bars.

90°

Recommended number of plates per product.

Unit model

600 4

1200 6

1800 6-8

PARASOL Zenith VAVc

6Swegon reserves the right to alter specications. 11/05/2021

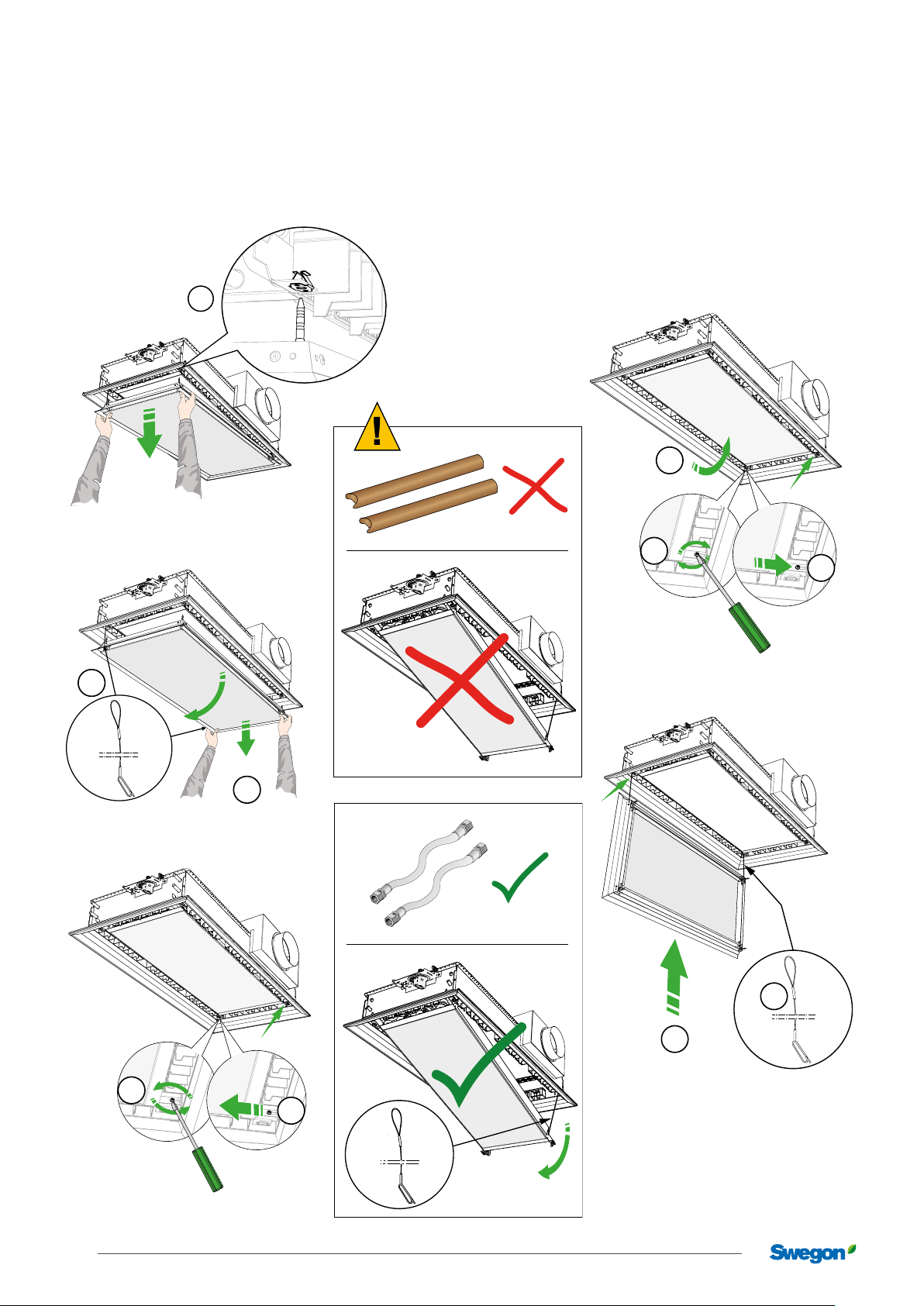

Accessory - Fold-out coil

PARASOL Zenith with fold-out coil (accessory) for easy access and cleaning when stringent demands are made on

hygiene. The accessory, fold-out coil, requires ﬂexible connecting hoses on the water side.

11/05/2021 Swegon reserves the right to alter specications

PARASOL Zenith VAVc

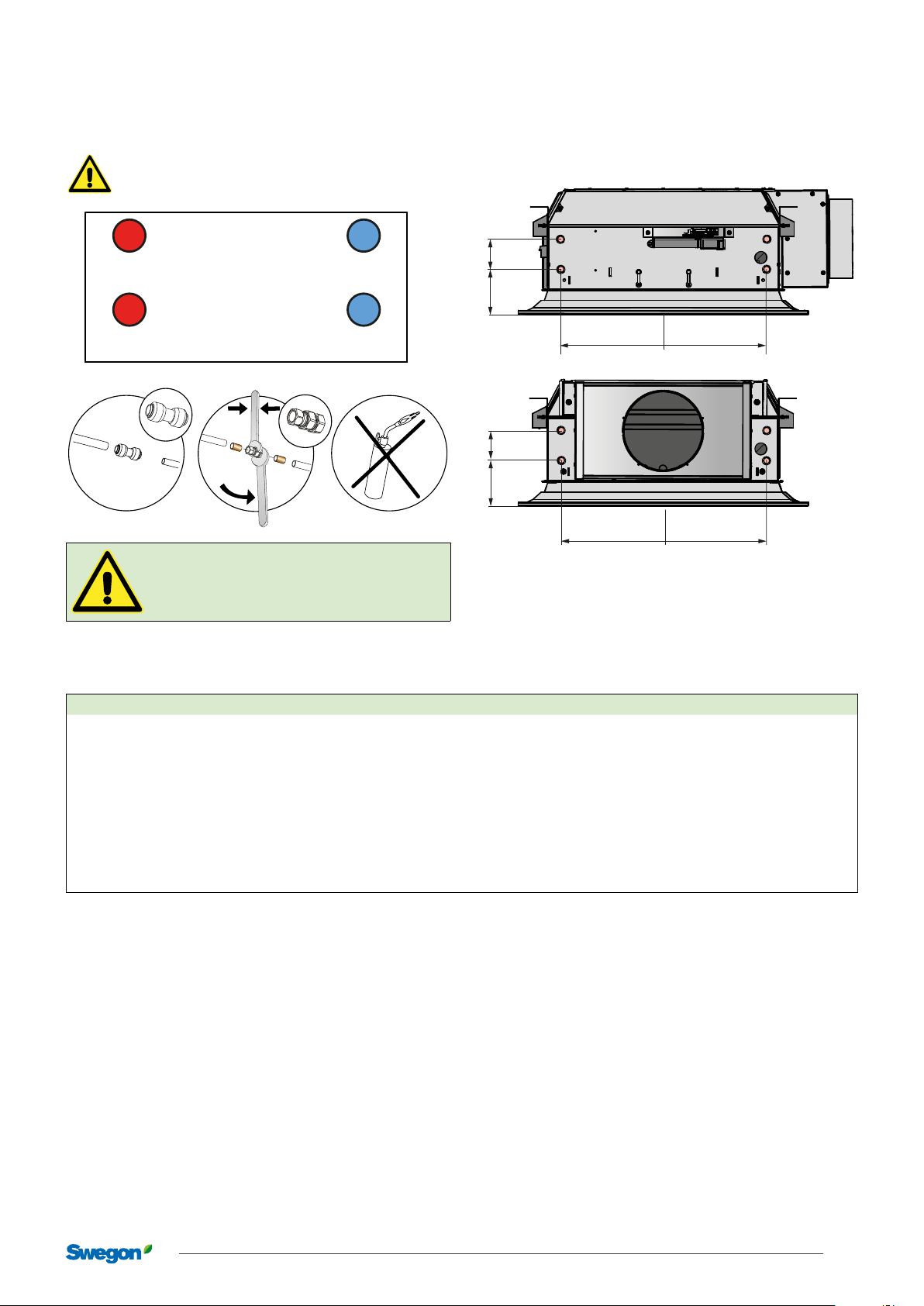

Water connection

PARASOL Zenith VAV 600 / 1200 / 1800

Important!



Värme retur/

Heating return

Kyla tillopp/

Cooling supply

Kyla retur/

Cooling return

Värme tillopp/

Heating supply

942256009

NOTE!

Use support sleeves inside the pipes together

with compression ring couplings.

Connection sizes

Model Length Chosen - factory-ﬁtted Connection Coupling type Connection Coupling type

ACooling only 600, 1200 Push on adapter mm to NPT Return ½ ”NPT(M) Male External thread Supply ½ ”NPT(M) Male External thread

BCooling/Heating 600, 1200 Push on adapter mm to NPT Return ½ ”NPT(M) Male External thread Supply ½ ”NPT(M) Male External thread

ACooling only 1800 Push on adapter mm to NPT Return ½ ”NPT(M) Male External thread Supply ½ ”NPT(M) Male External thread

BCooling/Heating 1800 Push on adapter mm to NPT Return ½ ”NPT(M) Male External thread Supply ½ ”NPT(M) Male External thread

ACooling only 600, 1200 -Return Plain pipe end 12 x 1.0 mm Supply Plain pipe end 12 x 1.0 mm

BCooling/Heating 600, 1200 -Return Plain pipe end 12 x 1.0 mm Supply Plain pipe end 12 x 1.0 mm

ACooling only 1800 -Return Plain pipe end 15 x 1.0 mm Supply Plain pipe end 15 x 1.0 mm

BCooling/

Heating 1800 -Return Plain pipe end 15 x 1.0 mm/

Plain pipe end 12 x 1.0 mm Supply Plain pipe 15 x 1.0 mm/

Plain pipe 12 x 1.0 mm

4.1” 2”

8.3”

4.1” 2”

PARASOL Zenith VAVc

8Swegon reserves the right to alter specications. 11/05/2021

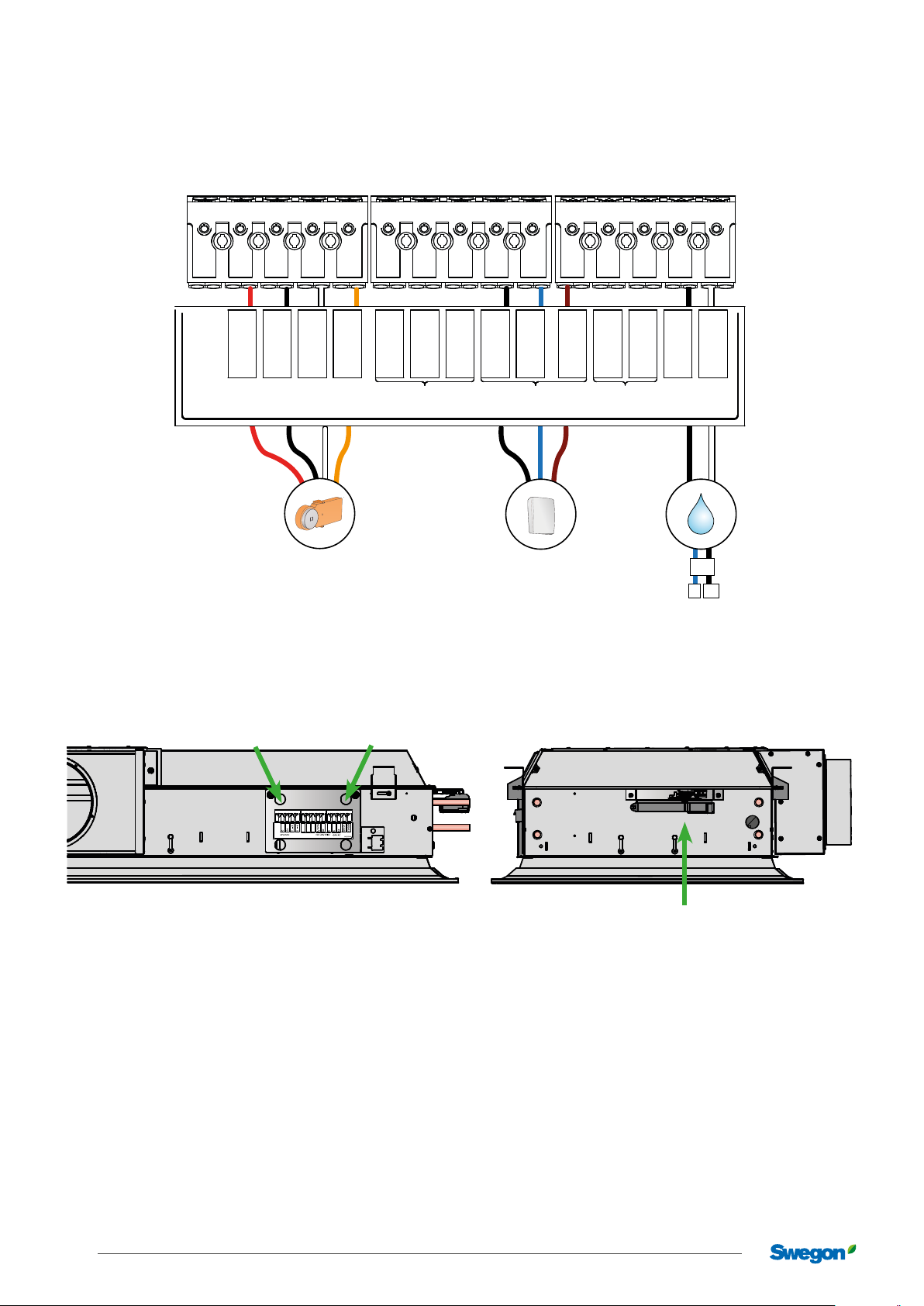

Wiring diagram

Wiring diagram for accessories

Inputs Outputs

Motor

24V

G0G

2-10V DC

SENSOR

CONDENS

24 V AC/DC CO2 24 V AC/DC ~24 V AC 942193009

–>

–<

11/05/2021 Swegon reserves the right to alter specications

PARASOL Zenith VAVc

Air connection

Connection sizes

Unit model Dim. Ø

5" 6" * 8"

600, 1200 Yes Yes No

1800 No No Yes

*requires adaptor collar supplied by Swegon

Alternative air connection side

1. Unscrew the screws from the sleeve and cover

2. Change the location of the sleeve and cover

3 - 4. Screw the sleeve and cover in position with screws on the new side

Symbol explanation

Water pipe

Motor

Terminal block

Air connection

Selectable air connection sides.

When ordering, depending on the length, it is possible to

choose connection side 1 2, 3 or 4, see the table and ﬁgure

below (view from above).

Unit model Side

1* 2 3 4

600 Yes No Yes No

1200 Yes Yes Yes Yes

1800 Yes Yes Yes Yes

600

1200

1800

1200

1800

1200

1800

1200

1800

600

PARASOL Zenith VAVc

10 Swegon reserves the right to alter specications. 11/05/2021

50 100 150 200 250 300 350 400 450

50 100 150 200 250 300 350

25 50 75 100 125 150 175

The right to design changes is reserved.

Current data according to product selection program.

818781-02degrees

10 20 30 40 50 60 70 80 90

1200

d125

600

d125

d160

1200

d160

1800

d200

q=k* max

k-factor PARASOL Zenith

50 100 150 200 250 300 350 400 450

50 100 150 200 250 300 350

25 50 75 100 125 150 175

The right to design changes is reserved.

Current data according to product selection program.

818781-02degrees

10 20 30 40 50 60 70 80 90

1200

d125

600

d125

d160

1200

d160

1800

d200

q=k* max

k-factor PARASOL Zenith

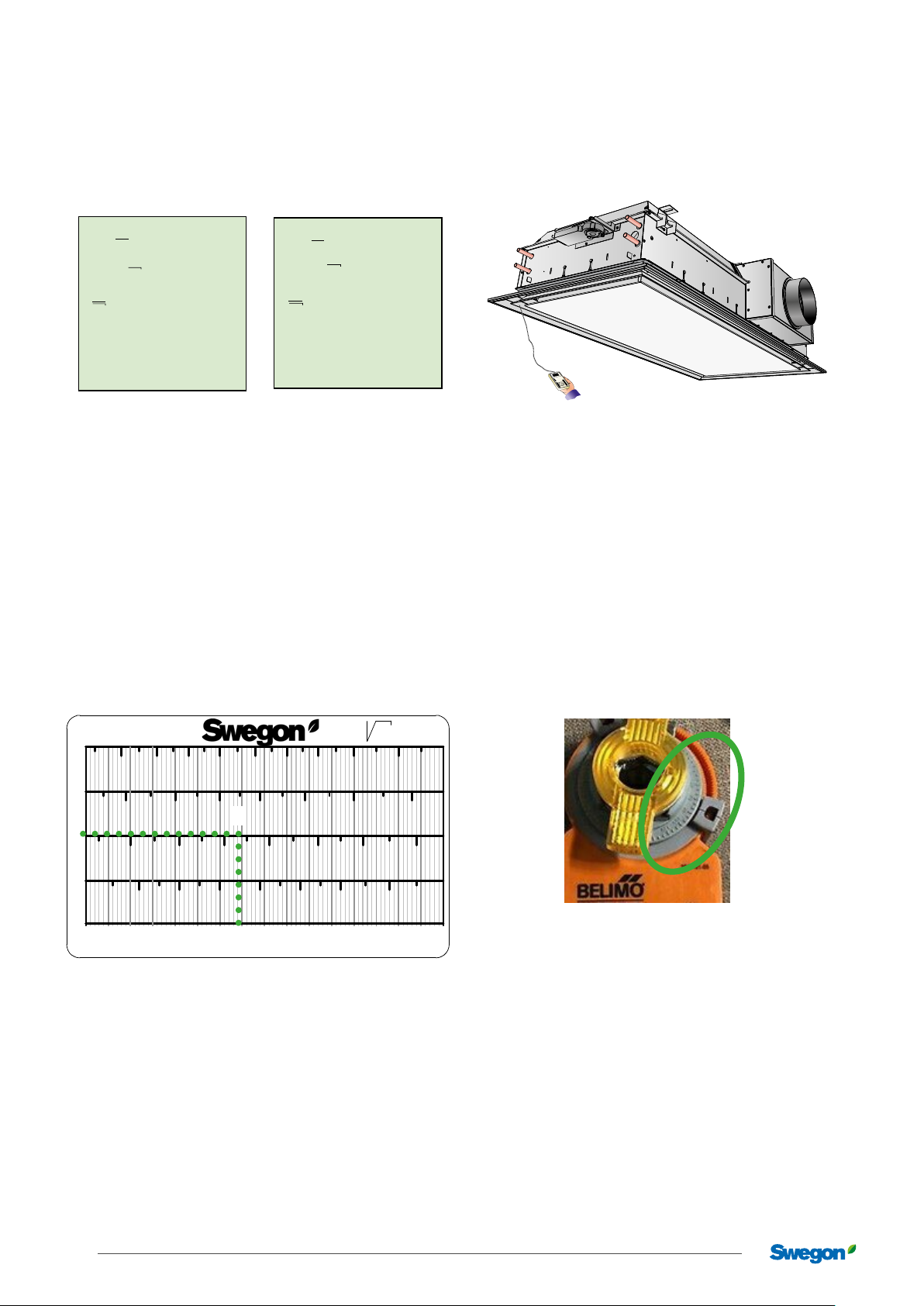

Commissioning

K-factor setting

K-factor setting for products ordered without motor

pi[in wg]

q [cfm]

k= k-factor

√

q = k· p [cfm]

√p = k

K-factor

Example below uses IP units

AFind the product’s length and air connection diameter from left-hand side of the k-factor table.

BRead the number of degrees on the motor.

CFollow the vertical row and read the actual k-factor.

K-factor table

pi= 0.4 in wg

pi= 100 Pa

p = [in wg]

i()

p = [Pa]

i()

pi[Pa]

q [l/s]

k= k-factor

√

q = k· p [l/s]

√p = k
