Swann CoreCam Pro Manual de usuario

CoreCam Pro Spotlight Camera

Cámara con Foco CoreCam Pro

Caméra de Projecteur CoreCam Pro

Telecamera con illuminazione CoreCam Pro

CoreCam Pro Scheinwerfer Kamera

EN Quick Start Guide ES Guía de inicio rápido FR Guide de démarrage rapide

IT Guida rapida DE Schnellstartanleitung

Model: SWIFI-COREPRO

CAMERA OVERVIEW

Threaded screw hole

(attaches to the included wall-mount bracket)

Pull rubber cap gently from the bottom to access:

• ON/OFF switch

• MicroSD card slot

32GB card pre-installed, Max. 128GB card supported

• Micro USB charging port

• Reset button

— Press and hold for 5 seconds to enter pairing mode

— Press and hold for 10 seconds to factory reset the camera

Microphone Speaker

QR code (for

device pairing)

Rubber cap

Passive infrared

motion sensor

LED indicator

Night detection

sensor

Infrared LEDs

(for night vision) Spotlight

Threaded

mounting post

Bracket screw hole (x3)

Locking knob

GETTING STARTED

Before using the camera for the first time, fully charge it with the included micro USB charging cable.

1Pull open the rubber cap on the bottom of the camera.

2Slide the ON/OFF switch to the ON position Note: You can also charge the camera with the

switch OFF but you won’t be able to check the LED indicator for the charging status.

3Insert the smaller end of the micro USB charging cable into the micro USB port on the camera.

4Insert the other end of the micro USB charging cable into a USB wall charger such as the USB

power adapter for your smartphone.

5The LED indicator on the front of the camera will turn solid blue indicating that the camera is

charging. When the camera is fully charged, the LED indicator will turn off. Actual charging times

may vary depending on the USB power supply (DC5V 2.1A is recommended for faster charging)

and the remaining battery level. A full charge may take up to 6 hours.

6 After charging is finished, unplug the micro USB charging cable from the camera and make sure

to close the rubber cap tightly to keep out water and dust.

The camera comes with a 32GB microSD card pre-installed for recording events and performing

firmware updates. You can easily replace the microSD card with a new one (max. 128GB card

supported), if needed in the future. Simply open the rubber cap on the bottom of the camera, eject

the current microSD card (push in until it clicks) from the microSD card slot, and then insert the new

microSD card (with the label side facing the front of the camera) into the slot until it clicks into place.

You should format the microSD card the first time it is used. From the Swann Security app, go to

Device Settings > [your camera] > Advanced Settings and tap Format.

Charging the camera

Replacing the microSD card

GET THE SWANN SECURITY APP

1Download the latest version of the Swann Security app from the Apple App Store® or Google

Play™ Store on your iOS or Android device. Simply search for "Swann Security".

2Open the app and create your Swann Security account by tapping “Not yet registered? Sign Up” at

the bottom of the screen. Then, activate your Swann Security account by confirming the verification

email that is sent to the registered email address.

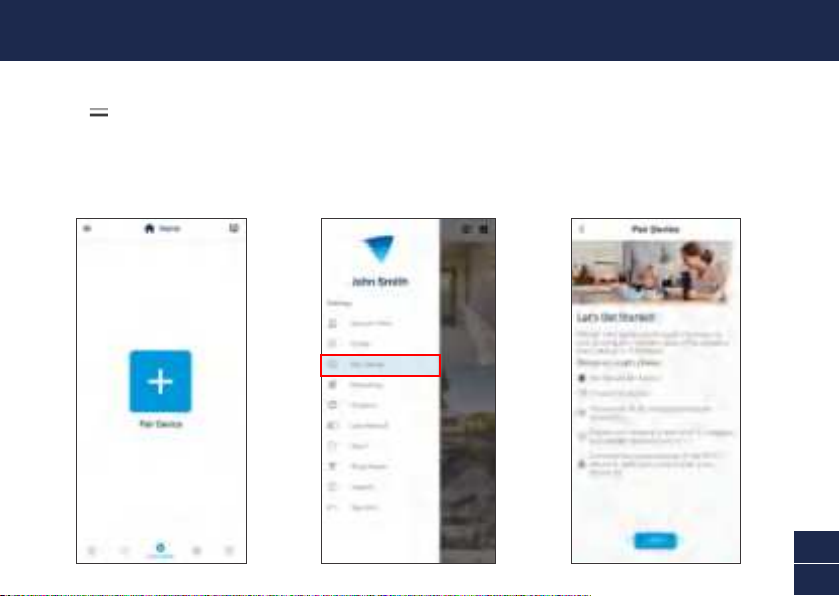

Launch the Swann Security app and sign in. Tap the Pair Device button on the screen (or tap the menu

icon in the top left and select “Pair Device”). The app will now guide you through the pairing process

to set up the camera with your Wi-Fi network.

Before you begin, have the camera with you and be close to your router. Please note that the camera

is only compatible with the 2.4GHz network. If your router is using the 5GHz band, please ensure it is

operating in mixed mode.

SET UP THE CORECAM

The camera can be conveniently placed on a table or shelf, or mounted on a flat surface using the

included bracket. Because the camera is completely wire-free, you’ll have a lot of flexibility on where you

can install it. Choose a location with strong, reliable Wi-Fi reception to ensure best video streaming and

battery performance. The easiest way to check is to use your smartphone. Connect your smartphone to

your Wi-Fi network at the spot you have chosen and see if you get 2 bars of Wi-Fi signal or more. As a

general rule, the nearer the camera is to your router, the better the wireless connection quality. If you’re

finding the wireless signal is too weak or out of range, consider installing a Wi-Fi range extender.

CAMERA PLACEMENT

Mounting the bracket

If mounting to a wooden surface, screw

bracket directly to the surface.

If mounting to a masonry surface (brick,

concrete), mark and drill holes, insert wall

plugs, and screw bracket to the surface.

Attaching the camera to the bracket

Screw the threaded hole at the bottom of the

camera onto the threaded post of the bracket

by turning the locking knob clockwise until the

camera is securely attached.

After installation, make sure to

remove the protective plastic film

covering the camera lens.

Adjusting the viewing angle

Loosen the adjustment ring slightly by

turning counter-clockwise. Swivel or tilt

the camera as needed then tighten the

adjustment ring to lock the position.

Download the Swann Security app manual for Android/iOS via the App Menu > User Manual to

learn more about using the Swann Security app to view camera live video, use 2-way talk, playback and

download motion recordings, check battery level, configure various camera settings including spotlight

duration, motion detection sensitivity, modes, and more.

Screens may vary slightly depending on the Swann Security app version (Android version shown above)

THE SWANN SECURITY APP MANUAL

MOTION DETECTION TIPS

Optimizing motion detection

• The camera’s passive infrared motion sensor

detects heat signatures of moving objects.

• You’ll generally get good detection results

by pointing the camera at an angle where

people will be moving across the coverage

area (i.e., from left to right or right to left, see

figure on the right) as the motion sensor is

less sensitive to movement of people walking

towards it.

• Avoid aiming the camera at areas surrounded by large trees and bushes that sway a lot in the

wind. This may cause false alerts during extreme weather conditions.

• The motion sensor sensitivity can be adjusted using the camera’s Detection Settings menu in

the app. As every home environment is unique, we recommend experimenting with the motion

sensor sensitivity settings to find out which works best for yours. Note that the higher the

motion sensitivity, the faster the camera’s battery will drain as more power will be required to

detect motion farther away.

• During night time when motion is detected, the camera’s built-in spotlight will automatically turn

on. You can configure how long the spotlight will stay on once a motion event is detected using

the camera’s Detection Settings menu in the app. You can choose from 30 seconds to up to 300

seconds. The spotlight can also be turned on manually using the Light icon on the camera’s live

view screen.

Less

sensitive

HELP AND RESOURCES

Have questions?

We’re here to help! Visit the Swann Help Center at support.swann.com.You can obtain dedicated

technical support for your product, find troubleshooting articles, participate in the community

forums, and more. You can also email us at any time for information and advice at: tech@swann.com

LED indicator guide

The LED light on the front of your camera helps inform you of what is happening with the device.

Rebooting the camera

On rare occasions, it might be necessary to reboot your camera if it becomes unresponsive. A simple

reboot can also fix connectivity issues quickly. To reboot the camera, open the rubber cap on the

bottom of the camera, slide the ON/OFF switch to the OFF position, wait for 60 seconds, then slide the

ON/OFF switch back to the ON position.

Solid Blue USB charging

Solid Red Live streaming / Motion recording

Slow Blinking Blue Wi-Fi Pairing mode

Fast Blinking Blue Connecting to Wi-Fi

Infrared LEDs Blinking Firmware update in progress

DESCRIPCIÓN GENERAL DE LA CÁMARA

Orificio de tornillo roscado

(para soporte de montaje de cámara)

Tire suavemente de la tapa de goma desde la parte inferior para acceder a lo siguiente:

• Interruptor ON (ENCENDER)/OFF (APAGAR)

• Ranura de la tarjeta microSD

tarjeta preinstalada de 32 GB, tarjeta compatible de 128 GB máx.

• Puerto de carga micro USB

• Botón de reinicio

— Mantenga presionado durante 5 segundos para entrar en el modo de vinculación

— Mantenga presionado durante 10 segundos para reestablecer los valores de

fábrica de la cámara.

Micrófono Altavoz

Código QR (para

emparejar el

dispositivo)

Tapa de goma

Sensor infrarrojo

pasivo de movimiento

Indicador LED

Sensor de detección

nocturna

Luces LED infrarrojas

(para visión nocturna)

Poste de

montaje roscado

Perilla de bloqueo

Agujero del tornillo del soporte (x3)

Foco
