SWAGTRON EB7 Elite Plus Manual de usuario
USER MANUAL
In order to continue serving our customers and providing the best products, our product information including our user manuals
may receive updates from time to time. Please check our website for the latest user manuals and product materials.
Ver. 1.0 7/24/19
Scan here to
download the
user manual
1ENGLISHSWAGTRON EB7 Elite Plus
PRODUCT SAFETY NOTICE
The SWAGTRON EB7 Elite Plus eBike has been designed with plenty of safeguards in place for its riders. Extra precautions have
been taken to protect the user from hardware malfunctions through our meticulous design and engineering.
Like any mode of transportation, however, the SWAGTRON EB7 Elite Plus has inherent hazards associated with its use (e.g., losing
control, falling off, or riding into hazardous situations). Be sure to read and follow all instructions and safety recommendations in
this user manual prior to and when riding your eBike.
Before each ride, especially before and after traveling long distances, inspect your bike. Check the tires for proper ination and
cracks on the tire walls. Keeping the tires properly inated and maintained will help prevent ats and maximize performance.
Second, check all cables and cable housings for fraying, breaks, rust, or corrosion and replace if necessary. Lastly, inspect the
brakes to make sure they are working properly. Additionally, check the brake pads for any damage as they will wear over time and
eventually need replacement.
If a replacement of the brake pads or any other part is needed, please contact customer support for replacement service. In
general, it is recommended to make sure all nuts and bolts are taut and properly fastened to prevent injury and unnecessary wear
and tear on your eBike.
Max. Rider Capacity 264 lb. / 120 kg
Max. Speed (Throttle-Only) 18.6 mph / 29.9 km/h
Range per Charge (throttle-only) Up to 19 mi / 30.6 km (mode 1)
Max. Incline (Throttle-Only) 25° (throttle only)
This device requires coordination, agility and balance. Use your best judgment to determine if an individual can use the
SWAGTRON EB7 Elite Plus eBike safely.
2
ENGLISH SWAGTRON EB7 Elite Plus
SAFETY GEAR, CLOTHING, AND FOOTWEAR Please wear appropriate clothing and safety gear including
shoes, kneepads, elbow pads and an ASTM F1492 approved
helmet.
Avoid wearing anything that can drape over or get caught
into/under the wheels. Wear closed-toe, at shoes to maintain
exibility and stability.
MODIFICATIONS AND REPAIRS The SWAGTRON EB7 Elite Plus is a highly sophisticated
electronics product that includes complex, technical circuitry.
Attempting to repair or modify your can void all warranties. Only
authorized repair centers may service the EB7 Elite Plus.
OBEY LOCAL LAWS AND REGULATIONS Always check and adhere to local laws regarding personal
transportation devices, including pedestrian laws.
The eBike is considered a motor vehicle and should not be
ridden after consuming alcohol or drugs.
By riding the SWAGTRON EB7 Elite Plus eBike, the user acknowledges and accepts personal responsibility of all risks
associated with the use of the SWAGTRON EB7 Elite Plus eBike, which may include, but are not limited to, muscle injuries,
broken bones, lacerations, or serious injury that may be sustained while using the SWAGTRON EB7 Elite Plus eBike.
3ENGLISHSWAGTRON EB7 Elite Plus
Section 1. General Information
Before operating your eBike, please read all instructions. This manual will guide you through the functions, usage, and proper care
of your EB7 Elite Plus. If you have any questions or cannot nd the information you need in the manual, please contact your place
of purchase or our customer service at 1-844-299-0625. Before contacting customer service, please have your purchase information
ready as this may be needed during the call.
When reading this manual, note these icons:
Notes with this icon MUST be read, understood, and obeyed to prevent injury or damage.
Notes with this icon include relevant information.
1.1 About the SWAGTRON EB7 Elite Plus
The EB7 Elite Plus is a compact, zero-emissions, personal
transportation device that feels like a bike but rides like a
moped! It's environmentally-friendly and built with premium-
grade components using industry-leading manufacturing
processes.
• Eco-friendly with zero emissions
• Folds at the frame, stem and pedals
• Offers powered speeds up to 18.6 mph
• Rechargeable, portable and durable
4
ENGLISH SWAGTRON EB7 Elite Plus

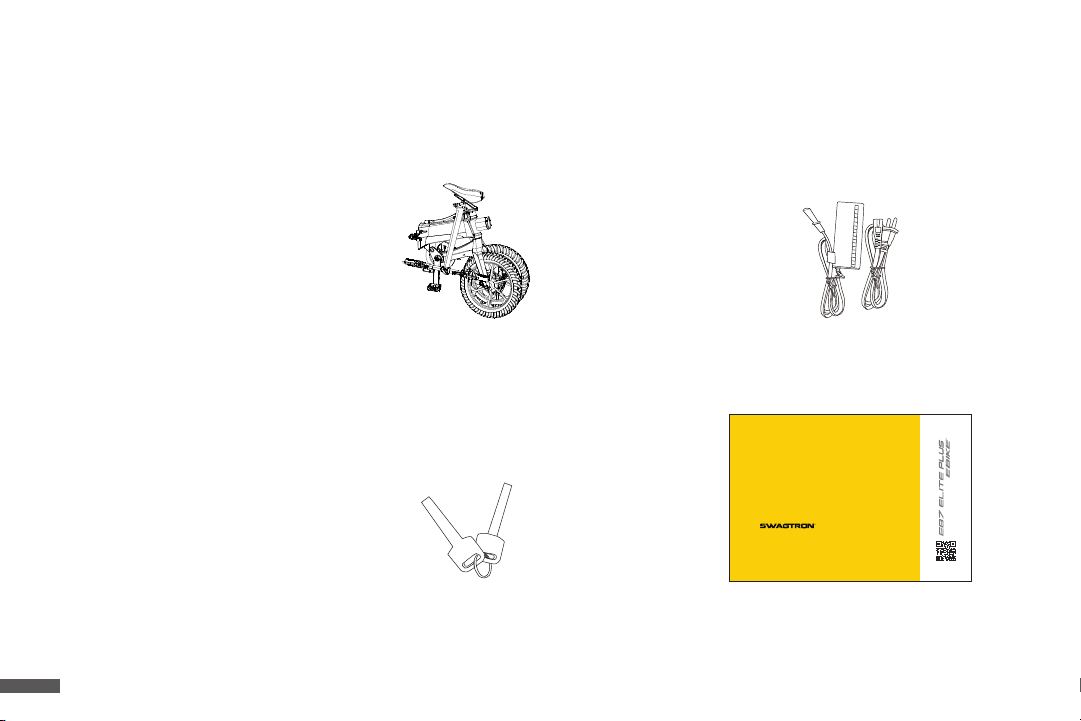

1.2 What’s In the Box?
• 1 x SWAGTRON EB7 Elite Plus eBike
• 1 x Charging Cable & Adapter
• 2 x Keys
• 1 x User Manual
User Manual x 1Keys x 2
Charging Cable & Adapter x 1SWAGTRON EB7 Elite Plus Electric Bike
x 1
USER MANUAL
In order to continue serving our customers and providing the best products, our product information including our user manuals
may receive updates from time to time. Please check our website for the latest user manuals and product materials.
Ver.1.0 7/24/19
Scan her e to
downloa d the
user manual
5ENGLISHSWAGTRON EB7 Elite Plus

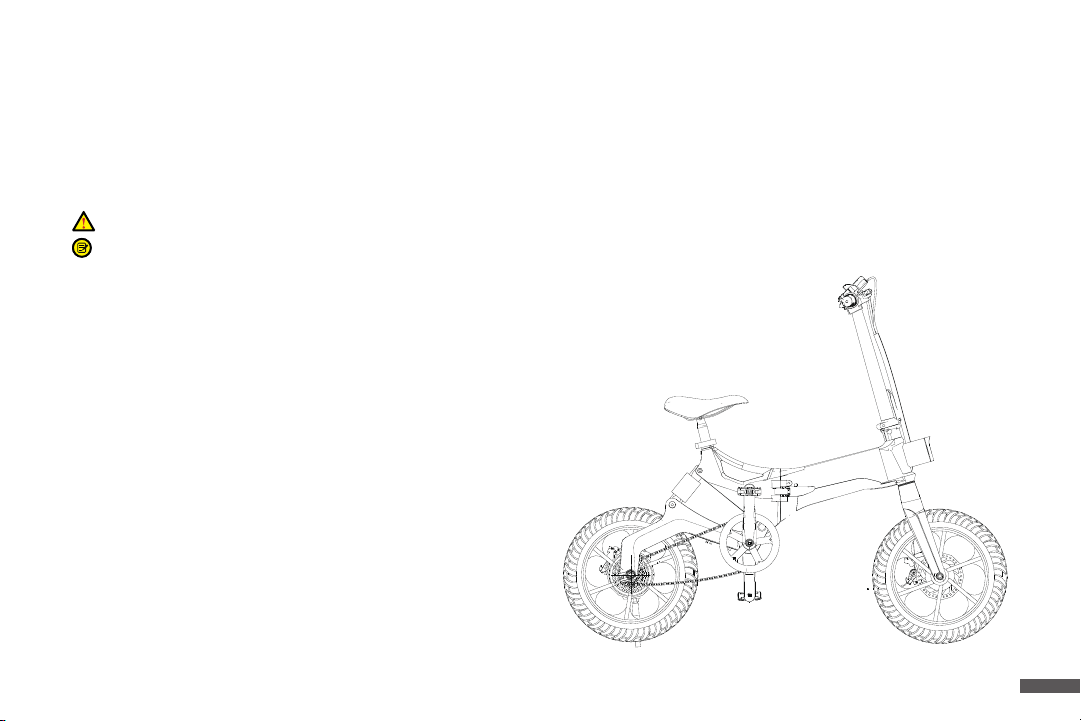

1.3 Product Overview
FRONT WHEEL
KICKSTAND
PEDAL
CHARGING PORT
MOTORIZED HUB
REAR WHEEL
SEAT CLAMP
STAND
SUSPENSION
SEAT
FRONT BRAKE
GEAR SWITCH
GEAR BUTTON
HANDLE CLAMP
STEM
THROTTLE
HORN
DISPLAY
REAR BRAKE
HEADLIGHT
LATCH BOLT
LATCH
6
ENGLISH SWAGTRON EB7 Elite Plus
Section 2. Assembling the Handlebar
Step 1. Pull the stem upright ( 1).
Step 2. Fold the latch up to close it. It will snap into place.
Step 3. Unmount the clamp on top of the stem ( 2), and put the handlebar onto the top of stem, then re-install the
clamp to x the handlebar onto the stem ( 3).
123
7ENGLISHSWAGTRON EB7 Elite Plus
Section 3. Handling Your eBike
3.1 Folding & Unfolding the Head
Be careful not to position your ngers between the latch and the stem. Doing so may result in injury.
To Unfold ( 4& 5):
Step 4. Pull the handlebar stem upright.
Step 5. Fold the latch up to close it. It will snap into place.
To Fold ( 6& 7):
Step 1. Locate the silver bolt in the side of the latch and pull
it up.
Step 2. While holding the bolt up, use your other hand to
unfold the latch by pulling it down away from the
stem. There is a notch on the other side of the latch
to make this easier.
Step 3. With the latch undone, fold the stem down.
45
Silver bolt
67
8
ENGLISH SWAGTRON EB7 Elite Plus
3.2 Folding & Unfolding the Frame
To Unfold the Frame
Unfold the rear wheel / section and keep your eBike upright with the kickstand. While holding
the latch lock up, push the latch closed. Make sure the hook end of the latch is secure and let
the latch lock turn down into the latch to lock everything in place. ( 8).
To Fold the Frame
While holding the latch lock up, use your other hand to open the latch by pulling it away from
the frame ( 8). Fold the rear wheel / section towards the other wheel and use the stand under
the frame as needed.
3.3 Adjusting the Handlebars
Unfold the clamp, then rotate and adjust the direction of the handlebars to a comfortable position ( 9). Secure the handlebars by
ipping the clamp closed (10).
8
Latch Latch Lock
10
9
Clamp
9ENGLISHSWAGTRON EB7 Elite Plus
3.4 Adjusting the Seat Height
Positioning the seat at the right height is key for better pedaling, safety and overall comfort. The rider’s leg length is used
to determine the seat’s position. When pedaling, your hips should remain level and your legs shouldn't over-extend. To
determine the right seat height, sit on the eBike with one pedal at its lowest point and place the ball of your foot on the
pedal. If your knee bends slightly at this position, the seat is at the right height. Additionally, when placing your heel on the
pedal, your leg should be nearly straight.

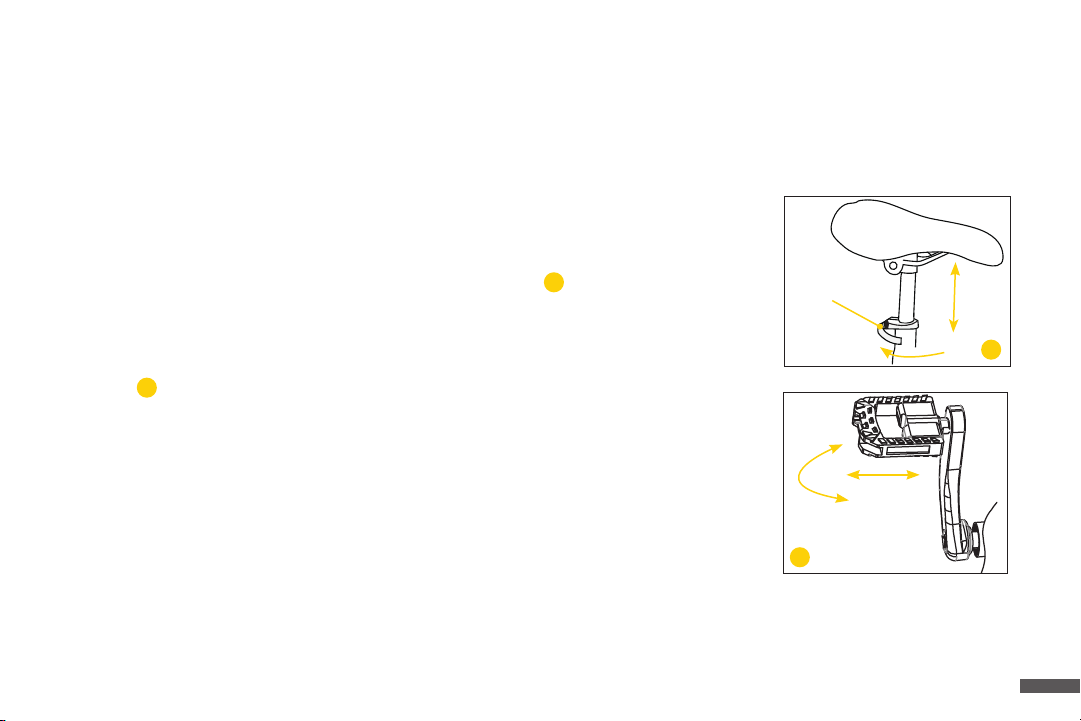

Open the clamp under the seat post. Pull the seat up or push it down to adjust height. Check
to make sure the seat post is fully inserted into the frame and the head of the seat is parallel
with the frame. Lastly, close the clamp to secure the seat in place (11).
3.5 Unfolding & Folding the Pedals
Holding the crank arm vertical, fold or unfold the pedal. Repeat with the other pedal as
needed (12).
Clamp
11
12
