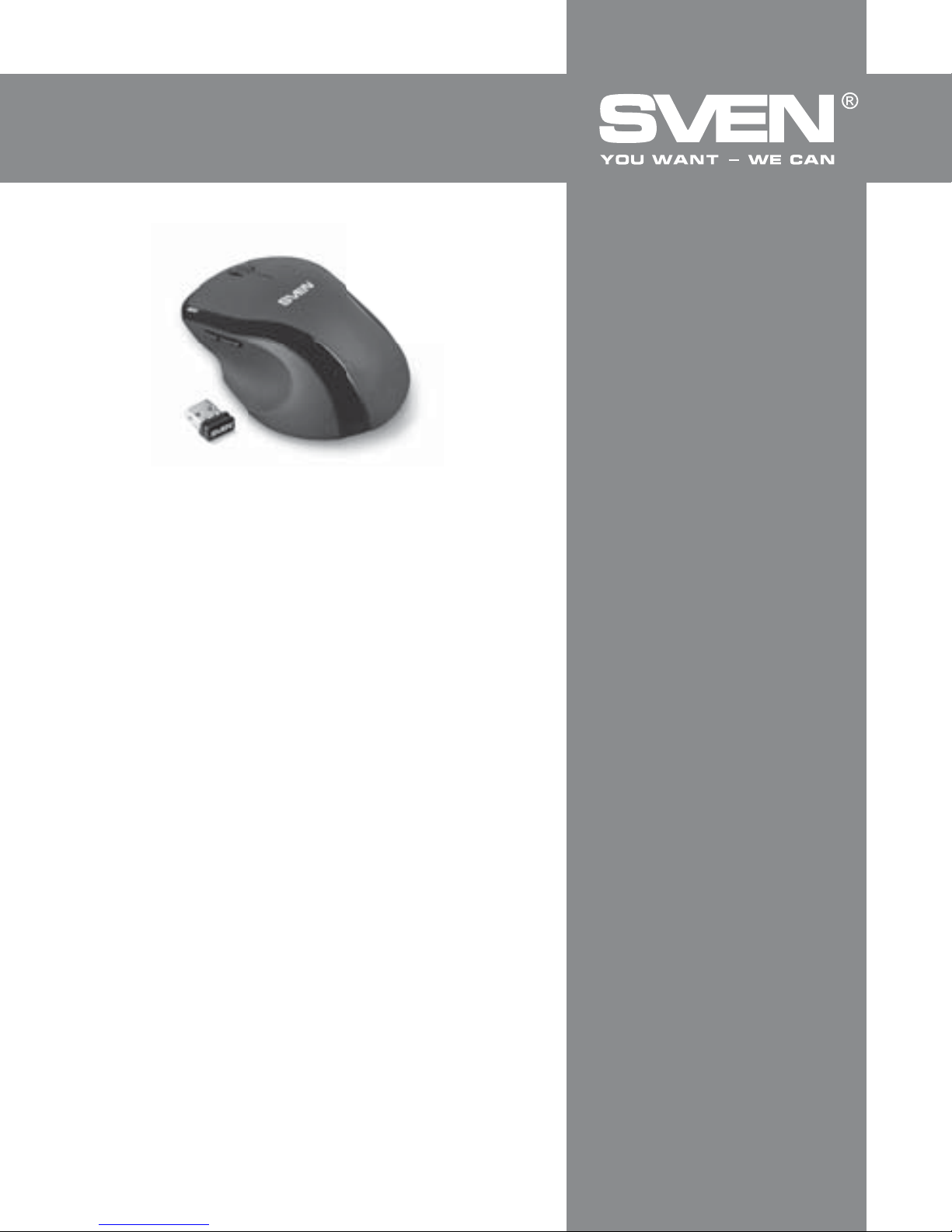

USER’S MANUAL
Wireless Optical Mouse
RX-440W
Technical support: www.sven.fi
ENG
1
User’s Manual
2
2
2
3
3
5
5
Congratulations on purchasing the SVEN PC mouse!
Please read the following User’s Manual carefully before connecting,
operating or adjusting this product. Besides, please keep this Manual in a
safe place for future reference.
COPYRIGHT
© 2014. SVEN PTE. LTD. Version 1.0 (V 1.0).
This Manual and information contained in it are copyrighted. All rights
reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted efforts to make this Manual more exact, some
discrepancies may occur. The information of this Manual is given on «as is»
terms. The author and the publisher do not bear any liability to a person or
an organization for loss or damages which have arisen from the information
contained in the given Manual.
СОДЕРЖАНИЕ
1. SPECIAL FEATURES ..................................................
2. PACKAGE CONTENTS ................................................
3. SYSTEM REQUIREMENTS ..........................................
4. DESCRIPTION .........................................................
5. INSTALLATION .........................................................
6. TROUBLE SHOOTING ................................................
7. TECHNICAL SPECIFICATION ........................................
RX-440W
ENG
2
Wireless Optical Mouse
1. SPECIAL FEATURES
•Full-sized mouse
•BlueLED advanced optical technology
•Power saving wireless technology
•Ergonomic mouse shape comfortable for the hand
• Effective on most surfaces
•High operating speed
•2.4GHz USB nano receiver included (range – up to 10 m)
•Additional Forward and Back navigation buttons
•800 dpi resolution
•USB interface
•2 AAA type batteries
•Soft Touch coating
•No drivers required for Windows XP/Vista/7/8
2. PACKAGE CONTENTS
•Optical mouse — 1 рс
•2.4 GHz USB nano receiver — 1 рс
•AAA type batteries — 2 рсs
•User’s Мanual — 1 рс
•Warranty card — 1 рс
3. SYSTEM REQUIREMENTS
•Windows XP/Vista/7/8.
•Free USB port.
ENG
3
User’s Manual
RX-440W
c
d
a
b
f
e
4. DESCRIPTION
aScroll wheel
bAdditional Forward and Back
navigation buttons
cOptical sensor
dBattery compartment
eUSB connector
fNano receiver
Fig. 1. Top view
Fig. 2. Bottom view Fig. 3. Nano receiver
5. INSTALLATION
•Open the cover of the mouse battery compartment d, insert two AAA
type batteries into the battery compartment, matching the polarity, and
close the cover of the battery compartment (see Fig. 4).
•Unpack the nano receiver fand connect it to an available PC USB port
(Fig. 5). To activate the mouse, it is necessary to press any button of the
mouse or scroll the wheel. If the mouse has been connected correctly, it will
turn on automatically.
ENG
4
Wireless Optical Mouse
Fig. 4. Batteries installation
2 × AAA type batteries
Battery
compartment
Battery cover
This device meets the highest standards of energy conservation.
During long pauses in operation the mouse enters the economical
Sleep mode. To enter the working mode, just press any button or
scroll the wheel.
Important
Improper installation of
batteries can result in failure
of the mouse!
•Do not place the receiver in a confined metal
space (table drawer, box, safe), as a metal
screen does not transmit radio signals.
•If the batteries run down, the mouse works
by fits. It means that the batteries should
be replaced with new ones, as it is shown
in Fig. 4. Always install only identical new
batteries.
Fig. 5. Receiver connection
7.
TECHNICAL SPECIFICATIONS
Parameter, measurement unit
OS compatibility
Type of mouse
Resolution, dpi
Q-ty of buttons
Interface
Operating range, m
Dimensions, mm
Weight, g
Value
Windows XP/Vista/7/8
Wireless 2.4 GHz
800
4 + 1 (scroll wheel)
USB
10
75 × 40 × 115
80.5
Notes:
• Technical specifications given in this table are supplemental information
and cannot give occasion to claims.
• Technical specifications are subject to change without notice due to the im-
provement of SVEN production.
6. TROUBLESHOOTING
Solution
1. Make sure that the nano receiver has
been inserted into the USB port and its
distance to the mouse is less than 10 m.
2. Check whether the batteries have been
installed correctly.
3. Check if the batteries have run down, re-
place them with new ones if necessary.
4. Address nearest authorized service
center.
Problem
The mouse does not work.
ENG
5
User’s Manual
RX-440W
Модель:
RX-440 Wireless
Импортер вРоссии: ООО «СКАНДИТРЕЛ», 111024,
РФ, г. Москва, ул. Авиамоторная, д. 65, стр. 1.
Уполномоченная организация вРоссии:
ООО «РТ-Ф», 105082, г. Москва, ул. Фридриха
Энгельса, д. 75, стр. 5.
Условия гарантийного обслуживания смотрите
вгарантийном талоне или на сайте www.sven.fi.
Гарантийный срок: 12 мес. Срок службы: 2 года.
Производитель: «СВЕН ПТЕ. Лимитед»,
176 Джу Чиат Роуд, №02-02, Сингапур, 427447.
Произведено под контролем «Свен Скандинавия
Лимитед», 48310, Финляндия, Котка,
Котолахдентие, 15. Сделано вКитае.
Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road,
№02-02, Singapore, 427447. Produced under the
control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie,
Kotka, Finland, 48310. Made in China.
® Registered Trademark of Oy SVEN
Scandinavia Ltd. Finland. RX-440W
Wireless Optical Mouse
