USER’S MANUAL

Wireless Optical Mouse

RX-420W

Technical support: www.sven.ﬁ

ENG

User’s Manual

Congratulations on purchasing the SVEN PC mouse!

Please read the following User’s Manual carefully before connecting,

operating or adjusting this product. Besides, please keep this Manual in a

safe place for future reference.

This Manual and information contained in it are copyrighted. All rights

reserved.

TRADEMARKS

All trademarks are the property of their legal holders.

NOTICE OF RESPONSIBILITY RESTRICTION

Despite the exerted eﬀorts to make this Manual more exact, some

discrepancies may occur. The information of this Manual is given on «as is»

terms. The author and the publisher do not bear any liability to a person or

an organization for loss or damages which have arisen from the information

contained in the given Manual.

СОДЕРЖАНИЕ

1. SPECIAL FEATURES ..................................................

2. PACKAGE CONTENTS ................................................

3. SYSTEM REQUIREMENTS ..........................................

4. DESCRIPTION .........................................................

5. INSTALLATION .........................................................

6. TROUBLESHOOTING ................................................

7. TECHNICAL SPECIFICATION ........................................

RX-420W

Standby mode 0.1 — 0.12 mА3 mА

Motionless 0.5 — 0.55 mА8 mА

During work 48 — 6 mА10 mА

1. SPECIAL FEATURES

•RF2.4GHz USB Nano-receiver (range – up to 10 m)

•High-precision optical technology. Eﬀective on most surfaces

•High speed operation

•4 + 1 buttons

•Scroll wheel

•Resolution 1000 dpi

•Interface USB

•2 AAA Alkaline type batteries

•Rubberized casing mouse

•Drivers installation not required for Windows XP/Vista/7/8

•Convenient for both right and left hands

•The perfect energy system increases the work of the battery

up to 6 months (see comparaison table)

2. PACKAGE CONTENTS

•Optical mouse — 1 рс

•2.4 GHz USB Nano-receiver — 1 рс

•AAA type batteries — 2 рсs

•User’s manual — 1 рс

•Warranty card — 1 рс

3. SYSTEM REQUIREMENTS

•Windows XP/Vista/7/8, Mac OS 10.4 or higher, Linux

•Free USB port

Sleeping mode 0.03 — 0.05 mА0.15 mА

Operating mode Other mousesRX-420W

ENG

Wireless Optical Mouse

ENG

User’s Manual

RX-420W

4. DESCRIPTION

aScroll wheel

bAdditional buttons

cOptical sensor

dBattery compartment

eNano-receiver

fConnector USB

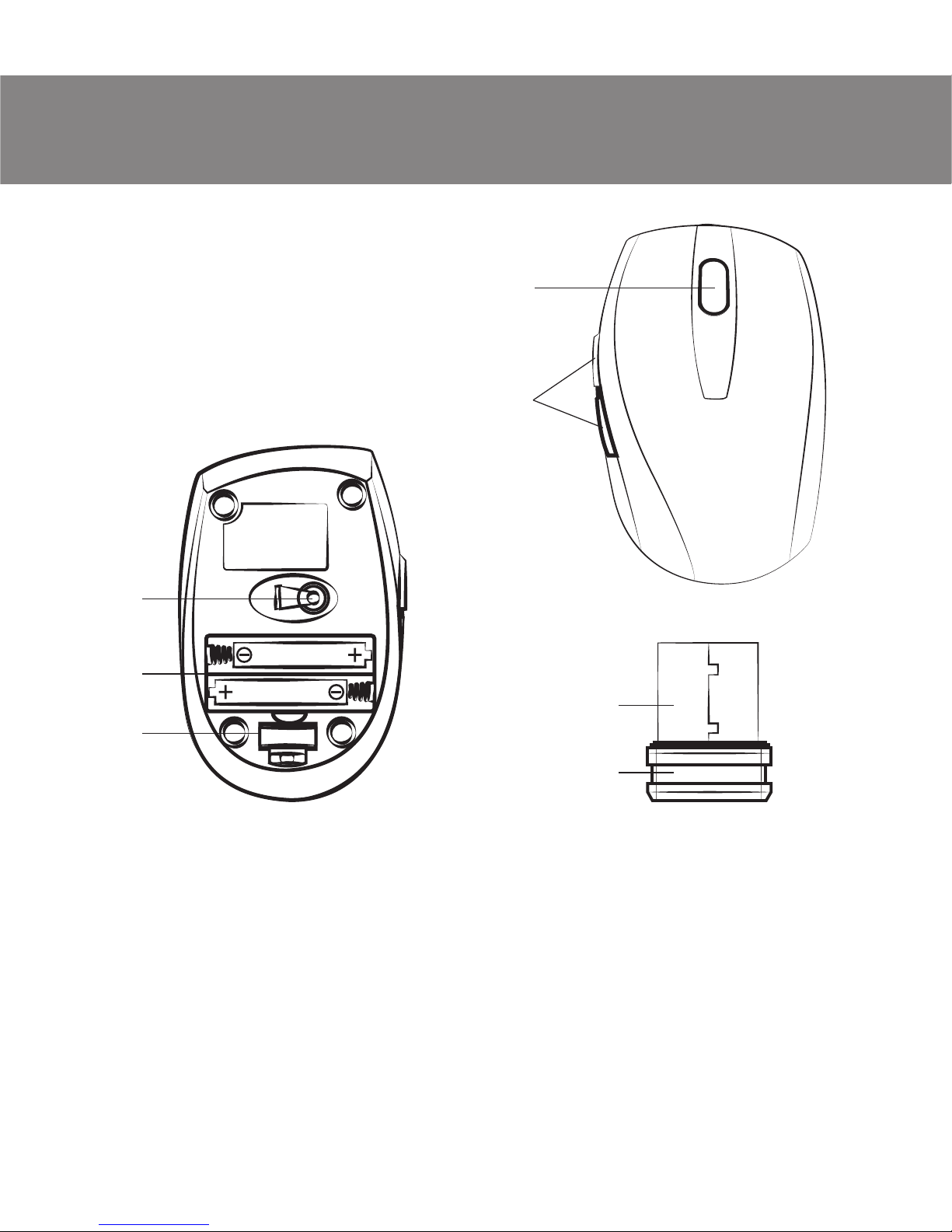

Fig. 1. Top view

Fig. 2. Bottom view Fig. 3. Nano-receiver

2,4 GHz

AAA

5. INSTALLATION

•Open cover of the mouse battery compartment d, insert two AAA type

batteries into the battery compartment matching polarity, and close the

cover of the battery compartment (see Fig. 4).

•Pull out Nano-receiver efrom mouse (Fig. 5) and connect it to a free PC

USB port not switching oﬀthe PC (Fig. 6). For mouse activation it is

necessary to press any button of the mouse or turn the scroll wheel. If

mouse has been connected correctly, it will turn on automatically.

2 хAAA

type batteries

Improper installa-

tion of batteries can

result in failure of

the mouse!

24 GHz

AAA

24 GHz

Fig. 4. Battery installation

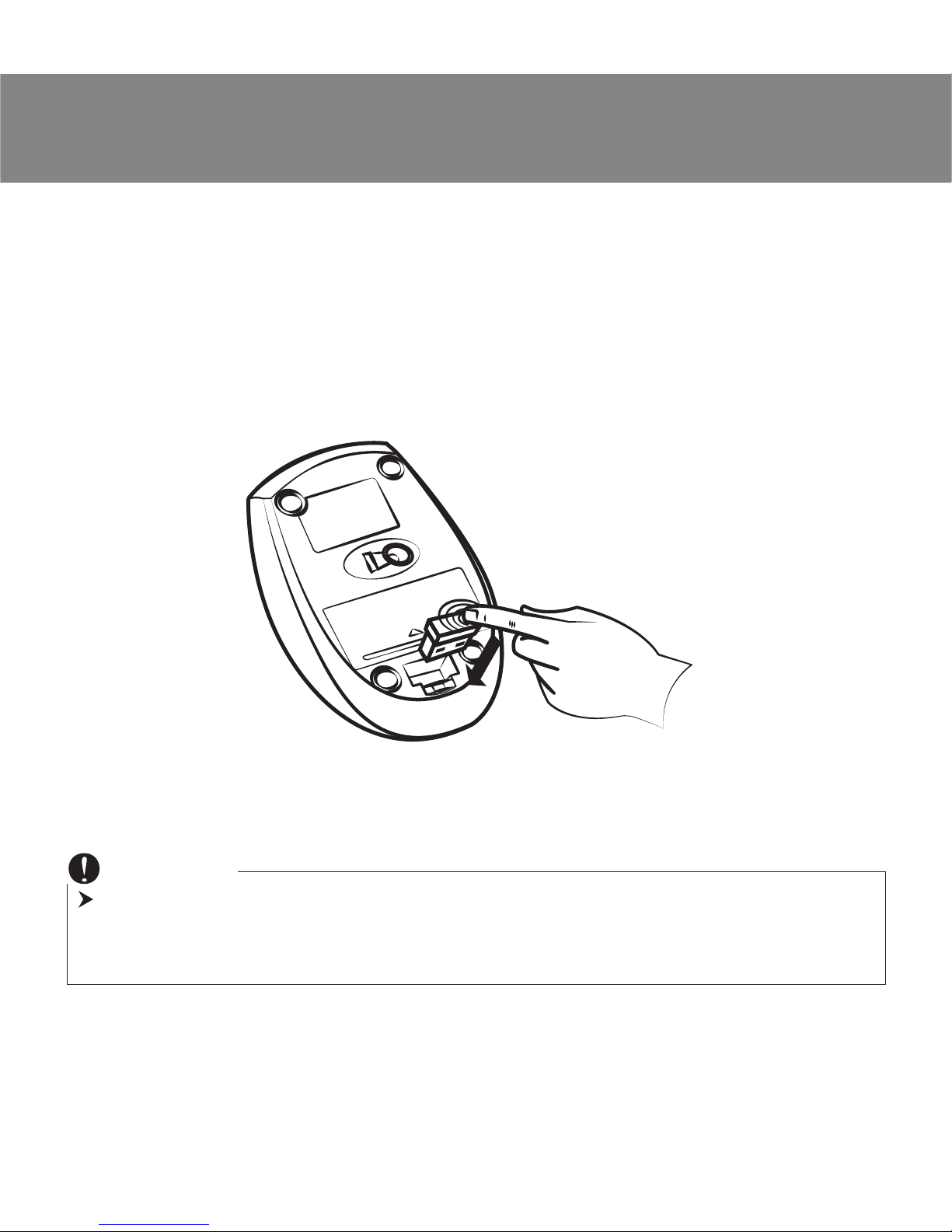

Fig. 5. Extraction of the receiver

from the mouse case

Fig. 6. Receiver connection

2,4 GHz

Battery com-

partment cover

Battery

compartment

ENG

Wireless Optical Mouse

This device meets highest standards of energy conservation. During

long pauses in mouse operation it enters economical sleeping mode.

To enter working mode just press any button or turn the scroll wheel.

Important

•After ﬁnishing work, receiver can be pulled out from PC USB port and

inserted back into mouse (Fig. 7).

•Do not place receiver in a metal conﬁned space (drawer of the table, box,

safe), as metal screen does not transmit radio signals.

•If batteries run down, mouse works in ﬁts and starts. It means that bat-

teries should be changed for new ones, as it is shown in Fig. 4. Always

install only new and same batteries.

Fig. 7. Setting of receiver

in the corps of mouse

2,4 GHz

ENG

User’s Manual

RX-420W

Notes:

•Technical speciﬁcation given in this table is supplemental infor-

mation and can not give occasion to claims.

•Technical speciﬁcation is subject to change without notice due to

improvement of SVEN production.

TECHNICAL SPECIFICATION

Parameter

OS required

Type of mouse

Resolution

Q-ty of buttons

Interface

Conformity with

Value

Windows XP/Vista/7/8

Wireless 2.4 GHz

1000 dpi

4 + 1

USB

FCC, CE

6. TROUBLESHOOTING

Solution

1. Make sure that Nano-receiver has been

inserted into USB port and its distance to

mouse does not exceed 10 m.

2. Check whether batteries have been

installed correctly.

3. Check whether batteries have not run down,

change batteries for new ones if necessary.

Install software to coordinate mouse and

receiver. Software can be downloaded from

«Support» on www.sven.ﬁ

Problem

Mouse is not working.

Batteries are in good order,

but mouse still is not

working.

ENG

Wireless Optical Mouse

Модель:

RX-420 Wireless

Импортер вРоссии: ООО «СКАНДИТРЕЛ», 111024,

РФ, г. Москва, ул. Авиамоторная, д. 65, стр. 1.

Уполномоченная организация вРоссии:

ООО «РТ-Ф», 105082, г. Москва, ул. Фридриха

Энгельса, д. 75, стр. 5.

Условия гарантийного обслуживания смотрите

вгарантийном талоне или на сайте www.sven.ﬁ.

Гарантийный срок: 12 мес. Срок службы: 2 года.

Производитель: «СВЕН ПТЕ. Лимитед»,

176 Джу Чиат Роуд, №02-02, Сингапур, 427447.

Произведено под контролем «Свен Скандинавия

Лимитед», 48310, Финляндия, Котка,

Котолахдентие, 15. Сделано вКитае.

Manufacturer: SVEN PTE. LTD., 176 Joo Chiat Road,

№02-02, Singapore, 427447. Produced under the

control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie,

Kotka, Finland, 48310. Made in China.

® Registered Trademark of Oy SVEN

Scandinavia Ltd. Finland. RX-420W

Wireless Optical Mouse
