Surveon CAM2300 Manual de usuario

CAM2300/CAM2320

Megapixel Box Indoor Network Camera

User Manual

Release 1.0

December, 2010

Surveon Network Camera User Manual

CAM2200/2400

AllRightsReserved©SurveonTechnology2010

No part of this publication may be reproduced, transmitted, transcribed,

stored in a retrieval system, or translated into any language or computer

language, in any form or by any means, electronic, mechanical, magnetic,

optical, chemical, manual or otherwise, without the prior written consent of

Surveon Technology Inc.

Disclaimer

Surveon Technology makes no representations or warranties with respect to

the contents hereof and specifically disclaim any implied warranties of

merchantability or fitness for any particular purpose. Furthermore, Surveon

Technology reserves the right to revise this publication and to make changes

from time to time in the content hereof without obligation to notify any

person of such revisions or changes. Product specifications are also subject to

change without notice.

Trademarks

Surveon and Surveon logo are trademarks of Surveon Technology Inc. All

other names, brands, products or services are trademarks or registered

trademarks of their respective owners

www.surveon.com

CAM2300/2320

Table of Contents

Table of Contents ............................................................................. 2

Chapter 1. Overview.......................................................................... 4

1.1. Network Camera Introduction ......................................................4

1.2. Network Camera Features...........................................................4

1.3. Network Camera Specifications ....................................................5

System Structure ..........................................................................7

1.4. Network Camera Hardware Installation ..........................................7

Chapter 2. Connecting to the Network Camera......................................... 8

2.1. Connecting with a Web Browser ...................................................9

Logging into the System for the First Time ......................................... 10

Installing Active X Components in Internet Explorer .............................. 11

Logging Out of the System ............................................................. 12

Using the Help Interface ............................................................... 12

2.2. Connecting with an RTSP Player .................................................13

Connecting with a Mobile Device RTSP Player...................................... 13

Chapter 3. Web Interface...................................................................14

3.1. Interface Layout.....................................................................14

Control Descriptions .................................................................... 15

3.2. Settings................................................................................17

General.................................................................................... 17

Basic Settings ....................................................................... 17

User Account ........................................................................ 19

Date & Time......................................................................... 22

Network................................................................................... 23

Network Configuration............................................................. 24

Port Settings......................................................................... 25

UPnP.................................................................................. 26

Video & Audio Settings ................................................................. 27

Surveon Network Camera User Manual

CAM2200/2400

Basic Settings ....................................................................... 27

Image Appearance.................................................................. 28

Video Streams....................................................................... 32

Audio Settings....................................................................... 34

PTZ......................................................................................... 35

Recording ................................................................................. 36

Recording Basic Settings .......................................................... 36

Recorded File Management....................................................... 37

Event Notification....................................................................... 39

Event Server......................................................................... 39

Motion Detection ................................................................... 41

Tampering Detection .............................................................. 42

Tampering Detection .............................................................. 43

DI & DO............................................................................... 44

Event Settings....................................................................... 46

System..................................................................................... 52

MicroSD Card Management........................................................ 52

System Status ....................................................................... 53

System log ........................................................................... 54

Firmware Upgrade.................................................................. 55

Reset to Factory Default .......................................................... 56

Export/Import & Reboot .......................................................... 57

www.surveon.com

CAM2300/2320

Chapter 1. Overview

1.1. Network Camera Introduction

CAM2300 and CAM2320 are professional IP network cameras that use Internet

Protocol (IP) to transmit video streams and control signals over networks. Capable

of operating over both LANs and WANs, they provide a complete budget-conscious

remote surveillance solution that are ultra clear and highly integrated.

CAM2300/2320 combine a user-friendly interface and simplified installation with a

powerful feature set, including Motion Detection and Tampering Detection to

provide users an easy upgrade path to new digital surveillance system in a virtual

environment. These highlights make CAM2300/2320 ideal choices for environments

that require remote surveillance or video transmission.

1.2. Network Camera Features

Supports up to 10 simultaneous users

Built-in web server to allow real-time remote surveillance and control

using standard web browsers

Built-in microSD card slot for local backup

Supports dynamic IP, LAN, and the Internet (ADSL, Cable modem)

Supports most network protocols including: HTTP, TCP/IP, SMTP, DDNS,

DNS, DHCP, FTP, RTSP,CIFS, PPPoE

Supports 2-way audio

Automatically adapts image compression rate to available bandwidth

Provides signal loss and motion-detection alerts (adjustable area and

sensitivity level)

Supports most PTZ camera protocols

Supports image recording and still image capture

Self-recovery feature automatically re-establishes broken network

connections.

Surveon Network Camera User Manual

CAM2200/2400

1.3. Network Camera Specifications

CAM2300 CAM2320

Image sensor 1/3” 2 megapixel progressive scan

CMOS 1/3” 3 megapixel progressive

scan CMOS

Lens Changeable (CS/C mount)

WDR N/A Yes

Day/Night ICR N/A

IR LED N/A

Min illumination 0.5 Lux @ F1.0, 2856°K

Iris control DC drive

Shutter time 1/5 ~ 1/15,000 s

Video

compression H.264/MPEG-4/MJPEG

Resolution Up to 1920 x 1080 Up to 2048 x 1536

Frame rate

30 fps at Full HD (1920 x 1080), 30

fps at SXGA (1280 x 1024),

30 fps at HD720 (1280 x 720),

30 fps at VGA (640 x 480),

30 fps at QVGA (320 x 240)

15 fps at QXGA (2048 x 1536),

30 fps at Full HD (1920 x 1080),

30 fps at SXGA (1280 x 1024),

30 fps at HD720 (1280 x 720),

30 fps at VGA (640 x 480),

30 fps at QVGA (320 x 240)

Video stream Dual simultaneous streams at H.264, MPEG-4, and MJPEG

Bit rate 32K ~ 10Mbps, VBR, CBR, controller frame rate and quality

Video control AGC (Auto Gain Control), AWB (Auto White Balance), BLC (Back Light

Compensation), image adjustment

Intelligent video Motion detection, tampering detection (blocked, redirected,

defocused, or spray-painted) (Phase II)

Video jack N/A

Built-in MIC N/A

Audio

compression 32KHz, ADPCM

Audio input 3.5mm phone jack

Audio output 3.5mm phone jack

Alarm in 2, terminal block

Alarm out 1, terminal block

AUX Power Output 12VDC 400mA

Video buffer 5 second pre-alarm, 30 second post-alarm (Phase II)

Event action Send snapshot or video clip by FTP or email, record to NAS, record to

local storage, trigger DO (Phase II)

Supported

protocols IPv4, ARP, TCP, UDP, ICMP, DHCP, HTTP, UPnP, RTSP, RTCP

(NTP, DDNS, SMTP, FTP, CIFS, PPPoE, 3GPP in Phase II)

www.surveon.com

CAM2300/2320

CAM2300 CAM2320

Ethernet 10/100 Base-T / RJ45

10/100 Base-T / RJ45

Local storage microSD/SDHC x 2

(Class 4/Class 6 only)

RS-485 1 (2 pin on terminal block)

USB N/A

SDK Surveon SDK 2.0

OS Microsoft Windows XP/Vista/7

Browser Microsoft IE 6.0 or above

Software Surveon VMS 2.4

Temperature Operation: -10°C~ 50°C (14°F~122°F)

Storage: -30°C ~ 60°C (-22°F~140°F)

Humidity 5 to 90%

Power 12VDC 1.5A；PoE (IEEE 802.3af) with Class 3

Power

consumption Max. 7W without AUX PW

Dimension

(WxHxD) 74.95mm x 59.3mm x 153.5mm (2.95" x 2.34" x 6.04")

Weight Net: 435g (0.96 lb)

Gross: 1085g (2.4 lb)

Certification Safety: LVD

EMC: FCC, CE

Surveon Network Camera User Manual

CAM2200/2400

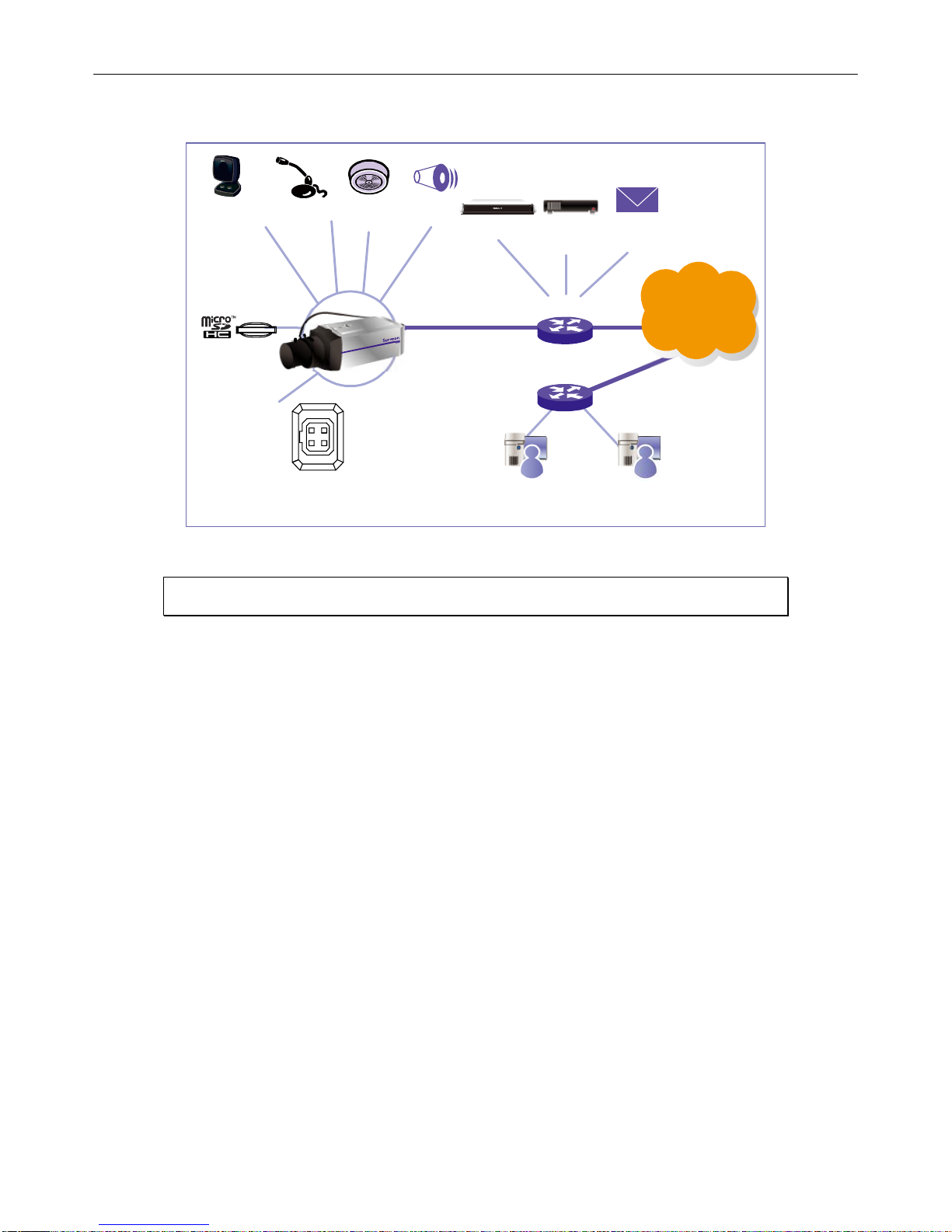

System Structure

1.4. Network Camera Hardware Installation

Before the network camera is configured:

1. Install the camera in a suitable spot. The camera should have an

unobstructed view of the area to be surveyed.

2. Connect the camera to a power source. CAM2300/2320s can accept

power from a power adapter or from Power over Ethernet enabled

switches.

3. Connect the camera to a switch using an Ethernet cable. The Ethernet

port is located on the rear of the camera.

Router

NAS FTP

Server Email

Server

AlarmSmoke

Detector

Microphone

Speaker

microSD

Remote Client 2

(Browser)

Remote Client 1

(Browser)

Router

Internet

DC-Iris

www.surveon.com

CAM2300/2320

Chapter 2. Connecting to the

Network Camera

This section demonstrates how to connect to the network camera through two

methods:

•Web Browser – A simple web-based interface. Internet Explorer is the

recommended web browser for use with Surveon network cameras, and

our examples will be from this browser. Usage on other browsers will

be similar.

•RTSP Player – These include common streaming media players, such as

RealPlayer or Quicktime Player. These players can provide live view of

the camera using the Real-Time Streaming Protocol (RTSP).

Otros manuales para CAM2300

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara de seguridad de Surveon

Surveon

Surveon CAM4xxx Series Manual de usuario

Surveon

Surveon CAM6120 Manual de usuario

Surveon

Surveon CAM12 Series Manual de usuario

Surveon

Surveon CAM1471H2-2 Manual de usuario

Surveon

Surveon CAM5130 Manual de usuario

Surveon

Surveon CAM6160 Manual de usuario

Surveon

Surveon CAM2300 Manual de usuario

Surveon

Surveon CAM4220 Manual de usuario

Surveon

Surveon CAM4260 Manual de usuario

Surveon

Surveon CAM3365 Manual de usuario

Surveon

Surveon CAM6471LZ Manual de usuario

Surveon

Surveon CAM42xx Series Manual de usuario

Surveon

Surveon CAM5210 Manual de usuario

Surveon

Surveon CAM2441HI Manual de usuario

Surveon

Surveon CAM2200 Manual de usuario

Surveon

Surveon CAM2 Series Manual de usuario

Surveon

Surveon CAM2441HC-5 Manual de usuario

Surveon

Surveon CAM3365 Manual de usuario

Surveon

Surveon CAM3471HEM-5 Manual de usuario

Surveon

Surveon CAM4110 Manual de usuario

Surveon

Surveon CAM4310 Manual de usuario

Surveon

Surveon CAM3351 Manual de usuario

Surveon

Surveon CAM2100 Manual de usuario

Surveon

Surveon CAM13XX Series Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
