Sure Electronics T-AMP Manual de usuario

4 X 100Watt Class D Audio

Amplifier Board – T-AMP

User’s Guide

4 X 100Watt Class D Audio Amplifier Board – T-AMP

Note:

Please read this manual carefully before you use the product. To keep the product in a best working condition

and having a long service time, please operate it according to the relevant steps. The warranty lapses if the

product is damaged because of incorrect use and your negligence.

Please read this manual carefully before you use the product and check if the product is a good one. DC36V

is recommended to be used to power the product for one hour. Please make sure there’s space for heat

dissipation since this product outputs high power and don’t touch the heat sink with your hand. Never use this

product in an extreme condition.

Warning: Never immerse the product in the rain or any other humid environment to prevent the fire or

electric shock.

Safety Precautions:

1. In order to achieve a better sound quality, please use stable power supply since a bad or unstable power

supply may worsen the sound quality or even cripple the amplifier board.

2. Avoid metal objects. Protect this product well and move away metal objects from this product.

4 X 100WATT CLASS D AUDIO

AMPLIFIER BOARD - T-AMP

USER’S GUIDE

Table of Contents

Chapter 1. Overview ..........................................................................................................1

1.1 Overview.............................................................................................................. 1

1.2 Accessories......................................................................................................... 1

1.3 Features............................................................................................................... 2

1.4 Applications......................................................................................................... 2

1.5 Benefits................................................................................................................ 2

1.6 Quick Start........................................................................................................... 2

Chapter 2. Hardware Detail ...............................................................................................4

2.1 Power Connection............................................................................................... 4

2.2 Input Connections............................................................................................... 5

2.3 Output Connections............................................................................................ 5

2.4 DC Offset.............................................................................................................. 6

2.5 LED Indicators..................................................................................................... 6

2.6 Volume Control.................................................................................................... 7

2.7 Notes.................................................................................................................... 7

Chapter 3. Electrical Characteristics ...............................................................................8

Chapter 4. Mechanical Drawing........................................................................................9

Chapter 5. Contact Us .....................................................................................................10

4 X 100Watt Class D Audio Amplifier Board - T-AMP

AA-AB33182_Ver1.0_Page ii

NOTES:

Product Version ：Ver 2.2

Document Version ：Ver 1.0

4 X 100WATT CLASS D AUDIO

AMPLIFIER BOARD - T-AMP

USER’S GUIDE

1.1 Overview

Welcome to use this self-made 4*100W audio amplifier board which is a perfect class-D

architecture integrated with Tripath’s high performance TC2000 and TP2050 chips

supporting dual channel audio amplification. Powered by any DC voltage from 10V to 30V,

this high efficiency amplifier board is capable of outputting up to 100W per channel. It can

be used to drive 4Ωor 8Ωpassive speakers. With high efficiency, it especially is available

for the outdoor venues where power supply is always in consideration.

TC2000 is a dual channel audio controller produced by Tripath using its patent Digital

Power Processing technology (DPPTM). Combined with switching power output stages

TP2050, it can achieve class-T audio power amplification, as well as lower THD+N and

higher S/N ratio.

For 100W power output, this amplifier board integrates one TC2000 chips and two TP2050

chips so that it supports dual-channel audio amplification of up to 100W each. Resistance

and capacity components of high quality are used to gain the perfect timber, finally realize

high S/N ratio, low THD+N, wide frequency response range etc.

FIGURE 1-1 OVERVIEW

Note: All the diagrams in this manual are for reference only.

1.2 Accessories

We don’t provide audio accessories together with this product. Please go to

www.sure-electronics.com to choose what you need.

Chapter 1. Overview

4 X 100Watt Class D Audio Amplifier Board - T-AMP

AA-AB33182_Ver1.0_Page 2

1.3 Features

yA perfect "Class D" architecture

yFrequency response: 20Hz to 20KHz(±3dB)

ySingle end audio signal input

yOver/under voltage protection

yOver current protection

yOver temperature protection

1.4 Applications

It is the ideal solution for any sound reinforcement installation or application needing an

affordable compact PA system.

yBackground Music Systems

yVending Machine

yLifts

yInteractive Kiosks

yHome DIY

yCar audio

1.5 Benefits

yMounting holes facilitate installation and fixing

ySeveral wiring methods facilitate connection: RCA Socket (Default),Terminal

Block(Optional)

yExcellent design of the power ports which allows you to connect multiple amplifier

boards in series (Terminal Block Optional).

yExcellent heat dissipation eliminates the requirement of an extra heat sink.

1.6 Quick Start

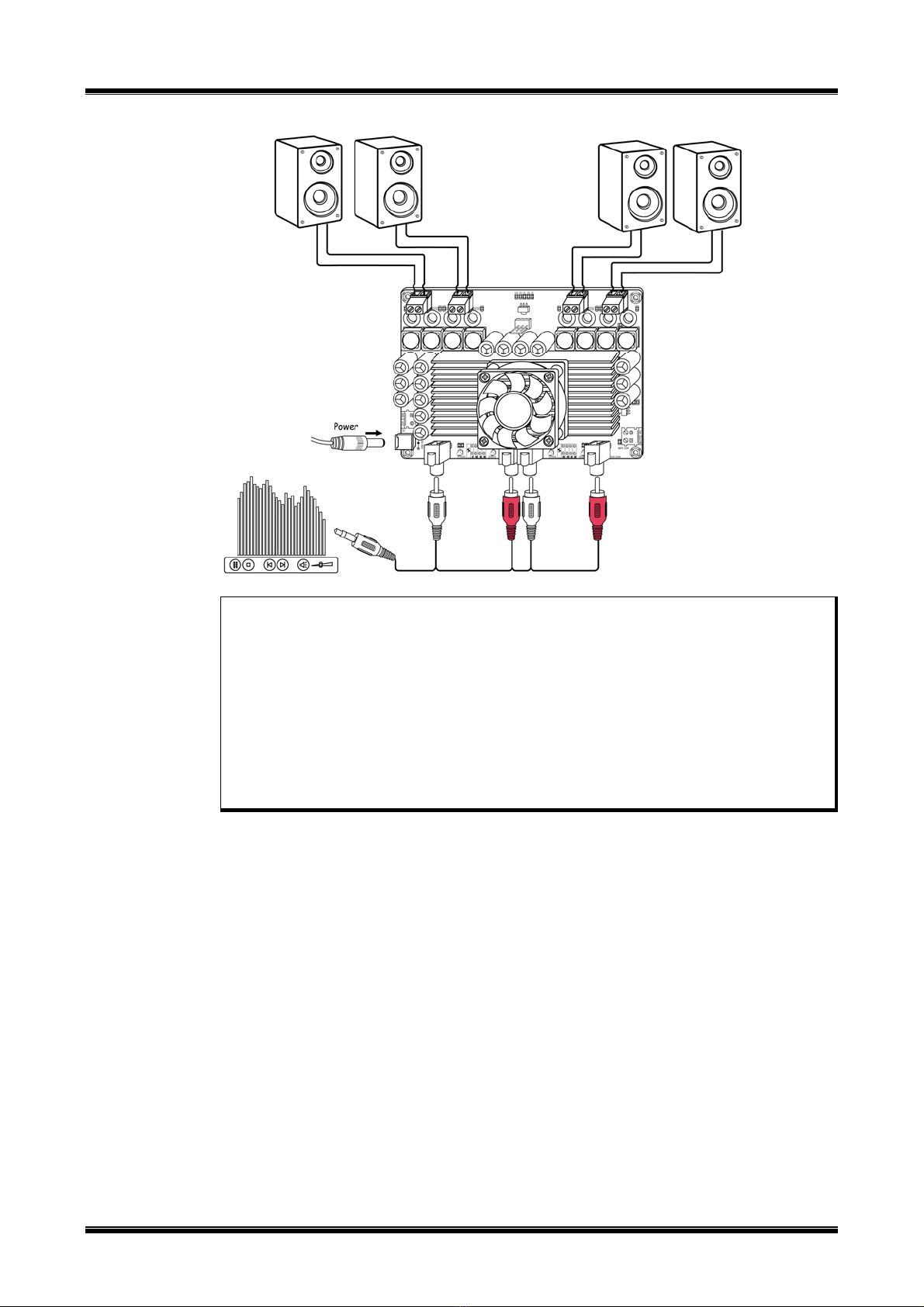

Suggested connection is shown in figure 1-3.

Overview

FIGURE 1-2 CONNECTION SCHEMATIC

Note: Please observe the following steps to complete verification so as to ensure the

products are intact during transit.

1. Open the amplifier package and make sure the product is intact (No missing

or damaged components and no deformation.

2. Please observe the connection schematics when connecting the amplifier

board. Use a nearby sound source, such as MP3 or CD player to have a trial.

This amplifier board can be deemed as qualified if you can hear the sound

corresponding to that sound source

4 X 100WATT CLASS D AUDIO

AMPLIFIER BOARD - T-AMP

USER’S GUIDE

AA-AB33182_Ver1.0_Page 4

2.1 Power Connection

To power the amplifier board, use either jack J3 (inner +, outer -) or terminal blocks J2

(optional). Pay attention to the polarity when connecting power supply.

FIGURE 2-1 POWER CONNECTION

TABLE 2-1 POWER CONNECTION

Connector Mark Description

Jack J3 DC 10-30V power supply socket

VCC The positive of DC 10-30V power supply socket

Terminal

Blocks J2 GND The negative of DC 10-30V power supply socket

Note:

1. You are allowed to use only one way to power the amplifier board at a time.

2. The maximum supply voltage shall be referred to Chapter 3.

3. 27V Switching power supply is recommended.

Chapter 2. Hardware Detail

4 X 100Watt Class D Audio Amplifier Board - T-AMP

2.2 Input Connections

You may use RCA connectors to input audio signal.

FIGURE 2-2 INPUT CONNECTION

TABLE 2-2 INPUT CONNECTION

Connector Mark Channel Description

J17 Channel 1 Input

J19 Channel 2 Input

J21 Channel 3 Input

RCA connector

J23 Channel 4 Input

Warning:

1. For each group (dual channels), RCA and Terminal Blocks can not be used as

input connectors at the same time.

2. Never plug in or unplug RCA connectors when the amplifier is powered. Or the

amplifier will be damaged permanently.

3. Only the same signal is allowed for each or two groups.

2.3 Output Connections

You can use either terminal blocks or banana connectors (optional) to output audio

signal.

Hardware Detail

AA-AB33182_Ver1.0_Page 6

FIGURE 2-3 OUTPUT CONNECTION

TABLE 2-3 OUTPUT CONNECTION

Connector Mark Description

J5 Output of Channel 1

J8 Output of Channel 2

J11 Output of Channel 3

Terminal blocks*

J14 Output of Channel 4

Note:

1. Never connect more than one group of speaker to the audio output

2. Never connect CH1_OUT- 、CH2_OUT- together since they belong to different

NETs.

3. Refer to on-board descriptions for connection details.

2.4 DC Offset

If it is not quite necessary, DO NOT trim the output offset by adjusting “R51”, “R56”,

“R61” and “R65” on the board since the output offset has been regulated to a range of

±10mV.

Note: Never adjust these potentiometers unless necessary, improper adjustment may

damage your speakers.

2.5 LED Indicators

This amplifier has 1 power LED indicator which is marked as “Power Indicator (D1)”.

“Power Indicator (D1)” will be illuminated in green when power-up.
