Supermicro Supero AOC-SIMLP-B+ Manual de usuario

Rev. 1.1

SUPER

USER'S GUIDE

AOC-SIMLP-B

AOC-SIMLP-B+

AOC-SIMLP-3

AOC-SIMLP-3+

AOC-SIMLP-B(+)/AOC-SIMLP-3(+) User's Guide

1-2

The information in this User’s Guide has been carefully reviewed and is believed to be accurate.

The vendor assumes no responsibility for any inaccuracies that may be contained in this document,

makes no commitment to update or to keep current the information in this manual, or to notify any

person or organization of the updates.

Please Note: For the most up-to-date version of this manual, please see our web

site at www.supermicro.com.

SUPERMICRO COMPUTER reserves the right to make changes to the product described in this

manual at any time and without notice. This product, including software, if any, and documenta-

tion may not, in whole or in part, be copied, photocopied, reproduced, translated or reduced to any

medium or machine without prior written consent.

IN NO EVENT WILL SUPERMICRO COMPUTER BE LIABLE FOR DIRECT, INDIRECT, SPECIAL,

INCIDENTAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO

USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES. IN PARTICULAR, THE VENDOR SHALL NOT HAVE LIABILITY FOR ANY

HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE

COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH

HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa

Clara County in the State of California, USA. The State of California, County of Santa Clara shall

be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all

claims will not exceed the price paid for the hardware product.

WARNING: Handling of lead solder materials used in this

product may expose you to lead, a chemical known to

the State of California to cause birth defects and other

reproductive harm.

Unless you request and receive written permission from SUPER MICRO COMPUTER, Inc., you

may not copy any part of this document.

Information in this document is subject to change without notice. Other products and companies

referred to herein are trademarks or registered trademarks of their respective companies or mark

holders.

Printed in the United States of America

Manual Revision: Rev. 1.1

Release Date: July 17, 2012

1-3

Chapter 1: Introduction

Table of Contents

Chapter I: Introduction.............................................................................1-4

1.1 Overview .................................................................................................. 1-4

1.2 IPMI Version 2.0....................................................................................... 1-5

1.3 Product Features...................................................................................... 1-6

1.4 Checklist ................................................................................................... 1-6

1.5 An important Note to the User .................................................................. 1-6

1.6 Contacting Supermicro.............................................................................. 1-7

Chapter 2: Technical Specications and Software Installation ...........2-1

2.1 AOC-SIMLP-B/SIMLP-B+/SIMLP-3/SIMLP-3+ Card Layout and Jumper .....

Locations ......................................................................................................... 2-1

2.2 Block Diagram ............................................................................................ 2-3

2.3 Safety Guidelines ....................................................................................... 2-4

Chapter 3: Software Application and Usage ..........................................3-1

3.1 Home Page ................................................................................................ 3-3

3.2 Functions Listed On the Home Page ..................................................... 3-5

3.2.1 Remote Control ....................................................................................... 3-5

3.2.2 Virtual Media............................................................................................ 3-7

3.2.3 System Health ........................................................................................3-11

3.2.4 User Management ................................................................................. 3-17

3.2.5 KVM Settings......................................................................................... 3-21

3.2.6 Device Settings...................................................................................... 3-25

3.2.7 Maintenance .......................................................................................... 3-38

3.3 Remote Console Main Page .................................................................. 3-42

3.3.1 Remote Console Options ...................................................................... 3-43

Chapter 4: Frequently Asked Questions ................................................4-1

AOC-SIMLP-B(+)/AOC-SIMLP-3(+) User's Guide

1-4

Chapter 1

Introduction

This manual is written for system integrators, PC technicians and

knowledgeable PC users who intend to integrate Supermicro's unique IPMI 2.0

Management functionality with the capability of KVM-over-LAN into their systems.

It provides detailed information for the application and use of the AOC-SIMLP-B/

SIMLP-B+/SIMLP-3/SIMLP-3+ that supports remote access for system monitoring,

diagnosis and management. With the most advanced technologies built-in, the

AOC-SIMLP-B/SIMLP-B+/SIMLP-3/SIMLP-3+ offers a complete, efcient, and cost

effective remote server management.

1.1 Overview

The AOC-SIMLP-B/SIMLP-B+/SIMLP-3/SIMLP-3+ is a highly efcient, highly com-

patible and easy-to-use IPMI card that allows the user to take advantage of BMC,

a baseboard management controller installed on a server motherboard and the

IPMIView, an IPMI-compliant management application software loaded in a PC, to

provide serial links between the main processor and other system components, al-

lowing for network interfacing via remote access. With an independent Peppercon's

KIRA100 processor built-in, the AOC-SIMLP-B/SIMLP-B+/SIMLP-3/SIMLP-3+

provides the user a solution to ease the complex and expensive systems, allow-

ing an administrator to access, monitor, diagnose and manage network interfacing

anywhere, anytime.

1.2 IPMI Version 2.0

The AOC-SIMLP-B/SIMLP-B+/SIMLP-3/SIMLP-3+ supports the functionality of IPMI

Version 2.0. The key features include the following:

• Supports IPMI over LAN

• Supports Serial over LAN

• Supports KVM over LAN (*AOC-SIMLP-B+, AOC-SIMLP-3+ only)

• Supports Virtual Media over LAN

• Supports LAN Alerting-SNMP Trap

• Supports Event Log

• Offers OS (Operating System) Independency

• Provides remote Hardware Health Monitoring via IPMI. Key features include

the following:

• Temperature monitoring

• Fan speed monitoring

1-5

Chapter 1: Introduction

• Voltage monitoring

• Power status monitoring, chassis intrusion monitoring

• Remote power control to power-on, power-off or reboot a system

• Remote access to text-based, graphic-based system information,

including BIOS congurations and OS operation information (KVM)

• Remote management of utility/software applications

• Provides Network Management Security via remote access/console redirec-

tion. Key features include:

• User authentication enhancement

• Encryption support enhancement, allowing for password congura-

tion security to protect sensitive data transferring via Serial over

LAN

1.3. Product Features

(a) The AOC-SIMLP-B/SIMLP-B+ Series: (IPMI 2.0 with a Dedicated

LAN)

• Low prole Form Factor (5.1" W x 2.7" H) (129.3 mm W x 68.8 mm H)

• Supports 2U systems and above

• Supports IPMI over LAN

(b) The AOC-SIMLP-3/SIMLP-3+* Series: (IPMI 2.0 with a Dedicated

LAN and the Intel 82541PI GLAN Controller)

• Low prole Form Factor (5.1" W x 2.7" H) (129.3 mm W x 68.8 mm H)

• Supports 2U systems and above (*AOC-SIMLP-3/AOC-SIMLP-3+ only)

• Supports IPMI over LAN

• Intel's 82541 PI Gigabit LAN Controller (with 3rd data LAN support)

• The AOC-SIMLP-3+ supports KVM

Features Dedicated LAN

for IPMI

Intel 82541 PI for

Data Transmission

KVM-over-LAN

SIMLP-B Yes ----- -----

SIMLP-B+ Yes ----- Yes

SIMLP-3 Yes Yes -----

SIMLP-3+ Yes Yes Yes

AOC-SIMLP-B(+)/AOC-SIMLP-3(+) User's Guide

1-6

1.4 CheckList

If your shipping package came with missing or damaged parts, please contact

Supermicro's Tech. Support. Please refer to the following checklist when

contacting us.

i. AOC-SIMLP-B/SIMLP-B+/SIMLP-3/SIMLP-3+:

ii. Brackets: One full-size bracket, one low-prole bracket and two screws,

iii. CDR-SIMIPMI: One Installation CD

iv. White Box with Correct Barcode Label (showing AOC-SIMLP-B/SIMLP-B+/

SIMLP-3/SIMLP-3+).

1.5 An Important Note to the User

The drawings and pictures shown in this manual were based on the latest PCB

Revision available at the time of publishing of the manual. The AOC-SIMLP-B/

SIMLP-B+/SIMLP-3/SIMLP-3+ card you’ve received may or may not look exactly

the same as the graphics shown in the manual.

1-7

Chapter 1: Introduction

1.6 Contacting Supermicro

Headquarters

Address: SuperMicro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: +1 (408) 503-8000

Fax: +1 (408) 503-8008

Email: [email protected] (General Informaion)

[email protected] (Technical Support)

Web Site: www.supermicro.com

Europe

Address: SuperMicro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands

Tel: +31 (0) 73-6400390

Fax: +31 (0) 73-6416525

Email: [email protected] (General Information)

[email protected] (Technical Support)

[email protected] (Customer Support)

Asia-Pacic

Address: SuperMicro, Taiwan

4F, No. 232-1 Liancheng Road

Chung-Ho Dist., New Taipei City 235

Taiwan, R.O.C.

Tel: +886-(2) 8226-3990

Fax: +886-(2) 8226-3991

Web Site: www.supermicro.com.tw

Email: [email protected] (Technical Support)

Tel: +886-(2) 8226-5990 (Technical Support)

AOC-SIMLP-B(+)/AOC-SIMLP-3(+) User's Guide

1-8

Notes

2-1

Chapter 2: Technical Specications and Installation

2.1 AOC-SIMLP-B/SIMLP-B+/SIMLP-3/SIMLP-3+ Card

Layout and Jumper Locations

AOC-SIMLP-B/SIMLP-B+/SIMLP-3/SIMLP-3+ Card

Layout and Jumper Locations

Front View

Chapter 2

Technical Specications and Software

Installation

7 48

Front Components

1. LAN Port 1 (JLAN1) for IPMI/Keyboard/Video/Mouse over IP

2. LAN Port 2 (JLAN2) for 3rd Data via Intel's 82541PI Controller

3. Intel's 82541PI GLAN Controller

4. Peppercon's KIRA 100 Processor

5/6. SDRAM (128Mb/133MHz)

7. JP5: LAN Port1 Activity LED Jumper

8. JP7: JLAN 2 Control Jumper

9. JP6: GLAN Port2 Activity LED Jumper

10. JP1: JLAN1 Control Jumper

11. D3: Power-on LED

12. D4: Heart-beat (Activity) LED

AOC-SIMLP-B(+)/AOC-SIMLP-3(+) User's Guide

2-2

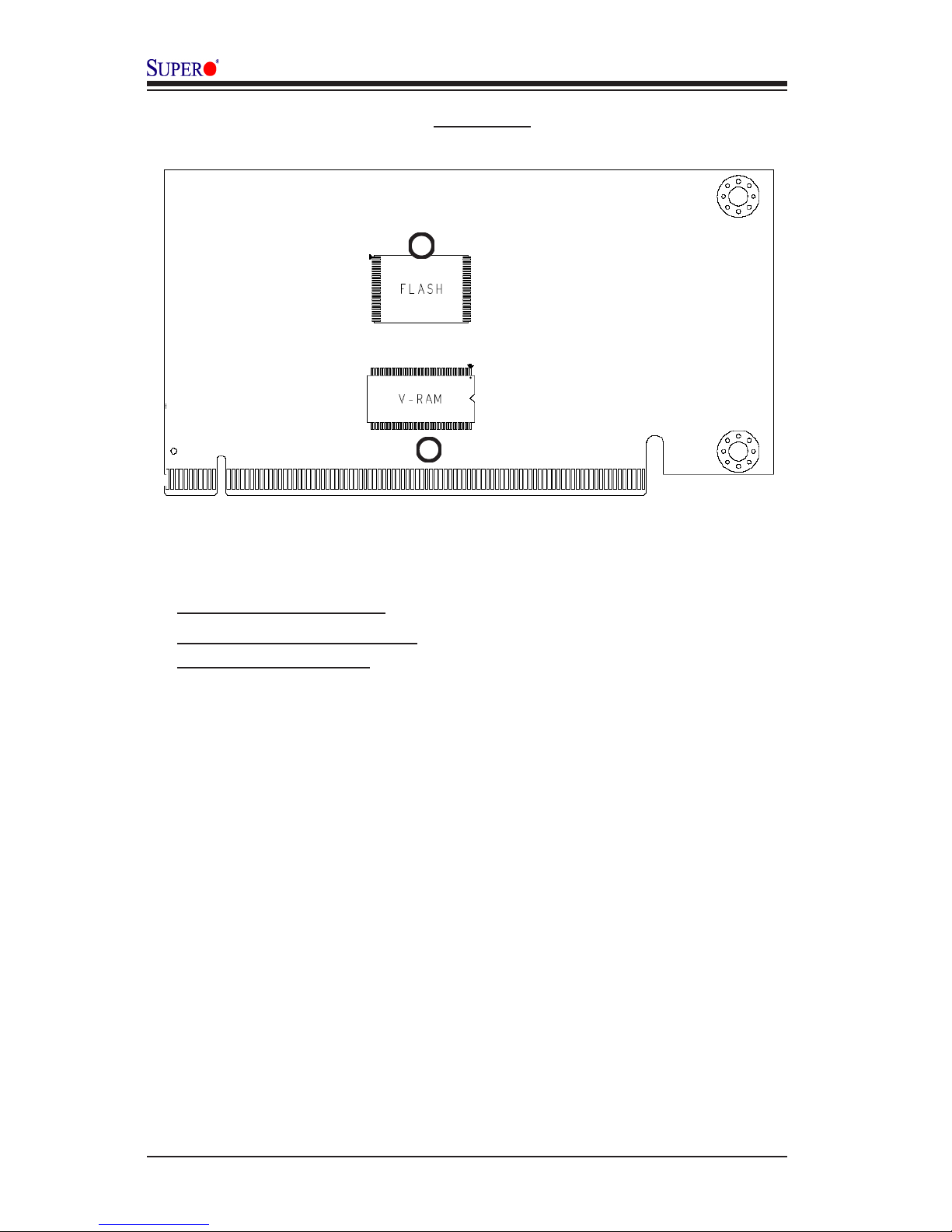

Rear View

Rear Side Components

1. Flash DRAM (64Mb/133MHz)

2. VRAM (64Mb/166MHz)

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Hardware de computadora de Supermicro

Supermicro

Supermicro SAS-836A Manual de usuario

Supermicro

Supermicro AOC-SIMSO Manual de usuario

Supermicro

Supermicro AOC-R1UG-IBQ Manual de usuario

Supermicro

Supermicro SBI-7127R-S6 Manual de usuario

Supermicro

Supermicro BPN-SAS3-815TQ Manual de usuario

Supermicro

Supermicro X13SAN-H Manual de usuario

Supermicro

Supermicro SuperWorkstation SYS-551A-T Manual de usuario

Supermicro

Supermicro SuperServer SYS-510T-M Manual de usuario

Supermicro

Supermicro AOC-SIM1U-3D Manual de usuario

Supermicro

Supermicro AOC-STG-i4S Manual de usuario

Supermicro

Supermicro AOC-SLG3-4X4P Manual de usuario

Supermicro

Supermicro C9Z790-CG Manual de usuario

Supermicro

Supermicro A3SSV-8C-SPLN10F Manual de usuario

Supermicro

Supermicro H13SAE-MF Manual de usuario

Supermicro

Supermicro SuperServer SYS-E302-12D-4C Manual de usuario

Supermicro

Supermicro BPN-SAS3-LB16A-N10 Manual de usuario

Supermicro

Supermicro AOC-ATG-b2TM Manual de usuario

Supermicro

Supermicro SuperServer SYS-510T-WTR Manual de usuario

Supermicro

Supermicro AOC-SHG3-4M2P Manual de usuario

Supermicro

Supermicro AOC-A100G-b2CM Manual de usuario

Supermicro

Supermicro AOC-TBT-DSL5320 Manual de usuario

Supermicro

Supermicro M12SWA-TF Manual de usuario

Supermicro

Supermicro SuperStorage SSG-1129P-ACR10N4L Manual de usuario

Supermicro

Supermicro Supero SAS-827B Manual de usuario

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario
