Superbrightleds WPR Series Manual de usuario

Rotatable LED Wall Pack

Important: Read all instructions prior to installation. WPR2 / WPRCCT

4400 Earth City Expy, St. Louis, MO 63045 866-590-3533 superbrightleds.com

Rev Date: V1 10/19/2020

5yr

User Manual

120–277 VAC Input

0–10 V Dimming

Safety and Notes

SpecicationsWiring Diagram

Line

Neutral

Ground

Black

L L

N N

GND GND

White

Dim (+)

Dim (-)

Purple

+ +

- -

Gray

Yellow / Green

Line

Neutral

Ground

Black

L L

N N

GND GND

White

Dim (+)

Dim (-)

Purple

+ +

- -

Gray

Yellow / Green

• Product should be installed and serviced by a certied electrician in accordance

with applicable national, state, and local building and electrical codes.

• To reduce the risk of electric shock, ensure that the main power source and circuit

breakers are switched o󰀨 before performing any installation or wiring procedures.

• Avoid looking directly into lamp when illuminated.

• Ensure all mounts are securely attached and will support the weight of the xture.

Failure to properly support xture may result in damage or injury, for which the

manufacturer does not assume responsibility.

• Photocell sensor on 25 W and 40 W models can be disabled by unplugging it and

capping the connector that was attached to the sensor. 60 W, 80 W, and 120 W

models will require rewiring to bypass the sensor in order to disable it.

Model WPRx-x-xST1-BRP

Operating Temperature -4°–113° F (-20°–45° C)

IP Rating IP65

Dimming 0–10 V

Check product label for specific electrical

specifications related to installation.

Improper installation will void warranty.

Opening Fixture

1/8” Drill Bit

Gasket

4.64 in

[118 mm]

4.64 in

[118 mm]

3.66 in

[93 mm]

3.66 in

[93 mm]

WPR2-50K120-FST1-BRP

Rotatable LED Wall Pack

Important: Read all instructions prior to installation. WPR2 / WPRCCT

4400 Earth City Expy, St. Louis, MO 63045 866-590-3533 superbrightleds.com

Rev Date: V1 10/19/2020

5yr

User Manual

Installation

CCT Adjustment

1. Remove screws and swing front housing to separate it from the rear housing.

2. Drill holes in rear housing for mounting. For junction box wiring, remove rear pipe

plug and for conduit mounting remove one of the side pipe plugs.

3. Measure and create mounting holes on wall if needed.

4. Apply gasket and mount rear housing.

5. On eld-selectable CCT models, select desired CCT using switch.

6. With supply power o󰀨, connect wiring.

7. Mount front housing to rear.

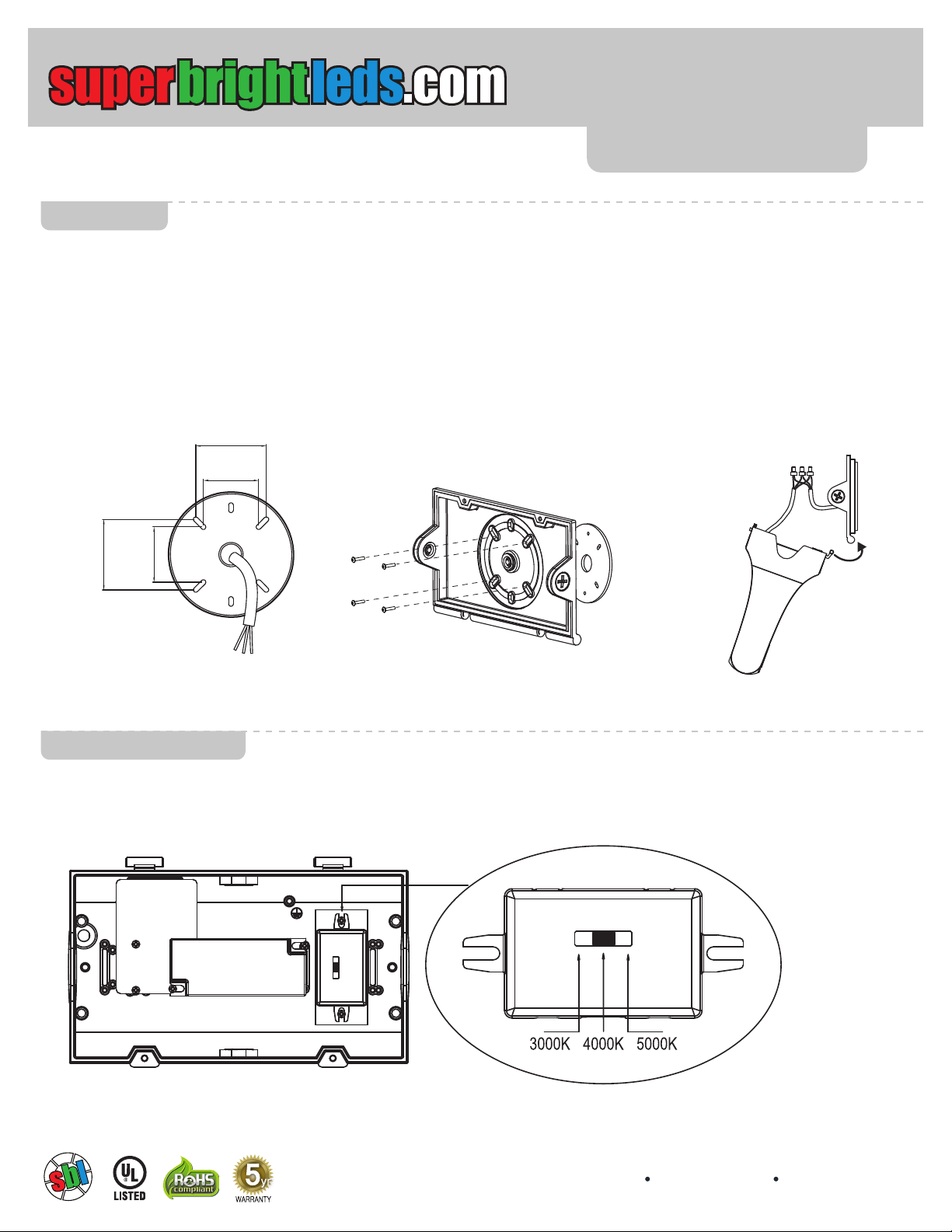

Field-selectable CCT can be set using the internal switch as shown.

Make certain supply power is o󰀨 when performing this procedure.

1/8” Drill Bit

Gasket

4.64 in

[118 mm]

4.64 in

[118 mm]

3.66 in

[93 mm]

3.66 in

[93 mm]

1/8” Drill Bit

Gasket

4.64 in

[118 mm]

4.64 in

[118 mm]

3.66 in

[93 mm]

3.66 in

[93 mm]

1/8” Drill Bit

Gasket

4.64 in

[118 mm]

4.64 in

[118 mm]

3.66 in

[93 mm]

3.66 in

[93 mm]

1/8” Drill Bit

Gasket

4.64 in

[118 mm]

4.64 in

[118 mm]

3.66 in

[93 mm]

3.66 in

[93 mm]
