INTRODUCTION
Thank you for choosing Sunsynk’s energy storage system.
This lithium iron phosphate battery is one of the new energy storage products developed and produced by
SUNSYNK. It can be used to support reliable power for various types of equipment and systems.
This battery is especially suitable for application scenes of high power, limited installation space, restricted
load bearing, and long cycle life.
This battery has a built-in BMS battery management system, which can manage and monitor cell information,
including voltage, current, and temperature. What’s more, BMS can balance cells charging and discharging to
extend cycle life.
Multiple batteries can connect in parallel for larger capacity and longer power-supporting duration require-
ments.
Some main features of this product are:
Convenient: Quick installation, Wall mounted design, comfortable for installation and maintenance in-
cluded.
Safe and reliable: Cathode material is made from LiFePO4 with safety performance and long cycle life.
The module has less self-discharge, up to 6 months without charging it on the shelf, no memory eect,
and excellent deep charge and discharge performance.
Intelligent BMS: It has protection functions including over-discharge, over charge, over-current, and
over-high or low temperature. The system can automatically manage the charge and discharge state and
balance the current and voltage of each cell.
Eco-friendly: The whole module is non-toxic, non-polluting, and environmentally friendly.
Flexible conguration: Multiple battery modules can be in parallel for expanding capacity and power.
Support remote upgrade (Compatible with SUNSYNK inverter).
Wide temperature: IP65 designed, operation temperature range is from -20ºC to 55ºC, support heating.
The production date of the original batteries and newly added batteries should be as close as possible,
within one year is best. If the time dierences of production are too long, the battery capacity deviation
will be large, and the batteries' energy cannot be fully utilised.
Before expansion, please fully charge the original batteries to 100% (keep SOC 100%), and then charge
the batteries that need to be added to SOC 100%. Next, assemble to achieve the purpose of expansion.
The original batteries can be charged using an inverter; The newly added batteries need to be charged
separately with the battery charger.
Please consult relevant technical personnel before expansion. The individual will bear all consequences
caused by personal misoperation, not covered by the Sunsynk warranty.
Sunsynk lithium battery is prohibited to work in Lead-acid Mode. Any failure caused by using a Lead-acid
model is not covered by the Sunsynk warranty.
BATTERYEXPANSIONANDUSE
SUNSYNK-L3.0 | User Manual4
SAFETY
GeneralSafety
It is crucial and necessary to read the user manual carefully (in the accessories) before installing or using
the SUNSYNK-L3.0 battery. Failure to do so or to follow any of the instructions or warnings in this docu-
ment can result in electrical shock, serious injury, death, or damage to the battery, potentially rendering
it inoperable.
It is required to charge the battery every six months, and the SOC should be no less than 50% in case it
is stored for a long time.
The battery needs to be recharged within 48 hours after being fully discharged.
Do not expose the cable outside.
All the battery terminals must be disconnected before starting the maintenance.
Please, contact the supplier within 24 hours if something abnormal happens.
Do not use cleaning solvents to clean the battery.
Do not expose the battery to ammable or harsh chemicals or vapours.
Do not paint any part of the battery, including any internal or external components.
Do not connect the battery with PV solar panel wiring directly.
The warranty claims are excluded for direct or indirect damage due to the items above.
Any foreign object is prohibited from inserting into any part of the battery.
Sunsynk's products are designed with full consideration for safety. However, all electrical appliances can be
dangerous if used inappropriately. They can cause a re or electric shock, leading to severe injury or death.
For your protection, please read these safety precautions thoroughly.
Symbols/SafetySigns
This symbol indicates information that if
ignored, could result in personal injury,
physical damage or even death due to
incorrect handling.
This product's batteries contain an
explosive, self-reactive material that
could blow up when heated.
Electrical Hazard. Read the manual.
Danger. Indicates that this product is recycla-
ble.
The Battery is heavy and can cause inju-
ry if not handled safely.
Do not place near open re or incin-
erate. Do not use near heaters or hot
temperature sources.
Do not submerge the battery in water
or expose it to moisture or liquid.
Do not disassemble or alter the battery
in any way. Do not strike or puncture
the battery.
Do not drop, deform, or impact the
battery.
Do not step or put any objects onto
the battery.
SUNSYNK-L3.0 | User Manual5
ProceduresandPrecautionsBeforeConnecting
After unpacking, please, rst check the product and packing list. Please, get in touch with the local retail-
er if some product is damaged or lacks parts.
Before installation, cut o the grid power and ensure the battery is in the turned-o mode.
Wiring must be correct, do not mistake the positive and negative cables, and ensure there is no short
circuit with the external device.
It is prohibited to connect the battery and AC power directly.
The battery system must be well grounded, and the resistance must be less than 1Ω.
Please ensure the electrical parameters of the battery system are compatible with related equipment.
Keep the battery away from water and re.
SafetyPrecautionsWhileUsing
Cut o the power and completely shut down the battery before moving or repairing the battery.
Connecting the SUNSYNK-L3.0 battery with a dierent type of battery is prohibited.
It is forbidden to put the batteries working with faulty or incompatible inverters.
It is not permitted to disassemble the battery.
Liquid re extinguishers are forbidden. In case of re, only dry re extinguishers can be used.
Please do not open, repair, or disassemble the battery except sta from SUNSYNK or authorized by
SUNSYNK. We do not undertake any consequences or related responsibility because of violation of safe-
ty operation or violation of design, production, and equipment safety standards.
Keep out of reach of children, animals,
and insects. Li-ion Battery.
Rechargeable. Charging and Discharging.
Direct Current. Product exposure.
Follow the indicated temperatures.
V DC 48 V
230V
15.70 A
BATTERYINPUT
Battery Discharge Voltage, Battery
Discharge Current, Input Voltage Type,
Battery Discharge Power.
Contact the supplier within 24 hours
if there is anything wrong. In case of
leakage contact with eyes or skin, imme-
diately clean with water and seek help
from a doctor.
Do not dispose the device, accesso-
ries, and packaging with regular waste.
Follow local ordinances or contact the
manufacturer for disposal guidance.
The UKCA marking is used for products
placed on the market in Great Britain
(England, Scotland and Wales). The
UKCA marking applies to most products
for which the CE marking could be used.
CE mark is attached to the solar
inverter to verify that the unit follows
the provisions of the European Low
Voltage and EMC Directives.
SUNSYNK-L3.0 | User Manual6
Handling
The battery should only be used as instructed.
DO NOT use the battery if it seems broken or damaged.
The battery is non-user-serviceable and should not be opened for repair.
Handle the battery with care when installing or transporting it.
Chemicals should not be used to clean the battery.
DamagedBattery
A damaged battery should not be used and should be returned to Sunsynk or properly discarded via a recy-
cling facility. Leaking electrolytes can cause skin irruption and chemical burns, so contact should be avoided.
Eye Flush eyes with plenty of water for at least 15 minutes, occasionally lifting the upper
and lower eyelids. Get medical aid.
Skin Remove contaminated clothes and rinse skin with plenty of water or shower for 15
minutes. Get medical aid.
Inhalation Remove from exposure and move to fresh air immediately. Use oxygen if available.
Ingestion Give at least two glasses of milk or water. Induce vomiting unless the patient is
unconscious. Call a physician.
SPECIFICATIONSANDFUNCTIONS
DimensionsandWeigh

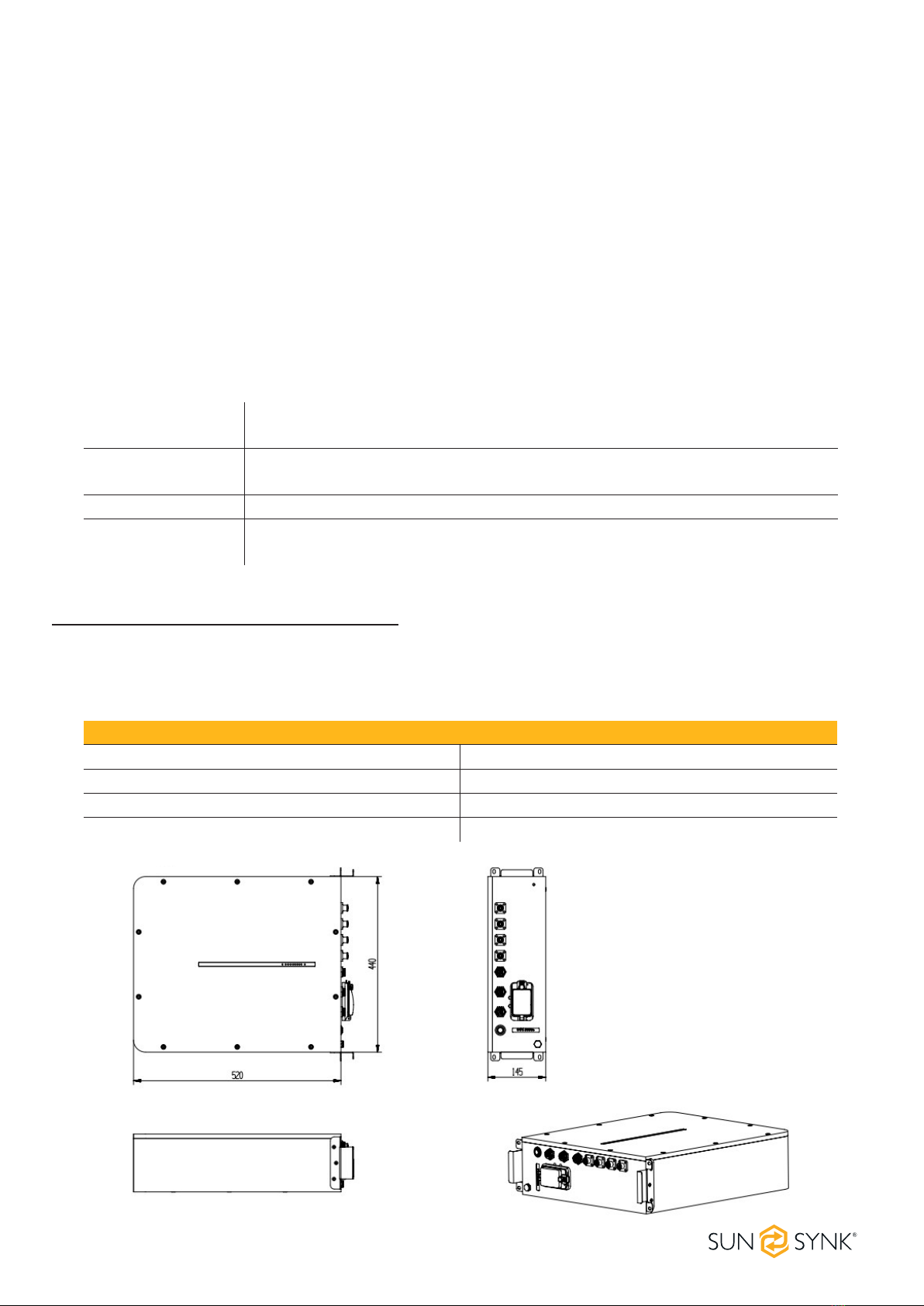

SUNSYNK-L3.0 dimensions are presented below:
SUNSYNK-L3.0
Depth 145mm
Width 440mm
Height 520mm
Weight (Approx.) 30kg
SUNSYNK-L3.0 | User Manual7

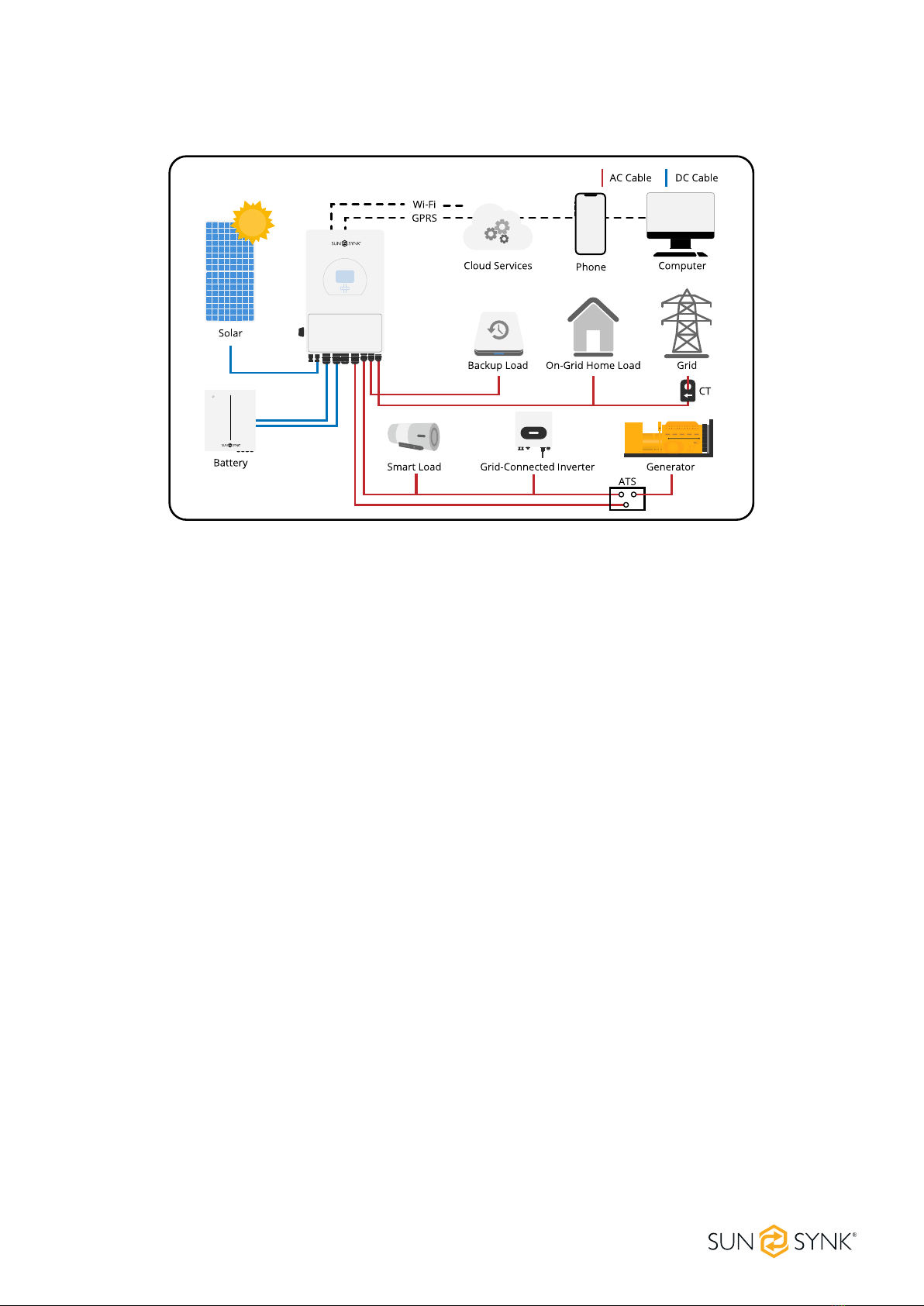

BasicSystemArchitecture
SUNSYNK-L3.0 dimensions are presented below:
Contact our customer service or an accredited seller for precise information about application cases of the
SUNSYNK-L3.0 battery.
SUNSYNK-L3.0 | User Manual8
TECHNICALDATA
Model SUNSYNK-L3.0
Main Parameter
Battery Chemistry Lithium Ferro Phosphate (LifePO4 or LFP)
Capacity 60 Ah
Scalability Max. 4 pcs in parallel (12kWh)
Nominal Voltage 51.2 V
Operating Voltage 43.2~57.6 V
Energy 3.07 kWh
Usable Energy [1] 2.76 kWh
Charge/Discharge
Current
Recommend [2] 30 A
Max. [2] 60 A
Peak (2mins,25ºC) 75 A
Other Parameter
Recommend Depth of Discharge 90%
Dimension (W/H/D) 440*520*145 mm (don’t include Circuit Breaker, terminals
and hanging boards)
Weight Approximate 30 kg
Master LED Indicator 5 LED (SOC 20%~100%)
3 LED (working, alarming, protecting)
IP Rating of Enclosure IP65
Working Temperature Charge: 0°C~+55°C (optional heating, -20°C~+55°C)
Discharge: -20°C~+55°C
Storage Temperature -20ºC ~ +35ºC
Humidity 5% ~ 95%
Altitude ≤2000m
Cycle Life ≥6000 (25±2ºC, 90%DOD, 0.5C/0.5C, 70%EOL)
Installation Wall Mounted (Support 19-inch standard cabinet)
Communication Port CAN2.0, RS485
Life Cycle Power During Warranty Period [3} 10MWh@70%EOL
Certication IEC62619, CE, UK, CEC, UN38.3
[1] DC Usable Energy, test conditions: 90% DOD, 0.5C charge & discharge at 25° C. System usable energy may
vary due to system conguration parameters.
[2] The current is aected by temperature and SOC.
[3] The warranty is due whichever reached rst of warranty period or energy throughout.
SUNSYNK-L3.0 | User Manual9
EQUIPMENTINTERFACEINSTRUCTION
This section details the front and side panel of the interface functions. Following, you will nd the SUN-
SYNK-G5.3 front side illustration.
1. Battery Indicators 7. Parallel Communication Port OUT
2. Parallel Communication Port IN 8. Battery Negative -
3. PCS 9. Battery Positive +
4. Power Switch 10. Grounding Bolt
5. Battery Indicators 11. DC 80A Circuit Breaker
6. Pressure Release Valve
Interface Symbol Description and Instructions
Power Switch Power Switch to turn ON/OFF the whole battery BMS standby, no power
out- put.
RUN RUN LED: 1 green LED lighting to show the battery running status, long
lighting when charging and ash when discharging
Alarm Alarm LED: 1 yellow LED lighting to show the battery has an alarm. It ash-
es in alarm conditions and ashes long lighting if the equipment fails.
Error Error LED: 1 red LED lighting to show the battery is under protection.
SOC SOC LED: 5 green LEDs to show the battery’s current capacity. Each light
rep- resents 20% of the capacity.
PCS Inverter communication terminal: (RJ45 port) follow the CAN protocol (baud
rate: 500K), used to output battery information to the inverter.
SUNSYNK-L3.0 | User Manual10
The following table presents the Led indication denition:
Condition RUN ALM Error SOC1 SOC 2 SOC 3 SOC 4 SOC 5
Power o O
Charge
Blink
Blink if Alarm
Exists
O
Show SOC & highest LED blink
Discharge or
Idle O
Show SOC & long bright
Alarm
Blink
O
Other LEDs are same as above.
System error/
Protect
Upgrade Blink Fast
Critical Error Blink Slow
The following table presents the denition for PCS, IN, and OUT connection pins. All use the same pin num-
ber sequence shown in the next image:
Pin No. PCS Port Denition IN Port Denition OUT Port Denition
1485-B CANL CANL
2485-A CANH CANH
3 -- DI+ DO+
4CANH DI- DO-
5CANH DI- DO-
6 -- DI+ DO+
7485-A CANH CANH
8485-B CANL CANL
Protection and Alarm Management and Monitor
Charge/Discharge End Intelligent Protect Mode
Charge Over Voltage Intelligent Charge Mode
Discharge Under Voltage Protect, Charge Current Limit
Charge/Discharge Over Current Intelligent Protect Mode
High/Low Temperature(cell/BMS) Intelligent Protect Mode
Short Circuit Protect
Interface Symbol Description and Instructions
IN
Parallel Communication Terminal: (RJ45 port) Connect “out”.
The terminal of the Previous battery for communication between multiple
parallel batteries.
OUT Parallel Communication Terminal: (RJ45 port) Connect “IN”. The terminal of
the Next battery for communication between multiple parallel batteries.
DC 80A
Circuit Breaker Over current protection, cut o the power supply.
Grounding Bolt Used for the battery connecting to the PE.
Tabla de contenidos
Otros manuales de Inversor de SunSynk
SunSynk
SunSynk SUNSYNK-29.9K-SG01HP3-EU-BM3 Guía del usuario
SunSynk
SunSynk SUNSYNK-8K-SG01LP1 Guía del usuario
SunSynk
SunSynk Hybrid Inverter with a Generator Manual de instrucciones
SunSynk
SunSynk LIFELYNK X SM3.6kWLL Manual de usuario
SunSynk
SunSynk SUN-8K-SG04LP3 Guía del usuario
SunSynk
SunSynk Hybrid Parity Guía del usuario
SunSynk
SunSynk SUNSYNK-3K-SG04LP1 Guía del usuario
SunSynk
SunSynk ECCO SUN-3K-SG04LP1-24-EU Manual de usuario
SunSynk
SunSynk Hybrid Parity Inverter Manual de usuario
SunSynk
SunSynk ECCO SUN-3K-SG04LP1-24-EU Manual de usuario
SunSynk
SunSynk SUNSYNK MAX Manual de usuario
SunSynk
SunSynk SUNSYNK-8K-SG01LP1 Manual de usuario
SunSynk
SunSynk SUN-25K-SG01HP3-EU-BM2 Guía del usuario
SunSynk
SunSynk ECCO SUN-3.6K-SG05LP1-EU Manual de usuario
SunSynk
SunSynk Power Bank 1000 Manual de usuario
SunSynk
SunSynk SUNSYNK-6K-SG02LP1 Guía del usuario
SunSynk
SunSynk SUNSYNK-8K-SG01LP1 Manual de usuario
SunSynk
SunSynk SUN300G3-EU-230 Manual de instrucciones
SunSynk
SunSynk SUN-25K-SG01HP3-EU-BM2 Guía del usuario
SunSynk
SunSynk SUNSYNK-25K-SG01HP3-EU-BM2 Manual de usuario
