Sunshower DELUXE Manual de usuario
2
DELUXE
WHITE / BLACK
ARTICLE NO.
80015 (WHITE)
80016 (BLACK)
INSTALLATION GUIDE
PART I- PREPARATION
3
Sunshower B.V.
Hoogoorddreef 63-65
1101 BB Amsterdam
The Netherlands
T +31 (0)20 462 14 60
www.sunshower.nl
info@sunshower.nl
GENERAL INSTRUCTIONS
INSTALLATION GUIDE DELUXE | PART I | P1071 REV I
!
BE SURE TO READ THIS INSTRUCTION CAREFULLY BEFORE
INSTALLATION. INSTALLATION ONLY CAN ONLY BE
CARRIED OUT BY QUALIFIED INSTALLERS. THE ELECTRICAL
CONNECTION OF SUNSHOWER COMPONENTS CAN
ONLY BE CARRIED OUT BY QUALIFIED ELECTRICIANS.
SUNSHOWER IS NOT LIABLE FOR DAMAGE CAUSED BY
INCORRECT INSTALLATION.
GENERAL
!
THE ELECTRICAL CONNECTION OF SUNSHOWER
COMPONENTS MAY ONLY BE CARRIED OUT BY A
QUALIFIED ELECTRICIAN. THE INSTALLATION AND
ELECTRICAL CONNECTION OF THE SUNSHOWER
INSTALLATION MUST BE CARRIED OUT IN ACCORDANCE
WITH THE APPLICABLE INTERNATIONAL AND NATIONAL
STANDARDS AND GUIDELINES. THE SUNSHOWER MUST
BE PROTECTED BY A SEPARATE EARTH LEAKAGE CIRCUIT
BREAKER (RCD) (SEE ELECTRICAL CONNECTION).
ELECTRICITY
4
CERTIFICATE OF CONFORMITY
Sunshower B.V., Hoogoorddreef 63-65, 1101 BB Amsterdam, The Netherlands
hereby declares that:
• These Sunshower products are IPX5 approved and specially designed for use
and installation in zone 1.
• The notified body DARE!! Measurements, an ISO17025 accredited institution
for performing product certifications with registration number C447.
• These products are in conformity with the Low-Voltage Directive 2014/35/
EU and the Directive 2014/30/EU for Electromagnetic compatibility of the
European Parliament.
• These products are tested and meet the following norms/directives for CE
markings:
• EN60335-1:2012 + AC:2014 + A11:2014
• EN60335-2-27:2013
• EN61000-6-3:2007 + A1:2011 + AC:2012
• EN61000-6-1:2007
• EN61000-3-3:2013
• EN61000-3-2:2014
The Netherlands, Amsterdam, 1 jan 2019
M. Wegdam, Technical Director
Sunshower B.V.
Hoogoorddreef 63-65
1101 BB Amsterdam
The Netherlands
T +31 (0)20 462 14 60
www.sunshower.nl
info@sunshower.nl
INSTALLATION GUIDE DELUXE | PART I | P1071 REV I
5

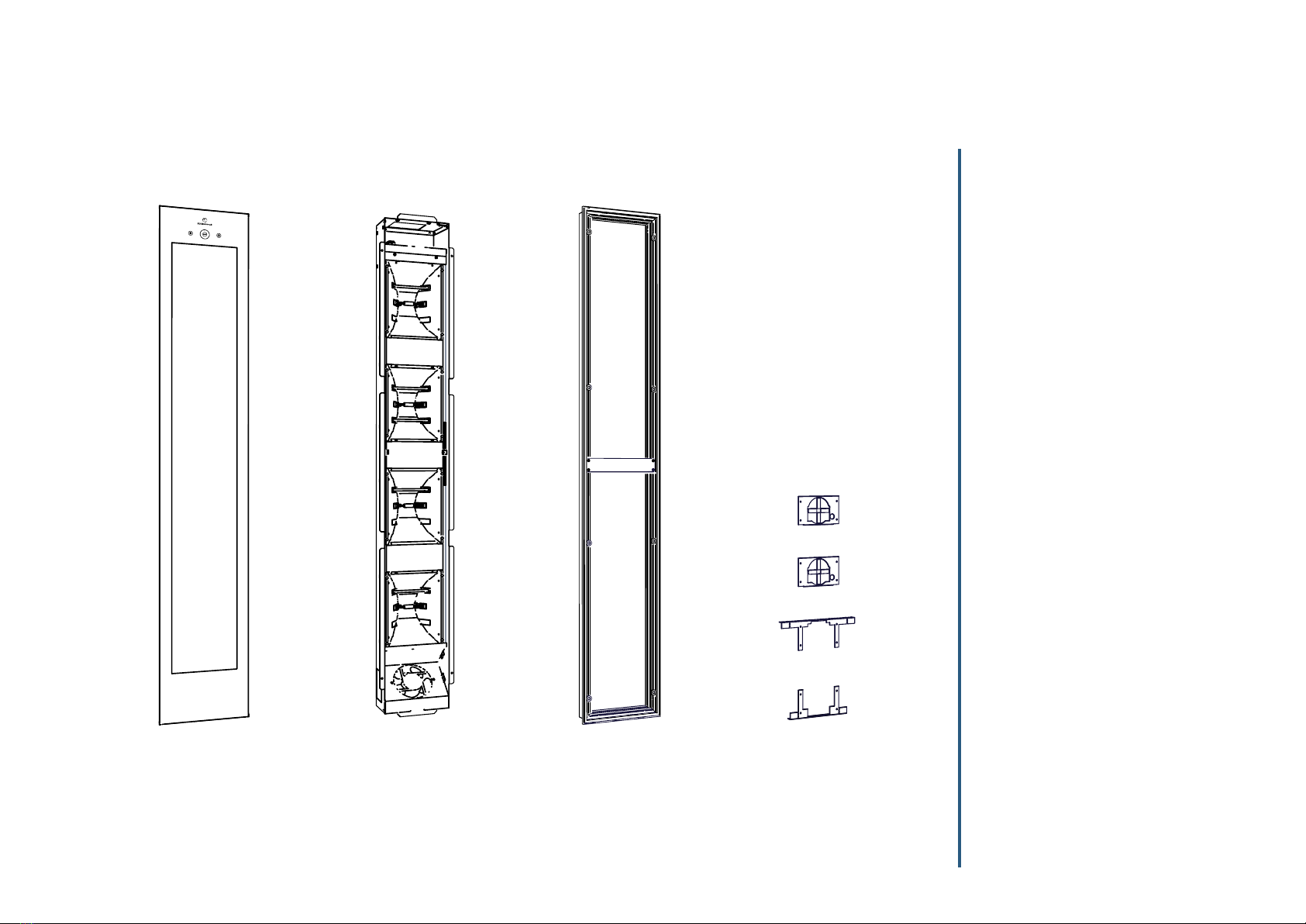

NOT INCLUDED
GLASS PANEL INNER UNIT WALL FRAME GUSSET PLATES +
CONNECTION SLEEVES
PREPARATION
BOX CONTENT
□MS Polymer
□Measuring tape
□Screwdriver ( + )
□Spirit level
□Screws
□Ventilation ducts (round/
rectangular), max. 3 m
□Duct brackets
□Ventilation grilles
□(Non-return valves)
2x
2x
8x
2x
2x
2x
2x
2x
IN THE BOX
□Installation bag
□Gusset plates
□Connection sleeves
□Glasses
INSTALLATION GUIDE DELUXE | PART I | P1071 REV I
6
D
E
A
B
C
REQUIRED TOOLS
INSTRUCTIONS
Make the recess in the wall
according to the dimensions
shown.
PREPARATION
DIMENSIONS
□Measuring tape
□Spirit level
INSTALLATION GUIDE DELUXE | PART I | P1071 REV I
A
B
C
D
E
300 MM
1850 MM
50 MM
450 MM
MIN 165 MM
SEE P8 / P9
7
C B
A

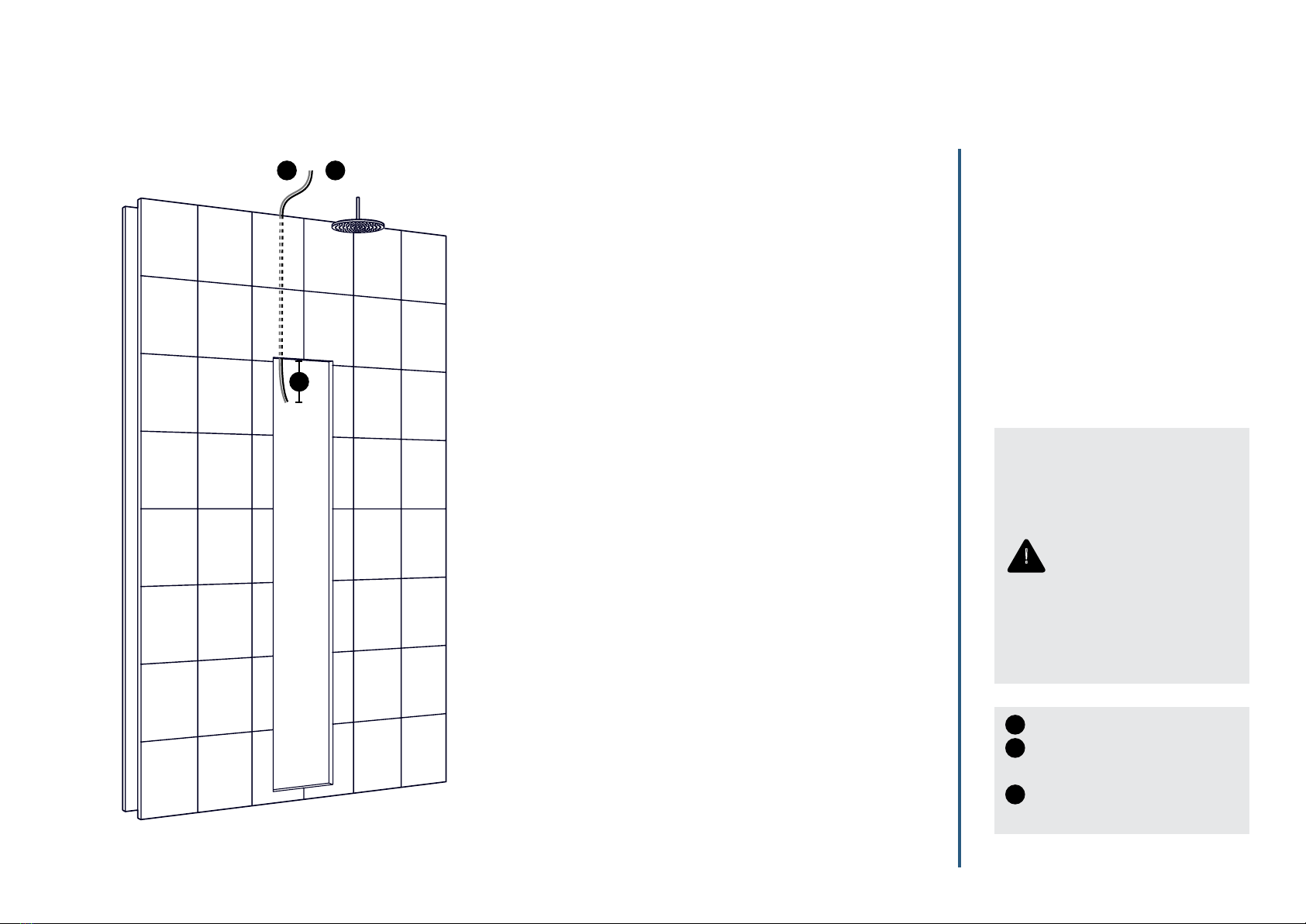

INSTRUCTIONS
Use a YMvK cable of at least 2.5
mm2and a 6 mm2equipotential
bonding cable.
The Sunshower should preferably
be connected to its own 230V~
50Hz circuit fitted with a residual
current circuit breaker and a 16A
fuse.
PREPERATION
ELECTRICITY
500 MM
POWER SUPPLY, 3-CORE
CABLE
EQUIPOTENTIAL BONDING
CABLE
INSTALLATION GUIDE DELUXE | PART I | P1071 REV I
A
B
C
!
ALL ELECTRICAL WORK MUST BE
CARRIED OUT BY A QUALIFIED
ELECTRICIAN IN ACCORDANCE
WITH THE APPLICABLE GUIDELINES
(HD 60364-7-701 AND SUCH) AND
NATIONAL REGULATIONS.
A SEPARATE POWER CONNECTION
WITH A SEPARATE FUSE AND A
SEPARATE EARTH LEAKAGE CIRCUIT
BREAKER (RCD) MUST BE PROVIDED.
8
1
2
3
4
A
B
B
-
2
4 3
1

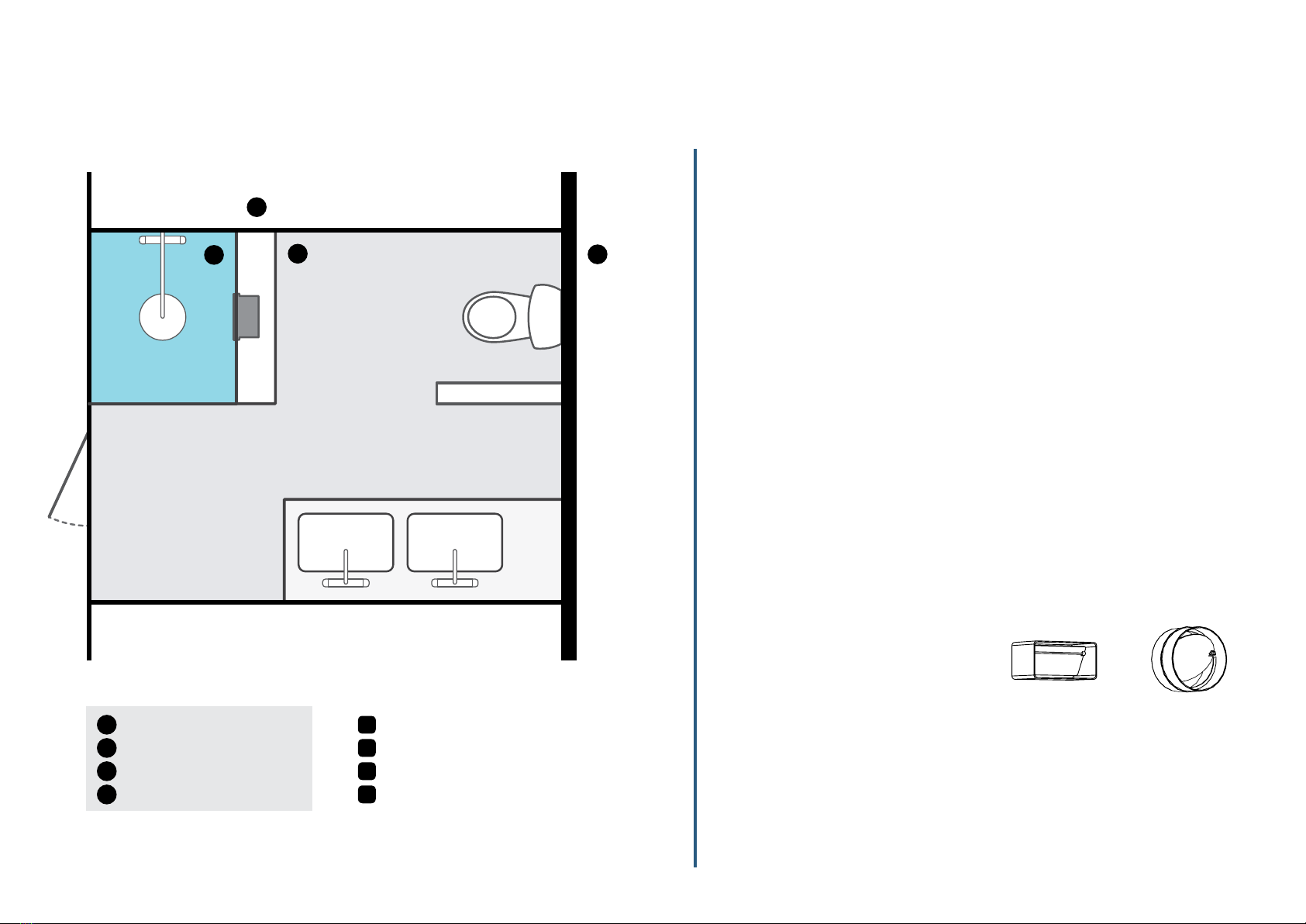

INSTRUCTIONS
NON-RETURN VALVES:
Non-return valves must be installed
if the air for your Sunshower is
extracted from a humid area, e.g.
from the outside or from the
bathroom. Please refer to the
image and subsequent pages for
instructions. The non-return valves
can be ordered additionally (as a
set with the glass panels) or can
be purchased separately at your
hardware store.
Examples of humid areas:
bathroom, outside.
Examples of dry areas:
bedroom, hallway, toilet.
GENERAL CONSTRUCTION
GUIDELINES:
• All Sunshower appliances must
be installed with ventilation
ducts
• Ventilation feed and exhaust
can both be a maximum of 3 m
• The space from which/to which
ventilation is provided must be
at least 12 m3
• The ducts can be of any
material, with dimensions Ø100
mm or 110 * 55 mm
• Make as few bends as possible
in the ducts
• The Sunshower may not be
connected to an existing
ventilation system
PREPARATION
VENTILATION
DRY AREA
BATHROOM
OUTSIDE
SHOWER AREA
PAGE 9 PREFERRED
PAGE 10
PAGE 10
- NOT POSSIBLE
ROUND NON-
RETURN VALVE
RECTANGULAR
NON-RETURN
VALVE
INSTALLATION GUIDE DELUXE | PART I | P1071 REV I
9
3
4
5
A1
1
2
3
5
4
A
2
1
6
7
6
7
8
9
160 MM
100 MM
70 MM
170 MM
8 9
MIN.
MIN.
INSTALLATION GUIDE DELUXE | PART I | P1071 REV I

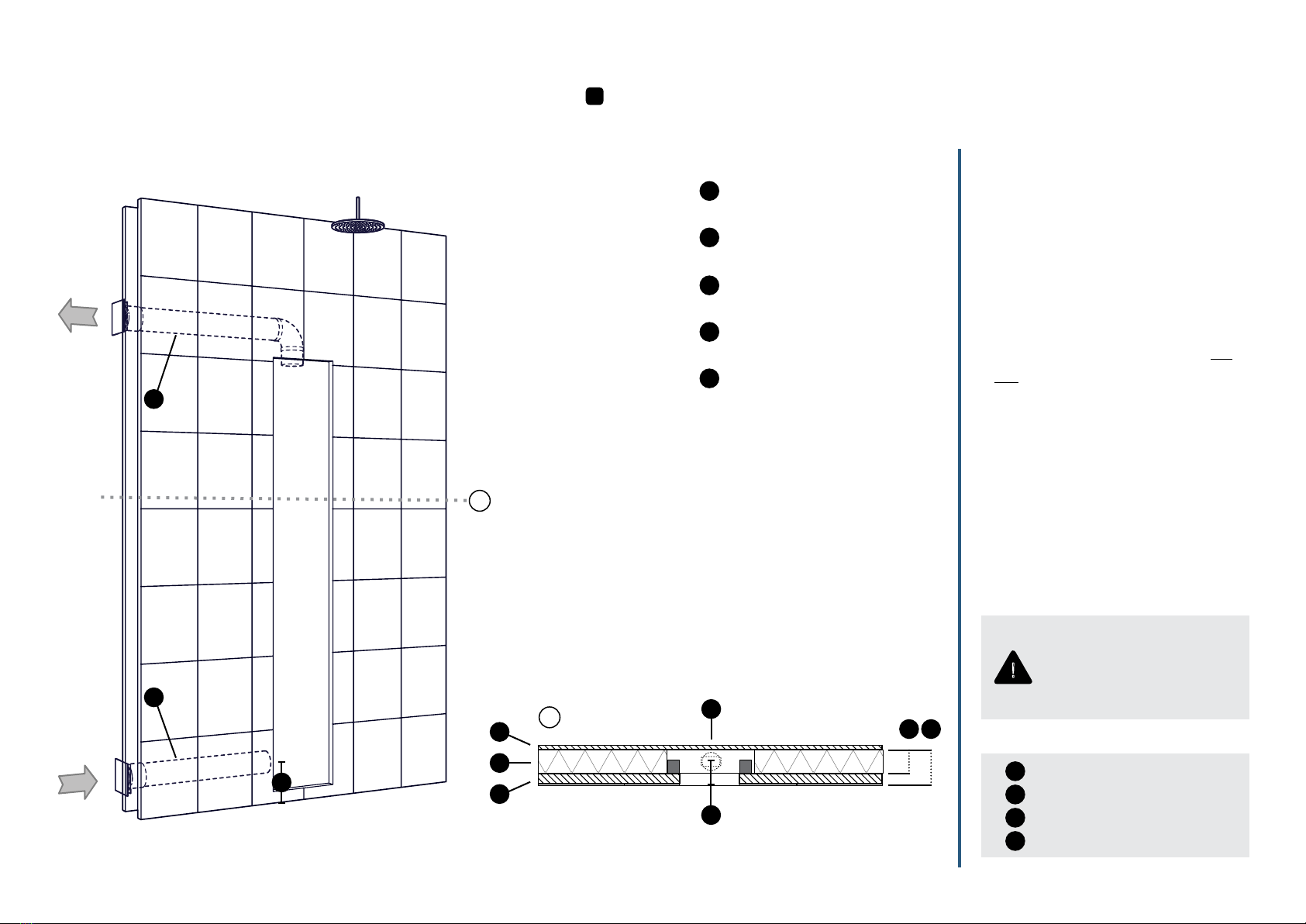

INSTALLATION
DRY AREA
INSTRUCTIONS
REQUIRED TOOLS
Install ventilation ducts measuring
at least Ø100 mm or 110 x 54
mm with a maximum length of 3
m (both feed and exhaust). The
ventilation feed space must be at
least 12 m3.
In this case, non-return valves are
not mandatory.
□Ventilation ducts
□Duct brackets
□Ventilation grilles set (sold
separately)
Ventilation grilles
2x
8x
1x
2x
Feed
Exhaust
Back wall
Optional insulation
Wall construction
(Drywall/Tiles/Hollow
wall)
Minimum inner dimensions
(8) round ducts: 110 mm
Minimum inner dimensions
(8) rectangular ducts: 70 mm
A
!
10
1
2
4
6
5
3
A
3
2
1
7
3
4
5
A1
8
910
7
8
9
10
160 MM
100 MM
70 MM
170 MM
MIN.
MIN.
INSTALLATION GUIDE DELUXE | PART I | P1071 REV I
REQUIRED TOOLS
□Ventilation ducts
□Duct brackets
□Ventilation grilles set (sold
separately)
Ventilation grilles
Non-return valves
2x
8x
1x
2x
2x
!

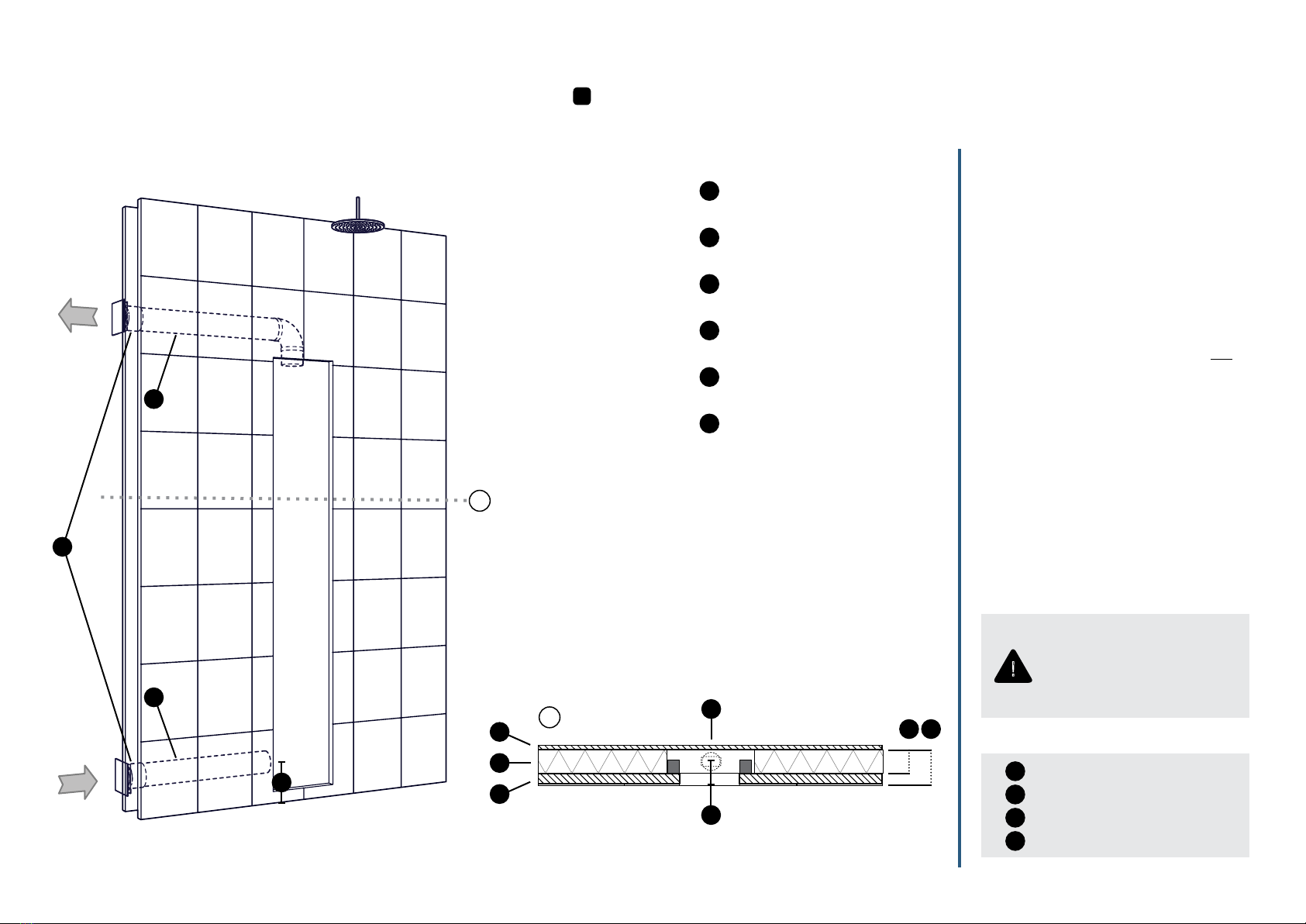

INSTALLATION
HUMID AREA
INSTRUCTIONS
Install ventilation ducts measuring
at least Ø100 mm or 110 x 54
mm with a maximum length of 3
m (both feed and exhaust). The
ventilation feed space must be at
least 12 m3.
In this case, non-return valves are
mandatory.
Feed
Exhaust
Non-return valves
Back wall
Optional insulation
Wall construction
(Drywall/Tiles/Hollow
wall)
Minimum inner dimensions
(9) round ducts: 110 mm
Minimum inner dimensions
(9) rectangular ducts: 70 mm
B
