Sunricher SR-SBP2801K4-DIM-G2 Manual de usuario

Self Powered RF+Bluetooth DIM Remote Controller

70200001

Function introduction

Important: Read All Instructions Prior to Installation

Click to turn on zone 2, Press

and hold down to increase

light intensity

Click to turn off zone 2, Press

and hold down to increase

light intensity

Click to turn on zone 1,

Press and hold down to

increase light intensity

Click to turn off zone 1,

Press and hold down to

decrease light intensity

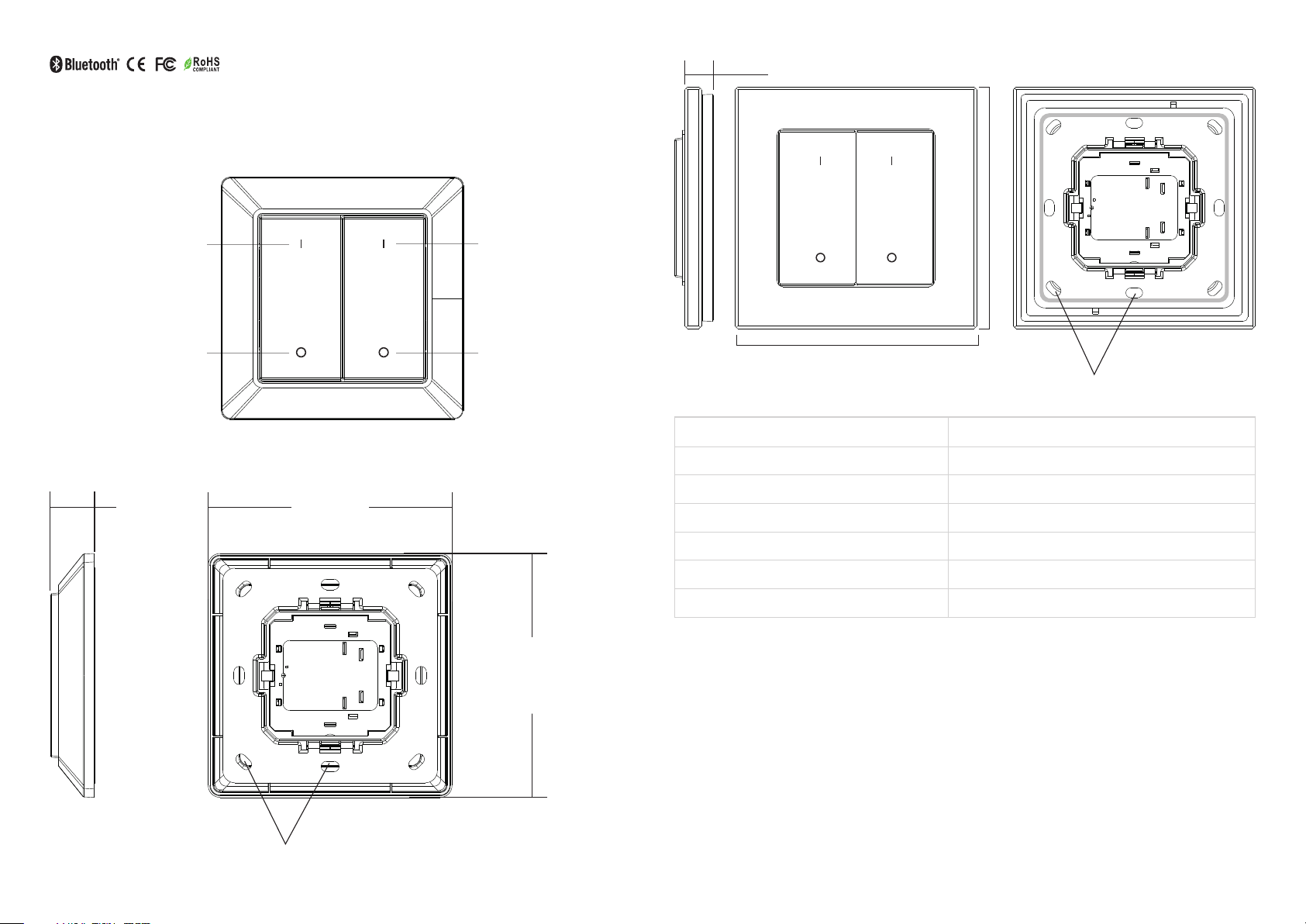

Front side

Back side

10.10 mm

86mm

The remote control can be fixed on the wall with 3M glue or screw.

With Glass Frame

Product Data

Protocol

Power Supply

Transmission Frequency

Transmission Range (free field)

Protection Type

Dimming Range

Dimensions

RF+Bluetooth

Self powered by built-in nano generator

2.4GHz

30m

IP20

0.1%-100%

80.5x80.5x14.7mm / 86x86x14mm

• DIM wall remote based on RF+Bluetooth Mesh

• Self-powered wall remote, no battery replacement & re-installation costs

• No wires, no batteries, no limits

• Ultra long lifetime, more than 1 million times pushing

• Easy & quick pairing to the RF+Bluetooth receivers by simply pushing the buttons

• Enables to control 2 zones of receivers

• Mesh network for further control distance, receivers can transmit signal to each other

• 2.4 GHz global operation

• The controlled receiver status can be quickly synchronized to the smart APP

• Transmission range between every two neighbor devices up to 30m

• Each receiver can be paired to max. 8 remote controls

• Enables to control universal DIM RF+Bluetooth devices

• Standard size, compatible with existing EU size frame

The remote control can be fixed on the wall with 3M glue or screw.

80.5 mm

With Plastic Frame

14.7 mm

• DO NOT expose the device to moisture.

Safety & Warnings

Pair with RF+Bluetooth receiver

Step 3:Click or button of either of the two zones on the remote, e.g. button .

of zone 2, LED lights connected with the receiver flicker once means the

receiver is paired to the selected zone successfully.

Note: one receiver can be paired with max 8 remote controls.

Step 1:Do wiring the RF+Bluetooth receiver according to wiring diagram(please refer

to the instruction of RF receiver that you would like to pair with)

Step 2:Click the “Prog.” or “Reset” button on the receiver or re-power on the receiver

three times continuously to set it into pairing status

Prog.

RF+Bluetooth LED Receiver

The key part of this controller is a universal, extremely rotary standard switch element that can be integrated in

numerous frames by different manufactures as below list:

BEKER S1, B1, B3, B7 glass

GIRA Standard55, E2, Event, Esprit

JUNG A500, Aplus

MERTEN M-smart, M-Arc, M-Plan

Installation

With Plastic Frame With Glass Frame
