Sune Technology SUNE10 VELAR Manual de usuario

Manual Date

Firmware Date

Main

Sub

Tw8823

2019, 06, 21

2019,06,05

Installation Manual

ＳＵＮＥ１０　ＶＥＬＡＲ

SUNE TECH

WIFI/BT Antenna x 2

COMPONENTS

ＳＵＮＥ１０－ＶＥＬＡＲ LVDS BOARD Extension Power

LVDS Cable X 3 AV - CABLE

POWER

KEY PAD

Speaker GLONASS GPS MIC

SUNE TECH

PIN ASSIGNMENT

POWER / CAN

1 ACC IN 2 Ground

3 ST_KEY 1 4 ST_KEY 2

5 12V OUT 6

7 APIX OUT SEL 8 RELAY 5V

9 LIN IN 10 OMNI KEY

11 PAS CAN H 12 PAS CAN L

13 BUT CAN H 14 BUT CAN L

54321 91

2 10

AV IN/OUT

1 SPEAKER P 2 SPEAKER N

3 Audio Out R 4 Ground

5 Audio Out L 6 Ground

7 MIC P 8 MIC N

9 10

87654321 151

2 16

SUNE TECH

APPLY VEHICLE LIST

Supported TOUCH DUO PRO NOT Supported TOUCH DUO PRO

SUNE TECH

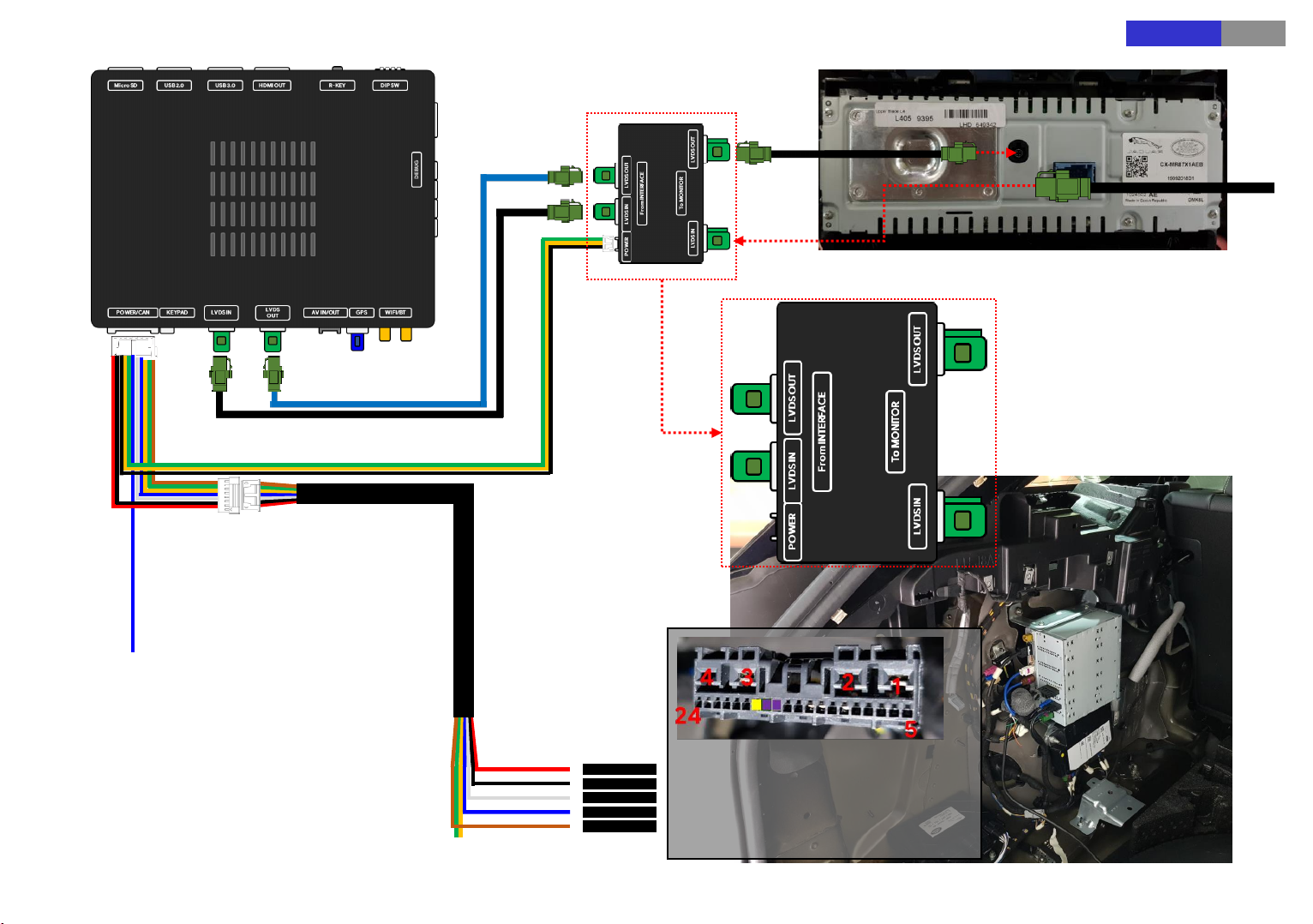

INSTALLATION DIAGRAM

From Headunit

1 = GROUND ( Black )

3 = BATTERY (Gray/Red )

16 = PAS CAN LOW ( Purple/Gray )

17 = PAS CAN HIGH ( Purple/Green)

18 = LIN IN ( Yellow )

BAT

GROUND

PAS CAN H

PAS CAN L

LIN IN

SUNE TECH

OEM BUTTON

Steer Remote How to press Description of operation

1, Voice Press button for short time Return back to OEM Screen form Interface

Screen

Press button for 1 second Screen is switched to Android

SUNE TECH

INTERFACE SETTINGS

1920 x 720

HDMI INPUT SOURCE DEFAULT

NAVIGATION BRIGHT 128

REAR VIEW CONSTRAST RED 128

FRONT VIEW CONSTRAST GREEN 128

DTV CONSTRAST BLUE 128

DVD

CUSTOM

EXIT

DIP SWITCH INFO : FIRMWARE DATE :

MAIN : 2019, 02, 03

SUB : 2019, 02, 03

TW23 : 2019, 02, 03

How to press In not settings menu. In settings menu.

MENU Press button for 1 sec

Screen is switched in that order switches

are activated. Return back to the previous menu.

SEL Press button for short time Enter into the settings menu. Select the settings menu, and values

Move the menu or Increase values

Press button for 5 sec Enter Calibration Mode For Touch.

DOWN Move the menu or decrease values

SUNE TECH

SUNE TECHNOLOGY CO.,LTD No.9,Lane 606,Anping Rd,Tainan

City 70849,TAIWAN TEL:+88662292246 FAX:+88662288104

Http://www.sune-tech.com

Shop http://www.carnavi-tech.com

SKYPE:sune_tech or hsin_han99
