Sundstrom SR 100 Manual técnico
2020-06-04
OI01H-2021 SR 100 1
Operation Instruction
SR 100
Half mask APR
Revision: 04
General information
Instructions for use for SR 100 APR should be read before use.
Together with filters/cartridges from the Sundström filter range in accordance with the NIOSH approval label.
Three sizes S/M, M/L and L/XL.
Together with compressed air attachment SR 307 and SR 358 or SR 359 compressed air supply tube in
accordance with NIOSH approval label for SAR.
When selecting equipment for SR 100 some of the factors that should be considered are as follows:
• Type of pollutants
• Concentrations
• Work intensity
• Protection requirements in addition to respiratory protective advice.
Risk assessment should be carried by a person who has suitable training and experience in the area.
2020-06-04
OI01H-2021 SR 100 2
Unpacking the SR 100
Check that the equipment is complete in accordance
with the packing list, and that no transport damages
have occurred.

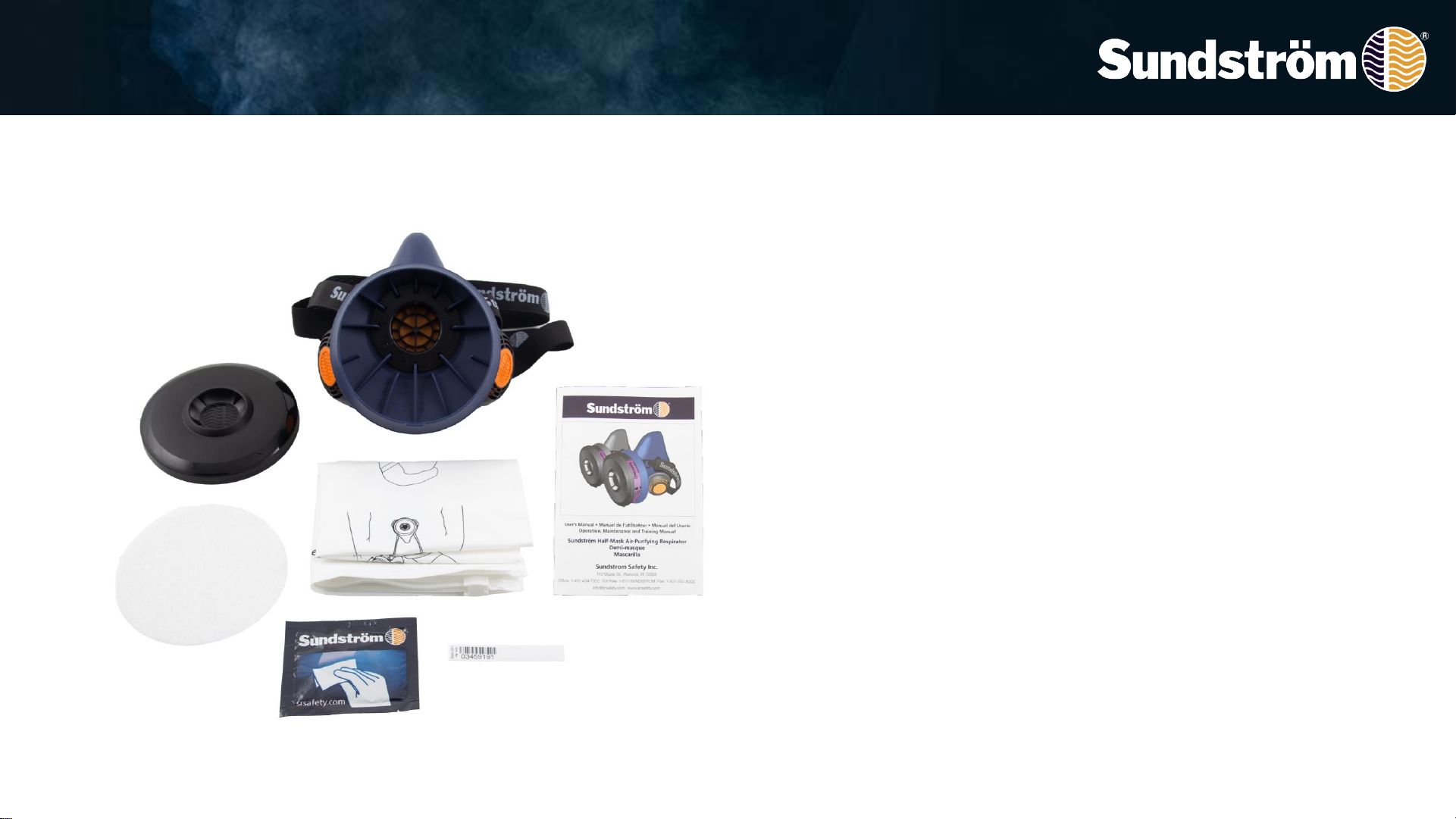

Packing list:
•Half mask
•Pre-filter holder
•Cleaning tissue
•ID-tag
•Pre-filter
•Storage bag
•Instruction for use
2020-06-04
OI01H-2021 SR 100 3
1. Filter
2020-06-04
OI01H-2021 SR 100 4

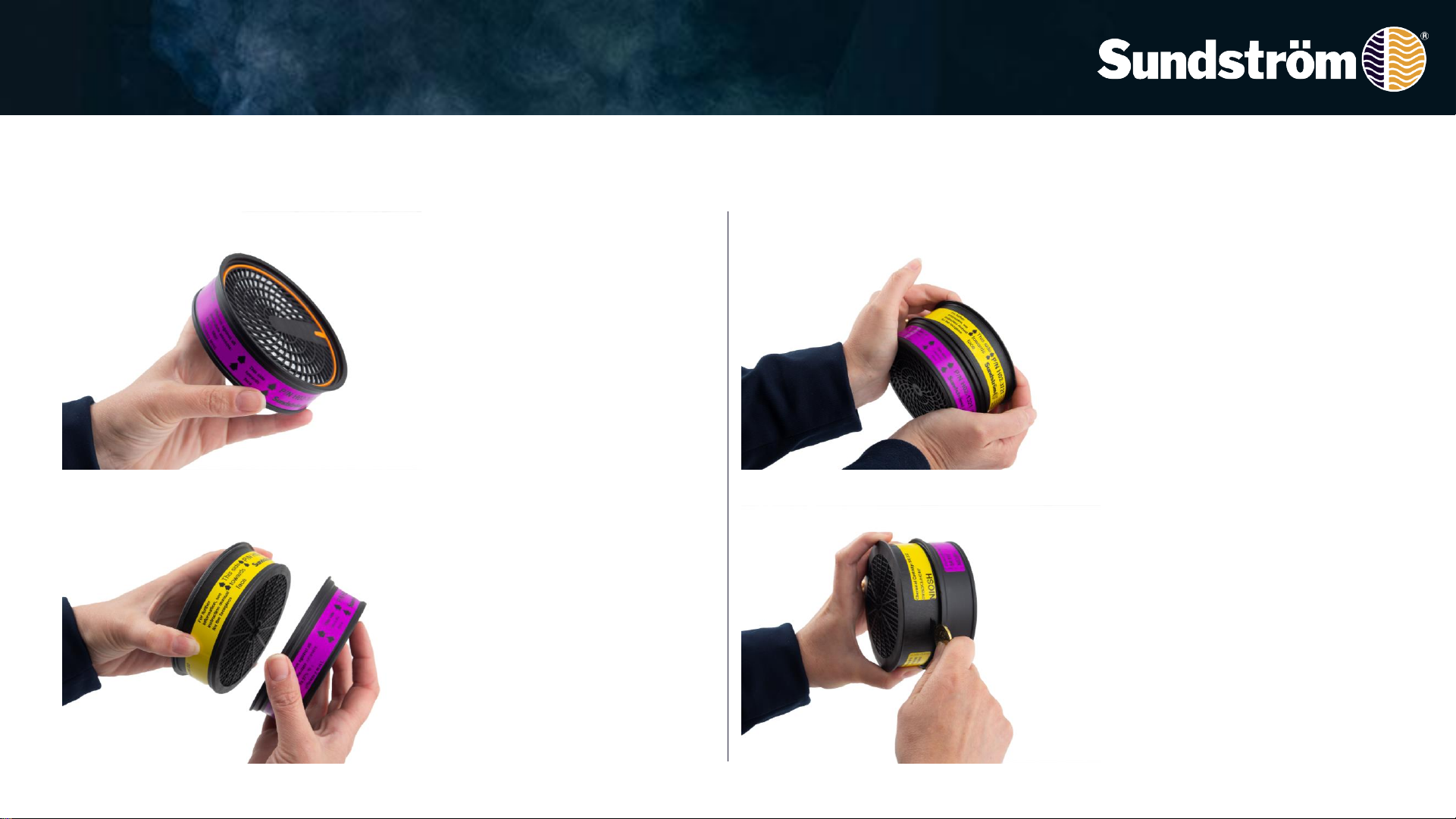

1.1 Check that you have
selected the correct filter.
1.2 During work in
atmospheres containing both
particulates and gases/vapors
(such as spray painting) the
particulate filter and chemical
cartridge should be
combined.
1.3 Place the P100
particulate filter on top of the
cartridge. Grasp both
protective elements. Squeeze
hard until you hear the P100
snap onto the cartridge a
snap.Attempt to pull the filter
and cartridge apart to check
that they are properly
connected.
1.4 Place a coin it in the
space between the lower lip
of the particulate filter and the
small tab moulded into the
side of the cartridge.
Push firmly and twist the coin
until the filter pops off.
1. Filter
2020-06-04
OI01H-2021 SR 100 5
1.5 Fit the filter/combined
filter in the mask so that the
arrows on the filter point
towards the user’s face.
Carefully check that the edge
of the filter is in the internal
groove of the filter mounting
all around.
1.6 Fit pre-filter SR 221 in the
pre-filter holder.
Pre-filter prevents premature
clogging of the main filter.
The pre-filter holder prevents
damage to the main filter.
N.B. The pre-filter is a pre-
filter only and cannot be used
as a substitute for particulate
filter P100.
1.7 Press it into place on the
filter.
2. Donning
2020-06-04
OI01H-2021 SR 100 6
2.1 Remove any hood,
glasses or ear protection from
head.
Holding the respirator in one
hand, grab the locking buckle
and pull on the head strap
until the pad or cradle is tight
against the respirator.
2.2 Take out any twists or
tangles.
2.3 Holding the strap buckle,
pull the strap over your head
and put it around your neck.
2.4 Let the mask hang on
your chest.
2. Donning
2020-06-04
OI01H-2021 SR 100 7
2.5 Grab the pad or cradle
with one hand and the filter or
cartridge with the other.
2.6 Hold the mask against
your face.
2.7 Pull the pad or cradle
over your head and place it
on the crown of the head.
Wiggle the respirator until it
fits comfortably.
Perform a fit check.
3. Adjusting the harness
2020-06-04
OI01H-2021 SR 100 8
3.1 Reach behind your neck
and grab the free end of the
harness strap.
3.2 Pull the free end away
from the neck until buckle
pops open.
3.3 Pull on the free end of the
strap until the respirator seats
comfortably on your face.
Use your thumb and
forefinger to squeeze the
buckle shut.
3.4 Wiggle the respirator until
it seats comfortably.
4. Negative fit check
2020-06-04
OI01H-2021 SR 100 9
4.1 Install a protective
element.
Snap the pre-filter holder onto
the protective element.
4.2 Donning the respirator.
4.3 Place the palm of your
hand lightly over the hole on
the pre-filter holder to make it
tight.
Inhale gently, the respirator should pull inward on the face. Hold
your breath, the respirator should remain collapsed on the face.
Remove the palm of your hand from the pre-filter holder. Breathe
normally.
If any leakage is detected, check the inhalation and exhalation
valves, adjust the straps of head harness or switch to alternative
size of the respirator. Repeat the fit check until there is no
leakage.
NOTE!
Do not push so hard that the respirator´s shape is affected.
5. Change the inhalation membrane 6. Change the head harness
2020-06-04
OI01H-2021 SR 100 10

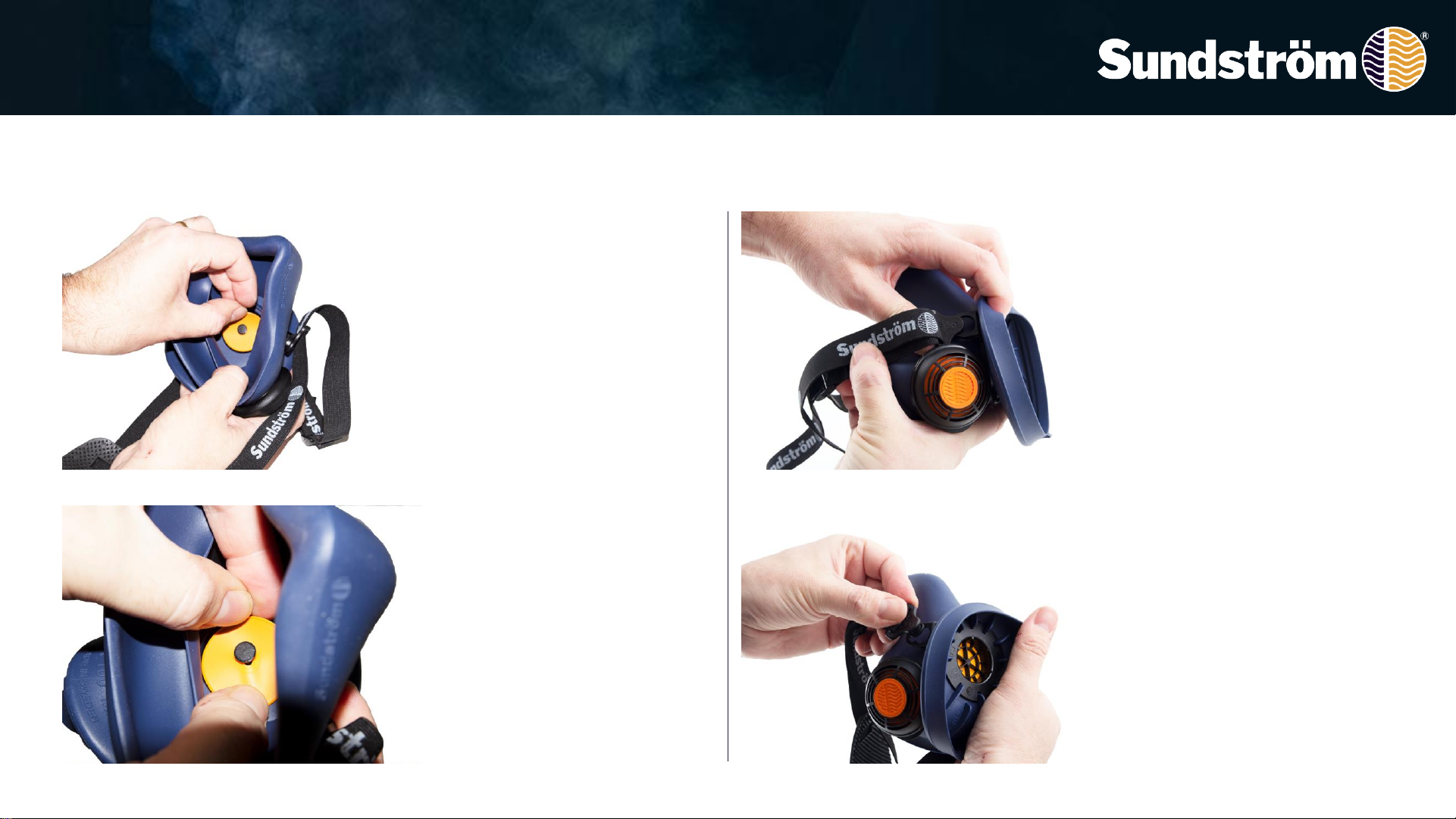

5.1 Reach inside the
respirator and gently pull out
the inhalation membrane.
5.2 Check the edge of the
inhalation valve. Gently
stretch the flap until it slips
over the stud.
6.1 Detach the head harness
by pushing the two
connection points towards the
filter attachment.
6.2 Check that the straps are
not twisted and snap on the
new harness by putting each
plastic swivel into the
contoured slot and pulling it
until it snaps in.
