MX6800 Retro Mixmaster Issue: A Page 1 of 6

SERVICE MANUAL

MX6800

MX6800MX6800

MX6800

Retro Mixmaster

Retro MixmasterRetro Mixmaster

Retro Mixmaster

ISSUE: A

DATE: 12

September 2000

MX6800 Retro Mixmaster Issue: A Page 2 of 6

SPARE PARTS LIST

Note: Not all parts are available as spare parts. Please check price list.

Item Description No. of

Parts

Supplier’s

Code

Sunbeam

Part No.

Screw, phillips pan head 10 18350-005

Screw, phillips pan head 1 14332-000

Switch ass’y, power boost 1 84150-000 MX18399

Stop axle rubber 2 19408-000

Ejector link 1 84155 MX18400

Upper housing 1 84148

Ejector button 1 84154 MX18401

Lower housing 1 84158

Hinge pin 1 84159-000

Motor / Gear ass’y 1 84162 MX18402

Gear cover mounts 2 19415-000

Gear spindle whipper 2 19416-000 N/A

O-ring 2 19417-000 MX18412

Whipper retainer 1 84163-000 MX18404

Magnet 1 100218-000

Brass screw 1 100219-000

Rubber pad 2 30183-005

Retainer bracket 1 65472-000

Flat washer 1 100268-000

Spring washer 100269-000

Retaining washer 1 100270-000

Control knob 1 84164

PCB assembly 1 84218 MX18413

Cord assembly 1 19565

Handle cover 1 84149

Power boost button 1 84152

Data label 1 100271-000

Front cover 1 84145

Pivot pin 1 84130-000

Torsion spring 1 84131-000

Base plate 1 84133-000

Rubber foot 4 84134-000

Guide plate 1 84135-000

Lock pin 1 84136-000

Compression spring 1 84137-000

Turntable lever 1 84139-000

Head release lever 1 84129

Lock button 1 84138

Turntable knob 1 84140

Stand 1 84128 MX18414

41,42,43 &

Turntable assembly MX18405

Carrier assembly 1 19452-000

MX6800 Retro Mixmaster Issue: A Page 3 of 6

Item Description No. of

Parts

Supplier’s

Code

Sunbeam

Part No.

Screw ( Not shown ) 1 19487-000

Button disc 1 84142

Platter 1 84143

Drive whipper 1 84122-000

45 & 46

Drive whipper assembly MX18406

Drive button 1 84123-000 MX18407

Centre whipper 1 84124-000 MX18408

48 & 49

Dough hook set MX18409

Doug hook – L. 1 84125-000

Doug hook – R. 1 84126-000

Retaining ring 1 100523-000 MX18410

Instruction book MX18411

MX6800 Retro Mixmaster Issue: A Page 4 of 6

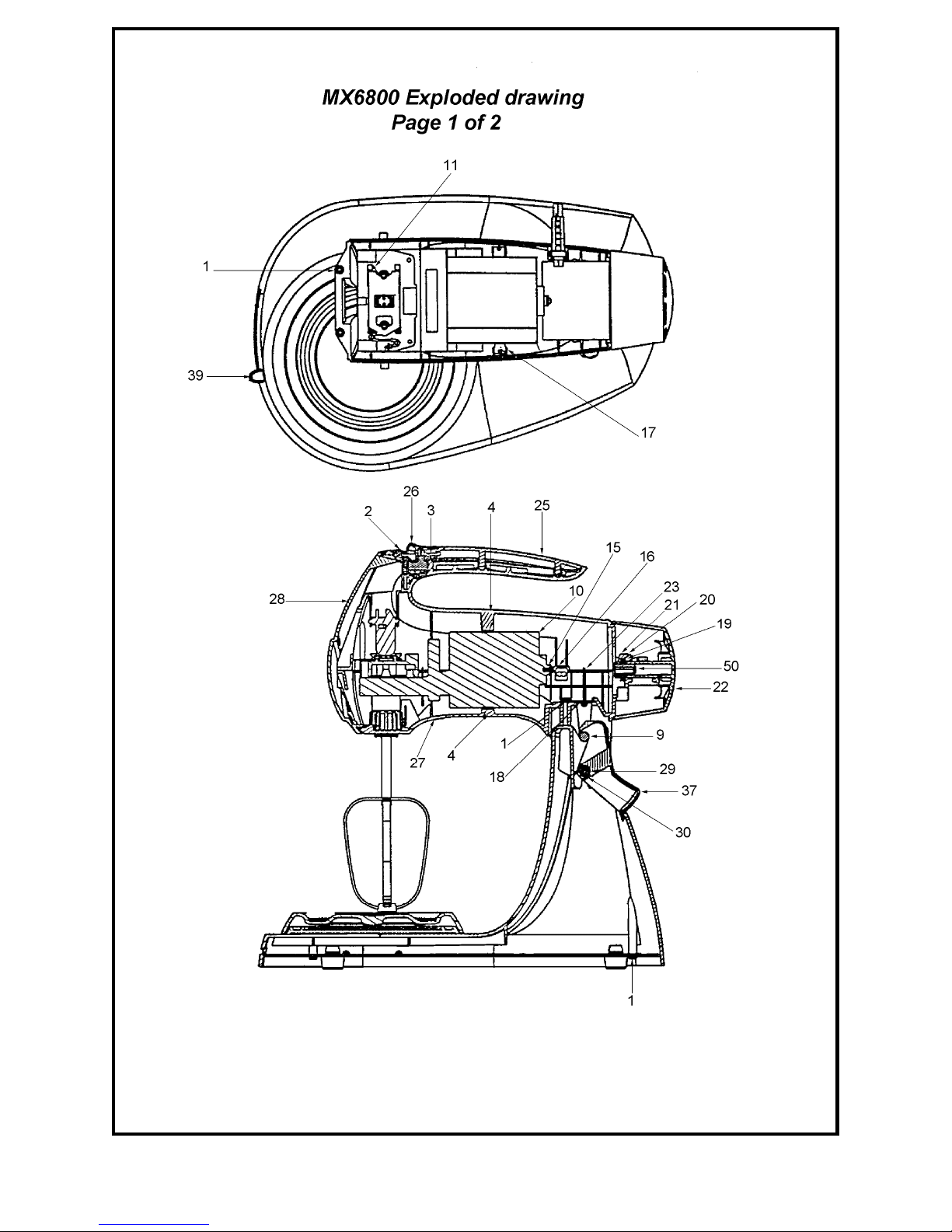

MX6800 Retro Mixmaster Issue: A Page 5 of 6

MX6800 Retro Mixmaster Issue: A Page 6 of 6
