Sunbeam SD113242 Manual de usuario

PRODUCTS INC.

4101 Howard Bush Dr.

Neosho, Mo. 64850

INTERNET SITE:

www.bbqhq.com

1141-1986BX 99/10

ENGINEERING CODE

SD113232/SD113242

LOOK INSIDE FOR:

zEASY ASSEMBLY

INSTRUCTIONS

zIMPORTANT WARRANTY

INFORMATION

zSAFETY AND

MAINTENANCE TIPS

zFOR YOUR CONVENIENCE,

EXTRA HARDWARE MAY

BE INCLUDED.

Assembly

Instructions

TOOLS REQUIRED

#2 PHILLIPS SCREWDRIVER

PLIERS

HAMMER

BOX END WRENCH

Las Instrucciones de Ensamblaje en español en la pagina 15.

IMPORTANT! TO ENSURE PROPER

GAS FLOW, BURNER CONTROL

VALVES MUST BE "OFF" BEFORE

OPENING THE GAS CYLINDER

VALVE.

(Pg. 2) 1141-1986

(2) Qty. (2) Qty.

Hardware shown actual size

ARemove the following parts from the carton:

One STRAP ...................................................................(1)

Two LEGS .....................................................................(4)

One FRONT PANEL .........................................................(20)

Assemble the back STRAP (1) to LEGS (4) with two screws (CK). See detail A1.

Assemble the FRONT PANEL (20) to the front Legs with two screws (JR).

Front

Right

Left

Back

label

(Pg. 3) 1141-1986

BRemove the following part from the carton:

One CYLINDER CADDY ....................................................(2)

Attach the CYLINDER CADDY (2) onto the STRAP, LEGS and FRONT

PANEL with four screws (JR). Note: The Cylinder Caddy attaches to the

left end of the frame. See details B1 and B2.

(4) Qty.

Hardware shown actual size

B1 B2

JR JR

Front

Right

Left

Back

INCORRECT CYLINDER CADDY

AND CYLINDER LOCATION CORRECT CYLINDER CADDY

AND CYLINDER LOCATION

(Pg. 4) 1141-1986

CRemove the following parts from the carton:

One AXLE .....................................................................(3)

Two WHEELS .................................................................(16)

Two HUB CAPS ..............................................................(17)

Two LEG EXTENSIONS ....................................................(18)

Tap one HUB CAP (17) onto AXLE (3). Slide a WHEEL (16) onto the Axle.

See detail C1.

Insert the Axle into the top axle holes on the left side of frame.

Slide other Wheel onto the axle and tap on remaining Hub Cap.

Tap two LEG EXTENSIONS (18) into the right legs. See detail C2.

Front

Right

Left

Back

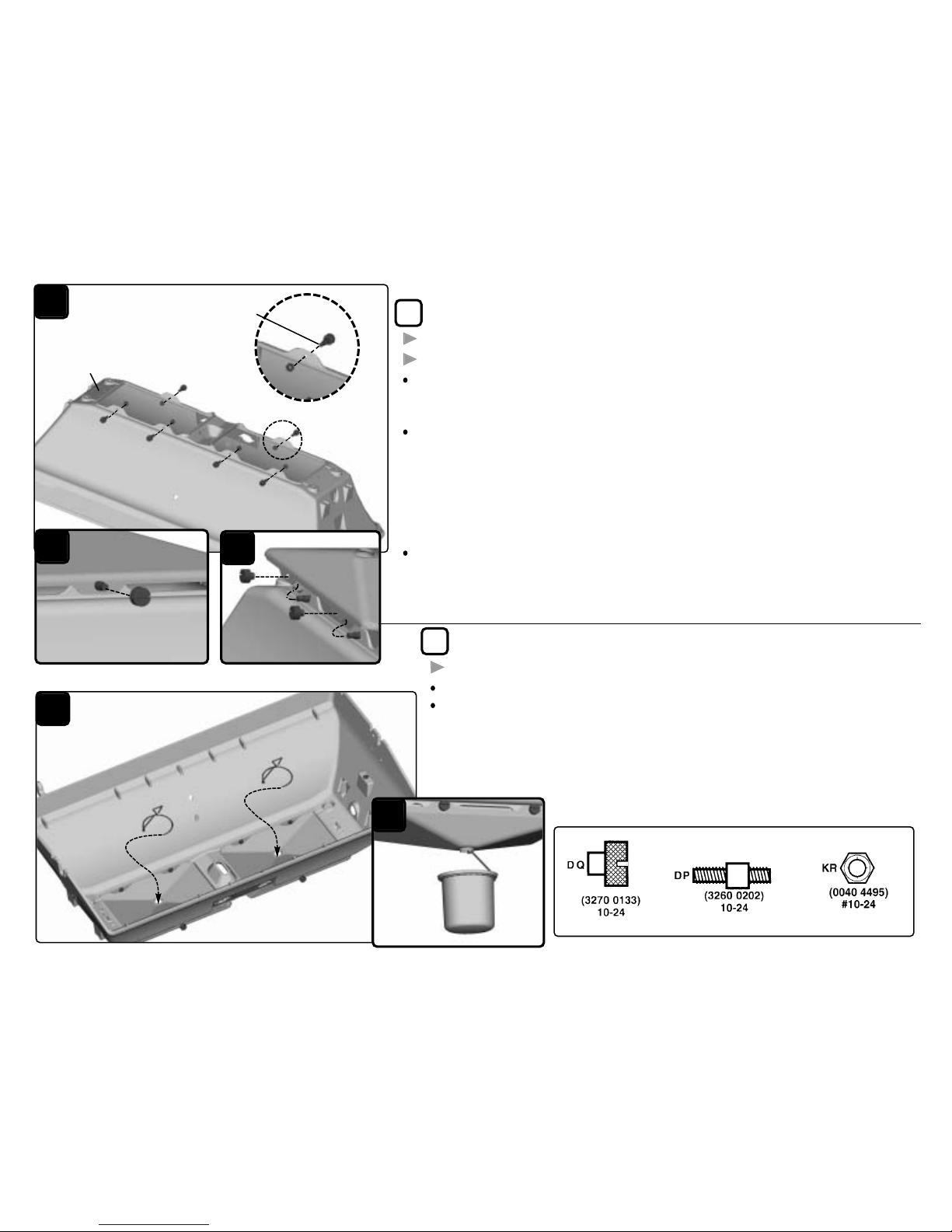

(Pg. 5) 1141-1986

ERemove the following parts from the carton:

Two GREASE PAN WIRES.................................................(49)

Thread the GREASE PAN WIRES (49) into the Grease drip pans.

Note: Soup can not included. See detail E1.

DRemove the following parts from the carton:

One BOTTOM CASTING ...................................................(42)

Two GREASE DRIP PANS .................................................(48)

Set the BOTTOM CASTING (42) upside down. Install the long ends of six spacers (DP)

into the six tabs on the Bottom Casting secure inside with six hex nuts (KR). Note: The

Bottom casting front has only two tabs, the back has four tabs.

Remove the six knurl nuts (DQ) from the six spacers (DP). Do not loosen the spacers from

the hex nuts (KR) inside the bottom casting. Align the front hole in one of the GREASE

DRIP PANS (48) with spacer on the front of the bottom casting and insert the spacer into

the Grease pan. (Note: The front hole on the Grease pan is larger so it can slide over the

spacer.) See detail D1. Gently rotate pan and align the rear holes in the drip pan with the

spacers in the bottom casting. Then insert spacers into the pan and secure with three Knurl

nuts (DQ). See detail D2.

Repeat assembly for the other Grease Drip Pan.

Hardware shown actual size

(6) Qty.

(6) Qty (6) Qty.

D1 D2

Back

Front

Long End

Soup can

not

included

(Pg. 6) 1141-1986

Hardware shown actual size

(2) Qty.

FRemove the following part from the carton:

One BURNER .................................................................(43)

Insert the BURNER (43) into the Bottom Casting slots and secure with two

hair pins (WO). See detail F1.

Attach the Bottom casting onto the Frame with four screws (JR) and two hex

nuts (KR). Attach two hex nuts (KR) on the front screws only. See detail F2.

Burner

Tab

(2) Qty.

(4) Qty.

KR Front

Right

Left

Back

(Pg. 7) 1141-1986

GRemove the following parts from the carton:

One CONTROL PANEL .....................................................(25)

One VALVE ASSEMBLY ...................................................(27)

Two CONTROL KNOBS ....................................................(32)

Two BEZELS ..................................................................(33)

One VENTURI GUARD......................................................(44)

Attach the VENTURI GUARD (44) to the inside front of the Bottom casting with two

screws (JR). (DO NOT use a cordless or power screw drive, it can strip out the

screws.)

Attach the VALVE ASSEMBLY (27) and BEZELS (33) to the CONTROL PANEL

(25) with four screws (HA). See detail G1.

Push the CONTROL KNOBS (32) onto the Valve stems. See detail G2.

Hardware shown actual size

(4) Qty (2) Qty.

G1 G2

Venturi Guard

(Pg. 8) 1141-1986BX

HRemove the following parts from the carton:

One HEAT SHIELD ..........................................................(47a)

One “I” TENT .................................................................(61)

Slide the HEAT SHIELD (47a) over the the Valve. See detail H1. Place the

Control Panel on the frame (place the HVR hose inside the front panel) insert

the orifices on the valve inside of the Burners’ venturi tubes. IMPORTANT: The

orifices must be inside the venturi tube. See detail H2.

Secure the Control Panel to the legs with four screws (JR). From inside frame

secure the bottom flange of the Control Panel and the Front panel top flange

together with one push in fastener (GF). See detail H3.

Place the “I” TENT (61) in the Bottom Casting over the Burner and secure with

two screws (JR). See detail H4.

Hardware shown actual size

(6) Qty. (1) Qty.

47a

Inside

H4 JR JR

Orifices inside of

venturi tubes Valve

Orifice

heat shield

JR JR

47a

(Pg. 9) 1141-1986

JRemove the following parts from the carton:

One FRONT BASKET .......................................................(22)

One PUSH BUTTON IGNITER.............................................(26)

Two MAIN ELECTRODE WIRES ..........................................(26b)

Push the MAIN ELECTRODE WIRES (26b) onto the main burner electrodes, located under the

bottom casting.

Thread the Main Electrode Wires through the igniter hole in the Control Panel. Push the round

connecters onto the round and flat pins on the PUSH BUTTON IGNITER (26). See detail J1.

Snap the Push Button Igniter into the Control Panel. Test: A spark should appear at electrode

tip.

If the spark does not appear.

- Check the wire connections to the Igniter.

- Check the wire connections to the main burner electrodes.

Hook the FRONT BASKET (22) Into the front panel. See detail J2.

J1 J2

26b

(Pg. 10) 1141-1986

KRemove the following parts from the carton:

One right SIDE TABLE.............................(9R)

One left SIDE TABLE...............................(9L)

Four TUBE PLUGS .................................(15)

Insert two TUBE PLUGS (15) into the leg ends on the right side.

Attach one right SIDE TABLE (9R) to the right side with four screws (CK). See detail K1.

Repeat above assemblies for the Left SIDE TABLE (9L).

Hardware shown actual size

(8) Qty.

CK CK

Right
