EM2800 PICCOLO ESPRESSO; ISSUE: A Page 1 of 24
SERVICE MANUAL
EM2800
Piccolo Espresso
ISSUE: A
DATE: 12 July 2011
EM2800 PICCOLO ESPRESSO; ISSUE: A Page 2 of 24
SPARE PARTS LIST
Note: Not all parts are available as spare parts. Please check price list.
Item Description Material
Specification
No. of
Parts
Supplier’s
Code
Sunbeam Part
No.
1 Screw Iron plate with white
zinc
1 Guangdong
xinbao
Electronic Co.
Ltd
2 Convert switch cover
PA66 70G43L 2 Guangdong
xinbao
Electronic Co.
Ltd
3 Shunt spring SUS304 3 Guangdong
xinbao
Electronic Co.
Ltd
4 Push pole HBi59-1L 4 Guangdong
xinbao
Electronic Co.
Ltd
5 Seal ring2
Silicone 5 Shunde kainuo
Co. Ltd
6 Seal ring3
Silicone 6 Shunde kainuo
Co. Ltd
EM2800 PICCOLO ESPRESSO; ISSUE: A Page 3 of 24
Item Description Material
Specification
No. of
Parts
Supplier’s
Code
Sunbeam Part
No.
7 Seal ring1
Silicone 7 Shunde kainuo
Co. Ltd
8 Clip SUS304 8 Guangdong
xinbao
Electronic Co.
Ltd
9 Ring for connector Silicone 9 Shunde kainuo
Co. Ltd
10 Silicon tube Silicone 10 Shunde kainuo
Co. Ltd
11 Clamp SUS304 11 Guangdong
xinbao
Electronic Co.
Ltd
12 Switch cam POM F20-03 12 Guangdong
xinbao
Electronic Co.
Ltd
13 Switch retainer
SUS304 13 Shunde Zhihua
Co. Ltd
14 Screw SUS304 14 Shunde Zhihua
Co. Ltd
15 Knob 2 ABS PA757 15 Shunde kainuo
Co. Ltd
EM2800 PICCOLO ESPRESSO; ISSUE: A Page 4 of 24
Item Description Material
Specification
No. of
Parts
Supplier’s
Code
Sunbeam Part
No.
16 Anti move pole PP HJ730L 16 Guangdong
xinbao
Electronic Co.
Ltd
17 Shunt pin spring SUS304 17 Guangdong
xinbao
Electronic Co.
Ltd
18 Fix block PP+20%GF 18 Guangdong
xinbao
Electronic Co.
Ltd
19 Screw Iron plate with white
zinc
19 Guangdong
xinbao
Electronic Co.
Ltd
20 Safe valve cap PA66 70G43L 20 Guangdong
xinbao
Electronic Co.
Ltd
21 Protect-push-pole PA66 70G43L 21 Guangdong
xinbao
Electronic Co.
Ltd
22 Protect Seal ring Silicone 22 Shunde kainuo
EM2800 PICCOLO ESPRESSO; ISSUE: A Page 5 of 24
Item Description Material
Specification
No. of
Parts
Supplier’s
Code
Sunbeam Part
No.
Co. Ltd
23 Spring1 SUS304 23 Guangdong
xinbao
Electronic Co.
Ltd
24 Protect vavle bush PA66 70G43L 24 Guangdong
xinbao
Electronic Co.
Ltd
25 Protect valve Plunger
Silicone 25 Shunde kainuo
Co. Ltd
26 Protect vavle bush PA66 70G43L 26 Guangdong
xinbao
Electronic Co.
Ltd
27 High pressure tube asm Teflon 27 Guangdong
xinbao
Electronic Co.
Ltd
28 Seal_ring
Silicone 28 Shunde kainuo
Co. Ltd
29 Pump EP5 Model E 29 UKLA
30 Washer Iron plate with white
zinc
30 Guangdong
xinbao
Electronic Co.
EM2800 PICCOLO ESPRESSO; ISSUE: A Page 6 of 24
Item Description Material
Specification
No. of
Parts
Supplier’s
Code
Sunbeam Part
No.
Ltd
31 Clamp SUS430 31 Guangdong
xinbao
Electronic Co.
Ltd
32 Spring SUS304 32 Guangdong
xinbao
Electronic Co.
Ltd
33 Silicone tube Silicone 33 Shunde kainuo
Co. Ltd
34 Release box asm PP HJ730L 34 Guangdong
xinbao
Electronic Co.
Ltd
35 Silicone tube Silicone 35 Shunde kainuo
Co. Ltd
36 Inside wire assy 36 Guangdong
xinbao
Electronic Co.
Ltd
37 Coffee Spoon
(TAMPER)
PPHP602N 37
EM28001
EM2800 PICCOLO ESPRESSO; ISSUE: A Page 7 of 24
Item Description Material
Specification
No. of
Parts
Supplier’s
Code
Sunbeam Part
No.
38
39
Drip tray
Drip plate
(DRIP TRAY
ASSEMBLY)
PPHJ730L
SUS304
38
39
EM28002
40 Main housing PPHJ730L 40 Guangdong
xinbao
Electronic Co.
Ltd
41 Screw SUS304 41 Guangdong
xinbao
Electronic Co.
Ltd
42 Water pump buffer Silicone 42 Shunde kainuo
Co. Ltd
43 Electron assy 43 Guangdong
xinbao
Electronic Co.
Ltd
44 Pump bracket PP+GF20% 44 Guangdong
xinbao
Electronic Co.
Ltd
45 Left decoration ABS PA757 45 Guangdong
xinbao
Electronic Co.
Ltd
EM2800 PICCOLO ESPRESSO; ISSUE: A Page 8 of 24
Item Description Material
Specification
No. of
Parts
Supplier’s
Code
Sunbeam Part
No.
46 Lamp cover PC 2856 46 Guangdong
xinbao
Electronic Co.
Ltd
47 Press key ABS PA757 47 Guangdong
xinbao
Electronic Co.
Ltd
48 Connect pole PA66+GF20% 48 Guangdong
xinbao
Electronic Co.
Ltd
49 Button Switch KAN-
J4/125V(250V)/16A
(8A)/T85
49 NOVA
Electronics Co.
Ltd.
50 Press switch retainer PA66+GF20% 50 Guangdong
xinbao
Electronic Co.
Ltd
51 micro switch 1 KW3A-10Z-405
250VAC/16A(125V/
16A)
51
Yueqing Dong Nan
Electronic Co. Ltd
52 Travel switch plate PA66+GF20% 52 Guangdong
xinbao
Electronic Co.
Ltd
EM2800 PICCOLO ESPRESSO; ISSUE: A Page 9 of 24
Item Description Material
Specification
No. of
Parts
Supplier’s
Code
Sunbeam Part
No.
53 Micro switch 2 KW4A(S)-
AZ0F200A
250V(125)V/10A
53
Yueqing Dong Nan
Electronic Co. Ltd
54 Washer
Iron plate with white
zinc
54 Guangdong
xinbao
Electronic Co.
Ltd
55 Top cover PPHJ730L 55 Guangdong
xinbao
Electronic Co.
Ltd
56 Screw cap PPHJ730L 56 Guangdong
xinbao
Electronic Co.
Ltd
57 High pressure tube asm3
Teflon 57 Guangdong
xinbao
Electronic Co.
Ltd
58
JUG-Warming plate
(WARMING TRAY)
SUS304
58
EM28003
59 Convert back cover PA66 70G43L 59 Guangdong

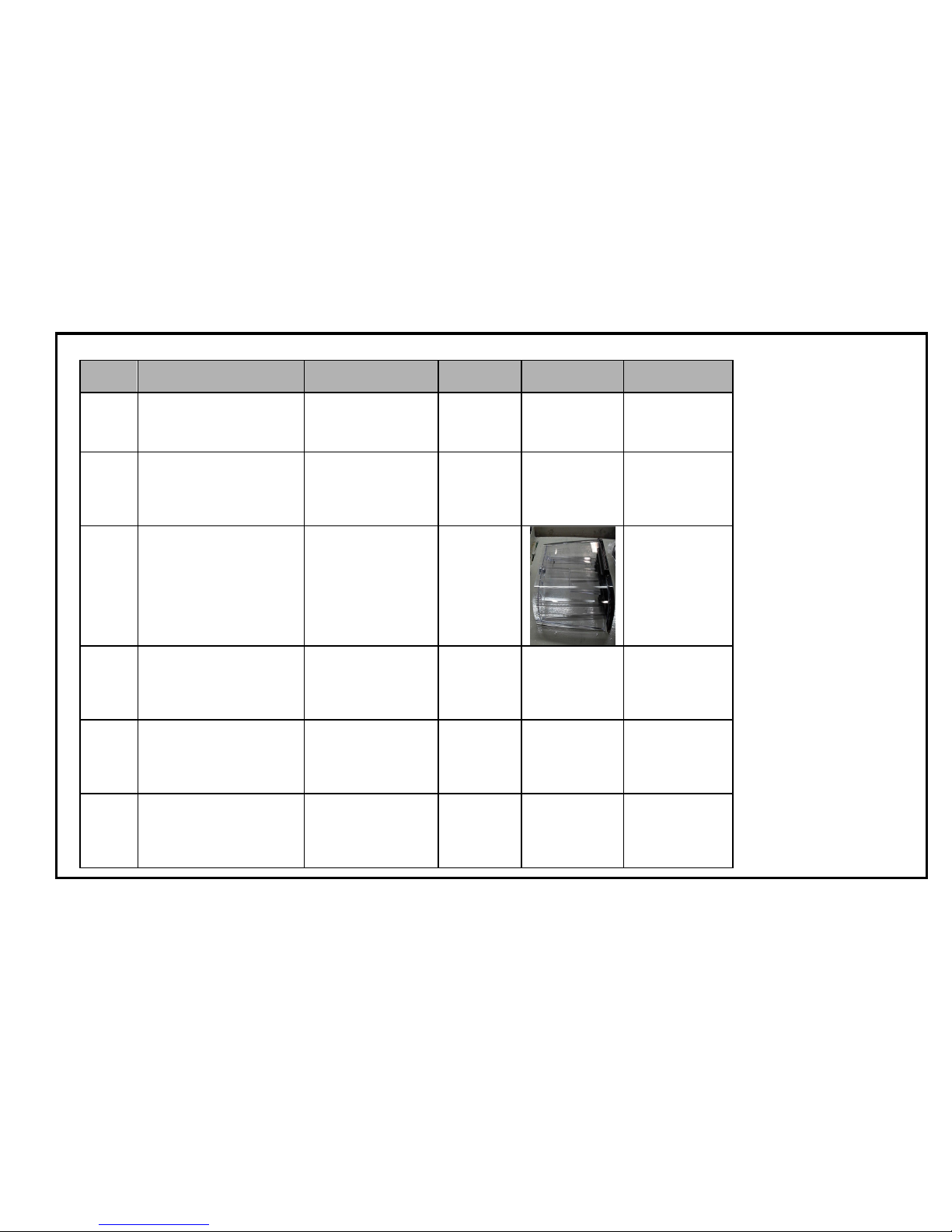

EM2800 PICCOLO ESPRESSO; ISSUE: A Page 10 of 24
Item Description Material
Specification
No. of
Parts
Supplier’s
Code
Sunbeam Part
No.
xinbao
Electronic Co.
Ltd
60 Front decoration SUS430 60 Guangdong
xinbao
Electronic Co.
Ltd
61
62
64
68 - 71
Water tank cover
(WATER TANK
ASSEMBLY)
ABS PA757
61
EM28004
62 Water tank hand PA6 K224-HG6 62 Guangdong
xinbao
Electronic Co.
Ltd
63 Screw Iron plate with white
zinc
63 Guangdong
xinbao
Electronic Co.
Ltd
64 Water tank AS 117L200 64 Guangdong
xinbao
Electronic Co.
Ltd
