Summit Professional FFBF181SSBI Manual de usuario

Instructions for use

Upright refrigerator – freezer

for built-in use

Model FFBF181SSBI

Use & Care Guide

Felix Storch, Inc.

Summit Appliance Division

Bronx, NewYork 10474

www.summitappliance.com

Thank you for your confidence in buying our appliance and congratulations on the excellent choice.

We expect it will successfully serve its purpose for many years.

The appliance is intended solely for household use.

This upright refrigerator - freezer (hereinafter: the appliance) is composed of two parts: the

upper compartment is a refrigerator and the lower compartment is a freezer.

The refrigerator is used for the storage of fresh foods at temperatures above 32°F.

The freezer is used for freezing fresh foods and the storage of frozen foods for up to one year

(depending on the type of food).

Important Safeguards................................................. 3

Before your first use...................................................4

Description of the appliance ......................................5

Installation and connection........................................6

Reverse door swing ..................................................8

Control panel - appliance with electronic

regulation................................................................9

Recommended distribution of food ........................12

Storing fresh food ...................................................13

Freezing and storage of frozen food .......................14

Defrosting the appliance...........................................16

Cleaning .....................................................................17

Troubleshooting guide..............................................18

Noise level..................................................................19

Limited Warranty....................................................... 20

Write the Serial Number (found on the rating plate inside the appliance) here:

_________________________

IMPORTANT SAFEGUARDS

• Before connecting the appliance, read these instructions carefully.

• The appliance is manufactured in compliance with all relevant safety standards; however, it is

recommended that persons with impaired physical, emotional, or mental abilities, or persons with

inadequate experience and knowledge, do not use the appliance without due supervision. The

same recommendation applies to minors using the appliance. Cleaning and user maintenance

should not be performed by children without supervision.

• The appliance must be connected to the electrical supply in accordance with the standing

regulations and local requirements.

• The appliance must not be used in open air or exposed to rain or other precipitation.

• Always disconnect the appliance from the power supply (pull the power cord from wall socket)

before cleaning and before replacing the light bulb.

• If the power supply cord is damaged, in order to avoid a hazard it must be replaced only by

qualified personnel.

• In the event of long periods without use, switch off the appliance with the ON/OFF button and

disconnect it from the wall socket. Empty the appliance, clean the interior and leave the door ajar.

• For the protection of the environment, please contact local authorities for correct disposal

arrangements.

• Never let children play with the appliance.

• DANGER: Risk of child entrapment!Before you throw away your old refrigerator or freezer: take

off the doors and leave the shelves in place so that children may not easily climb inside.

• Warning: Ventilation slots on the appliance or built-in element should always be kept clean

and unobstructed.

• Warning: Do not use any mechanical accessories when thawing the refrigerator, except for those

explicitly recommended by the manufacturer.

• Warning: To prevent any pollution, be careful not to damage the insulation or refrigeration tubes at

the rear wall during the installation, cleaning and disposal of the appliance.

• Warning: Do not use any electrical devices inside the appliance, except for those explicitly

recommended by the manufacturer.

This symbol on the product or on its packaging indicates that this product

should not be treated as household waste. Instead it should be handed over

to the applicable collection point for the recycling of electrical and electronic

equipment. By ensuring this product is disposed of correctly, you will help

prevent potential negative consequences for the environment and human

health, which could otherwise be caused by inappropriate waste handling of

this product. For more detailed information about recycling this product, please contact

your local city office, your household waste disposal service or your place of purchase.

– Save these instructions –

Before your first use

• Before connecting the appliance, read these instructions carefully. They describe the appliance

and provide instructions for its safe and correct use. The instructions are prepared for

different types and models of the appliance so they may contain descriptions of functions and

components your appliance may not have.

Instructions also contain the NO FROST freezer version, with integrated fan and automatic

defrost.

• Remove the wrapping protecting the appliance during transport.

• Door corners are fitted with protective spacers. Remove the spacers and replace them with the

attached pegs (certain models only).

• Before connecting the appliance to the electrical supply, leave it in the upright position for

about 2 hours. This will reduce the possibility of malfunctions in the cooling system

resulting from prior transport and handling.

• The packaging of this appliance contains environmentally friendly materials which can be

recycled, recovered or disposed of without threat to the environment.

• A self-closing door hinge (certain models only) pulls the door to the cabinet just before closing,

thereby preventing the door from remaining ajar. Also, it limits the door's opening angle and

prevents damage to adjacent surfaces.

• A rating plate with basic information is located in the interior of the appliance.

Description of the appliance

1 1 Control panel

A Refrigerator

2 2 Interior light

3 3 Fan

4Bottle rack *

5 Foldable egg tray

(closed 6, open 12 eggs)

6 Shelf (adjustable height)

A 7 Crisper

5 8 Door trays (options: deep,

shallow, cover or no cover)

6 9 Bottle tray with holder

10 Storage drawer

B Freezer

7 11 Freezer drawer

12 Leg*

13 Wheel*

14 Ventilation grille

B11

• Interior accessories may vary according to the model.

• Drawers are protected against accidental extraction. To remove the drawer from the appliance,

open it and lift front part upwards, then pull it out. Certain models are fitted with pull-out slide

guides which facilitate opening.

• Pull-out guide drawers (or shelves) are extracted by lifting the rear end and pulling out inclined

at a 45° angle. Reinsert in opposite sequence.

* Certain models only.

Description of the appliance

Installation and connection

Selecting the location

Positioning the

appliance

• Place the appliance in a dry and well-aired room. Ambient

temperature should never be lower than 41°F.

Positioning the appliance requires two persons in order to avoid

injuries or damage to the appliance.

• This appliance is intended for built-in installation. Even so,

when installing, please allow these minimum clearances to

ensure the best operation and proper ventilation: 1/4” on both

sides, 5/8” at the rear and 1/16” at the top. Be sure that

airflow at the top of the appliance is not blocked. If the

appliance is going to be placed against a wall, if possible

leave extra space on the hinge side so the doors can open

wider than their width (to make it easier to remove shelves

and storage bins).

• Be sure the appliance rests flat on a solid base. The

appliance is fitted with adjustable feet on the front side, used

to level the appliance. The rear side of the appliance is fitted

with wheels (certain models only) facilitating the positioning

of the appliance at the preselected place.

• Avoid exposing the appliance to direct sunlight or heat

sources. If this is not possible, install an insulation plate

between the appliance and the adjacent heat source.

• The bottom front corners of the appliance are fitted with

handles to facilitate moving (certain models only). The

appliance may stand independently or adjacent to a wall,

cabinet or other appiance. Be sure to leave enough space for

the opening of the door, to avoid damage to the appliance or

personal injury. Also leave ample space for removing shelves

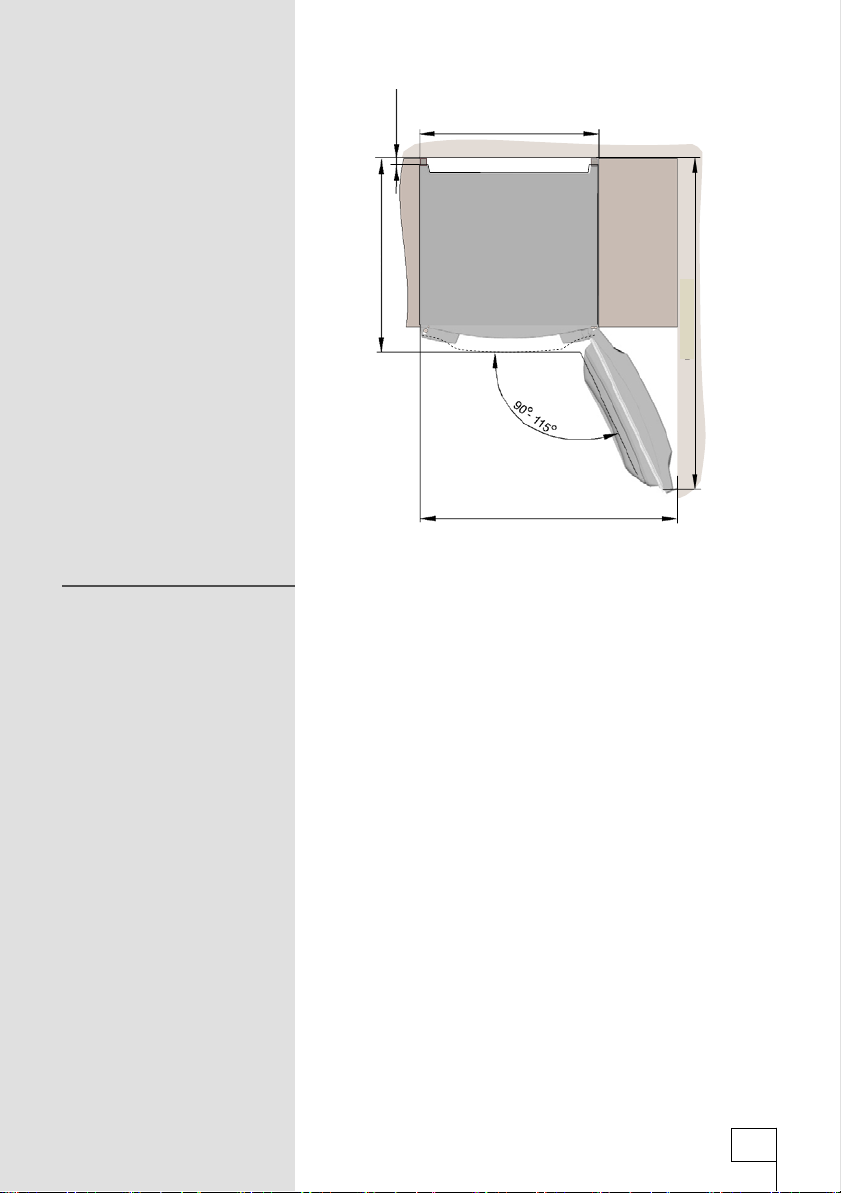

(see installation diagram on next page).

Connecting to power

supply • Use the power cord to connect the appliance to the electrical

power. The wall outlet must be fitted with a ground terminal

(safety socket).

The use of an extension cord is not recommended.

Nominal voltage and frequency are indicated on the relevant

label or rating plate inside the appliance.

• The electrical power connection and grounding must be in

accordance with standing regulations and local requirements.

The appliance is able to accommodate minor temporary voltage

fluctuations that do not exceed ±6%.

Min 45.7″

Min 34.7″

Min 24″

Min 0.6″

Min 25″

Reverse door swing

Required tools: socket wrench no. 8, screwdriver, torx 25.

Caution! After unscrewing or before fixing hinges, hold the door

to prevent it from falling and being damaged.

1. Remove upper hinge cover (save it for later use). Also remove

the cover on the opposite side of the upper hinge cover (you

will insert the attached cover on the other side during the

assembly).

2. Unscrew upper hinge screws and remove the upper door from

the middle hinge.

3. On the lower edge of the upper door unscrew the swing

stopper screws and remove the stopper (A). Keep this for

eventual use later on. Fix the attached stopper with its

bearing on the opposite side of the door.

4. Unscrew the forced door closure system (B) and fix it to the

opposite side of the door (certain models only).

5. Unscrew middle hinge screws, remove the door from bottom

hinge.

6. Loosen the screws fixing the leg supports (certain models

only), then continue with either procedure 7 or 7.1 below,

depending on the model of the appliance.

7. Tilt the appliance backward (max. 35°) and let it rest against a

firm support. Unscrew the leg support screws (C) - left and

right, and remove the leg support cover (D) and place it on the

opposite side. Unscrew and remove, then reverse the positions

of end switch (E) and decorative peg (F).

(For models with a forced door closing system, undo the three

screws attaching the lower hinge and install the hinge on the

opposite side.)

7.1.Tilt the appliance backwards (max. 35°) and let it rest

against a firm support at the back.

Undo the three screws attaching the lower hinge and install

the hinge on the opposite side. Plug the holes left after this

installation with the appropriate pegs.

8. Repeat procedures 3 and 4 on the bottom door. In case there

is no bottom door limit peg, transfer the bearing (G) and

washer to the opposite side of the door.

9. Proceed with the assembly procedure in opposite sequence.

Control panel - appliance with electronic regulation

CONTROL UNIT

No-frost system appliance

A Freezer ON/OFF button

B Green signal lamp: indicates freezer operation

C Refrigerator ON/OFF button

D Green signal lamp: indicates refrigerator operation

E Intensive freezing ON/OFF button

F Orange signal lamp: intensive freezing in operation

G Intensive cooling ON/OFF button

H Orange signal lamp: intensive cooling in operation

I Sound alarm and child lock ON/OFF button

J Red signal lamp: alarm is active

K Temperature setting buttons

L Digital display indicating current temperature in the refrigerator or the set refrigerator or

freezer temperature: refrigerator temperature from 34°F to 48°F, freezer temperature from 7°F

to -9°F

M Temperature setting button: for refrigerator or freezer temperature

N Digital display indicating the selection of temperature setting for either refrigerator or

freezer: F – for freezer, R – for refrigerator

Switching the appliance

ON/OFF

Temperature setting

Before the first use of the appliance first plug the power cable

into the wall socket. Display indicates dashes for both the

refrigerator and the freezer.

-Switch the appliance ON by pressing the button A for 3

seconds. Both the refrigerator and the freezer are started,

green signal lamps B and D are on. In this mode you can

switch off the refrigerator only by pressing button C for 3

seconds (green signal lamp D is off).

-Refrigerator temperature of + 48°F is indicated on the display.

This value will remain on the display until the temperature in

the refrigerator drops below this level.

The appliance has been preset in the factory to the

recommended temperatures of the refrigerator (+41°F) and

freezer (0°F).

Temperature setting range of the refrigerator: +34°F do

+48°F.

Temperature setting range of the freezer: 7°F to -9°F.

• To set the freezer temperature, first select the freezer by

pressing the M button (letter “F” will be indicated on the display

N); then, use the K button to set the desired temperature.

To set the refrigerator temperature, first select the refrigerator

by pressing the M button (letter “R” will be indicated on

the display N); then, use the K buttons to set the desired

temperature.

• After pressing the temperature setting buttons the display starts

flashing and indicates the last selected setting.

• Temperature setting is changed by short consecutive pressing

of the button in 1°F steps. During the setting procedure all

other buttons are idle.

• Approximately 5 seconds after the setting button is released

the display indicates the actual temperature.

Other settings

Alarm

Continuous sound - open refrigerator door alarm

If the refrigerator door is open for more than one minute, the

sound alarm is turned on (continuous tone) and red signal lamp

J is on. The alarm is automatically switched off when the door

is closed, but you can also switch it off by pressing the Alarm Off

button (I).

Intermittent sound - freezer/refrigerator temperature is too

high

Sound alarm is also activated in case of elevated temperature

(intermittent tone), and the temperature on the display is flashing.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Refrigerador de Summit Professional

Summit Professional

Summit Professional FF64B Manual de usuario

Summit Professional

Summit Professional FFBF181ES Manual de operación y mantenimiento

Summit Professional

Summit Professional FF874 Manual de usuario

Summit Professional

Summit Professional FF1075W Manual de usuario

Summit Professional

Summit Professional ALR15B Manual de usuario

Summit Professional

Summit Professional FF1078B Manual de usuario

Summit Professional

Summit Professional FFBF181ESBIIM Manual técnico

Summit Professional

Summit Professional SPR315OS Manual de usuario

Summit Professional

Summit Professional FF1532X Manual de usuario

Summit Professional

Summit Professional ALB651 Series Manual de usuario

Summit Professional

Summit Professional FFRF3070B Manual de usuario

Summit Professional

Summit Professional SPR628BCSS Manual de usuario

Summit Professional

Summit Professional FF1538B Manual de usuario

Summit Professional

Summit Professional SPR316OS Manual de usuario

Summit Professional

Summit Professional FFBF181ESLHD Manual técnico

Summit Professional

Summit Professional FFBF249SSIM Manual técnico

Summit Professional

Summit Professional FF1532B Manual de usuario

Summit Professional

Summit Professional FFBF245SS Manual de usuario

Summit Professional

Summit Professional FFBF249SS Manual de operación y mantenimiento

Summit Professional

Summit Professional FFBF240W Manual de usuario

Summit Professional

Summit Professional ASDS1523 Manual de usuario

Summit Professional

Summit Professional FF1074 Manual de usuario

Summit Professional

Summit Professional AL54SSTB Manual de usuario

Summit Professional

Summit Professional AL54 Manual de usuario

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
