Sub-Zero PRO 48 Manual de usuario

PRO 48 Refrigeration Use & Care Guide

Sub-Zero Customer Care 800.222.7820

PRO 48 REFRIGERATION

Customer Care

The model and serial number are printed on the enclosed

product registration card. Both numbers are also listed on

the product rating plate. Refer to page 4 for rating plate

location.

If your product ever needs attention, be sure to use a

Sub-Zero factory certied service provider recommended

by our customer care center, or select one from our list of

providers available at subzero.com/locator. All factory certi-

ed service providers are carefully selected and thoroughly

trained by us.

For warranty purposes, you will also need the date of instal-

lation and name of your authorized Sub-Zero dealer. Record

this information below for future reference.

SERVICE INFORMATION

Model Number

Serial Number

Date of Installation

Certied Service Name

Certied Service Number

Authorized Dealer

Dealer Number

Important Note

To ensure this product is installed and operated as safely

and efciently as possible, take note of the following types

of highlighted information throughout this guide:

IMPORTANT NOTE highlights information that is especially

important.

CAUTION indicates a situation where minor injury or product

damage may occur if instructions are not followed.

WARNING states a hazard that may cause serious injury or

death if precautions are not followed.

IMPORTANT NOTE: Throughout this guide, dimensions in

parentheses are millimeters unless otherwise specied.

Contents

4PRO 48 Features

5Electronic Controls

6Storage

8Operation

10 Care Recommendations

11 Technical Data

13 Troubleshooting

15 Sub-Zero Warranty

subzero.com

Thank You

Thank you for your purchase. We look forward to being part of your home for decades to

come. As a third-generation family-owned company, we take a very personal stake in the

preservation of your family’s food. We built our business and our reputation on helping

families serve the freshest food possible.

With your purchase, you receive one of the strongest warranties in the appliance industry.

Take a moment to read the full warranty statement on page 15. It’s also important to

such as; assurance that you will be taken care of in the unlikely event that service

becomes necessary during the warranty period, and a proof-of-purchase record in case

of a home insurance claim. You may register by one of the following options:

•Mail in the completed Sub-Zero product registration card.

•Register online at subzero.com/register and create a personalized My Sub-Zero/Wolf

account using the serial number on your product.

•Register by phone by calling Sub-Zero Customer Care at 800-222-7820.

As a Sub-Zero owner, you can count on ongoing support, day in and day out. Our cus-

tomer care center is available 24 hours a day, seven days a week and staffed by knowl-

edgeable product experts at our factory in Madison, Wisconsin. Should the need arise,

simply call 800-222-7820 and speak with one of our product experts. They will help

troubleshoot any issues you might have.

We are condent this guide will answer your questions about the features, operation, and

maintenance of your Sub-Zero, but if you have additional questions, please contact us at

800-222-7820 or visit us online at subzero.com.

Sub-Zero Customer Care 800.222.7820

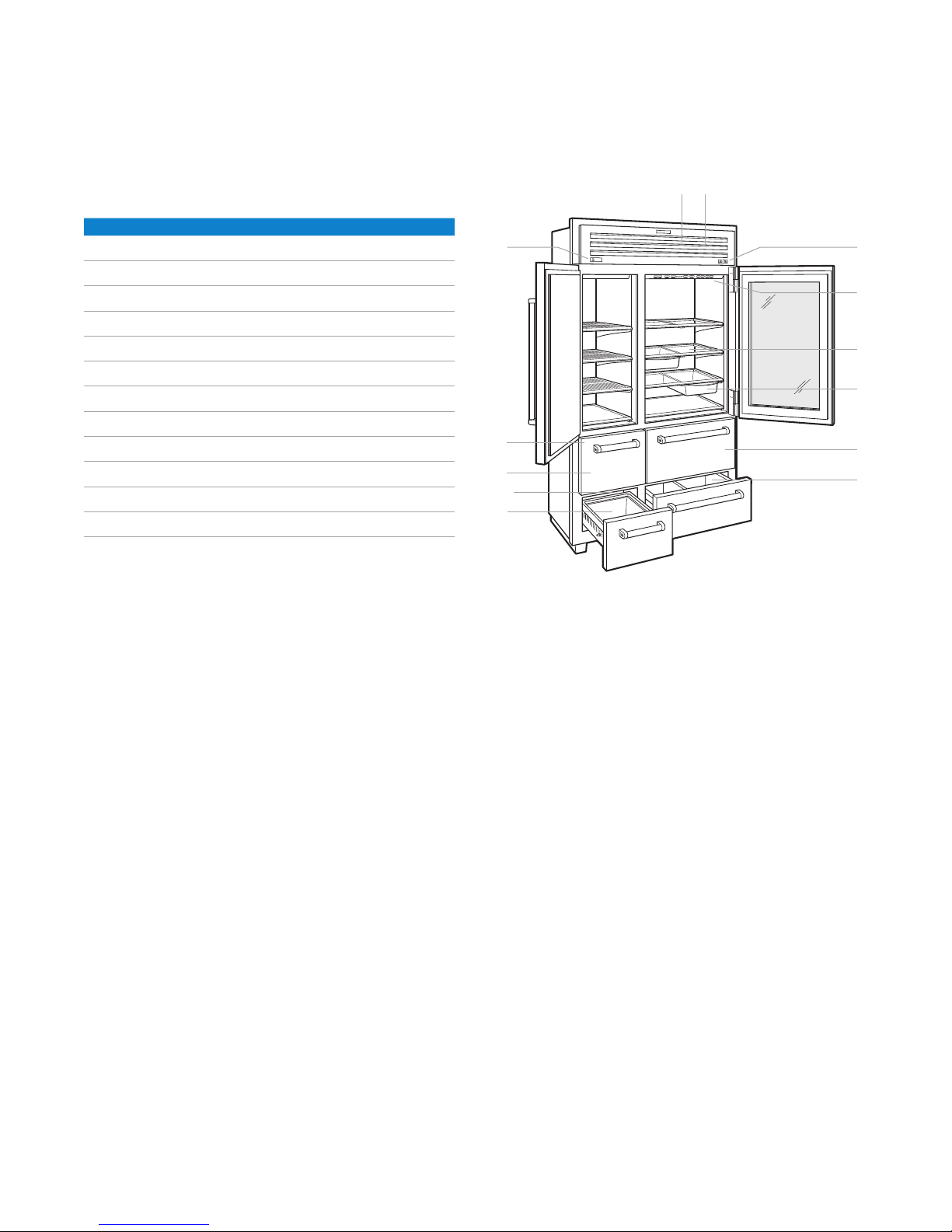

PRO 48 Features

FEATURE PG

1Product Rating Plate (inside drawer) 2

2Interior Control Panel 5

3External Display 5

4Glass Shelves 6

5Slide-Out Bins 6

6Refrigerator Crisper Drawer 7

7Refrigerator Storage Drawer 7

8Freezer Storage Drawer 7

9Ice Container 7

10 Water Filtration System (behind grille) 8

11 Automatic Ice Maker 9

12 Condenser (behind grille) 10

PRO 48 FEATURES

PRO 48 glass door model.

subzero.com

Freezer external display.

ELECTRONIC CONTROLS

Control Panel

FUNCTION

COLDER

WARMER

Adjusts temperature in one-degree increments for

the refrigerator, refrigerator drawers and freezer.

Temperatures are preset at 38°F (3°C) and 0°F

(-18°C).

ICE MAKER Turns power to ice maker on or off. Use to disable

ice maker during extended vacations.

POWER Turns unit on or off. When power is off, ‘OFF’ will

appear in the external display. Turning power off at

the control panel eliminates the need to unplug or

turn power off at the circuit breaker during service

or extended vacations.

ALARM Activates or deactivates door alarm. An audible

chime indicates door has been left ajar for more

than 30 seconds.

LIGHT Turns interior accent lighting on or off for glass

door model.

Control panel (glass door model).

Refrigerator external display.

External Display

FUNCTION PG

Indicates freezer temperature. 5

Indicates refrigerator temperature. 5

Indicates refrigerator drawers temperature. 5

Illuminates when ice maker system is activated. 9

Illuminates when door alarm is activated. 5

REPLACE

FILTER

Illuminates when water lter needs to be

replaced.

SERVICE Illuminates or ashes when electronic control

system has detected a temperature or ice

maker problem, or if the condenser needs to be

cleaned.

Sub-Zero Customer Care 800.222.7820

Refrigerator Storage

GLASS SHELVES

To remove or adjust a glass shelf, tilt up, then lift up and out.

To reposition, insert shelf in the tracks along the back wall,

then lower the front until it locks into position. Refer to the

illustration below.

IMPORTANT NOTE: Use care when handling glass shelves to

prevent breakage or scratching the interior.

CAUTION

Glass shelves should warm to room temperature before

immersing in warm water.

SLIDE-OUT BINS

Integrated rails mounted below the glass shelves allow

slide-out bins to be positioned in a variety of locations. To

remove or adjust a slide-out bin, pull the handle of the bin

forward until it stops, lift up and out of the rails. Refer to the

illustration below.

Keeping Food At Its Best

This Sub-Zero features a unique dual refrigeration system

to keep food fresher longer. Three separate controls allow

the refrigerator, refrigerator drawers and freezer to be set at

different temperatures.

With the Sub-Zero dual refrigeration system, individual

refrigerator and freezer systems have been designed to

maintain accurate, consistent temperatures and proper

humidity levels for longer food life expectancy. Dual refrig-

eration eliminates transfer of fresh food odors to frozen

food and ice and does not freeze the moisture out of the

air in the fresh food section.

STORAGE

Glass shelf removal.

Slide-out bin removal.

subzero.com

Freezer Storage

ICE CONTAINER

To remove the ice container, pull the lower freezer drawer

forward until it stops, then lift the container up and out.

Storage Drawers

Refrigerator and freezer storage drawers are removable for

cleaning. An automatic stop is built in to prevent drawers

from coming all the way out unintentionally.

To remove, pull the drawer all the way out, lift up evenly on

both sides of the drawer front and pull out. To reinstall, raise

the front of the drawer and place onto drawer slide tracks.

Be sure to engage the front of the drawer slide with the

drawer assembly. Refer to the illustration below.

IMPORTANT NOTE: To reduce the weight of the drawer,

unload contents before removing.

STORAGE

Refrigerator Storage

CRISPER LID

To remove the crisper lid assembly, pull the upper refrig-

erator drawer all the way out, raise the front edge of the

crisper lid up and pull out from the back. Refer to the illus-

tration below.

DRAWER DIVIDERS

Dividers are interchangeable between the upper and lower

refrigerator drawers. Two long dividers run the full depth of

the drawer, with shorter dividers that connect to the long

dividers to compartmentalize the drawer.

To remove short dividers, lift up and out of supports on the

long dividers and sides of the drawer. Long dividers can be

removed by lifting up and out of drawer support tabs.

Crisper lid removal.

Storage drawer removal.

Sub-Zero Customer Care 800.222.7820

WATER FILTER REPLACEMENT

1To access the water lter, pull out on the bottom edge

of the grille and rotate upward.

2To remove the old lter, rotate counterclockwise one-

quarter turn, then pull out. Refer to the illustration below.

It is normal for a small amount of water to drip when

the lter is removed. It should be wiped up with a paper

towel or cloth.

3Remove the new lter from packaging and remove the

plastic cap.

4Insert the new lter into the manifold and turn clockwise.

5Once the new lter has been installed, the water lter life

monitor will automatically reset.

Water Filtration System

The water ltration system of Sub-Zero PRO 48 models

supplies ltered water to the ice maker to produce great-

tasting ice.

IMPORTANT NOTE: When using the water ltration system

for the rst time and after lter replacement, it is necessary

to clear any air from the system and allow the lter to assist

in cleaning the water lines. Discard the rst two full con-

tainers of ice.

If the water ltration system will not be utilized, it can be

placed in water lter bypass mode by removing the lter.

The lter is rated for 750 gallons (2839 L) or one year,

whichever comes rst. When the lter needs to be replaced,

‘REPLACE FILTER’ will be visible in the external display.

Replacement Sub-Zero water lters can be ordered online

at subzerowolfstore.com. For questions, contact Sub-Zero

customer care at 800-222-7820.

OPERATION

Open grille.

Water lter removal.

WATER FILTER

subzero.com

OPERATION

Ice Maker Operation

To initiate ice production, touch ICE MAKER on the control

panel. will be visible in the external display. After initial

start-up, discard the rst few batches of ice. The ice may

contain impurities from new plumbing connections.

The ice maker will cycle (eight cubes) every two hours. If ice

is not used regularly it may fuse together. To avoid, discard

ice and allow ice maker to replenish.

To increase the ice storage capacity, remove the ice con-

tainer and allow the drawer to ll with ice.

Sabbath

This appliance is certied by Star-K to meet strict religious

regulations in conjunction with specic instructions found

on www.star-k.org.

To initiate Sabbath mode, while the unit is on, touch POWER

on the control panel. ‘OFF’ appears in the external display.

Touch and hold POWER for 10 seconds. Four audible

chimes indicate Sabbath mode has been initiated. This will

turn the unit on and disable external displays, lights, ice

maker and door alarm. To return to normal operating condi-

tions, touch POWER twice.

Interior Lighting

OVERHEAD LIGHTING

For the glass door model, the LED accent lighting can be

left on with the door closed. Accent lighting can be turned

on and off by touching LIGHT on the control panel.

DRAWER LIGHTING

Refrigerator and freezer storage drawers use standard

40-watt appliance bulbs. The bulbs are recessed into the

top of the compartment.

CAUTION

Turn power off at the control panel before replacing light

bulbs. Wear protective gloves when handling bulbs.

Sub-Zero Customer Care 800.222.7820

CARE RECOMMENDATIONS

Cleaning

INTERIOR CLEANING

To clean interior surfaces and all removable parts, wash with

a mild solution of soap, water and baking soda. Rinse and

dry thoroughly. Avoid getting water on lights and control

panel.

CAUTION

Do not use vinegar, rubbing alcohol or other alcohol-

based cleaners on any interior surface.

STAINLESS STEEL EXTERIOR

Use a nonabrasive stainless steel cleaner and apply with a

soft lint-free cloth. To bring out the natural luster, lightly wipe

surface with a water-dampened microber cloth followed by

a dry polishing chamois. Always follow the grain of stainless

steel.

CONDENSER CLEANING

CAUTION

Before cleaning the condenser, turn power off at the

control panel. Wear gloves to avoid injury from sharp

condenser ns.

The condenser is located behind the grille. To access, pull

out on the bottom edge of the grille and rotate upward. Use

a soft bristle brush and vacuum to remove dust and lint

from the condenser. Clean the condenser every three to six

months. Refer to the illustration below.

IMPORTANT NOTE: To avoid damaging condenser ns,

vacuum in the direction of the ns.

CAUTION

Failure to clean the condenser could result in tempera-

ture loss, mechanical failure or damage.

VACATIONS

For extended vacations, turn power off at the control panel.

Empty the unit and block doors open slightly to let fresh

air in and keep interior dry. Water lter should be replaced

before start up.

Condenser location.

GRILLE

SCREW

LOW-VOLTAGE

CABLES

CONDENSER

Otros manuales para PRO 48

Tabla de contenidos

Idiomas:

Otros manuales de Refrigerador de Sub-Zero

Sub-Zero

Sub-Zero ID-24RO Manual de usuario

Sub-Zero

Sub-Zero UC-24C Manual de usuario

Sub-Zero

Sub-Zero BI-48S Manual de usuario

Sub-Zero

Sub-Zero 736TC Manual de usuario

Sub-Zero

Sub-Zero 249RP Instrucciones de uso

Sub-Zero

Sub-Zero 650 Manual de usuario

Sub-Zero

Sub-Zero BI-36S Instrucciones de montaje

Sub-Zero

Sub-Zero 600 Series BI-48S Manual de usuario

Sub-Zero

Sub-Zero UC-24B Manual de usuario

Sub-Zero

Sub-Zero 700TCI Manual de usuario

Sub-Zero

Sub-Zero 600 Series BI-36U Manual de usuario

Sub-Zero

Sub-Zero 648PRO Manual de usuario

Sub-Zero

Sub-Zero UC-24BG Manual de usuario

Sub-Zero

Sub-Zero ICBBI-36R Manual del propietario

Sub-Zero

Sub-Zero 700BC Manual de usuario

Sub-Zero

Sub-Zero BI-30U Manual de usuario

Sub-Zero

Sub-Zero 736TR Manual de usuario

Sub-Zero

Sub-Zero BI-36R Manual de usuario

$Sub-Zero \601RG Manual de usuario$

Sub-Zero

Sub-Zero \601RG Manual de usuario

Sub-Zero

Sub-Zero IC-27R Manual de usuario

Sub-Zero

Sub-Zero 700BCI Manual de usuario

Sub-Zero

Sub-Zero BI-36R Guía

Sub-Zero

Sub-Zero ICB736TCI Manual del propietario

Sub-Zero

Sub-Zero 700 Series Manual de usuario

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
