INTEGRATED REFRIGERATION

Customer Care

The model and serial number are printed on the enclosed

product registration card. Both numbers are also listed on

the product rating plate. Refer to page 4 for rating plate

location. For warranty purposes, you will also need the date

of installation and name of your authorized Sub-Zero dealer.

Record this information below for future reference.

If your product ever needs attention, be sure to use a

Sub-Zero factory certied service provider recommended

by our customer care center, or select one from our list of

providers available at subzero.com/locator. All factory certi-

ed service providers are carefully selected and thoroughly

trained by us.

SERVICE INFORMATION

Model Number

Serial Number

Date of Installation

Certied Service Name

Certied Service Number

Authorized Dealer

Dealer Number

Important Note

To ensure this product is installed and operated as safely

and efciently as possible, take note of the following types

of highlighted information throughout this guide:

IMPORTANT NOTE highlights information that is especially

important.

CAUTION indicates a situation where minor injury or product

damage may occur if instructions are not followed.

WARNING states a hazard that may cause serious injury or

death if precautions are not followed.

IMPORTANT NOTE: Throughout this guide, dimensions in

parentheses are millimeters unless otherwise specied.

Contents

4Integrated Features

5Interactive Controls

6Storage

10 Operation

13 Care Recommendations

14 Technical Data

16 Troubleshooting

19 Sub-Zero Warranty

subzero.com

Thank You

Thank you for your purchase. We look forward to being part of your home for decades to

come. As a third-generation family-owned company, we take a very personal stake in the

preservation of your family’s food. We built our business and our reputation on helping

families serve the freshest food possible.

With your purchase, you receive one of the strongest warranties in the appliance industry.

Take a moment to read the full warranty statement on page 19. It’s also important to

such as; assurance that you will be taken care of in the unlikely event that service

becomes necessary during the warranty period, and a proof-of-purchase record in case

of a home insurance claim. You may register by one of the following options:

tMail in the completed Sub-Zero product registration card.

tRegister online at subzero.com/register and create a personalized My Sub-Zero/Wolf

account using the serial number on your product.

tRegister by phone by calling Sub-Zero Customer Care at 800-222-7820.

As a Sub-Zero owner, you can count on ongoing support, day in and day out. Our cus-

tomer care center is available 24 hours a day, seven days a week and staffed by knowl-

edgeable product experts at our factory in Madison, Wisconsin. Should the need arise,

simply call 800-222-7820 and speak with one of our product experts. They will help

troubleshoot any issues you might have.

We are condent this guide will answer your questions about the features, operation, and

maintenance of your Sub-Zero, but if you have additional questions, please contact us at

800-222-7820 or visit us online at subzero.com.

Sub-Zero Customer Care 800.222.7820

Integrated Features

FEATURE PG

1Product Rating Plate 2

2Interactive Control Panel 5

3Freshness Cards 6

4Door Shelves 6

5Dairy Compartment 6

6Glass Shelves 7

7Refrigerator Drawers 7

8Ice Container 8

9Storage Drawers 9

10 Air Purication System 10

11 Water Filtration System 11

12 Automatic Ice Maker 12

13 Water Dispenser (dispenser models) 12

14 Condenser (behind grille) 13

INTEGRATED FEATURES

Column all refrigerator.

Tall combination.

Drawer all refrigerator.

subzero.com

Interactive Control Panel

For initial start up, touch and hold ‘power’ on the control

panel for 2 seconds.

Temperature can be adjusted in one-degree increments on

the home screen. Combination units have separate temper-

ature controls for refrigerator and freezer. Temperatures are

preset at 38°F (3°C) and 0°F (-18°C). To change temperature,

touch the temperature being adjusted, then press ‘+’ or ‘-’

until desired temperature is displayed. Refer to the illustra-

tion below.

Once temperature has been adjusted, additional features

can be activated or deactivated from the options screen.

Touch to view the options screen. Refer to the illustration

below.

OPTIONS SCREEN PG

Touch to activate or deactivate ice maker system

and max ice feature.

Touch to activate or deactivate door/drawer alarm. 5

Touch to activate or deactivate water dispenser. 12

Touch to activate or deactivate air purication

system.

Touch to view settings screen. 5

SETTINGS SCREEN

Touch to view model information.

Touch to select temperature unit, Fahrenheit or Celsius.

Touch to adjust control panel brightness and contrast.

Touch to adjust door/drawer alarm volume and pitch.

Touch to adjust door/drawer alarm duration.

Touch to enter Sabbath mode.

Touch to view troubleshooting and service information.

Touch to set clock.

Touch to select smart home options.

Touch to select language options.

Touch to adjust soft on lighting.

INTERACTIVE CONTROLS

Home screen.

Options screen.

Sub-Zero Customer Care 800.222.7820

Refrigerator Storage

DOOR SHELVES

To remove a door shelf or the dairy compartment, lift from

the bottom and slide out. To reinstall, place in the desired

position and slide the shelf down onto the guides. Refer to

the illustration below.

IMPORTANT NOTE: If door opening is limited to 90°, door

shelves may need to be removed before removing a storage

drawer or glass shelf.

Keeping Food At Its Best

This Sub-Zero features a unique dual refrigeration system to

keep food fresher longer.

With the Sub-Zero dual refrigeration system, individual

refrigerator and freezer systems have been designed to

maintain accurate, consistent temperatures and proper

humidity levels for longer food life expectancy. Dual refrig-

eration eliminates transfer of fresh food odors to frozen food

and ice and does not freeze the moisture out of the air in the

fresh food section.

For handy tips and information on how to maximize

food freshness, refer to the freshness cards stored in the

refrigerator.

STORAGE

Door shelf removal.

subzero.com

Refrigerator Storage

GLASS SHELVES

To remove or adjust a glass shelf, tilt up, then lift up and out.

To reposition, insert shelf in the tracks along the back wall,

then lower the front until it locks into position. Refer to the

illustration below.

The stationary glass shelf at the bottom of the compartment

should be placed with beveled edge facing front. Rear sup-

port legs space the shelf away from the back wall to ensure

proper air ow through the unit.

IMPORTANT NOTE: Use care when handling glass shelves to

prevent breakage or scratching the interior.

CAUTION

Glass shelves should warm to room temperature before

immersing in warm water.

REFRIGERATOR DRAWERS

To remove a refrigerator drawer, pull open until the drawer

stops. Lift the front of the drawer slightly and pull straight

out. To reinstall, pull drawer carrier out and align the bottom

of the drawer with the carrier. Refer to the illustration below.

Dividers in refrigerator drawers can be removed by pulling

straight up. To replace, align tabs on the divider with

notches in the drawer and push down.

STORAGE

Refrigerator drawer removal.

Glass shelf removal.

Sub-Zero Customer Care 800.222.7820

STORAGE

Freezer Storage

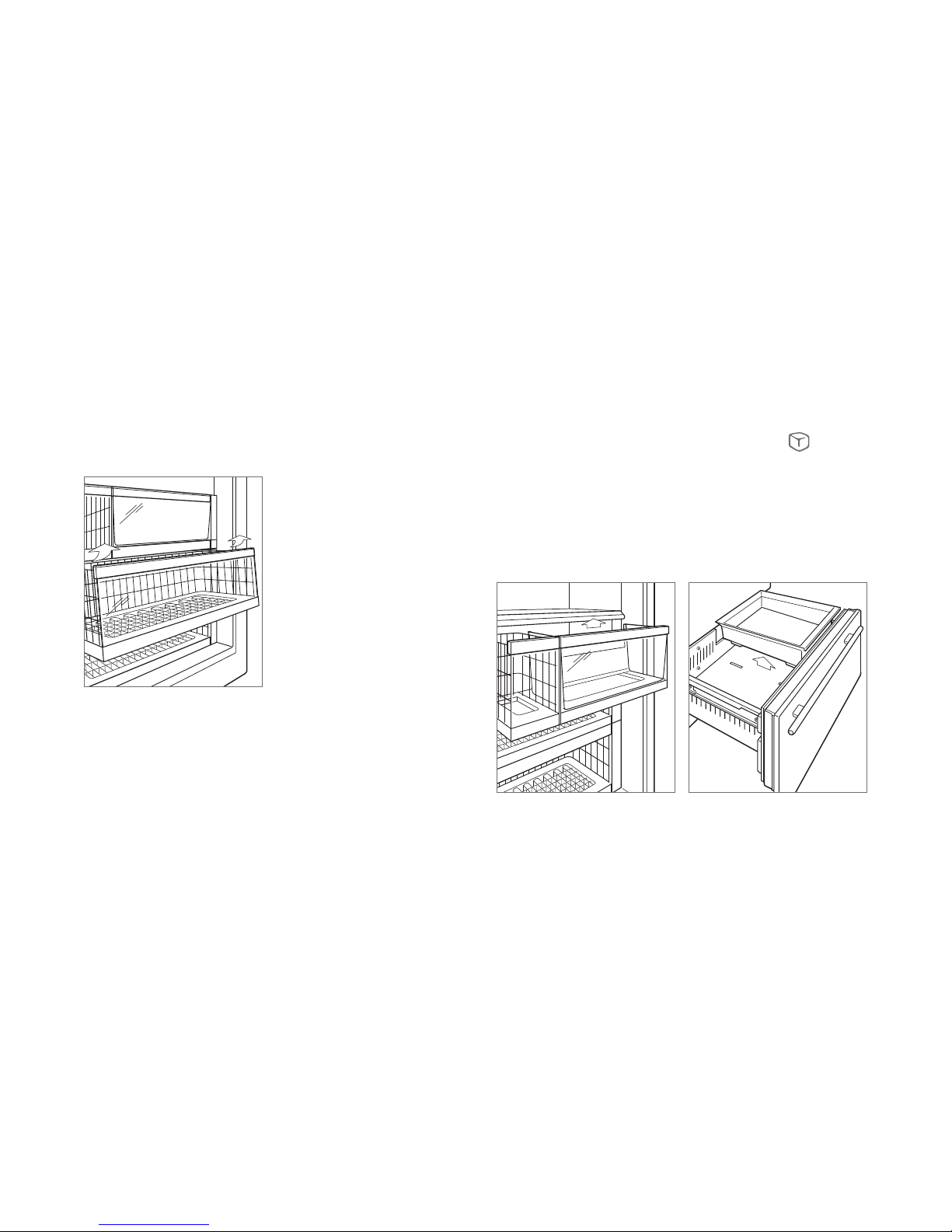

FREEZER BASKETS

To remove, pull forward until basket stops. Pull the two

plastic tabs located behind the bottom two corners of the

basket forward, then lift up and out. Refer to the illustration

below. To reinstall, push drawer slides in. Align the basket

with slides and push back until it stops. Press down on the

front of the basket to engage slides. Refer to the illustration

below.

If door opening is limited to 90°, the top basket must be

removed before removing the middle or lower basket.

ICE CONTAINER

Column |To remove ice container, pull freezer drawer open

until it stops and lift container out. To reinstall, pull drawer

carrier out and align the bottom of the container with the

carrier. Refer to the illustration below.

Tall and drawer |To remove ice container, pull freezer

drawer open until it stops and lift container out. To reinstall,

place in the drawer with tabs on the bottom of the container

aligned with slots in the drawer. Refer to the illustration

below.

The ice maker must be turned off by touching when

the ice storage container is removed. The unit is equipped

with a 3-minute delay after the ice container is removed, to

ensure cubes are not ejected before ice maker can be deac-

tivated or ice container is reinstalled.

Freezer basket removal.

Column ice container.

Tall and drawer ice container.

subzero.com

DRAWER REMOVAL

To remove, pull open until drawer stops. Raise the drawer

front and pull out drawer. To reinstall, raise the front of

drawer and place onto the slides. Align the back of the

drawer with hooks on the slide, then align the white pegs

at the front of the slide with holes at the front of the drawer.

Refer to the illustration below.

IMPORTANT NOTE: For drawer models, the upper drawer

has a control cable that must be disconnected before

removing the drawer. Refer to the illustration below.

Storage Drawers

CRISPER COVER

The crisper cover in the upper storage drawer can be slid

closed or left open.

To remove, pull the upper drawer all the way out, raise the

front edge of the crisper cover and pull it forward out of the

drawer. Refer to the illustration below.

DRAWER DIVIDERS

To remove or adjust a short divider, ex the long divider

slightly, then pull upward. Refer to the illustration below.

To remove a long divider, the short dividers must be

removed. Pull divider up until it stops, rotate counterclock-

wise, then pull upward. To reinstall, align grooves with

drawer tabs, rotate clockwise, then slide down.

Crisper cover.

Drawer dividers.

Drawer removal.

Control cable (drawers).

STORAGE

Sub-Zero Customer Care 800.222.7820

OPERATION

AIR PURIFICATION CARTRIDGE REPLACEMENT

1To access the air purication cartridge, grasp the outside

cover from the bottom and rotate upward (top and rotate

downward for drawers). Refer to the illustrations below.

2Grasp the black cover from the top and rotate down-

ward. The cartridge will pop out and can be removed.

3Remove the new cartridge from packaging and insert

with connector pointing downward.

4Once in position, close the black cover. Then rotate the

outside cover downward (upward for drawers).

5Once the cartridge has been replaced, follow instructions

on the control panel. The cartridge life cycle will reset for

approximately one year.

Air Purication System

The advanced air purication system of Sub-Zero integrated

models reduces bacteria, odors and ethylene gas, which

causes premature ripening in fruits and vegetables. If your

unit is equipped with an air purication system, the cartridge

has been factory installed and is located on the back wall of

the refrigerator (back of upper drawer for drawer models).

To initiate air purication, touch on the options screen.

The cartridge will last approximately one year. ‘Change Air

Purier’ will appear on the control panel when the cartridge

needs to be replaced. Touch ‘Snooze’ to delay reminder for

24 hours or until cartridge can be replaced.

Replacement Sub-Zero air purication cartridges can be

ordered online at subzerowolfstore.com. For questions,

contact Sub-Zero customer care at 800-222-7820.

CAUTION

The air purication system complies with applicable

Federal requirements regarding incidental exposure

to ultraviolet light. Lamp contains mercury. Manage in

accordance with disposal laws. Visit earth911.com or

call 800-222-7820.

Air purication cartridge

(column and tall).

Air purication cartridge

(drawers).

Otros manuales para IC-24FI

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Refrigerador de Sub-Zero

Sub-Zero

Sub-Zero 532 Guía de configuración rápida

Sub-Zero

Sub-Zero BI-30UG Manual de usuario

Sub-Zero

Sub-Zero 700BC Manual de usuario

Sub-Zero

Sub-Zero IC-30FI Manual de usuario

Sub-Zero

Sub-Zero 700BC-3 Manual de funcionamiento

Sub-Zero

Sub-Zero 700BR Manual de usuario

Sub-Zero

Sub-Zero 700-3 BASE Manual de funcionamiento

$Sub-Zero \601RG Manual de usuario$

Sub-Zero

Sub-Zero \601RG Manual de usuario

Sub-Zero

Sub-Zero 542 Manual de usuario

Sub-Zero

Sub-Zero PRO3650 Instrucciones de instalación

Sub-Zero

Sub-Zero BI-42S Instrucciones de montaje

Sub-Zero

Sub-Zero BI-48SD Manual de usuario

Sub-Zero

Sub-Zero 600 Series BI-48S Manual de usuario

Sub-Zero

Sub-Zero 249R Instrucciones de uso

Sub-Zero

Sub-Zero PRO 48 Manual de usuario

Sub-Zero

Sub-Zero 700-2 Series Manual de usuario

Sub-Zero

Sub-Zero BI-36R Manual de usuario

Sub-Zero

Sub-Zero IC-27R Manual de usuario

Sub-Zero

Sub-Zero BI-42SD/S/PH Manual de usuario

Sub-Zero

Sub-Zero BI-36S Manual de usuario

Sub-Zero

Sub-Zero 648PRO Manual de usuario

Sub-Zero

Sub-Zero ID-36RP Manual de usuario

Sub-Zero

Sub-Zero 736TCI Manual de usuario

Sub-Zero

Sub-Zero 600 Series BI-36S Manual de usuario

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
