Sub-Zero 200 Series Manual de usuario

SERIES

200

SERIES

Use &Care Guide

200 Use & Care Guide 3758377 1-04.qxd 1/2/2004 1:04 PM Page 1

SERIES

200

SERIES

200 Use & Care Guide 3758377 1-04.qxd 1/2/2004 1:04 PM Page 2

Table of ContentsUndercounter

Refrigeration

UB-ZERO 200 SERIES

Thank you for purchasing your

new Sub-Zero 200 Series unit.

With Sub-Zero, you can rely on

a 50 year tradition of quality and

reliability. The 200 Series brings

together the latest and finest

features in undercounter

refrigeration.

Your Sub-Zero 200 Series unit is

protected by a warranty that is

one of the finest in the industry.

Take a moment to read the

warranty statement on page 14,

and refer to it should service

become necessary.

Features of the 200 Series

Models 245 and 249R . . . . 4

Models 249RP

and 249FF/FFI . . . . . . . . . 5

Using Your Sub-Zero

Temperature

Controls . . . . . . . . . . . . . . . 6

Door Closing . . . . . . . . . . . 7

Operations . . . . . . . . . . . . . 7

Sounds . . . . . . . . . . . . . . . . 7

Icemaker Operation . . . . . . 7

Caring For Your Sub-Zero

Ice Production . . . . . . . . . . 8

Maintenance and

Cleaning . . . . . . . . . . . . . . . 8

Cleaning the

Condenser . . . . . . . . . . . . . 8

Light Bulb

Replacement . . . . . . . . . . . 9

Vacation Time . . . . . . . . . . 9

This Use and Care Guide will

answer most of your questions

about the features, operation and

maintenance of your 200 Series

unit. If you have questions that

are not addressed here, call

800-222-7820.

Troubleshooting

Guide . . . . . . . . . . . . . . . 10-11

Keeping Food at its Best

Food Storage

Suggestions . . . . . . . . . . . 12

Service For Your Sub-Zero

If You Need Service . . . . 13

Sub-Zero Warranty . . . . . . 14

200 Use & Care Guide 3758377 1-04.qxd 1/2/2004 1:04 PM Page 3

Model 245

Combination Unit

Model 249R

Combination Unit

One-Piece

Interior

Stationary

Glass Shelves

Serial and Model

Number Plate

Adjustable

Refrigerator

Control Interchangeable

Door Hinge

Door Closer

Adjustable

Freezer Control

Interior

Freezer Light

Four Sided

Magnetic Gasket

Removable

Ice Bucket

Ventilated

Kickplate

Stationary

Door Shelves

Automatic

Ice Maker

Interior

Light

Serial and Model

Number Plate Adjustable

Temperature

Control

Freezer Compartment

(with two cube trays)

Interchangeable

Door Hinge

Door Closer

Four Sided

Magnetic Gasket

One-Piece

Interior

Ventilated

Kickplate

Stationary

Door Shelves

Removable

Wire Shelves

00 Series Models

200 Series Models

200 Use & Care Guide 3758377 1-04.qxd 1/2/2004 1:04 PM Page 4

Model 249RP

All Refrigerator

Model 249FF/FFI

All Freezer/

Freezer with Icemaker

Removable

Wire Shelves

Serial and Model

Number Plate

Interchangeable

Door Hinge

Door Closer

Four Sided

Magnetic Gasket

One-Piece

Interior

Ventilated

Kickplate

Stationary

Door Shelves

Adjustable

Temperature

Controls

Removable Wire

Shelves

Serial and Model

Number Plate

Interchangeable

Door Hinge

Door Closer

Four Sided

Magnetic Gasket

One-Piece

Interior

Ventilated

Kickplate

Adjustable

Temperature

Controls

Interior

Light

Removable Ice

Bucket (249FFI)

Automatic Ice

Maker (249FFI)

200 Use & Care Guide 3758377 1-04.qxd 1/2/2004 1:04 PM Page 5

The importance of the

installation of your Sub-Zero

cannot be overemphasized. The

proper installation of your unit is

the responsibility of the selling

dealer or installer. Any questions

or problems pertaining to the

installation should be directed to

the selling dealer

sing your sub-Zero

Your new refrigerator and/or

freezer was thoroughly inspected

and tested before it was shipped

from the Sub-Zero factory.

During these procedures, the

temperatures were preset to

maintain approximately

38°F(3°C) in the refrigerator

section and approximately 0°F

(-18°C) in the freezer section

(except 249R). If you wish to

make temperature adjustments,

simply turn the control knob so

the indicator lines up with the

desired number.

The higher the number the

colder the temperature (#1 is the

warmest and #7 is the coldest

setting).

For the location of the control,

refer to the model of your Sub-

Zero on pages 4 and 5.

You should be aware it is normal

for these temperatures to

fluctuate slightly, depending on

external influence such as: open

door for extended periods, the

degree of humidity present and

room temperature.

Model 245

The freezer control is located on

the back wall above and right of

the icemaker assembly. The

refrigerator control is situated

left of center at the top of the

refrigerator compartment (see

Model 245 on page 4).

Model 249R

(Manual Defrost)

The control is situated on the

right hand side of the back wall

in the upper freezer com-

partment (see Model 249R on

page 4).

Model 249RP

The control is located on the

right side of the back wall just

below the lower shelf assembly

(see Model 249RP on page 5).

Model 249FF

The control is found at the top of

the freezer on the right side of

the defrost blower assembly (see

Model 249FF on page 5).

Temperature

Controls

200 Use & Care Guide 3758377 1-04.qxd 1/2/2004 1:04 PM Page 6

Model 245

The door on the Model 245 is

equipped with a door closing

cam system to assist in the

closing of the door. As you close

the door, the cam will take over

at approximately the 15 degree

position to assist in the closing

of the door.

Models 249R, 249RP

and 249FF

The refrigerator and freezer

doors are both equipped with a

spring-loaded door closure

mechanism. As the doors are

closed, the door closure engages

at approximately the 15 degree

position to assist the door in

closing and sealing.

Condenser Fan

All undercounter units have one

fan located behind the kickplate

at the base of the unit. On all

undercounter models the fan

operates only only when the

compressor is running.

Evaporator Fan

Models 245 and 249FF

A fan motor is located in the

freezer section on th models

listed above. These fans operate

only when the compressor is

running.

Automatic Defrost

For your convenience, Sub-Zero

has equipped the following

models with an automatic

defrost system: 245, 249RP and

249FF.

NOTE: Model 249R is not

equipped with automatic defrost.

To manually defrost, turn the a

control knob to the off position.

Certain noises may be evident

with normal operation of the unit.

Surrounding acoustics like walls,

floors and cabinets may affect the

sound level of your unit.

A gurgling sound or running

water sound may be evident as

the refrigerant circulates through

the tubing.

During the icemaker cycle, you

may hear the sound of ice

dropping into the bucket or the

solenoid valve while refilling the

icemaker with water.

During the freezer defrost, you

may hear crackling and/or

sizzling as the heat from the

defrost element clears the frost

from the freezer coil and water

runs into the defrost water pan.

While the compressor is in

operation, a slight hum might be

evident. During the startup and

shutdown of the compressor,

some vibration may occur lasting

only a few seconds.

Models 245 and 249FFI

The icemaker in Models 245 and

249FFI is fully automatic and

has been factory pretested. To

put into operation, it requires

only a connection to the house

water supply.

Door Closing Operations Sounds Icemaker

Operation

200 Use & Care Guide 3758377 1-04.qxd 1/2/2004 1:04 PM Page 7

Maintenance

and Cleaning

Ice Production

Models 245 and 249FFI

The level of ice in the ice

container is controlled by an ice

level arm. When the containers

are filled with ice, the ice level

arm senses the level and shuts

down the icemaker. As ice is

used, the level drops and the

level arm signals the icemaker to

restore ice production.

The icemaker is designed to

produce a more than adequate

supply of ice for normal family

consumption. the length of time

between ice harvest cycles will

vary depending on load

conditions, door openings and

ambient room temperatures. On

the average, you can expect a

harvest of ice every two hours.

If ice is not used regularly, it

will tend to fuse together. To

avoid this, empty the ice

container periodically.

NOTE: To shut off icemaker, lift

icemaker stop arm to the up or

off position. See illustration.

For general cleaning of the

refrigerator and freezer interior

surfaces and removable parts,

wash with a mild solution of

soap and water to which a small

amount of baking soda has been

added. Rinse and dry

thoroughly. Avoid getting water

on lights and/or control dial.

To insure proper performance,

the cleaning of your unit’s

condenser is required.

IMPORTANT NOTE: This

should be performed every 3 to 6

months under normal use and

living conditions.

To expose the condenser,

remove the kickplate at the base

of the unit. To do this, remove

the screws located at each corner

of the kickplate.

Use a "soft" bristle brush and

vacuum hose to remove the

accumulation of dust and lint

particles on the condenser.

IMPORTANT NOTE: Failure

to properly clean this area could

result in temperature lost and/or

possible mechanical failure of

the refrigerator and/or freezer.

aring for your sub-Zero

Automatic Icemaker

CAUTION

For maintenance and

cleaning, the circuit

breaker to the refrigerator

should be shut off and

protective gloves worn.

Cleaning the Condenser

Cleaning the

Condenser

200 Use & Care Guide 3758377 1-04.qxd 1/2/2004 1:04 PM Page 8

Vacation Time

Model 245

To replace the refrigerator light

bulb (25 watt), remove upper

shelf and pull control knob off.

Grip refrigerator control diffuser

firmly on top and bottom and

snap out of position. The light

bulb is now accessible.

To replace the freezer light bulb

(25 watt), pull control knob off.

Grip freezer control diffuser

firmly on top and bottom and

snap out of position. The bulb is

now accessible.

To reinstall, reverse procedure.

Model 249R

The light bulb (25 watt) is

located beneath the freezer

evaporator and is accessed by

reaching up underneath behind

the right hand side of the freezer

section. Unscrew and replace.

Model 249RP

The light bulb (25 watt) is

accessible by removing three

screws which anchor the light

bracket. Remove bracket and

reach behind the light diffuser

and unscrew bulb.

To reinstall, reverse procedure.

Model 249FF

The light bulb (25 watt) is

mounted behind the left side of

the blower fan assembly at the

top of the back wall of the

freezer. Unscrew and replace.

For short vacations: Remove all

perishable items. Shut off the

icemaker. See Icemaker

Operation on page 7. Do not

change the settings of your

controls.

For extended vacations: The

control(s) to your refrigerator or

freezer should be shut off.

Empty all contents in the

refrigerator/freezer and wash,

rinse and dry interior of unit.

Vacant homes: If for any reason

this unit is put into service on a

temporary basis and later shut

off, the control(s) to the

refrigerator or freezer should be

shut off.

For extended vacations or vacant

homes, you should block door(s)

open slightly. About one inch, so

fresh air can circulate and keep

interior dry. You should also

turn off power to the unit or

loosen light bulb(s).

CAUTION

Always shut off the circuit

breaker to the unit and

wear protective gloves

when replacing light bulbs.

Light Bulb

Replacement

CAUTION

The moisture developed

during even the shortest

amount of running time

could attack the metal parts

if the doors are left closed

after shutting down. Be

sure the doors are blocked

open after any operation.

200 Use & Care Guide 3758377 1-04.qxd 1/2/2004 1:04 PM Page 9

If refrigerator/ freezer is

warmer than usual:

•Check control for proper

setting.

•Has door been left open too

long?

•Have you recently added a

large quantity of food?

•Is condenser behind grille

clean?

If refrigerator/ freezer

runs too much:

•Is condenser behind grille

clean?

•On hot days and warm room

ambients, the motor runs

longer.

•Have doors been open for

extended times or large

amounts of food added?

roubleshooting Guide

If you think that your

refrigerator is not operating

properly, check the following

before calling your Sub-Zero

Factory Authorized Service

Center or dealer. This guide may

save you time and the expense of

a service call.

If refrigerator/ freezer is

frosted up:

•Have the doors been left open?

•Are doors closing and sealing

properly?

If you hear unusual

noises:

•These may be normal

operating sounds (see page 7).

If condensation forms

inside the unit:

•This is normal during high

humidity and frequent door

openings.

•Are doors closing and sealing

properly?

If refrigerator/ freezer is

not operating:

•Is there electrical power to

equipment?

•Is home fuse blown or circuit

breaker off?

•Is refrigerator/freezer control

on?

•Is condenser clean?

•Has door been left open? Be

sure no foods are obstructing

proper door closing.

•If still not running, unit may

be in defrost; wait 30 minutes

to see if unit will restart.

200 Use & Care Guide 3758377 1-04.qxd 1/2/2004 1:04 PM Page 10

Otros manuales para 200 Series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Refrigerador de Sub-Zero

Sub-Zero

Sub-Zero 700BR Instrucciones de montaje

Sub-Zero

Sub-Zero BI-42UFDID/O Manual de usuario

Sub-Zero

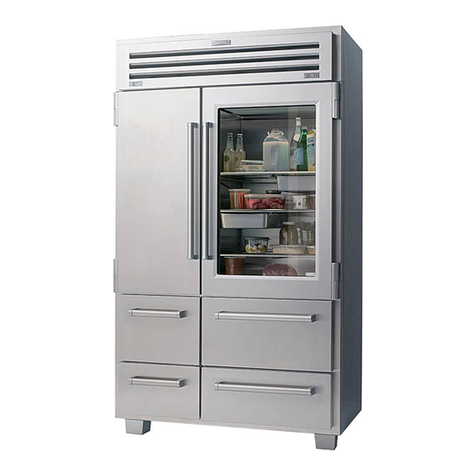

Sub-Zero PRO 48 Manual de usuario

Sub-Zero

Sub-Zero 601R Instrucciones de uso

Sub-Zero

Sub-Zero BI-42S Manual de usuario

Sub-Zero

Sub-Zero UC-24C Instrucciones de montaje

Sub-Zero

Sub-Zero 600 Series BI-30U Manual de usuario

Sub-Zero

Sub-Zero 736TR Instrucciones de montaje

Sub-Zero

Sub-Zero IC-24R Manual de usuario

Sub-Zero

Sub-Zero UC24CIRH Manual de usuario

Sub-Zero

Sub-Zero UC-24R Manual de usuario

Sub-Zero

Sub-Zero 700TF Manual del propietario

Sub-Zero

Sub-Zero UC-24BG Manual de usuario

Sub-Zero

Sub-Zero 700BCI Manual de usuario

Sub-Zero

Sub-Zero Sub-Zero BI series Manual de usuario

Sub-Zero

Sub-Zero UC-24R Manual de usuario

Sub-Zero

Sub-Zero 736TCI Manual de usuario

$Sub-Zero \601RG Manual de usuario$

Sub-Zero

Sub-Zero \601RG Manual de usuario

Sub-Zero

Sub-Zero 600 Series BI-48SD Manual de usuario

Sub-Zero

Sub-Zero Undercounter Refrigeration Manual del propietario

Sub-Zero

Sub-Zero 700BR Manual de usuario

Sub-Zero

Sub-Zero PRO 48 Manual de usuario

Sub-Zero

Sub-Zero 601F Manual de usuario

Sub-Zero

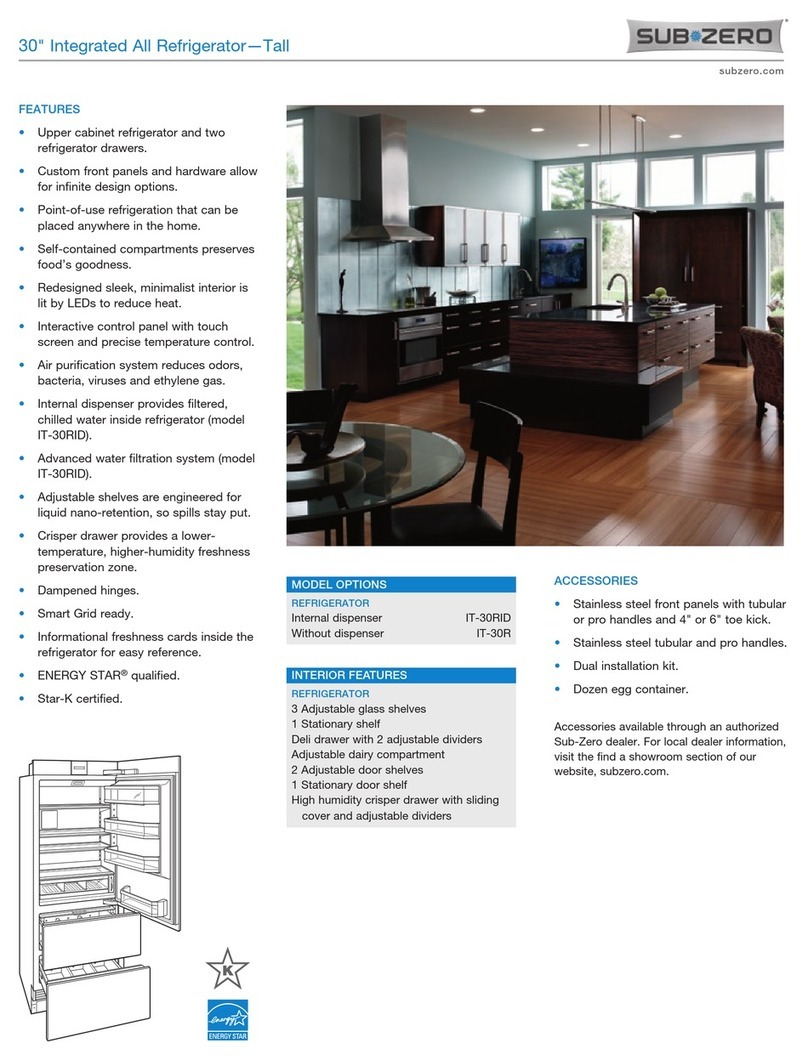

Sub-Zero IT-30RID Manual de usuario

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
