Strong SRT 6500 Manual de usuario
Digital Cryptoworks Embedded
Satellite Receiver SRT 6500
User Manual
1
English
PART 1 l English
TABLE OF CONTENTS
1.0 INTRODUCTION 2
1.1 Overview 2
1.2 Main Features 2
2.0 SAFETY / PRECAUTIONS 3
2.1 Safety 3
2.2 Precautions 3
3.0 ACCESSORIES 4
4.0 CONTROLS / FUNCTIONS 4
4.1 Front Panel 4
4.2 Rear Panel 5
4.3 Remote Control Handset 6
5.0 USING THE REMOTE CONTROL 7
5.1 Batteries 7
5.2 Range Of Operation 7
6.0 CONNECTING THE RECEIVER 8
6.1 To a TV set, using TV SCART connection 8
6.2 To a Hi-Fi system and a TV set, using both A/V connections 8
6.3 To a VCR and a TV set, using both SCART connections 9
7.0 STARTING UP FOR THE FIRST TIME 10
8.0 SETUP AND OPERATION 11
8.1 Before Setup 11
8.2 Setup Menu 11
8.3 Main Menu Settings 18
8.4 General Viewing Information 23
A.1 PROBLEM SOLVING 28
A.2 SPECIFICATIONS 29
2
PART 1 l English
1.0 INTRODUCTION
1.1 Overview
This satellite receiver was designed for Digital satellite receiver with Cryptroworks embedded. It enables you to tune in on the hundreds of digital
television and radio channels broadcasting to your region, with the highest video, audio and data quality attainable with current technology. It
performs numerous functions to provide you with a variety of services.
1.2 Main Features
n For all digital Free-To-Air TV and Radio programmes via satellite
n Embedded Smartcard reader for Cryptoworks smartcard
n Display showing channel number or time
n Separate power switch
n Digital sound through coaxial output (S/PDIF)
n Parental lock function for menu and selectable per channel
n Over 3 000 TV channel memory capacity and 1 000 radio channel memory capacity
n Pre-programmed with most popular channels
n 5 Favourite lists for TV-and Radio programme
n Quick and easy installation & user-friendly menu
n Excellent Audio & Video quality
n Teletext via VBI & OSD
n Supports DiSEqC 1.0 and DiSEqC 1.2
n Electronic Programme Guide (EPG) for present/following event information and up to 7 days for on screen programme information
n Timer function (sleep, awake)
n Multi-lingual audio track support
n Multi-lingual support on screen menu (OSD): English, Hungarian, Czech, Slovak, Bulgarian, Turkish, German
n Edit function for TV and Radio programme name, Favourite Group name, and Transponder information
n Future-proof: Software update via satellite (OTA)
n Signal strength bar for digital transponders
n Automatic and manual channel scan options
n Power on with last viewed channel
n User-friendly remote control (Infrared up to 7 meters)
n Low power consumption
n PAL / SECAM / NTSC compatible
3
English
2.0 SAFETY / PRECAUTIONS
2.1 Safety
n Be sure to read this manual before you start operating the unit
n Do not touch the power cord with wet hands, as that may cause electric shock
n Never open the cover. It is very dangerous to touch the inside of the unit, due to possible electric shock
n The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as base, shall be
placed on the apparatus
n Place the unit in an adequately ventilated and cool environment
n When not in use for a long time, it is recommended that the power cord be disconnected from the mains. Also, make sure
you do not use the unit with a damaged power cord, as this may cause electric shock or fire
n A professional installation is required. If reception is interrupted, contact your authorized local service center
2.2 Precautions
When installing the unit
n Install the unit on a level horizontal plane. Unleveled installation may cause damage to the unit
n The socket-outlet shall be installed near the equipment and shall be easily accessible
n Do not put heavy items, such as a TV, on top of the unit. That may cause damage to the unit
n Do not install the unit where: it may be subject to vibrations
it is exposed to direct sunlight
there is humidity
temperature may be too high or too low
there is no adequate ventilation
n Moving the unit from a cold area to a hot one will cause condensation. In such a case, leave the unit to dry for a couple of
hours, before you operate it
PART 1 l English
4
PART 1 l English
3.0 ACCESSORIES
The following have been packed in your receiver box:
n User’s manual: 1 Pc
n Remote control: 1 Pc
n Batteries (AAA Type): 2 Pcs
* If any accessory listed above is missing, contact the point of purchase.
4.0 CONTROLS / FUNCTIONS
4.1 Front Panel
1. LED (4 Digit)
Displays the time when in “Stand-By” mode and the channel number when the unit is operating.
2. IR Sensor
Detects the infra-red command signals generated by the remote control handset.
3., 4. Channel p & q
Move the cursor Up or Down in an application screen or change channels sequentially Up or Down in normal operation.
5. Power Button
Switches the receiver between “Stand-By” and “On” modes.
6. Smart card reader
Insert your Cryptoworks smart card with golden contacts facing down.
1 3 4 5 62
5
PART 1 l English
English
4.2 Rear Panel
1. SAT OUT
Gives you the possibility to connect an extra receiver (analogue or digital).
2. SAT IN
Connect the cable from your LNB on the satellite dish to this connector.
3. VCR SCART
To connect your receiver to your video recorder using a scart cable. Your video signal will now be looped through your receiver to your
TV set.
4. TV SCART
To connect your receiver to your TV set using a SCART cable.
5. S/PDIF Digital audio output
Use this coaxial output to connect your receiver to the input of your digital audio amplifier.
6. AUDIO-R and AUDIO-L
Audio Right (RED) and Audio Left (White) RCA connectors to connect to audio amplifier.
7. Power On/Off switch
8. Power Cord
Your receiver requires a current of 90 ~ 250 V AC (Auto-selectable), 50 ~ 60 Hz +/-5 %. Make sure to check the power specification before
connecting your receiver to the wall outlet.
1 3 4 5 6
7
2
8
6
PART 1 l English

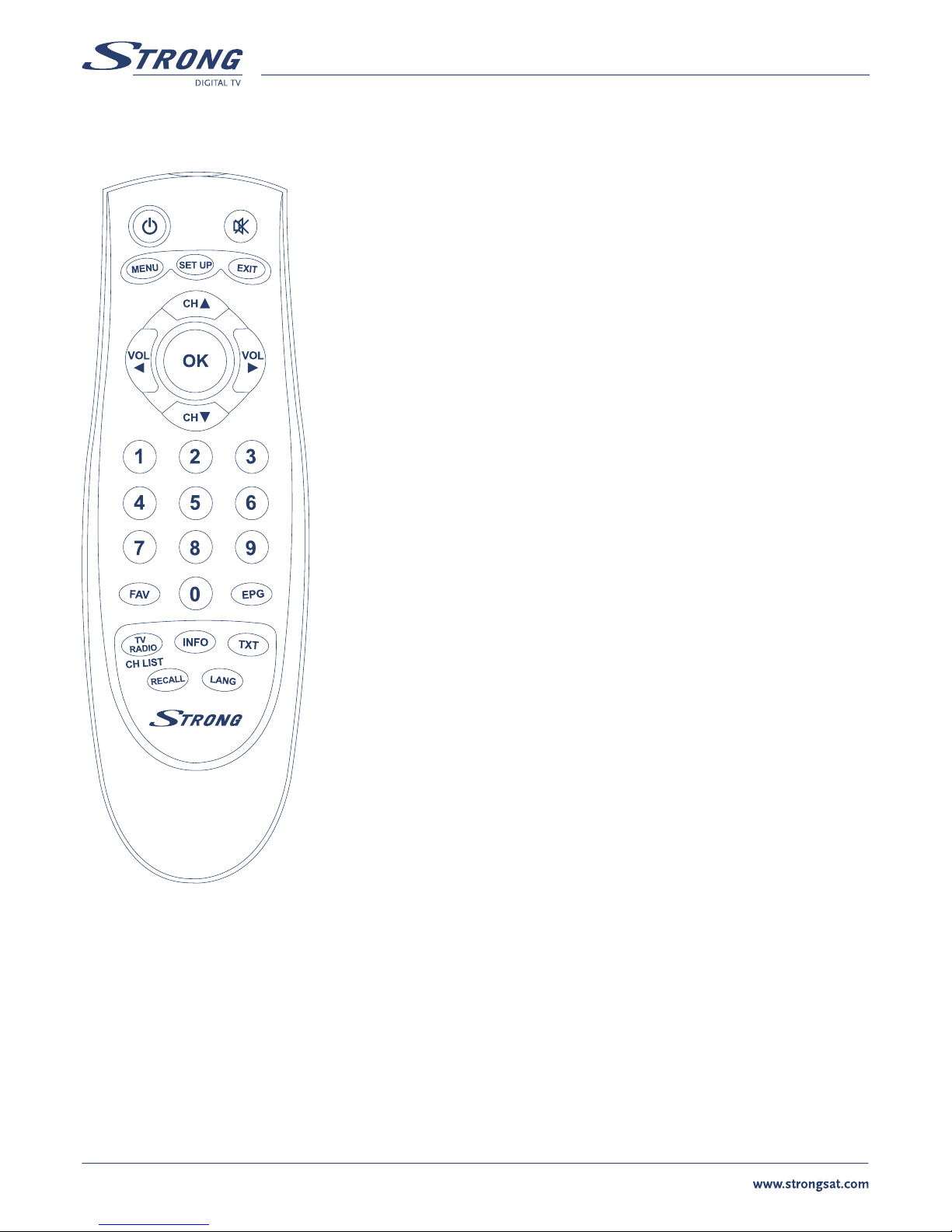

4.3 Remote Control Handset
Power: Switches the receiver between Stand-By & On modes
Mute: Mutes the audio output
MENU: Accesses the main menu
SETUP: Accesses the receiver set-up menu
EXIT: To return to previous status or menu
CH (p/q): Change channels sequentially up or down in viewing mode and move the cursor up or
down in an application screen
VOL (t/u): Alter the audio output level up or down in viewing mode and change the selected
item’s setting in an application screen
OK: Selects an item or confirms a choice
Numeric Keys (0~9): For direct entry of channel number or input of alphanumeric characters
FAV: Displays the current favorite channels list
EPG (Electronic Program Guide): Provides program content information. Press again to return to
viewing mode
TV/RADIO: Switches between TV & Radio channels lists
INFO: Displays the available information on the viewed channel
TXT: Displays the teletext contents of the viewed channel, if teletext is transmitted
RECALL: Goes back to the previously viewed channel
LANG: Select sound mode or audio language
7
PART 1 l English
English
5.0 USING THE REMOTE CONTROL
5.1 Batteries
How to insert the batteries
n Open the cover at the top of the rear side of the handset
n Insert two “AAA” type batteries (1.5V), respecting the indicated polarity +/- signs
n Close the cover
When to replace the batteries
n When the operational range of the handset gets smaller, or when the receiver no longer responds to each and every command. Always
replace both batteries at the same time
Accident prevention
n Do not recharge, heat or disassemble the batteries
n Make sure the intended polarity alignment is respected
n If the handset is not going to be used for some time, take the batteries out. If not, the batteries may leak and cause damage to
the handset
5.2 Range Of Operation
n The operating range of the handset is within +/- 30 degrees on both the vertical and horizontal planes of the Infra Red sensor
n Transmission distance does not exceed 7m
Notes
When the handset is not operational
Replace the batteries and make sure the receiver is connected to the power supply.
Abnormal operation
Disturbance from peripheral devices may occur. You will need to move the object that is generating the disturbance.
Notes for handling
In the event the receiver is exposed to heat or water, operating it could be dangerous. Have the unit checked by a qualified technician
prior to operating it again.
8
PART 1 l English

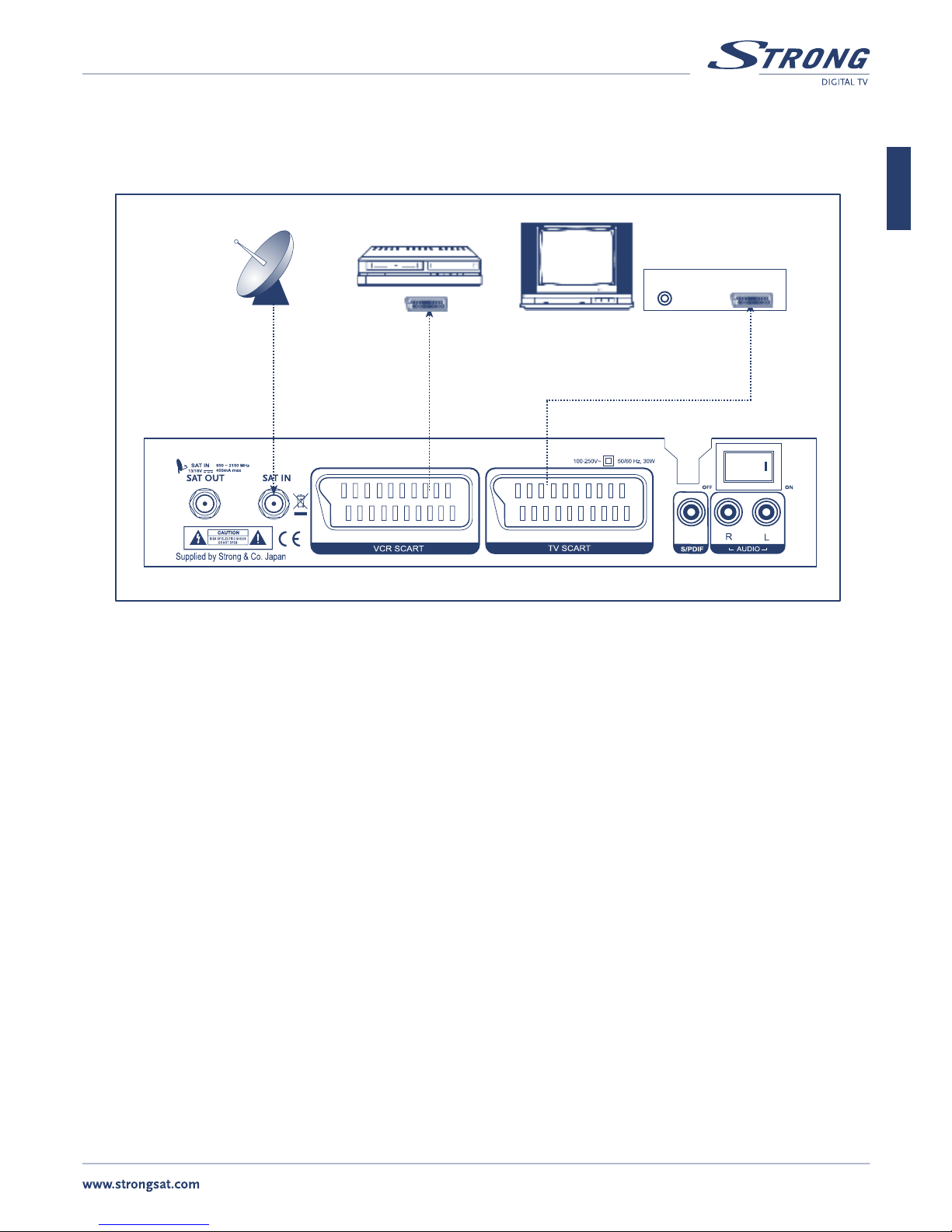

6.0 CONNECTING THE RECEIVER
6.1 To a TV set, using TV SCART connection
6.2 To a Hi-Fi system and a TV set, using both A/V connections
RF IN SCART
RF IN SCART
Audio
R L
Digital
Audio/
coax
9
PART 1 l English
English
6.3 To a VCR and a TV set, using both SCART connections
RF IN SCART
