STONEX R80 Manual de usuario

(April 2020)-Ver.1-Rev.0- Firmware Version V3.0.1.0 150228 www.stonex.it

STONEX R80

Motorized Total Station

Quick guide

Welcome interface

Switching on the R80, you

will see the interface on

the right. Click on:

•BSC measure to check

performance

functionality and

manage some

parameters;

•About to check the

software version;

•INST Setup to

manage the settings;

•Exit.

Basic Measure

In the Basic Measure

interface you can visualize

angles, distances or

coordinates.

In the top right corner,

current settings are

shown.

Select Param to manage

the units.

Instrument setup

In the INSTset interface

you can manage settings

of your Total Station.

To access them, enter the

password:

12345678

After selecting the option,

in each page, press

[Enter] to keep the setting

or press [Cancel].

Star settings

TiltXY

Press the [*] key to check

the electronic bubble and

to manage the

compensator.

Star settings

Target

Press the [*] key and click

on Target.

Here you can manage the

target type, the laser

pointer and activate the

Auto aim & Lock.

Star settings

Battery

Press the [*] key and click

on Battery.

Here you can manage the

reticle and guide light

illumination and switch

on/off the Bluetooth.

Shortcut keys

Look at the combinations

on the right to manage

some settings on the

Total Station.

Key

combination

Description

Power

★

Enter the setting mode directly/Turn on the

electronic bubble

Shift among number, small letter and capital

letter

FUNC+B.S

Turn on/off backlight of key panel in face left

position

FUNC+F6

Turn on/off backlight of key panel in face right

position

F7+F6

Start touch screen calibration

FUNC+F7

Turn on/off soft keyboards

FUNC+

▲

Increase backlight brightness of LCD

FUNC+

▼

Decrease backlight brightness of LCD

FUNC+

◄

Turn on/off LCD display in face left position

FUNC+

►

Turn on/off LCD display in face right position

Prism is

set as target type, it activates the prism

search.

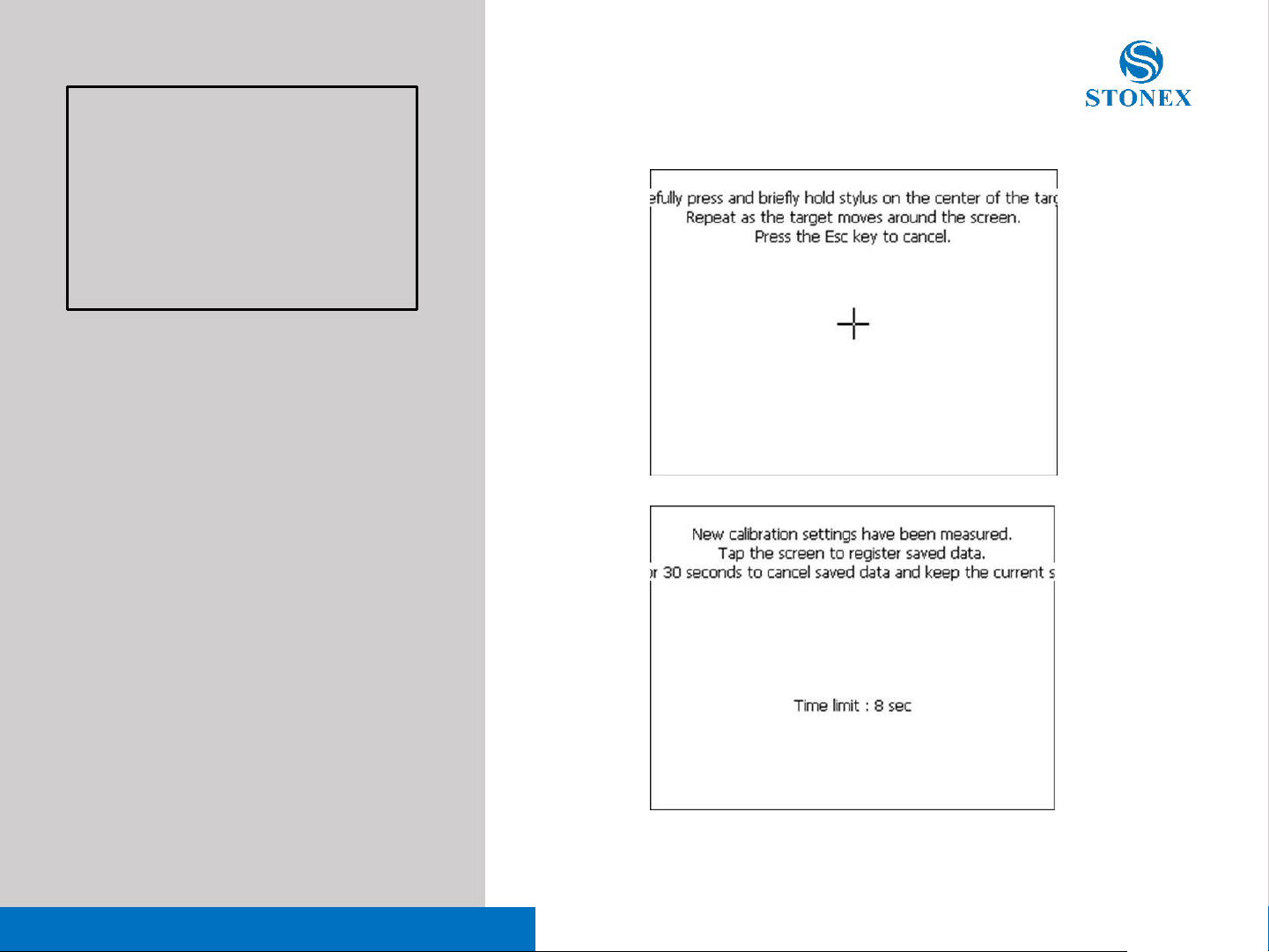

Touch screen

calibration

Press the [F7]+[F6] keys

(F7 firstly, then F6).

Carefully press and briefly

hold stylus on the center

of the target. Repeat as

the target moves around

the screen. After all the

targets are clicked, the

screen will display as left,

tap the screen to register

saved data.

Communication

The communication

modes available on the

Total Station are listed on

the right.

About Bluetooth, make

sure you have enabled it

in the Star settings.

USB dongle

USB-mini USB cable

Bluetooth

Password: 1234 or 0000
