Stoneridge Optimo Manual de usuario

DD 56065 Rev 01 1 © Stoneridge Electronics Ltd

Stoneridge Optimo Manual

Stoneridge Electronics Ltd

The information contained in this document is the property of Stoneridge

Electronics Ltd. and should not be reproduced, revealed or appropriated,

either in whole or in part, without the written authority of Stoneridge, Inc.

Contents

1. Optim o Kit................................................................................................................................................... 3

1.1. Optimo Light Kit .................................................................................................................................... 3

1.2. Optimo2 Kit ........................................................................................................................................... 4

2. Power –Optimo and Optimo Light ................................................................................................................ 4

2.1. Power –Optimo2................................................................................................................................... 5

3. Optimo Main Screen..................................................................................................................................... 5

4. Optimo, Optimo Light and Optimo2Features................................................................................................. 6

5. Sleep mode .................................................................................................................................................. 6

6. Getting Started............................................................................................................................................. 7

6.1. Task Bar Icons ....................................................................................................................................... 7

6.1.1. Workshop Settings......................................................................................................................... 7

6.1.2. Connecting to WiFi......................................................................................................................... 9

6.1.3. Bluetooth ...................................................................................................................................... 9

6.1.4. Wireless Connections..................................................................................................................... 9

6.2. Connecting to Tachographs ................................................................................................................. 10

6.3. Calibrating and Programming .............................................................................................................. 10

7. Optimo –MKIII Programmer –Main screens............................................................................................... 11

7.1. Read and modify data......................................................................................................................... 12

7.2. Tachograph Information ..................................................................................................................... 13

7.3. Bench test.......................................................................................................................................... 14

7.4. Fixed distance 1.................................................................................................................................. 15

7.5. Speed simulator .................................................................................................................................. 16

7.6. C3 RPM test ........................................................................................................................................ 16

7.7. DTCs .................................................................................................................................................. 17

7.8. k factor test......................................................................................................................................... 17

7.9. DIL calculate....................................................................................................................................... 18

7.10. Fixed distance 2.................................................................................................................................. 19

7.11. Rolling road......................................................................................................................................... 20

7.12. Clock test ........................................................................................................................................... 22

7.13. PIN ..................................................................................................................................................... 22

7.14. Serial data test ................................................................................................................................... 23

7.15. CANbus data test ................................................................................................................................ 23

7.16. 1000m test......................................................................................................................................... 24

7.17. Sensor settings ................................................................................................................................... 25

7.18. Tachograph reset ................................................................................................................................ 27

8. Custom Bench Test ..................................................................................................................................... 28

9. SE5000CS –Configuration System ............................................................................................................... 32

10. 1381CS –Configuration System................................................................................................................... 34

11. Application Sheets...................................................................................................................................... 36

12. Cross Reference Tables ............................................................................................................................... 38

13. Tacho Swap ................................................................................................................................................ 39

14. Sensor Test................................................................................................................................................ 41

15. Rolling Road Brake...................................................................................................................................... 45

16. Product Upgrade ........................................................................................................................................ 46

Annex A –Cable cross reference tables............................................................................................................... 47

Annex B –Programmable Parameters ................................................................................................................ 49

Annex C –Optimo Error Codes ........................................................................................................................... 52

1. Optimo Kit

1.1. Optimo Light Kit

Optimo

Power

Supply

Bluetooth

Dongle

In Vehicle

Charger

Power

Cable

Mouse

C2 Cable

Tester

A4, A6 & A8

Tachograph

Adaptors

B Adaptor

For Stoneridge

Rolling Road &

Flexi Switch

C1 Cable

Tester

Digital

Dongle

1324

Dongle

2400

Dongle

Digital

Dongle

Tachograph

Adaptor

Optimo

WiFi Dongle

Power

Supply

B Adaptor

For Stoneridge

Rolling Road &

Flexi Switch

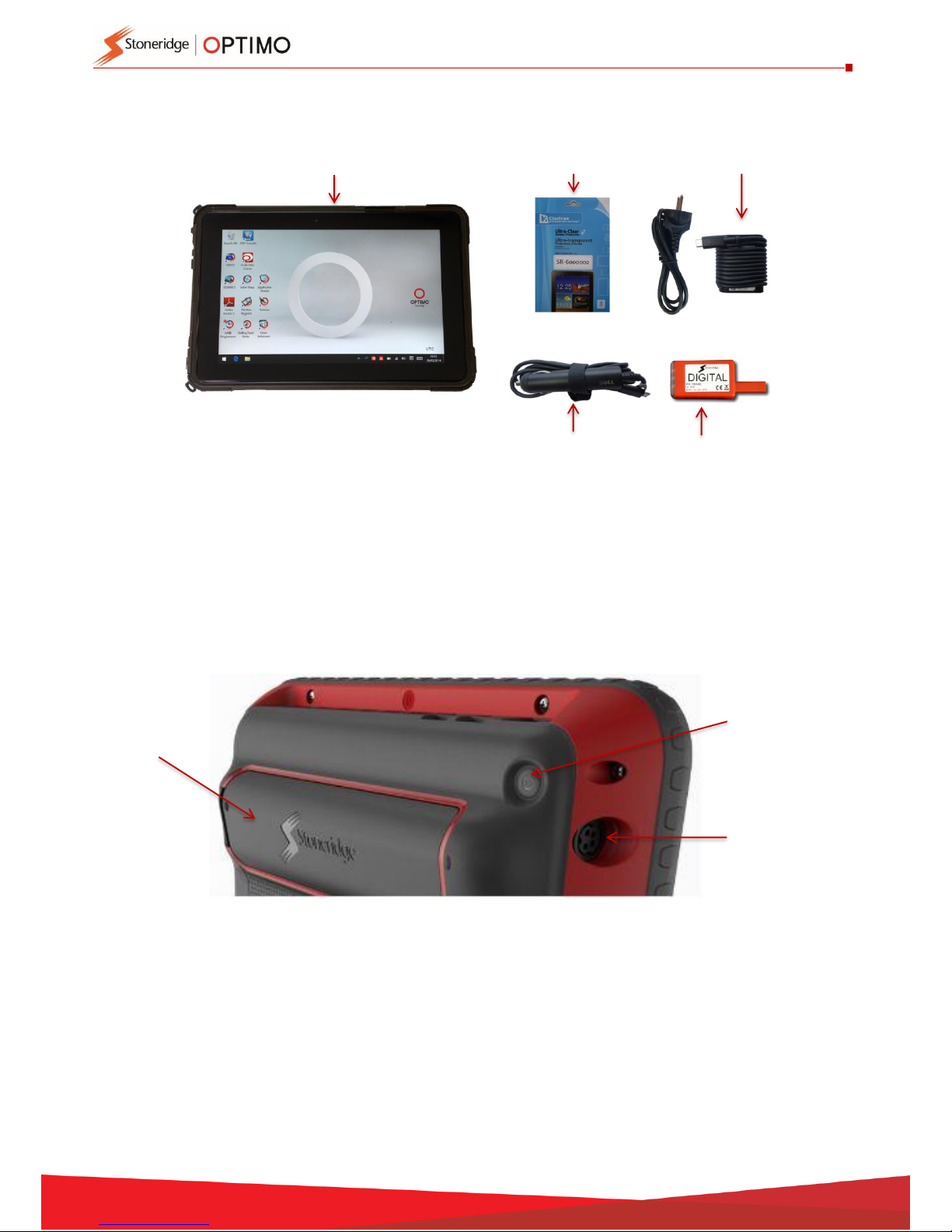

1.2. Optimo2 Kit

2. Power –Optimo and Optimo Light

Lithium Ion 14.4V battery, life typically 4 hours.

Charging –230V ac supply or vehicle power connector.

Charging time –typically one hour, overnight on first use.

Charging time for Optimo Light –typically up to 4 hours.

Power on/off

Power socket

for mains or

vehicle adaptor

Snap-fit

battery pack

Optimo2

Digital Dongle

Power Supply

In Vehicle

Charger

Screen protector

2.1. Power –Optimo2

3. Optimo Main Screen

Optimo supports all digital and analogue tachographs. Extra cables may be required when using

Optimo Light. See table below.

Page 36

Page 38

Page 11

Page 22

Page 41

Page 32

Page 39

Page 46

Page 9

Page 4

Page 34

Page 7

Page 45

Power on/off

USB ports

DIN sockets

4. Optimo, Optimo Light and Optimo2Features

Component

Optimo

Optimo Light

Optimo2

External USB ports

Bluetooth

Yes

WiFi

Yes

External Mouse

Yes

Camera

Yes

Smart card reader

Yes

Dongles

Digital, 2400, 1324

Digital

I/O connectors

A,B,C,D,E,F,G

A,B,C

None, DIN

connectors only

Adaptor cables

A4, A6, A8 B, C1 and C2

connector

A8, B

None

Sensors, testing

Yes

Battery charge time

1 hour

4 hours

2.5 hours

Vehicle charger

Yes

Screen dimming

Yes

Screen rotation

Yes

Screen protector

Yes

5. Sleep mode

5 minutes inactivity

Screen blank –programs still running

Tap screen to wake up

30 minutes inactivity

Optimo shuts down

Press ON button at rear to re-start

Power off.

Step 1

Tap

Windows icon

Step 2

Tap

Shut down

button

6. Getting Started

How to set up your Optimo

6.1. Task Bar Icons

6.1.1. Workshop Settings

On first power up of Optimo a number of details must be entered into a series of

settings screens.

Settings screens can also be accessed at any time by tapping here.

After selecting Language and Country, enter your workshop details. Complete all fields.

Other screens are accessed by tapping Arrows at the top of the page if highlighted.

The ‘Home’ button closes any application and returns to the Windows desktop or

returns to that application’s main screen.

This screen displays various details about your workshop, and enables selection

and settings for Rolling Roads. Complete all fields.

The next screen sets Fixed distance length and number of runs, plus options for

“Standard” or “Custom” bench tests. For Custom Bench test see Chapter 8, page 28

DETAILS ON ALL THESE SCREENS MUST BE COMPLETED BEFORE FIRST USE OF OPTIMO.

6.1.2. Connecting to WiFi

Tap the Internet icon.

6.1.3. Bluetooth

Insert Bluetooth dongle to USB port, press white arrow and a Bluetooth icon appears.

On pop up screen tap “Add a Device”, a new screen appears showing other Bluetooth

devices in the area. Tap on selected device and follow prompts to pair it with Optimo.

6.1.4. Wireless Connections

There are two wireless indicators in the taskbar, one for connection to the tachograph

and one for connection to a Rolling Road. Both are red when disconnected and turn

green when connected.

Select the network and tap “Connect” button.

Tachograph & Rolling Road disconnected

Tachograph connected, Rolling Road disconnected

6.2. Connecting to Tachographs

3 dongles are supplied for Digital, 2400 and 1324 tachographs. These are inserted into the

programming socket as shown, wait 5 seconds after insertion before initiating programmes.

All tachographs can also be connected using existing MKII cables via supplied adaptor cables.

This is the only way to connect to round tachographs.

Optimo Light and Optimo2are supplied with the Digital dongle only.

6.3. Calibrating and Programming

On tapping Optimo identifies the connected tachograph. If the tachograph

cannot be determined the screen below is displayed. Select

tachograph type.
