Stilum Circulus 1 flower Guía del usuario

Mounting instruction for merry-go-round „circulus 1 ower“

Item No. 51 4024 401

State: 17.06.2016 p. 1

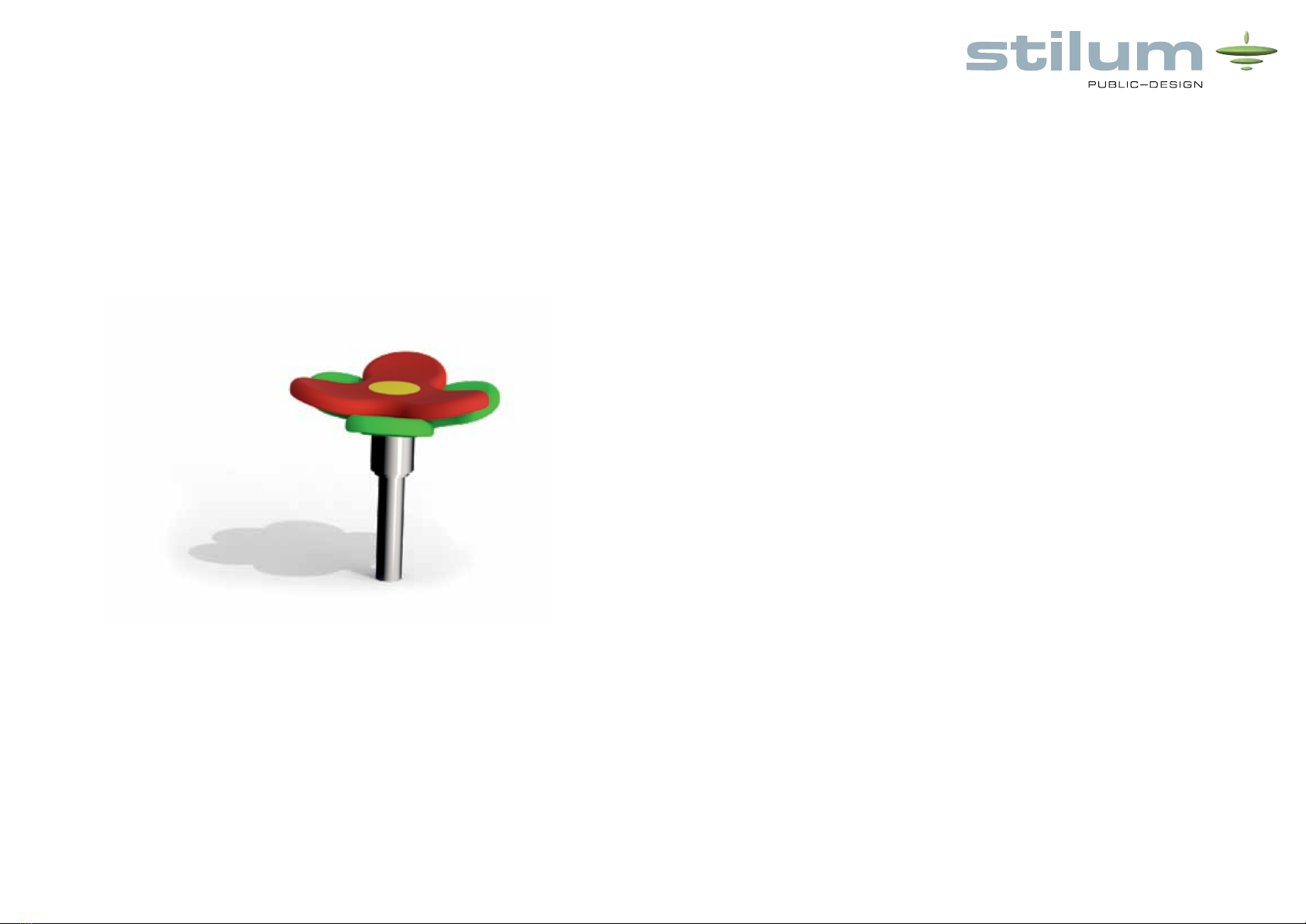

Diagram 1: Overall view of the play equipment

Mounting instruction for merry-go-round „circulus 1 ower“

Item No. 51 4024 401

State: 17.06.2016 p. 2

Diagram 2: Side view with dimension details „circulus1 ower“

Play level

Floor anchor

1. Select the play equipment location in consideration of the required safety

area (see Diagram 3: Ø 4500 mm).

2. The impact area of a playground equipment with an enforced movement is

not allowed to overlap the impact area of other equipment.

Regarding to DIN 1176 - 4.2.8.2.5, impact absorbing surfaces have to be put

under the whole impact area of every equipment with an enforced movement.

3. Carry out excavation work for the foundation anchor as shown in Diagram 2.

After excavation, compress the foundation oor.

Note: The roundabout is built in on the play level. Pay attention to items

marked „game level“ of play equipment!

The distance of the playing surface to the bottom of the hub may maxi-

mum of 110 mm!

4. Concrete foundation acc. the specied dimensions (LxWxH 500 x 500 x

500mm) build with centrally mounted, horizontal reinforcement. It shed the

supplied anchor bolts with the foundation that the upper angle frame is hori-

zontal and ush with the foundation surface.

Reinforcement plan: Concrete foundation with reinforcement

Main foundation: BSt 500S

Ever 4 stirrups Ø 8 mm lengthwise and cross

Concrete cover h´= 3 cm

Concrete quality class B25

500

950

450

238

376

Beton

Concrete

Erde

Ground

Füllmaterial

Filling

Rev.:

Projekt:

BESTELL-NR:

ZG-NR:

BENENNUNG:

OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI + KAISER GMBH DARF DIESE TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT

NOCH DRITTEN MITGETEILT ODER ZUGÄNGLICH GEMACHT WERDEN NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VERWENDET

WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.

FREIG:

GEPR:

GEZ:

DATUM: NAME:

WERKSTOFF



MAßSTAB:

OBERFLAECHEN NACH

DIN ISO 1302 REIHE 2

ZUL. ABWEICHUNG

DIN 2768 - mH

+0,3

-0,3

WERKSTUECKKANTEN

NACH DIN 6784

Gewerbegebiet Larsheck

56271 Kleinmaischeid

Deutschland

0186-00-00

07.03.2016

Abmaße:

Fertigung:

Behnke

Gewicht:

98818.4

circulus1.2

Fundamentplan

500

950

450

238

376

Beton

Concrete

Erde

Ground

Füllmaterial

Filling

Rev.:

Projekt:

BESTELL-NR:

ZG-NR:

BENENNUNG:

OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI + KAISER GMBH DARF DIESE TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT

NOCH DRITTEN MITGETEILT ODER ZUGÄNGLICH GEMACHT WERDEN NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VERWENDET

WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.

FREIG:

GEPR:

GEZ:

DATUM: NAME:

WERKSTOFF



MAßSTAB:

OBERFLAECHEN NACH

DIN ISO 1302 REIHE 2

ZUL. ABWEICHUNG

DIN 2768 - mH

+0,3

-0,3

WERKSTUECKKANTEN

NACH DIN 6784

Gewerbegebiet Larsheck

56271 Kleinmaischeid

Deutschland

0186-00-00

07.03.2016

Abmaße:

Fertigung:

Behnke

Gewicht:

98818.4

circulus1.2

Fundamentplan

Mounting instruction for merry-go-round „circulus 1 ower“

Item No. 51 4024 401

State: 17.06.2016 p. 3

5. During the setting time of 10-14 days, depending on weather conditions and

foundation size, clean the surface of the foundation, put the play equipment

on the foundation and screw it with the anchor bolts included in the delivery.

6. Fill up and compress the holes between the foundation and the foundation

hole with the excavation.

7. Seal the foundation with the safety cover required for the height of fall indica-

ted. Set up impact-absorbing playground surfacing according to EN 1177 HIC

1000.

Critical drop height: 400mm

Recommended surface material: grass, sand, wood chip, gravel, synth. fall

protection

8. Do not allow children to use the equipment before the installation has been

nished.

Attention: If the play equipment has been incompletely installed or partly dis-

mantled when carrying out maintenance and repair work, this may lead to par-

ticular risks of injury for the user. For this reason, make clearly visible that the

equipment shall not be used in such cases.

NOTE: Play equipment, which contain components made of stainless steel

should not come with „normal“ steel parts in contact. Those steel parts may rub

off and leave small steel particles in combination with moisture brown rust stains.

If such corrosion occur on stainless steel parts, they are ne with an abrasive

(240 grit) to remove.

Please take care when transporting and setting up the fact that the components

are made of stainless steel with no „normal“ steel parts in contact.

Diagram 3: Top view „circulus1“

Extent of the mini-

mum zone = safety

area

4500

Rev.:

Projekt:

BESTELL-NR:

ZG-NR:

BENENNUNG:

OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI + KAISER GMBH DARF DIESE TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT

NOCH DRITTEN MITGETEILT ODER ZUGÄNGLICH GEMACHT WERDEN NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VERWENDET

WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.

FREIG:

GEPR:

GEZ:

DATUM: NAME:

WERKSTOFF



MAßSTAB:

OBERFLAECHEN NACH

DIN ISO 1302 REIHE 2

ZUL. ABWEICHUNG

DIN 2768 - mH

+0,3

-0,3

WERKSTUECKKANTEN

NACH DIN 6784

Gewerbegebiet Larsheck

56271 Kleinmaischeid

Deutschland

0186-00-00

07.03.2016

Abmaße:

Fertigung:

Behnke

Gewicht:

85431.6

circulus1.2

Draufsicht

Mounting instruction for merry-go-round „circulus 1 ower“

Item No. 51 4024 401

State: 17.06.2016 p. 4

In order to preserve a good visual appearance of your stilum playground equip-

ment over a long period one should take care of maintenance of the stainless

surface even despite of their corrosion resistance.

Especially areas, which can not be reached by rainfall should be frequently clea-

ned from dirt and deposits due to air pollution and dirt caused by the atmosphere.

Light soiling can easily be romoved by using a high pressure cleaner.

For persistent deposits use a clean cloth moistened with a special liquid cleaner

(e.g. on phosphoric acid) and rinse off with clear water after a short application

time. During cleaning with mild abrasive components, only wipe over stainless

steel surface in polishing direction.

For heavily soiled surfaces, polishes can be used (e.g. for cleaning chrome on

cars) or for greasy and oily dirt alcoholic cleaning agents and solvents (e.g. ethyl

alcohol, isopropyl alcohol or acetone).

However, it should be noted that the dissolved soiling is not spread over the sur-

face again.

Do not use any chlorid or hydrochloric containing cleaning products nor scouring

powder, bleaching - or silver polish cleaner. Cleaning intervals depend on type

and degree of soiling as well as on demands made on optical characteristics.

Therefore cleaning is advisable at intervals of six to twelve months – whereby in

the case of strong soiling it is appropriate to clean the playground equipment at

intervals of 3 to six months.
