Stilum Angulus 2A Guía del usuario

Mounting instruction large play equipment „angulus 2A“

Item-No. 51 7522 601

climbing arc

sliding bar

hexagons

Post

climbing net

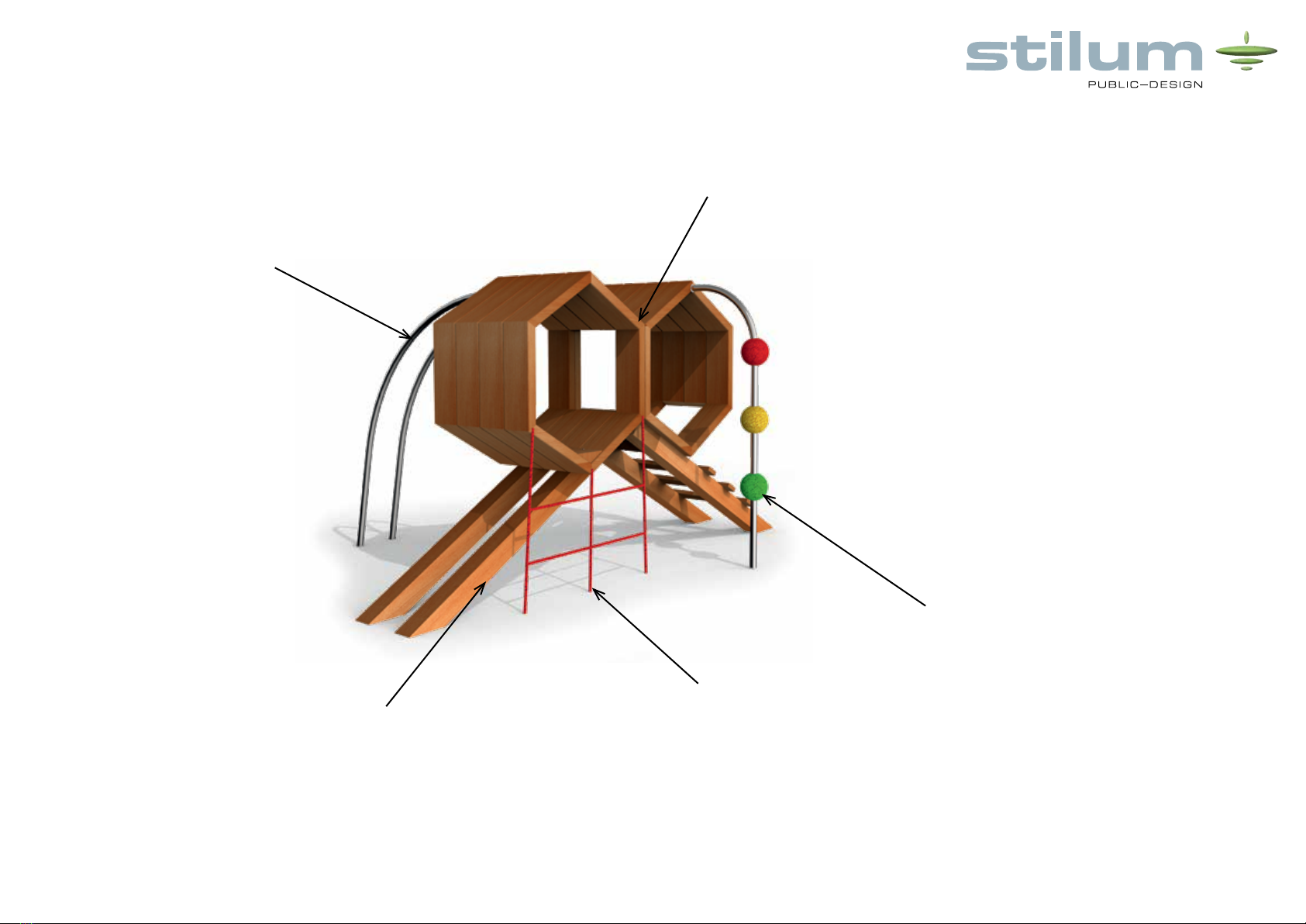

Diagram 1: Overall view of play equipment with description of individual elements

Mounting instruction large play equipment „angulus 2A“

Item-No. 51 7522 601

1. Select the play equipment location in consideration of the required safety

area (see Diagram 3: 6300x5250mm).

2. Carry out excavation work for 5 foundations as shown in Diagram 2.

After excavation, compress the foundation oor.

Note: The combination equipment is built in on the play level. Pay attention

to items marked „game level” of play equipment!

3. Setup the two main foundations (LxWxH 995x600x400mm), and the founda-

tion for the climbing arc (LxWxH 600 x 600 x 400mm), the foundation for the

sliding bar (LxWxH 800x400x400mm) and the foundation of the climbing net

(LxWxH 1300x400x400) acc. to the dimensions indicated in diagram 2 the

quality class C 20/25 with horizontal reinforcement.

4. After a setting period of 10-14 days, depending on weather conditions and

foundation size - clean the surface of the foundations and start with the instal-

lation of the combination equipment.

450400

850

A A

966

2132

716

3198

995

600

400

1300

800

400

600

995

1821

1647

1021

A-A

OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI+KAISER GMBH DARF DIESE

TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT, NOCH DRITTEN MITGETEILT ODER

ZUGÄNGLICH GEMACHT WERDEN, NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VER-

WENDET WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.

Oberflächen nach

DIN ISO 1302

Reihe 2

Zul. Abweichung

DIN 2768 - mH

angulus2

Benennung

Gepr.

Werkstoff

Blatt

Datum

Projekt

Gez.

Zuschnitt

Zeichnungsnummer

Rev Änderung Datum

1:30

Gewicht

Name

Fundament

1021-00-00

7914.2

Maßstab

Mattheis 22.03.17

Gewerbegebiet Larsheck

56271 Kleinmaischeid

Deutschland

Beton

Concrete

Füllmaterial

Filling

Erde

Ground

Legende

450400

850

A A

966

2132

716

3198

995

600

400

1300

800

400

600

995

1821

1647

1021

A-A

OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI+KAISER GMBH DARF DIESE

TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT, NOCH DRITTEN MITGETEILT ODER

ZUGÄNGLICH GEMACHT WERDEN, NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VER-

WENDET WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.

Oberflächen nach

DIN ISO 1302

Reihe 2

Zul. Abweichung

DIN 2768 - mH

angulus2

Benennung

Gepr.

Werkstoff

Blatt

Datum

Projekt

Gez.

Zuschnitt

Zeichnungsnummer

Rev

Änderung

Datum

1:30

Gewicht

Name

Fundament

1021-00-00

7914.2

Maßstab

Mattheis 22.03.17

Gewerbegebiet Larsheck

56271 Kleinmaischeid

Deutschland

Beton

Concrete

Füllmaterial

Filling

Erde

Ground

Legende

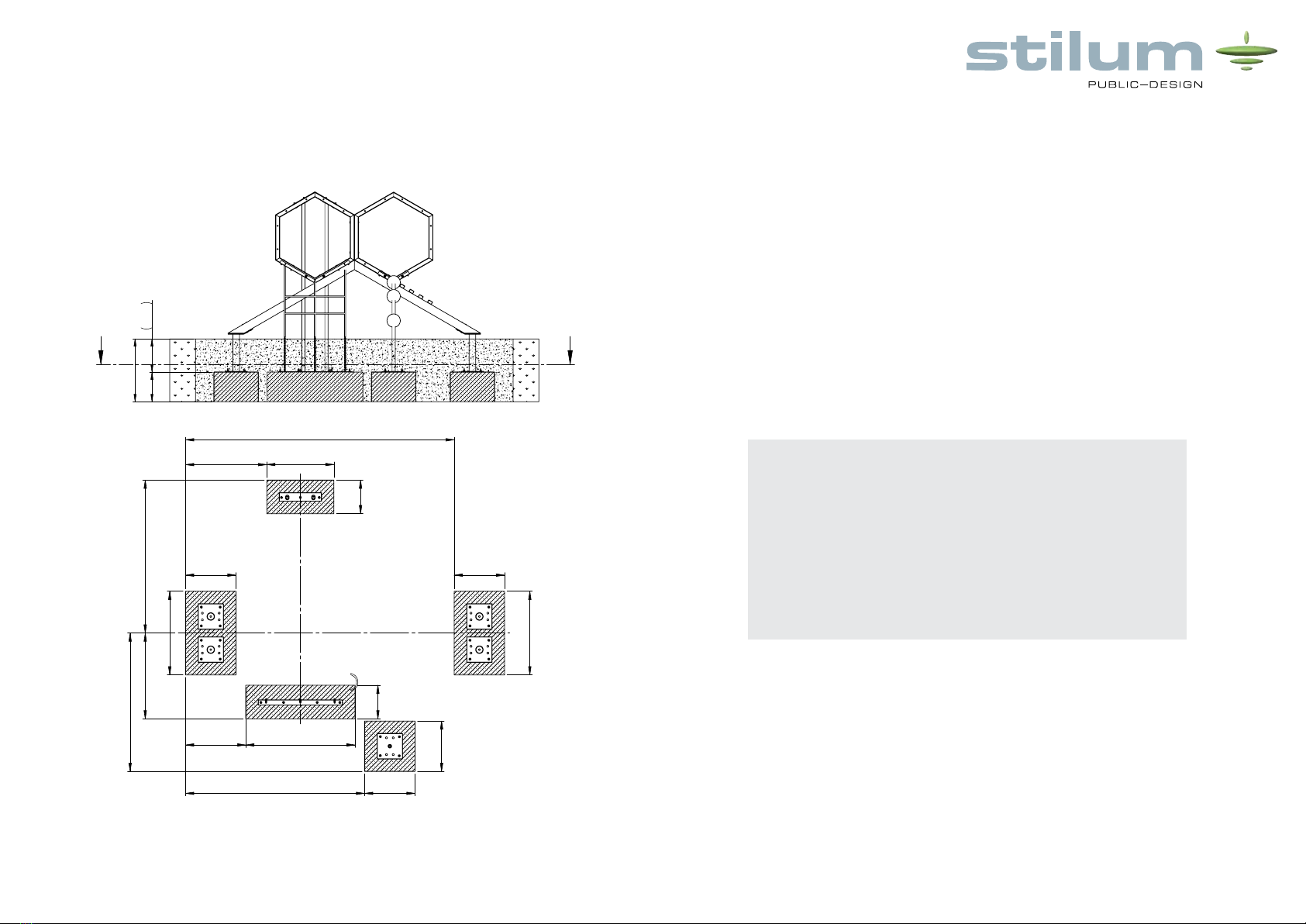

Diagram 2: Foundation plan with dimension details „angulus 2“

Reinforcement plan:

Concrete foundation with reinforcement

Main foundation: BSt 500S

Ever 4 stirrups Ø 8 mm lengthwise and cross

Concrete cover h´= 3 cm

Concrete quality class C 20/25

Foundations for attachment parts are no-reinforced

Mounting instruction large play equipment „angulus 2A“

Item-No. 51 7522 601

5250

6300

OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI+KAISER GMBH DARF DIESE

TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT, NOCH DRITTEN MITGETEILT ODER

ZUGÄNGLICH GEMACHT WERDEN, NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VER-

WENDET WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.

Oberflächen nach

DIN ISO 1302

Reihe 2

Zul. Abweichung

DIN 2768 - mH

angulus2

Benennung

Gepr.

Werkstoff

Blatt

Datum

Projekt

Gez.

Zuschnitt

Zeichnungsnummer

Rev Änderung Datum

1:30

Gewicht

Name

Draufsicht

1021-00-00

374.5

Maßstab

Behnke 23.03.17

Gewerbegebiet Larsheck

56271 Kleinmaischeid

Deutschland

5. Place the premounted construction of the hexagons at the posts

as described in diagramm 1 and 2 on the foundation.

Note: Do not screw the base plates onto the foundations yet!

6. Connect the climbing arc, the sliding bar, and the climbing net with

the hexagons as described in diagram 4 and x it (screws inclu-

ded in delivery).

7. Align the play equipment more on the foundations.

Note: Avoid sagging of the climbing net.

8. Drill holes into all foundations and screw the play equipment into

the foundations with the included heavy-duty dowels.

9. Fill up and compress the holes between the foundation and the

foundation hole with the excavation.

10. Seal the foundation with the safety cover required for the height of

fall

indicated.

Critical drop height: 900 mm.

Recommended surface material: grass, sand, wood chip, gravel,

synth. fall protection.

11. Do not allow children to use the equipment before the installation

has been nished.

12. After 3 months, check the screws at the joints and retighten them

if necessary.

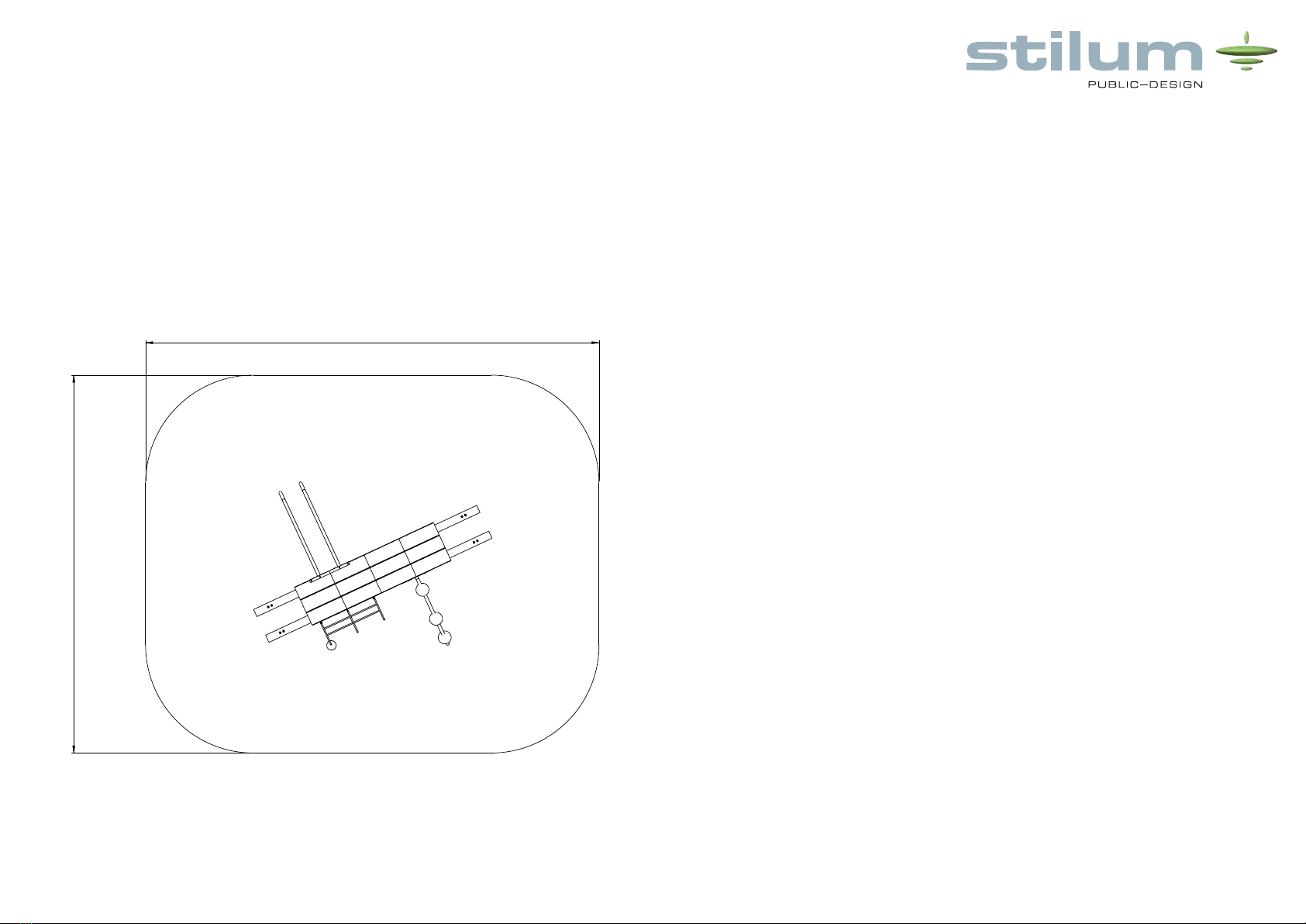

Diagram 3: Minimum space

Mounting instruction large play equipment „angulus 2A“

Item-No. 51 7522 601

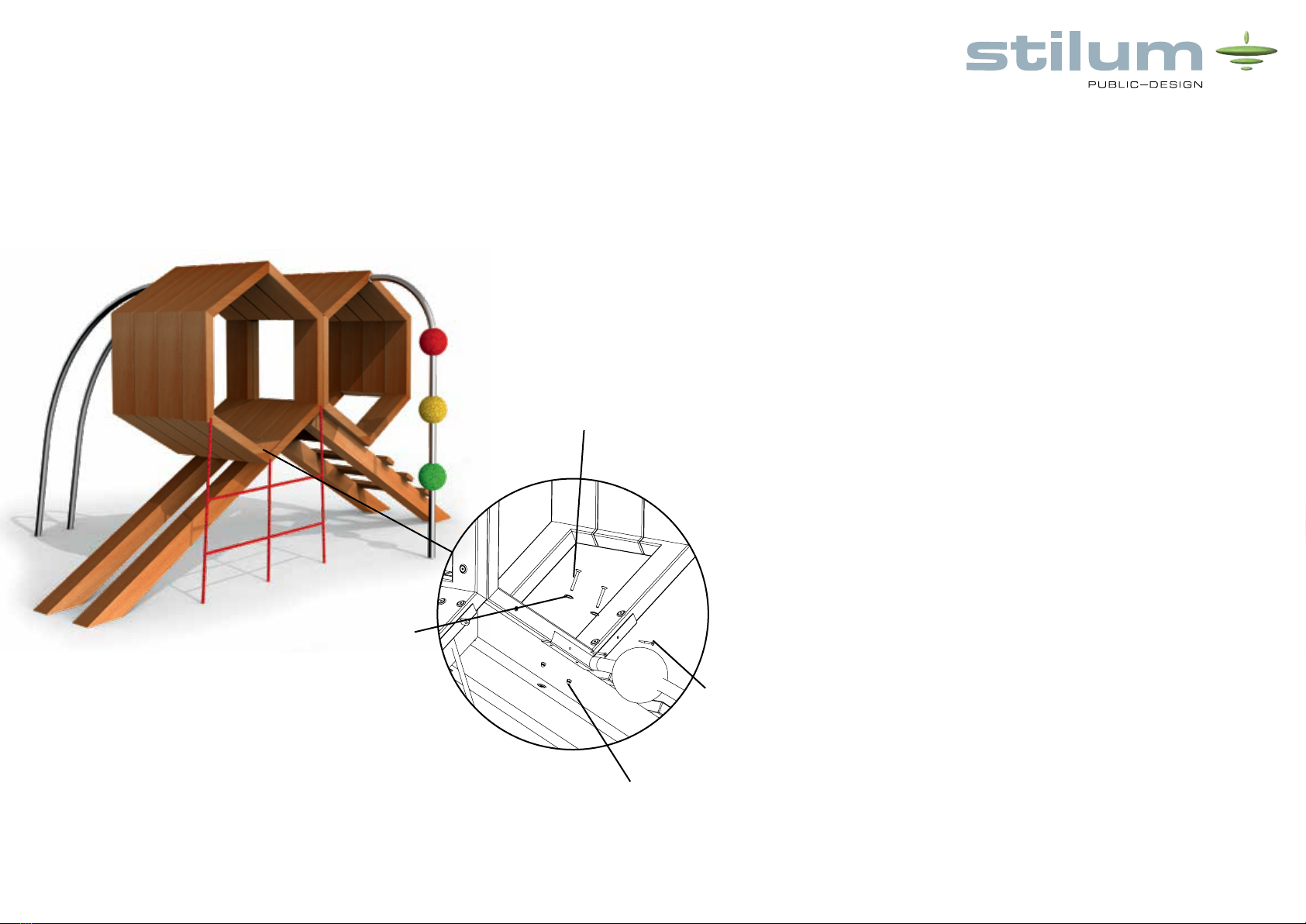

Diagram 4: Connection of the climbing parts

Screw 6x60

ring washer

nut M8

Screw M8x70

Attention: If the play equipment has been incompletely installed or partly

dismantled when carrying out maintenance and repair work, this may

lead to

particular risks of injury for the user. For this reason, make clearly visible

that the equipment shall not be used in such cases.

NOTE: Play equipment, which contain components made of stainless

steel should not come with „normal“ steel parts in contact. Those steel

parts may rub off and leave small steel particles in combination with

moisture brown rust stains. If such corrosion occur on stainless steel

parts, they are ne to remove with an abrasive (240 grit).

Please take care when transporting and setting up the fact that the

components are made of stainless steel with no „normal“ steel parts in

contact.

OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI+KAISER GMBH DARF DIESE

TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT, NOCH DRITTEN MITGETEILT ODER

ZUGÄNGLICH GEMACHT WERDEN, NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VER-

WENDET WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.

Oberflächen nach

DIN ISO 1302

Reihe 2

Zul. Abweichung

DIN 2768 - mH

angulus2

Benennung

Gepr.

Werkstoff

Blatt

Datum

Projekt

Gez.

Zuschnitt

Zeichnungsnummer

Rev Änderung Datum

1:5

Gewicht

Name

Draufsicht

1021-00-00

381.8

Maßstab

x xx.xx.xx

Gewerbegebiet Larsheck

56271 Kleinmaischeid

Deutschland

Mounting instruction large play equipment „angulus 2A“

Item-No. 51 7522 601

In order to preserve a good visual appearance of your stilum playground equipment

over a long period one should take care of maintenance of the stainless

surface even despite of their corrosion resistance. Especially areas, which can not

be reached by rainfall, should be frequently cleaned from dirt and deposits due to air

pollution and dirt caused by the atmosphere. Light soiling can easily be removed by

using a high pressure cleaner. For persistent deposits use a clean cloth moistened

with a special liquid cleaner (e.g. on phosphoric acid) and rinse off with clear water

after a short application time. During cleaning with mild abrasive components, only

wipe over stainless steel surface in polishing direction. For heavily soiled surfaces,

polishes can be used (e.g. for cleaning chrome on cars) or for greasy and oily dirt

alcoholic cleaning agents and solvents (e.g. ethyl alcohol, isopropyl alcohol or ace-

tone). However, it should be noted that the dissolved soiling is not spread over the

surface again. Do not use any chloride or hydrochloric containing cleaning products

nor scouring powder, bleaching - or silver polish cleaner. Cleaning intervals depend

on type and degree of soiling as well as on demands made on optical characteris-

tics. Therefore cleaning is advisable at intervals of six to twelve months – whereby in

the case of strong soiling it is appropriate to clean the playground equipment at inter-

vals of 3 to 6 months.
