STI Alert Point Guía de solución de problemas

Alert

Point

Installation Guide

& User Manual

Installation Guide

Introduction 2

Box Contents & Key Components 3

Speciﬁcations 3

Alert Point Installation 4

Removal of the Front Cover 6

User Manual

Programmable Features 8

Other Features 9

Installing a 12-30 VDC Power Supply 10

Installing External Sounders 11

Installing External Strobes / Beacons 12

Installing External Detectors 13

Networking the Alert Point 14

Networking Features 16

Troubleshooting 17

PCB Terminal Diagram 18

Using an Alert Point as a Manual Call Point (MCP) 18

DIL switch settings - Programmable Features

Contents Page

Introduction

The Alert Point is an aesthetically pleasing, robust and fully featured stand alone alarm

system. Powered with a 9 VDC alkaline battery, the Alert Point includes an integral

sounder and resettable call point.

Manufactured from tough polycarbonate, the Alert Point is designed for use in

industrial as well as commercial or retail applications.

Quick and easy to install and providing protection within minutes, the Alert Point is

an ideal solution for establishments that have a requirement for a simple but effective

alarm system. They may include: industrial/temporary buildings, warehouses,

portacabins, churches, car parks, small ofﬁces and holiday parks etc. Where an EN54

ﬁre system is decommissioned on a construction site, the Alert Point is ideal as a

temporary system for raising an alarm in the event of an emergency.

Available in a variety of colours, the Alert Point can be used for a wide range of

applications such as ﬁre, intruder, panic, evacuation, assist or general alarm. It also

incorporates a tamper switch to prevent unauthorised removal or misuse.

-2-

-3-

Box Contents & Key Components

Contents

1. Reversible Mounting Plate (x1)

2. Chassis (x1)

3. Front Cover (x1)

4. Installation Kit (x1)

Master Key

Switch Cylinder

Operating Element

1. Reversible Mounting Plate

Integral Sounder

9V DC Battery

Tamper Switch

3. Front Cover

2. Chassis

Speciﬁcations

Power source 9 VDC battery (supplied) or 12-30 VDC

Standby current 45µA

Alarm current 28mA low volume / 32mA high volume

Operating temperature 0ºC to 49ºC

Sounder output (at 1 metre) 95 dB – 102 dB

Sounder tones 7

Tamper tone 1

Network >2 Alert Points spaced less than 50m apart

Reset Key

Master Key

4. Installation Kit

1” Screws (x4)

Rawlplugs (x4)

Need technical support? Call us on +44 (0)1527 520 999

-4-

Alert Point Installation

The reversible mounting plate can be

installed in any orientation; depending on

the required conduit entry and exit points.

Mark the 4 ﬁxing points (as shown) and

install using the screws and Rawl plugs

provided.

Pilot point x2

Pilot point x1

Step 1. Install the Reversible Mounting Plate

Fixing Points x4

Step 2. Attaching the chassis

Attach by pushing the chassis over the 4 ﬁxing clips on the mounting plate (highlighted).

Fixing clip

Step 3. Consult the User Manual for other programmable features

(Programmable Features page 8 & DIL switch settings page 19)

Step 4. Attach front cover

Detail

Line up each end using the channels located on the raised conduit sections

(see detail). Push evenly until the cover locks into place via 4 raised mounting

clips situated on each corner.

Need technical support? Call us on +44 (0)1527 520 999

-5-

Alert Point Installation

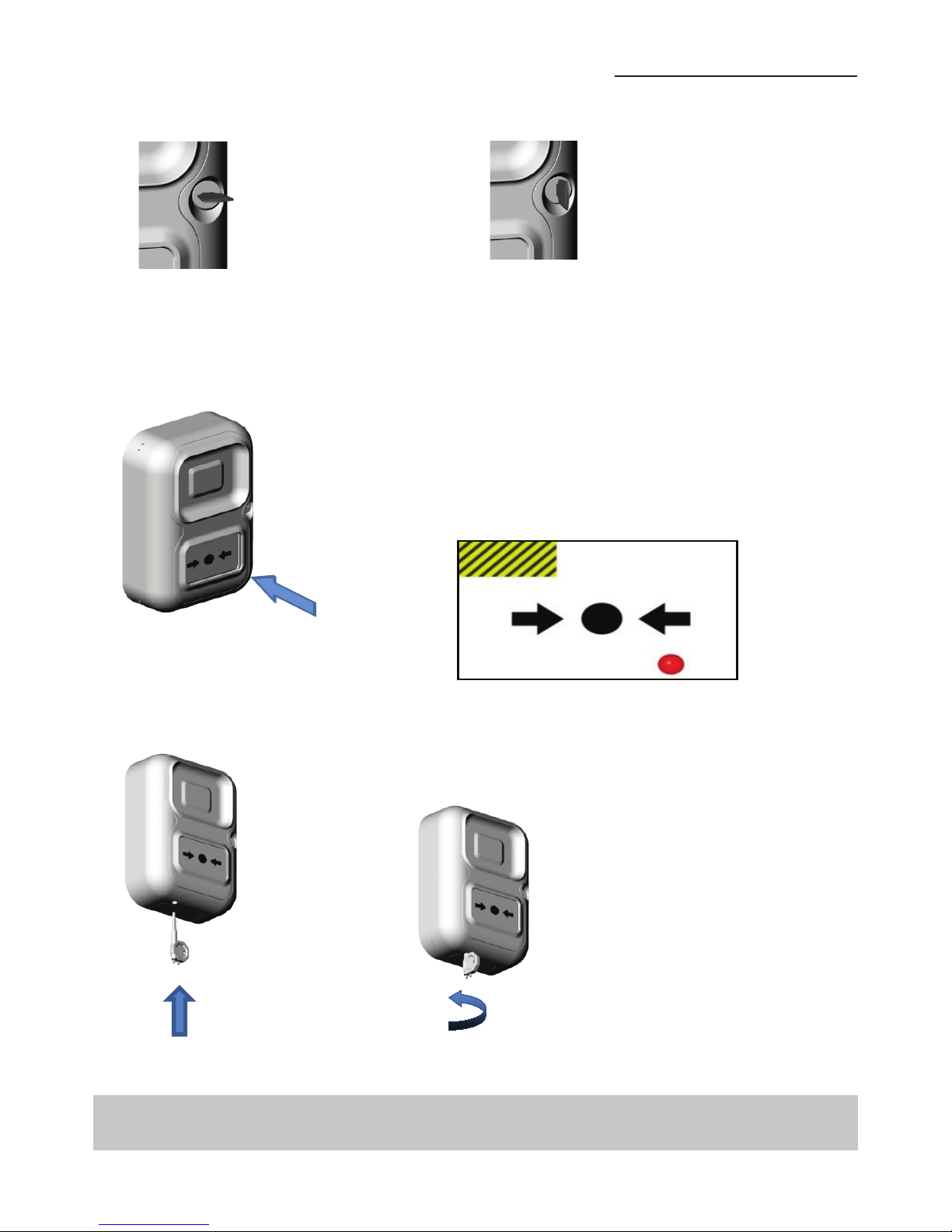

Step 5. Turn the unit `ON’

Horizontal position - ‘0FF’. Vertical position - ‘ON’.

Using the Master Key, turn the Key Switch Cylinder to the Vertical position. The

LED will ﬂash green when turned ‘ON’ – unit in ;standby condition.’

Step 6. Test

A warning indicator drops into view, the

unit will alarm and the LED will turn red

when the Alert point is activated.

Step 7. Reset the unit

A quick turn of the key and the

Alert Point is reset, returning to

‘standby condition’ and is ready

for use straight away.

Depress the operating element.

Simply insert the reset

key into the bottom of

the Alert Point.

Need technical support? Call us on +44 (0)1527 520 999

-6-

Removal of the front cover

Using the 2 pips on the reset key provided, push ﬁrmly into each of the 4 corner

clips individually, releasing them, whilst at the same time gently pulling the cover

away from the remainder of the unit.

Need technical support? Call us on +44 (0)1527 520 999

-7-

User Manual

-8-

Programmable Features

Settings

1. Integral Sounder Tones: DIL Switch No SW1 - SW3

The Alert Point has seven different selectable alarm tones ranging from

95 dB to 102 dB, along with a preﬁxed tamper tone.

2. External Power Provided (12-30 VDC): DIL Switch No SW4

This setting allows the unit to be run from an external

power source.

3. Relay Setting: DIL Switch No SW5

When part of a network, this setting allows the option of sending a triggering

signal via the relay to an alarm panel, either:

• Relay is only triggered on the activated unit

• Relay sends triggering signal even when another unit is activated.

4. External Sounder/Strobe Trigger: DIL Switch No SW6

This setting allows the option of sending a triggering signal to externally ﬁtted

sounders, along with strobes/beacons.

5. Internal & External Sounder Timer Options: DIL Switch No SW7 & SW8

4 alarm durations are available and can be selected by changing the DIL switch

settings. These are: continuous, 30 seconds, 3 minutes and 20 minutes.

If any duration period other than `continuous’ is used, the alarm will silence after the

selected time has elapsed. The LED will continue to ﬂash red until the unit is reset using the reset key.

6. External Strobe Timer Options: DIL Switch No SW9 & SW10

4 strobe durations are available and can be selected by changing the DIL switch

settings. These are: continuous, 30 seconds, 3 minutes and 20 minutes.

If any duration period other than ‘continuous’ is used, the strobe will cease ﬂashing. The Alert

Point will still need to be reset, the LED will still ﬂash red until this has been done.

7. Key Switch – Manual or Auto Reset: DIL Switch No SW11

This allows the user greater control if misuse becomes a major factor.

Auto reset: The Alert Point will fully reset after activation when using the reset key.

Manual: Even if the Alert Point is reset after activation using the reset key, all

sounders and strobes will continue to run until the unit is reset using the master

key switch.

8. Networking the Alert: DIL Switch No SW12

If this switch is ‘ON’ the Alert Point expects to be connected to another Alert

Point otherwise a fault is indicated. If the switch is ‘OFF’ the Alert Point will not

expect to be connected to another Alert Point.

Note: DIL Switch settings are shown on page 19

PCB Layout

DIL Switch

Need technical support? Call us on +44 (0)1527 520 999

-9-

Other Features

Integral sounder volume: The Alert Point has 2 volume settings – High and Low: this

is determined by the position of the jumper connector conﬁguration show below.

High: Jumper between centre pin and bottom pin (factory setting)

Low: Jumper between centre pin and top pin

Note: Silencing the Alert Point is possible by not having the jumper ﬁtted, but no

sound will be produced by the integral sounder during alarm, fault or tamper conditions.

Low battery check: The Alert Point monitors the output power of the 9 VDC battery

in 16 minute cycles. If the battery falls below the

recommended power level the unit will display a fault, emitting

a periodic single beep.

Battery life: The working life of the 9 VDC battery under normal `standby’

condition is a minimum of 15 months: it is recommended that

this battery is replaced at least every 15 months.

Battery back up: When the Alert Point is powered by a 12-30 VDC power

supply, the 9 VDC battery will become a backup if the external

power is lost. The unit will display a fault until the external

power has been restored.

PCB Layout

Jumper connector

Bottom Pin

To adjust the volume setting, lift

off the jumper connector and then

place over and push onto the

selected pins

Need technical support? Call us on +44 (0)1527 520 999

-10-

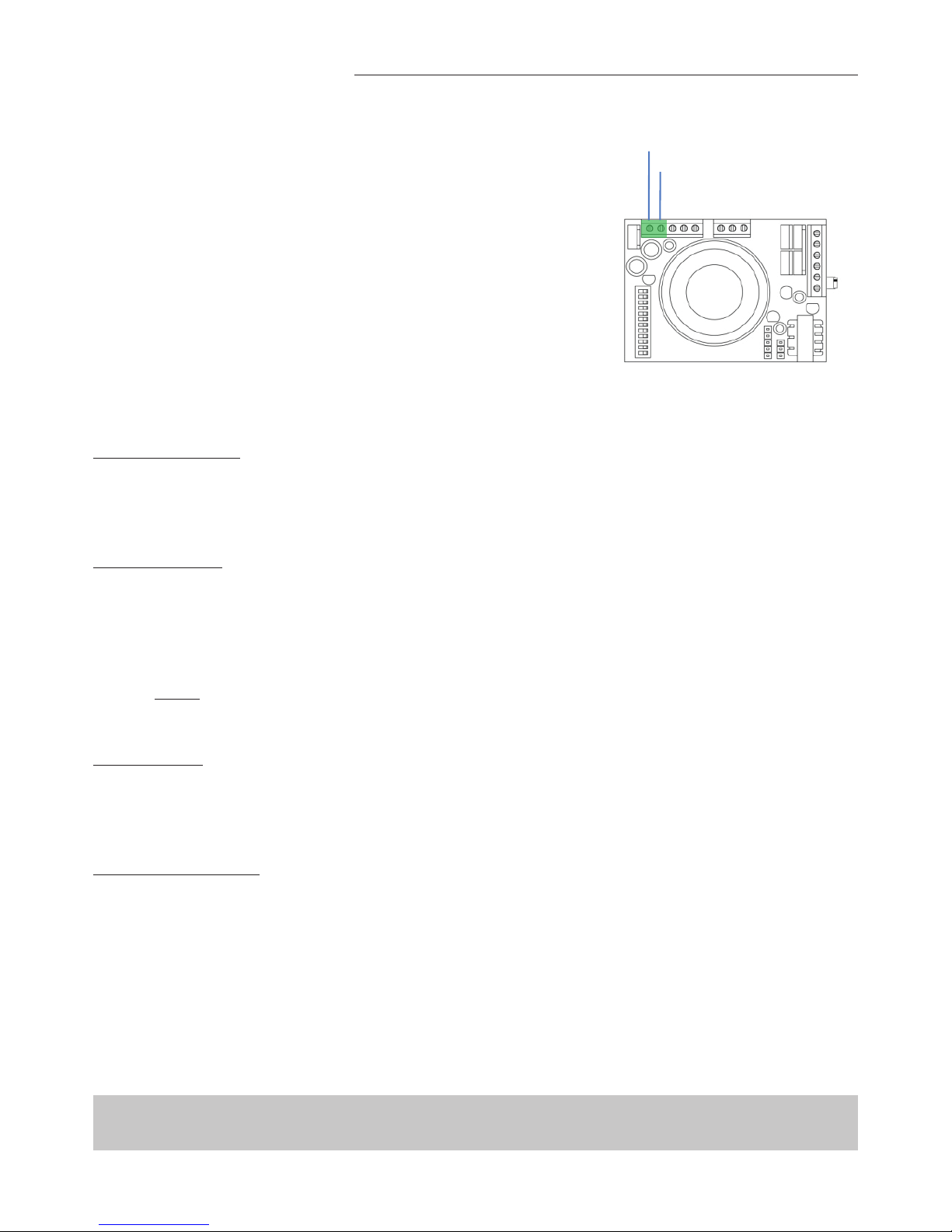

Installing External 12-30 VDC Power Supply

Alarm Condition: If the unit is activated in the event of an emergency (depression of

the operating element) it will immediately emit an alarm tone for the duration selected,

an activation ﬂag will drop into view and the LED will ﬂash red every 8 seconds until the

unit is reset.

Resetting Unit:

1. DIL switch settings: changes will only take effect when the unit has been powered

back up using the master key switch.

2. Silencing Alarm : If the operating element has been depressed the reset Key is to

be used to reset the unit, returning it to Standby Mode.

Note: the master key switch can be used to silence the alarm but this will turn the unit ‘OFF’

and the alarm will continue to sound when the unit is turned back `ON’.

Power Loss: In the event of any loss of power, the LED will turn red and emit a short

beep every 90 seconds. The unit will still run safely using the 9 VDC battery as a back

up. As soon as power is restored the unit will automatically return to the `standby’

condition.

Low or No Battery: If the unit is reset but the battery is at low power or not attached a

fault will be indicated – the LED will turn red and the unit will emit a short single

beep every 90 seconds.

The unit automatically checks for low battery status every 16 minutes, during this

period if the battery falls into low battery condition (or is disconnected in the presence

of an external power source), the LED will turn red and emit a short beep every 90

seconds upon detection at the end of any 16 minute cycle. The battery will either need

replacing or reconnecting and the unit reset before it will return to a standby condition.

Step 1. Ensure that the unit is switched ‘OFF’.

Step 2. Insert the external power wires into the correct terminals.

Step 3. Connect the 9 VDC battery. The battery must be ﬁtted as it

will become a backup if there is a power failure.

Step 4. DIL switch SW4 – should be `ON’ (external power required).

Step 5. Turn the unit `ON’ using the master key switch.

Step 6. The LED will illuminate to a constant green indicating that the unit is functioning correctly.

External Power +

External Power -

Need technical support? Call us on +44 (0)1527 520 999
