RK1236BKF

12U 36in Depth Enclosed Server

Cabinet with Casters

*actual product may vary from photos

Instruction Manual

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Packaging Contents...............................................................................1

Installation ..............................................................................................3

Specications..........................................................................................6

Technical Support ..................................................................................7

Warranty Information............................................................................7

Instruction Manual

Packaging Contents

ID Name Qty

Rack Components

1Side Panel and Frame 2

2Upper and Lower Beams 4

3Top Panel 1

4Bottom Panel with Grommet 2

5Solid Bottom Panel 1

6Front Door Assembly 1

7Rear Door Assembly 1

8Plastic Corner Caps 8

Rack Assembly Hardware

9M8-25mm Hex Screws 8

10 M8 Lock Washers 8

11 M4-10mm Phillips Screws 8

12 Door Hinge Pins 2

13 M6-12mm Hex Screws 4

14 M5-10mm Self-Tapping

Screws 6

Frame Assembly Tools

15 M8 (13 mm) Allen Key 1

16 M6 (10 mm) Allen Key 1

Equipment Mounting Hardware

17 M6 Rack Screws 20

18 PVC Cup Washers 20

19 M6 Cage Nuts 20

Casters and Hardware

20 Casters 2

21 Brake Casters 2

22 M6-10mm Self Tapping

Screws 16

23 Leveling Feet 4

24 Front / Back Door Keys 2

25 Side Panel Keys 2

Instruction Manual

Installation

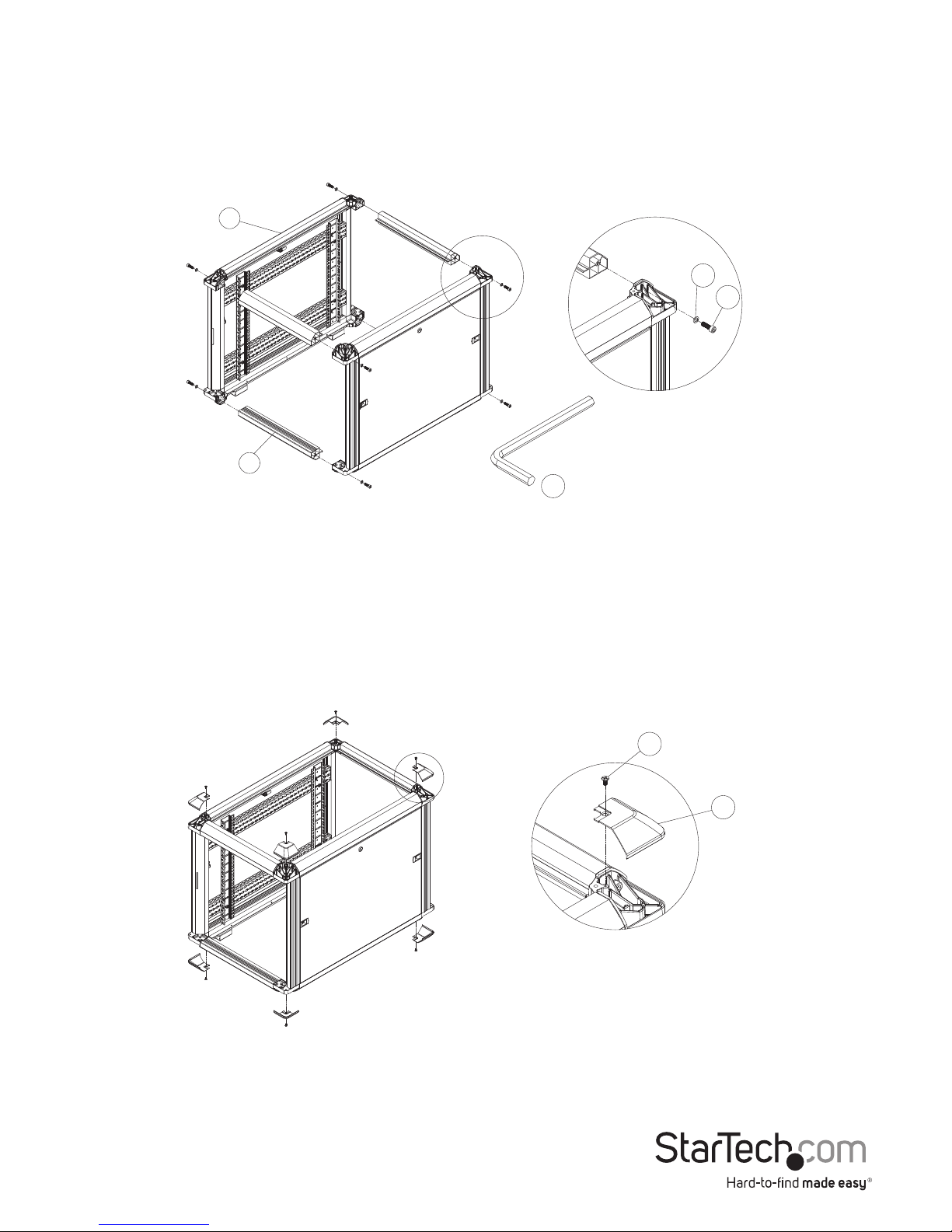

1. Attach the Side Panel and Frame (1) assemblies to the Upper and Lower Beams (2)

using the M8-25mm Hex Screws (9), M8 Lock Washers (10) and the M8 (13 mm)

Allen Key (15).

2. Install the Plastic Corner Caps (8) using the M4-10mm Phillips Screws (11).

Instruction Manual

3. (Optional) Install the Casters (20) / Brake Casters (21) on the bottom of the rack

using the M6-10mm Tapping Screws (22). Then thread the Leveling Feet (23) into

the pre-threaded holes.

4. Turn the rack right-side up and install the Bottom Panels with Grommet (4) at the

front and back of the rack, and the Solid Bottom Panel (5) in the middle. Secure

using the M5-10mm Self-Tapping Screws (14).

Instruction Manual

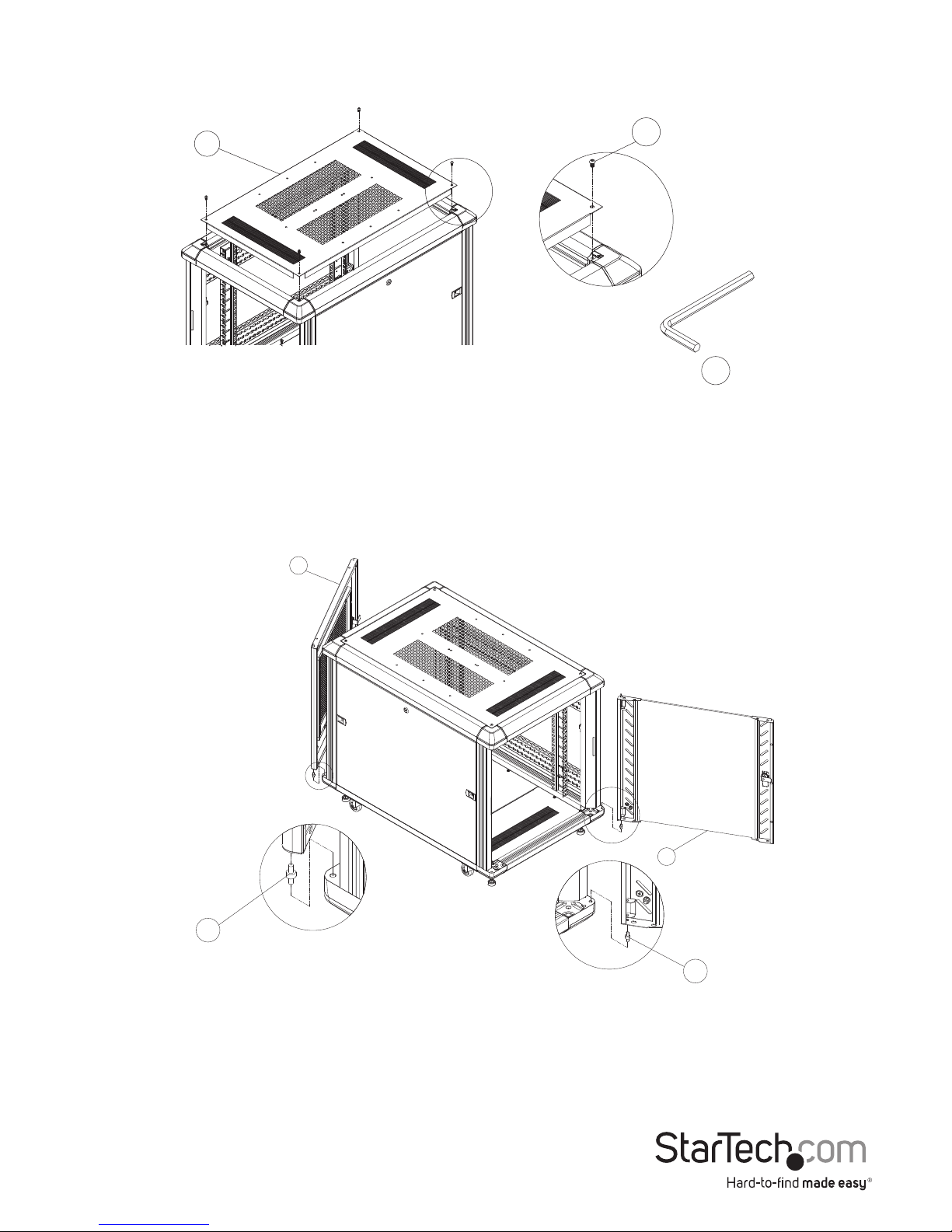

5. Install the Top Panel (3) and secure using the M6-12mm Hex Screws (13).

6. Install the Front Door Assembly (6) and Rear Door Assembly (7) using the Door

Hinge Pins (12).

Instruction Manual

Specications

U Height 12U

Material Steel

Rack Type 4-Post

Frame Type Enclosed Cabinet

Color Black

Max. Weight Capacity 1763.7lbs (800kg)

Minimum Mounting Depth 5.9in (150mm)

Maximum Mounting Depth 28.7in (730mm)

Dimensions (WxHxD) 23.62 x 26.1 x 35.43in (600 x 663 x 900mm)

Height with Casters 29.05in (738mm)

Weight 84.9lbs (38.5kg)

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a lifetime warranty.

In addition, StarTech.com warrants its products against defects in materials

and workmanship for the periods noted, following the initial date of purchase.

During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.
