ARMDUAL
Desk Mount Articulating Dual Monitor Arm
with Cable Management & Height Adjust
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Instruction Manual
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and do not
represent an endorsement of a product or service by StarTech.com, or an endorsement of the
product(s) to which this manual applies by the third-party company in question. Regardless
of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby
acknowledges that all trademarks, registered trademarks, service marks, and other protected
names and/or symbols contained in this manual and related documents are the property of
their respective holders.
Instruction Manual
i
Table of Contents
Introduction............................................................................................1
Package contents...................................................................................................................................... 1
Product diagram ....................................................................................2
Installation ..............................................................................................3
Convert the desk clamp to a grommet clamp................................................................................ 3
Desk or grommet mounting................................................................................................................. 5
Attach the displays................................................................................................................................... 7
Cable management.................................................................................................................................. 10
Adjusting LCD arm resistance............................................................................................................... 11
Specications..........................................................................................12
Technical Support ..................................................................................13
Warranty Information............................................................................13
Instruction Manual
1
Introduction
Package contents
LCD arms
Qty: Two
Dual mount
Qty: One
Desk clamp
Qty: One
Spacers
Qty: Eight
M4x12 mm screws
Qty: Eight
M4x25 mm screws
Qty: Eight
Grommet mount
Qty: One
M4 Allen key
Qty: One
M5 Allen key
Qty: One
Cover plate assembly
Qty: Two
Plastic gasket cushions
Qty: Four
Cable clips
Qty: Two
456
7 8
1 2 3
9
10 11 12
Instruction Manual
2
13
Instruction manual
Qty: One
Product diagram
Instruction Manual
3
Installation
WARNING! The maximum weight capacity of the Dual Monitor Arm is 27.2 kg (60 lbs).
Convert the desk clamp to a grommet clamp
The Dual Monitor Arm can be clamped to a desk or table, or mounted through a
grommet hole. The following instructions outline how to convert the default desk
clamp setup to a grommet clamp.
1. To disconnect the bottom half of the desk clamp (3), use the M4 Allen key (8) to
remove the two hex screws from the back of the desk clamp.
2. To disconnect the top half of the desk clamp (3), use the M4 Allen key (8) to remove
the four hex screws from the base of the pole.
Instruction Manual
4

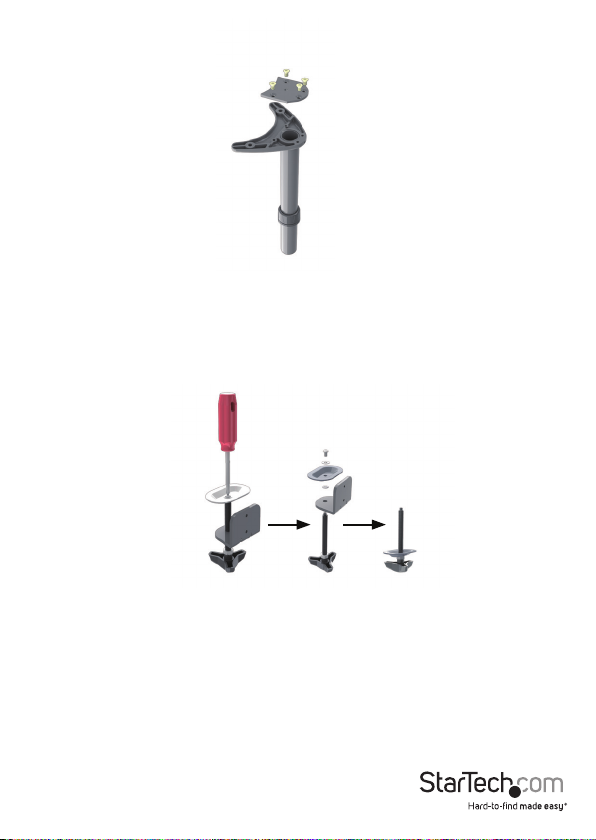

3. Use the four hex screws that you removed in step 2 to install the grommet mount
(7) to the base of the pole.
4. Use a Phillips screwdriver to remove the screw and two washers shown, and
disconnect the threaded shaft from the base of the desk clamp (3). Slide the plate
back onto the shaft.
Instruction Manual
5
Desk or grommet mounting
1. Adjust the height of the desk clamp (3) to t your desk surface (if applicable).
The clamp can be extended up to 75 mm (3 in.).
2. Place the four plastic gasket cushions (11) as shown.
Instruction Manual
6
3. Depending on the type of mount you are using, do one of the following:
• Desk clamp: Place the desk clamp (3) opening around the edge of your
desktop in your desired location and tighten the clamp by hand to secure it to
the table. Ensure that the desk clamp (3) is making full contact with the desk
surface.
• Grommet clamp: Place the base of the unit over the grommet hole and
thread the clamp into the grommet mount (7) until the clamp holds rmly
against the bottom of the desk.
Instruction Manual
7
Attach the displays
1. Loosen the collar on the support post and adjust it to the desired height.
2. Attach each of the LCD arms (1) to the dual mount (2).
3. Use the M5 Allen key (9) to remove the M6 screws and washers from each of the
cover plate assemblies (10).
4. Place the remaining cover plate assemblies (10) onto each of the LCD arms (1).
5. Reinsert each set of the M6 screws and washers back into their cover plate
assemblies, in the same order you removed them, through the bottom of each of
the LCD arms (1).
6. Use the M5 Allen key (9) to tighten each of the cover plate assemblies.
