PM1115P2

10/100Mbps Ethernet to Parallel Network

Print Server

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................2

Packaging Contents ................................................................................................................................. 2

System Requirements.............................................................................................................................. 2

Product Overview ..................................................................................3

LED Indicators.........................................................................................3

Reset Button................................................................................................................................................ 4

Default Settings ........................................................................................................................................ 4

Installation ..............................................................................................4

Hardware Installation .............................................................................................................................. 4

Software Installation................................................................................................................................ 5

Specications..........................................................................................14

Technical Support ..................................................................................15

Warranty Information............................................................................15

Instruction Manual

Introduction

Packaging Contents

• 1x Parallel Print Server

• 1x Power Adapter

• 1x Software CD

• 1x Quick Start Guide

System Requirements

• Windows® 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64), 2000, Windows® Server

2008 R2, 2003(32/64), Mac OS 10.x, 9.x, Linux

Instruction Manual

Product Overview

LED Indicators

LED State Indication

Status Blinking for POST (Yellow)

When power is connected, the Status

indicator will ash ve times, and then

go solid.

100Mbps On (Green) LAN Port has a valid network connection

at 100Mbps.

10Mbps On (Yellow) LAN Port has a valid network connection

at 10Mbps.

DC Jack

Ethernet

Port

Status LED

10Mbps

Indicator

100Mbps

Indicator Reset Button

Centronics Printer

Connector

Instruction Manual

Reset Button

Reboot the Print Server:

1. Verify the power of print server is turned on.

2. Press the reset button once, and then release it.

Note: This will restart the print server and stop all on-going and pending print jobs.

Reset to Factory Defaults:

1. Disconnect the power adapter from the print server.

2. Hold down the reset button.

3. Reconnect the power adapter while continuing to hold the reset button for

about 5 seconds.

4. Release the reset button.

5. The print server will restart.

WARNING: This will erase all settings on the print server and return it to factory

default.

Default Settings

DHCP client: o

IP Address: 192.168.0.10

Subnet Mask: 255.255.255.0

Installation

Hardware Installation

1. Turn o the power to your printer.

2. Connect the print server to your printer with the appropriate printer cable.

3. Turn the printer on.

4. Plug in the AC power adapter into the DC jack on the print server.

5. Wait 10 seconds until the Status LED has stopped ashing.

6. Connect an RJ45 network cable to the print server, then to your network switch

or wall jack.

Instruction Manual

Software Installation

For full operating instructions and specications, please visit www.startech.com/

PM1115P2

Windows

1. To enable network communication with print server, your computer must have a

proper IP address, e.g. 192.168.0.100 (the print server’s default IP is 192.168.0.10)

2. Insert the setup CD into your CD/DVD drive.

3. Select Setup Wizard from the Autoplay menu. If Autoplay is disabled on your

system, browse to your CD/DVD drive and run the application.

Note: The setup CD will install the print server driver, PSAdmin and Setup Wizard

into your computer. The default installation directory will be C:\Program les\

Network Print Monitor

4. Click Next on the following screen and the wizard will automatically discover the

print server. At this point of the install, you may Windows Firewall message, click

Allow Access if prompted.

Instruction Manual

5. From the “Select A Print Sever” screen, select the print server that you want to

congure and click Next.

Instruction Manual

6. Click “Yes, I want to change settings”, then click Next to congure the IP settings of

the print server to match your network.

Note: The IP address of print server must be within the same subnet as your

network adapter.

Instruction Manual

7. 7. In the setup wizard, select an already congured printer from the list, click Next,

Next and then Finish to complete the installation.

8. Select Add New Printer to launch the Windows Add Printer Wizard, if the print

server is connected to a printer that hasn’t been installed before and does not

appear in the list.

9. Click Next and select Local Printer, make sure the Automatically detect and

install my Plug and Play printer check box is NOT checked. Then click Next.

Tabla de contenidos

Otros manuales de Servidor de impresión de StarTech.com

StarTech.com

StarTech.com PM1115UWB Manual de usuario

StarTech.com

StarTech.com PM1115UWEU Manual de usuario

StarTech.com

StarTech.com PM1115P Manual de usuario

StarTech.com

StarTech.com PM1115UA Manual de usuario

StarTech.com

StarTech.com PM111UW Manual de usuario

StarTech.com

StarTech.com PM1115UA Manual de usuario

StarTech.com

StarTech.com PM1115UMF Manual de usuario

StarTech.com

StarTech.com PM111PW Manual

StarTech.com

StarTech.com PM1000IPNDS Manual de usuario

StarTech.com

StarTech.com PM1115P Manual de usuario

StarTech.com

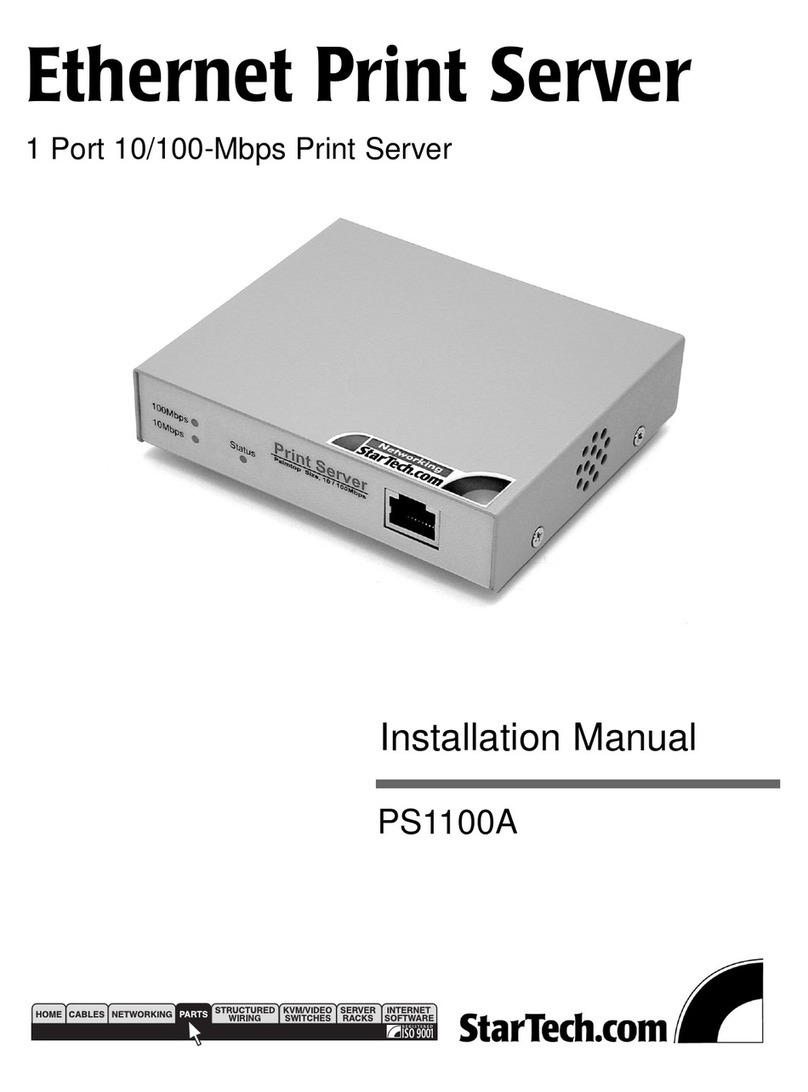

StarTech.com PS1100A Manual de usuario
